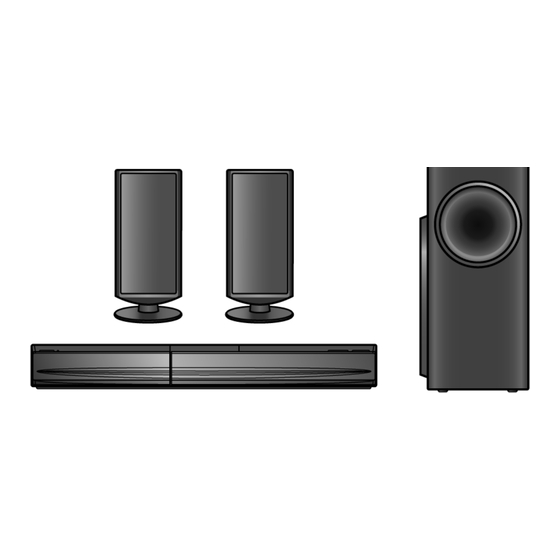

Panasonic SA-BT222EB Service Manual

Blu-ray disc home theater sound system
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Notes: 1) These model's BD Drive/Main P.C.B. Assembly are:-
2) Please refer to the original service manual for:
• Speaker system SB-BT222EG-K, Order No: PSG1003048CE.
Caution:
Pairing of BD Drive and Main P.C.B. as "BD Drive & Main P.C.B. Assembly" have to be replaced together. If
either BD Drive or Main P.C.B. is changed, BD Drive unit has to carry out re-adjustment due to alignment
data for BD Drive Unit is stored in the Main P.C.B.
TABLE OF CONTENTS
Blu-ray Disc Home Theater Sound System
- RFKNBT222EBA (For EB);
- RFKNBT222EGA (For EG).
Model No.
Volume 1
Product Color: (K)...Black Type
PAGE
© Panasonic Corporation 2010. All rights reserved.
Unauthorized copying and distribution is a violation
of law.
SA-BT222EB
SA-BT222EG
PSG1003045CE
PAGE

Advertisement

Table of Contents
loading

Related Manuals for Panasonic SA-BT222EB

Summary of Contents for Panasonic SA-BT222EB

  • Page 1 BD Drive or Main P.C.B. is changed, BD Drive unit has to carry out re-adjustment due to alignment data for BD Drive Unit is stored in the Main P.C.B. TABLE OF CONTENTS PAGE PAGE © Panasonic Corporation 2010. All rights reserved. Unauthorized copying and distribution is a violation of law.

  • Page 2: Table Of Contents

    1 Safety Precautions -----------------------------------------------3 10.23. Replacement of Regulator Diode (D5802) -------- 73 1.1. GENERAL GUIDELINES --------------------------------3 10.24. Replacement of Regulator Diode (D5803) -------- 74 1.2. Before Repair and Adjustment--------------------------3 10.25. Disassembly of Fan ------------------------------------- 75 1.3. Protection Circuitry-----------------------------------------4 11 Service Position------------------------------------------------- 77 1.4.

  • Page 3: Safety Precautions

    1 Safety Precautions 1.1. GENERAL GUIDELINES 1. When servicing, observe the original lead dress. If a short circuit is found, replace all parts which have been overheated or damaged by the short circuit. 2. After servicing, see to it that all the protective devices such as insulation barriers, insulation papers shields are properly installed.

  • Page 4: Protection Circuitry

    1.2.1. Caution for fuse replacement 1.3. Protection Circuitry The protection circuitry may have operated if either of the following conditions are noticed: • No sound is heard when the power is turned on. • Sound stops during a performance. The function of this circuitry is to prevent circuitry damage if, for example, the positive and negative speaker connection wires are “shorted”, or if speaker systems with an impedance less than the indicated rated impedance of the amplifier are used.

  • Page 5: Safety Parts Information

    1.4. Safety Parts Information Safety Parts List: There are special components used in this equipment which are important for safety. These parts are marked by ( ) in the Schematic Diagrams & Replacement Parts List. It is essential that these critical parts should be replaced with manufacturer’s specified parts to prevent shock, fire or other hazards.

  • Page 6: Caution For Ac Cord (For Eb Only)

    1.5. Caution for AC Cord (For EB only)

  • Page 7: Warning

    2 Warning 2.1. Prevention of Electrostatic Discharge (ESD) to Electrostatic Sensitive (ES) Devices Some semiconductor (solid state) devices can be damaged easily by static electricity. Such components commonly are called Elec- trostatically Sensitive (ES) Devices. Examples of typical ES devices are integrated circuits and some field-effect transistors and semiconductor “chip”...

  • Page 8: Precaution Of Laser Diode

    2.2. Precaution of Laser Diode Caution: This product utilizes a laser diode with the unit turned “on”, invisible laser radiation is emitted from the pickup lens. Wavelength: 790 nm (CDs), 655 nm (DVDs), 405 nm (BDs) Maximum output radiation power from pickup: 100 µW/VDE Laser radiation from the pickup unit is safety level, but be sure the followings: 1.

  • Page 9: Service Caution Based On Legal Restrictions

    2.3. Service caution based on Legal restrictions 2.3.1. General description about Lead Free Solder (PbF) The lead free solder has been used in the mounting process of all electrical components on the printed circuit boards used for this equipment in considering the globally environmental conservation. The normal solder is the alloy of tin (Sn) and lead (Pb).

  • Page 10: Handling Precautions For Bd Drive

    2.4. Handling Precautions for BD Drive The laser diode in the optical pickup unit may break down due to static electricity of clothes or human body. Special care must be taken avoid caution to electrostatic breakdown when servicing and handling the laser diode in the BD Drive. Figure 1 Grounding for electrostatic breakdown prevention 2.4.1.

  • Page 11: Service Navigation

    3 Service Navigation 3.1. Service Information This service manual contains technical information which will allow service personnel’s to understand and service this model. Please place orders using the parts list and not the drawing reference numbers. If the circuit is changed or modified, this information will be followed by supplement service manual to be filed with the original ser- vice manual.

  • Page 12: Caution For Replacing Parts

    Perform playback for one minute using the RAM disc. No abnormality should be seen in the picture, sound or operation. *Panasonic DVD-RAM disc should be used when recording and play- back. Perform playback for one minute using the BD-Video disc.

  • Page 13: Specifications

    4 Specifications Connector : 1 system Note: 1. Specifications are subject to change without notice. Mass and dimensions are approximate. Main unit SA-BT222EB/EG 2. Total harmonic distortion is measured by the digital spectrum GENERAL analyzer. Power supply: AC 220 V to 240 V, 50 Hz...

  • Page 15: Location Of Controls And Components

    5 Location of Controls and Components 5.1. Remote Control Key Button Operations...

  • Page 16: Main Unit Key Button Operations

    5.2. Main Unit Key Button Operations...

  • Page 17: Using Bd-Live Bonusview In Bd-Video

    5.3. Using BD-LIVE BONUSVIEW in BD-Video...

  • Page 18: Using The Ipod/Iphone

    5.4. Using the iPod/iPhone...
  • Page 19 5.4.1. iPod /iPhone Playback...

  • Page 20: Speaker Connections

    5.5. Speaker Connections...

  • Page 21: Disc Playability

    5.6. Disc Playability...

  • Page 23: Sd & Usb Information

    5.7. SD & USB Information...

  • Page 24: File Extension Type Support (Mp3/Jpeg/Divx/Avchd/Mpeg2 Files)

    5.8. File Extension Type Support (MP3/JPEG/DivX/AVCHD/MPEG2 files)
  • Page 25 5.8.1. File Folders Structures...

  • Page 26: Operating Instructions

    6 Operating Instructions 6.1. Removing of disc during abnomality 6.1.1. Using main unit key buttons. 6.1.1.1. When the power can be turned off. 1. Turn off the power and press & hold [SKIP FWD] button on remote and [OPEN/CLOSE] button on main unit for 5 seconds. 6.1.1.2.

  • Page 27: Self-Diagnostic And Special Mode Setting

    7 Self-Diagnostic and Special Mode Setting 7.1. Special Mode Table 1 Self-Diagnostic Function provides information for error to service personnel by Self-Diagnosis Display when any error has occurred. U**, H** and F** are stored in my memory and held. • You can check latest error code by transmitting [0] [1] of Remote Control in Service Mode. Automatic Display on FL will be cancelled when the power is turned off or AC input is turned off during self-diagnosis display is Item Key operation...

  • Page 28: Special Mode Table

    7.2. Special Mode Table 2 Item FL display Key operation Mode name Description Front Key Demonstration lock/ Ejection of the disc is prohibited. *When lock the tray. When the power is on, press unlock The lock setting is effective until unlocking the [PLAY] and [OPEN/CLOSE] keys tray released...

  • Page 29: Error Code Table

    7.3. Error Code Table 7.3.1. Error Code Table (For BD) Error Code Diagnosis contents Description Monitor Display Automatic FL display Remote control code error Display appears when main unit and remote No display controller codes are not matched. is remote controller code of the main unit.
  • Page 30 7.3.2. Error Code Table 2 (For BD) Error Code Diagnosis contents Description Monitor Display Automatic FL display SELF Restoration operation Since the power cord fell out during a power No display SELF CHECK CHECK failure or operation, it is under restoration operation.

  • Page 31: Service Mode

    7.4. Service Mode To enter service mode: While the power is off, press & hold [VOL+] & [OPEN/CLOSE] button on main unit for 3 secs or more follow by [PLAY] button on main unit. 7.4.1. Service Mode Table 1 Item FL display Key operation Mode name...
  • Page 32 7.4.2. Service Mode Table 2 Item FL display Key operation Mode name Description (Remote controller key) Laser Used Time Check laser used time (hours) of drive. Press [4] [1] in service mode. Indication ****** (******) is the used time display in hour.
  • Page 33 7.4.3. Service Mode Table 3 Item FL display Key operation Mode name Description (Remote controller key) BD/DVD drive last error BD/DVD drive error code display. 1. Error Number is displayed for 5 Press [4] [2] in service mode. seconds. **** 2.
  • Page 34 7.4.4. Service Mode Table 4 Item FL display Key operation Mode name Description (Remote controller key) In case that the maker cannot be 6. Disc maker ID is displayed for 5 identified, display is black out. seconds. 7. Factor of drive error (hexadeci- mal) occurring is left displayed.
  • Page 35 7.4.5. Service Mode Table 5 Item FL display Key operation Mode name Description (Remote controller key) CEC (H) output Check of the CEC terminal high output of Press [5] [5] in service mode. HDMI. CECHOK CECHNG CEC (L) output Check of the CEC terminal low output of Press [5] [6] in service mode.

  • Page 36: Troubleshooting Guide

    8 Troubleshooting Guide 8.1. Troubleshooting Guide for F61 and/or F76 Symptom Checking items Possible Fault(s) Remarks Set cannot ON AC Cord Faulty AC Cord,Loose connection Refer to P5701 soldier crack,dry joint,etc. AC Inlet P5701 SMPS F1 fuse open Fuse F1 P.C.B.
  • Page 37 8.1.1. SMPS P.C.B. Photocouple: Switching IC: IC5799 PC5702, D5799 FUSE: F1 Rectifier: D5802 Switching IC: IC5701 Transformer: T5701 Figure 1. SMPS P.C.B.
  • Page 38 8.1.2. Power P.C.B. (Side A of Power P.C.B.) Q2903 Q2902 IC2901 (Side B of Power P.C.B.) CN2916, CN2917, L2902 L2907 L2908 Fig 2. Power P.C.B.
  • Page 39 8.1.3. Main P.C.B. CN2004 IC2302, LB2301 Fig 3. Main P.C.B.

  • Page 40: Service Fixture & Tools

    9 Service Fixture & Tools 9.1. Service Tools and Equipment Prepare service tools before process service position. Service Tools Remarks SMPS P.C.B. (JW2*) - Main P.C.B. (CN2004) REXX1037 (10P Cable) Main P.C.B. (CN2006) - D-Amp P.C.B. (CN5402) RFKZBT230P (18P FFC)

  • Page 41: Disassembly And Assembly Instructions

    10 Disassembly and Assembly Instructions Caution Note: • This section describes the disassembly and/or assembly procedures for all major printed circuit boards & main compo- nents for the unit. (You may refer to the section of “Main components and P.C.B Locations” as described in the service manual) •...

  • Page 42: Disassembly Flow Chart

    10.1. Disassembly Flow Chart 10.3.Top Cabinet 10.4. AC Inlet P.C.B. 10.7. Front Panel Block 10.15.BD Drive 10.8. Panel P.C.B. 10.19. Power P.C.B. 10.5. Optical In P.C.B. 10.9. Power Button 10.6. Rear Panel 10.20. SMPS P.C.B. P.C.B. 10.21. Switching Regulator 10.10.Cradle Lid 10.16.

  • Page 43: Main Components And P.c.b. Locations

    10.2. Main Components and P.C.B. Locations...

  • Page 44: Disassembly Of Top Cabinet

    10.3. Disassembly of Top Cabinet Step 1 Remove 2 screws. Step 2 Remove 3 screws. Step 5 Press down the catches one by one. Caution: To avoid shocked by electricity & injured by high temperature. DO NOT TOUCH electrical components when insert hand under the Top Cabinet.

  • Page 45: Disassembly Of Ac Inlet P.c.b

    Step 1 Remove 1 screw. Step 2 Lift up the AC Inlet P.C.B.from the rear panel. Caution: During assembling, ensure that catches of Top Cabinet is insert into Front Panel properly. Step 3 Desolder Red (TL10) & Black (TL20) wires on AC Inlet P.C.B..

  • Page 46: Disassembly Of Rear Panel

    Step 2 Detach 13P FFC at the connector (CN4002) on Optical In P.C.B.. Step 3 Remove 7 screws. Step 3 Slightly pull Optical In P.C.B. outwards as arrow (1) shown. Step 4 Press Optical In P.C.B. downwards to release it from the locator as arrow (2) shown.

  • Page 47: Disassembly Of Front Panel Block Assembly

    10.7. Disassembly of Front Panel Step 4 Release 3 tabs. Caution: Do not exert strong force when releasing the tabs. Block Assembly • Refer to “Disassembly of Top Cabinet”. Step 1 Detach 15P FFC at the connector (CN1101) on Main P.C.B..
  • Page 48 Step 1 Remove 5 screws. • Assembly of Panel P.C.B Step 1 Solder the 4P cable to the connector (CN6001) on Panel P.C.B.. Step 2 Release 1 catch. Step 2 Place the Panel P.C.B. onto the Front Panel. Step 3 Lift up the Panel P.C.B.. Step 3 Dress 22P FFC according to diagram shown.

  • Page 49: Dissassembly Of Power Button P.c.b

    Step 4 Dress 4P cable into the Front Panel’s ribs according to diagram shown. Step 2 Lift up the Power Button P.C.B.. Step 5 Fix 5 screws. Step 3 Desolder the 4P Cable (H6803) on Power Button P.C.B.. Step 4 Remove Power Button P.C.B.. 10.9.
  • Page 50 Step 2 Fix the Power Button P.C.B. onto the Front Panel. Caution: Ensure that it is properly located & seated prop- erly. Step 5 Dress 4P cable into Front Panel’s ribs & screw Boss according to diagram shown. Step 3 Fix 1 screw. Step 4 Dress 4P cable in between Front Panel’s ribs as shown.

  • Page 51: Replacement Of Cradle Lid

    10.10. Replacement of Cradle Lid • Refer to “Disassembly of Front Panel Block Assembly”. 10.10.1. Disassembly of Cradle Lid Step 1 Release the Cradle Lid Spring by using a flat head screw driver in the direction of arrow. Step 4 Rotate the Cradle Lid about 45° according to the dia- gram shown.

  • Page 52: Disassembly Of Ipod Cradle Assembly

    Caution: During assembling, replace Cradle Lid Damper if broken. Ensure that it is properly pasted & fully pressed onto Cradle Lid. Step 1 Insert the Cradle Lid (Shaft A) into the Front Panel (Slot A & hole B). Step 4 Fix the Cradle Lid Spring onto Cradle Lid’s Shaft A. Step 2 Slightly push the Cradle Lid inwards.
  • Page 53 iPhone P.C.B.. Step 2 Remove 1 screw. Step 3 Open the Front Lid Unit. Step 4 Open the Cradle Lid. Step 7 Remove iPod Cradle Assembly. Step 5 Lift up the iPod Cradle Assembly on both sides. • Assembly of iPod Cradle Assembly Step 1 Fix the iPod Cradle Assembly to Front Panel.

  • Page 54: Disassembly Of Ipod/Iphone P.c.b

    Step 2 Press the iPod Cradle Assembly downwards. Note: A “click” sound can be heard when the iPod Cradle Assembly is fixed onto the Front Panel properly. 10.12. Disassembly of iPod/iPhone P.C.B. • Refer to “Disassembly of iPod Cradle Assembly”. Step 1 Remove 2 screws.

  • Page 55: Replacement Of Dvd Lid Unit

    Caution: During assembling, ensure that iPod/iPhone P.C.B. is seated properly at the locators. 10.13. Replacement of DVD Lid Unit Step 3 Lift the DVD Lid Spring at Shaft A in the direction of arrow. • Refer to “Disassembly of Front Panel Block Assembly”. 10.13.1.
  • Page 56 Step 6 Move the DVD Lid Unit to remove from Front Panel. Step 3 Insert the DVD Lid Unit (Shaft B) into the Front Panel (Slot B) as arrow shown. 10.13.2. Assembly of DVD Lid Unit Step 1 Insert the DVD Lid Unit into the Front Panel as arrow shown.

  • Page 57: Disassembly Of Front Shield Plate Unit

    Caution: Ensure that the Shaft B of DVD Lid Unit is fully Step 4 Remove Front Shield Plate Unit. inserted into Slot B of Front Panel. 10.14. Disassembly of Front Shield Plate Unit • Refer to “Disassembly of Front Panel Block Assembly”. Caution: During assembling, ensure that Front Shield is properly inserted &...

  • Page 58: Disassembly Of Bd Drive

    Caution: During assembling, ensure that screwing sequence is strictly followed to illustration shown. 10.15. Disassembly of BD Drive • Refer to “Disassembly of Top Cabinet Assembly”. • Refer to “Disassembly of Front Panel Block Assembly”. • Refer to “Disassembly of Front Shield Plate Unit”. Caution: Pairing of BD Drive and Main P.C.B.
  • Page 59 10.15.1. Replacement of Upper Base Ass’y • Refer to “Disassembly of BD Drive”. Step 1 Remove the 4 screws, and push the Hook in. Step 2 Pull the Tray to the direction of arrow until it can be. Step 2 Lift up the Upper Base Ass’y, and pull it out to the direc- tion of arrow.
  • Page 60 10.15.4. Replacement Slide Cam • Refer to “Disassembly of BD Drive”. • Refer to “Disassembly of Upper Base Assembly”. • Refer to “Disassembly of Tray”. • Refer to “Disassembly of Pulley Gear & Belt”. Step 1 Remove the Sheet. Step 2 Disconnect the 3 FFCs. Step 3 Remove the 2 Screws and the Angle.
  • Page 61 10.15.5. Replacement of Mid Base, Driver Gear and Loading Motor • Refer to “Disassembly of BD Drive”. • Refer to “Disassembly of Upper Base Assembly”. • Refer to “Disassembly of Tray”. • Refer to “Disassembly of Pulley Gear & Belt”. •...
  • Page 62 10.15.6. Applying of Grease...
  • Page 63 10.15.7. Cleansing the Lens of Optical Pick-Up Unit • Refer to “Disassembly of BD Drive”. • Refer to “Disassembly of Upper Base Assembly”.

  • Page 64: Disassembly Of Main P.c.b

    10.16. Disassembly of Main P.C.B. Caution: During assembling, ensure that 10P cable is prop- erly bend down onto Main P.C.B. Shield Plate according to • Refer to “Disassembly of Top Cabinet Assembly”. diagram shown. • Refer to “Disassembly of Front Panel Block Assembly”. •...

  • Page 65: Disassembly Of D-Amp P.c.b

    Caution: During assembling, ensure that Main P.C.B. is seated properly at the locators. Step 12 Lift up to remove Main P.C.B.. 10.17. Disassembly of D-Amp P.C.B. • Refer to “Disassembly of Top Cabinet Assembly”. Note: During assembling, replace the Main PC sheets if bro- ken.
  • Page 66 Step 9 Remove D-Amp P.C.B. according to direction of arrow shown. Step 5 Remove 2 screws on D-Amp P.C.B.. Step 6 Release P.C.B. Spacer by using long nose plier. Caution: During assembling, ensure that D-Amp P.C.B. is seated properly at the locators. Step 7 Remove 4 screws.

  • Page 67: Replacement Of Digital Amplifier Ic (Ic5100)

    10.18. Replacement of Digital Ampli- fier IC (IC5100) • Refer to “Disassembly of D-Amp P.C.B.”. 10.18.1. Disassembly of Digital Amplifier IC (IC5100) Step 1 Place the D-Amp P.C.B. on an insulated material. Step 2 Remove 3 screws. 10.18.2. Assembly of Digital Amplifier IC (IC5100) Step 1 Mount the Digital Amplifier IC (IC5100) onto the D-Amp P.C.B..

  • Page 68: Disassembly Of Power P.c.b

    Caution: During assembling, ensure that heatsink spacer Caution: During assembling, ensure that Power P.C.B. is is seated properly onto Amp Heatsink. properly inserted & fully connected to SMPS P.C.B.. Caution: Ensure that D-Amp P.C.B. is properly located and fixed on to Amp Heatsink before screwing. Step 5 Fix 3 screws.
  • Page 69 Caution: Do not exert strong force when releasing the tabs. Caution: During assembling, ensure that 10P cable is bend down properly as diagram shown. Step 3 Detach the Front Panel Block Assembly slightly forward. Step 7 Remove 5 screws. Step 4 Lift up the Wire Clampers. Step 5 Detach 6P Cable at the connector (CN5400) on D-Amp P.C.B..

  • Page 70: Replacement Of Switching Regulator Ic (Ic5701)

    Caution: During releasing P.C.B. Spacer, as it may lead to electric shock or injuries due to high temperature avoid touching surrounding electrical parts. 10.21. Replacement of Switching Reg- ulator IC (IC5701) Step 9 Lift up SMPS P.C.B.. • Refer to “Disassembly of SMPS P.C.B.”. 10.21.1.

  • Page 71: Replacement Of Rectifier Diode (D5702)

    Step 2 Remove 1 screw from the Switching Regulator IC Caution: Ensure pins of the Switching Regulator IC (IC5701) are properly seated and soldered on SMPS P.C.B.. (IC5701). Step 3 Remove the Switching Regulator IC (IC5701). Caution: Avoid touching the Heatsink Unit B due to its high temperature after prolonged use.
  • Page 72 10.22.2. Assembly Rectifier Diode (D5702) Step 1 Apply grease to the Heatsink Unit B. Step 2 Fix and screw the Rectifier Diode (D5702) to the Heat- sink Unit B. Caution: Ensure the Rectifier Diode (D5702) is tightly screwed to the Heatsink Unit B. Step 3 Fix the Heatsink Unit B with Rectifier Diode (D5702) onto SMPS P.C.B..

  • Page 73: Replacement Of Regulator Diode (D5802)

    Caution: Ensure pins of the Rectifier Diode (D5702) are properly seated before soldered onto SMPS P.C.B.. Step 2 Remove 1 screw from the Regulator Diode (D5802). Step 3 Remove the Regulator Diode (D5802) from the SMPS P.C.B.. Caution: Avoid touching the Heatsink Unit A due to its high temperature after prolonged use.

  • Page 74: Replacement Of Regulator Diode (D5803)

    Caution: Ensure the Regulator Diode (D5802) is tightly screwed to the Heatsink Unit A. Step 4 Solder pins of the Regulator Diode (D5802) on the sol- der side of SMPS P.C.B.. Caution: Ensure pins of the Regulator Diode (D5802) are properly seated before soldered onto SMPS P.C.B..

  • Page 75: Disassembly Of Fan

    Caution: Ensure the Regulator Diode (D5803) is tightly screwed to the Heatsink Unit A. Step 4 Solder pins of the Regulator Diode (D5803) on the sol- der side of SMPS P.C.B.. Caution: Ensure pins of the Regulator Diode (D5803) are Step 3 Remove 2 screws.
  • Page 76 Caution: During assembling, ensure Fan Unit is properly Caution: During assembling, ensure that 3P Wire is posi- located & fully catched onto Rear Panel. tioned as diagram shown. Step 5 Remove 2 screws. Step 6 Lift up to remove Fan.

  • Page 77: Service Position

    11 Service Position Note: For description of the disassembly procedures, see the Section 10. 11.1. Checking & Repairing Side B of Main P.C.B. Caution: Pairing of BD Drive and Main P.C.B. as “BD Drive & Main P.C.B. Assembly” have to be replaced together. If either BD Drive or Main P.C.B.
  • Page 78 Step 5 Lift up Panel P.C.B.. Step 8 Remove Front Shield plate Unit. Step 9 Remove Main P.C.B. Shield Plate. Step 10 Connect 45P FFC at the connector (P55001) on Main P.C.B.. Step 11 Connect 18P FFC at the connector (P55002) on Main P.C.B..

  • Page 79: Checking & Repairing D-Amp P.c.b

    Caution: Insulated material is required to insulate Main P.C.B. from other parts. 11.3. Checking & Repairing D-Amp P.C.B. Step 15 Position Panel P.C.B. & Power Button P.C.B. as dia- gram shown. 11.3.1. Checking & Repairing of Side B of Step 16 Connect 22P FFC at the connector (CN2002) on Main P.C.B..
  • Page 80 Step 4 Twist the Wire Clamper to release 6P Cable. Step 5 Remove 2 screws. Step 9 Release P.C.B. Spacer by using long nose plier. Step 10 Remove AC Inlet P.C.B.. Step 6 Remove 6 screws. Step 7 Remove Fan Unit according to arrow shown. Step 11 Flip the D-Amp P.C.B.

  • Page 81: Checking & Repairing Smps P.c.b

    Step 4 Slightly move Front Panel Block Assembly forward. 11.4. Checking & Repairing SMPS P.C.B. Step 1 Remove Top Cabinet. Step 2 Release the 3 tabs. Step 5 Remove 1 screw. Step 3 Release the 2 tabs at each side of the Front Panel Block Step 6 Remove AC Inlet P.C.B.
  • Page 82 Step 7 Twist the Wire Clampers to release 6P cable (SMPS P.C.B. to D-Amp P.C.B.) & 10P cable (SMPS P.C.B. to Main P.C.B.). Caution: During releasing of the P.C.B. Spacer, avoid touching the electrical components. Step 9 Release P.C.B. Spacer by using long nose plier. Step 8 Remove 5 screws.

  • Page 83: Checking & Repairing Panel P.c.b

    Step 6 Remove 1 screws. 11.5. Checking & Repairing Panel P.C.B. Step 1 Remove Top Cabinet. Step 2 Remove Front Panel Block Assembly. Step 3 Remove 5 screws. Step 7 Lift up Power Button P.C.B.. Step 4 Release 1 catch. Step 8 Connect 22P FFC to the connector (CN2002) on Main P.C.B..

  • Page 85: Voltage & Waveform Chart

    REF NO. MODE CD PLAY STANDBY REF NO. IC2201 MODE CD PLAY -6.8 STANDBY -6.8 IC2202 REF NO. MODE CD PLAY -6.8 STANDBY -6.8 IC2300 REF NO. MODE CD PLAY STANDBY IC2300 REF NO. MODE CD PLAY STANDBY SA-BT222EB/EG MAIN P.C.B.

  • Page 86: Main P.c.b. (2/3)

    IC2400 REF NO. MODE CD PLAY STANDBY IC2800 REF NO. MODE CD PLAY -6.8 STANDBY -6.8 IC2952 REF NO. MODE CD PLAY STANDBY IC7002 REF NO. MODE CD PLAY STANDBY IC7003 REF NO. MODE CD PLAY STANDBY SA-BT222EB/EG MAIN P.C.B.

  • Page 87: Main P.c.b. (3/3)

    REF NO. MODE CD PLAY -3.0 -1.6 -1.6 11.4 11.4 10.7 STANDBY -3.0 -1.6 -1.6 11.4 11.4 10.7 QR1102 Q56004 Q56005 QR7001 QR7014 REF NO. MODE CD PLAY STANDBY REF NO. QR7019 QR7071 QR7081 MODE CD PLAY STANDBY SA-BT222EB/EG MAIN P.C.B.

  • Page 88: Panel P.c.b

    -21.2 -23.4 -21.2 -14.8 -14.8 -21.2 -23.4 -14.8 -12.6 -23.9 -17.1 -23.6 -21.4 -21.4 -21.4 -21.4 -21.4 -21.4 -21.4 -21.4 IC6001 REF NO. MODE CD PLAY -21.4 -21.4 STANDBY -21.4 -21.4 Q6100 Q6800 REF NO. MODE CD PLAY STANDBY SA-BT222EB/EG PANEL P.C.B.

  • Page 89: D-Amp P.c.b. (1/2)

    CD PLAY STANDBY REF NO. IC5402 MODE CD PLAY STANDBY IC5403 REF NO. MODE CD PLAY STANDBY IC5404 REF NO. MODE CD PLAY STANDBY Q5400 Q5401 Q5402 Q5403 Q5404 REF NO. MODE CD PLAY 16.5 STANDBY 16.5 SA-BT222EB/EG D-AMP P.C.B.

  • Page 90: D-Amp P.c.b. (2/2)

    26.4 43.7 22.3 Q5413 REF NO. MODE CD PLAY 44.7 44.6 STANDBY 44.7 44.6 SA-BT222EB/EG D-AMP P.C.B. 12.7. Power P.C.B. IC2901 REF NO. MODE CD PLAY 16.4 11.2 14.9 14.3 16.5 16.5 15.8 STANDBY 16.4 11.2 14.9 14.3 16.5 16.5 15.8...

  • Page 91: Waveform Table

    12.9. Waveform Table 5.6Vp-p(2usec/div) 4Vp-p(5usec/div) 4.4Vp-p(500nsec/div) 1Vp-p(10usec/div) 3Vp-p(10usec/div) 3.6Vp-p(50nsec/div) 2Vp-p(50nsec/div) 0.24Vp-p(1msec/div) 80Vp-p(1usec/div) 6Vp-p(1usec/div) 2.2Vp-p(1msec/div) 0.24Vp-p(1msec/div) 3.6Vp-p(500nsec/div) 6Vp-p(1usec/div) 6Vp-p(1usec/div) 1.5Vp-p(2usec/div) 3.2Vp-p(2usec/div) 1Vp-p(5usec/div) 5.2Vp-p(2usec/div)

  • Page 92: Illustration Of Ics, Transistor And Diode

    13 Illustration of ICs, Transistor and Diode C0ABBB000189 (8p) C0HBB0000057 (44p) MFI341S2164 (20p) RFKWMBT230EB VUEALLPT041 (20p) (100p) C0ABBB000179 (8p) C0DBZYY00018 (8p) C0FBAK000026 (16p) No.1 C0JBAR000540 (16p) C0DBAYY00729 (20p) C1AB00002461 (30p) No.1 No.1 No.1 No.1 C1AB00003260 (36p) C2HBCA000001 (40p) C0ABZA000080 C3EBFC000042 (8p) MIP2F20MSSCF C0JBAR000434 C0JBAB000837...

  • Page 93: Block Diagram

    UART TX 35 SWITCH CN1001 CN1002 CN1101 iPod VOUT TUN SDIO QR1101 TUN SDIO TUN SDIO MAIN(VIDEO) PCONT SWITCH Q1103 UART RX CN1101 CN1002 CN1001 UART RX 36 SWITCH QR1102 PCONT SWITCH iPod/iPhone P.C.B. PCONT PCONT 50 SA-BT222EB/EG MAIN(SYSTEM CONTROL) BLOCK DIAGRAM...

  • Page 94: Main(Audio)

    MAIN(SYSTEM CONTROL) Q2805 OPTICAL 1 CN4002 CN2011 OPT IN1 OPT IN 3 SEL B SEL B INVERTER 9 B (MSB) DIGITAL AUDIO IN JK3101 OPTICAL 2 OPT IN2 CN4002 CN2011 OPT IN 3 OPTICAL IN P.C.B. SA-BT222EB/EG MAIN(AUDIO) (1/2) BLOCK DIAGRAM...
  • Page 95 6 SELECT MAIN(SYSTEM CONTROL) TO MAIN(AUDIO) SECTION (1/2) DSP RESET RESETX 12 DSP RESET DSP MUTE MUTEX 13 DSP MUTE FROM/TO DSP CLK DSP CLK MAIN(SYSTEM CONTROL) SCL 14 DSP DA SDA 15 DSP DA SA-BT222EB/EG MAIN(AUDIO) (2/2) BLOCK DIAGRAM...

  • Page 96: Digital Audio

    OUT 1 D5410 Q5412, Q5413 CN2006 CN5402 DCDET DC DETECT DC DETECT Q5408, Q5409, Q5410 Q5400,Q5401 Q5402,Q5403 Q5404,Q5405 FAN DC OUT CN5401 FAN CIRCUIT CN5401 CN2006 CN5402 FAN SIGNAL FAN LOCK FROM DCDET POWER SUPPLY SA-BT222EB/EG DIGITAL AUDIO BLOCK DIAGRAM...

  • Page 97: Power Supply(Main Section)

    2 IN VOUT 4 1 VC D5405 CN5400 +51V +48V PVDD D5407 DCDET DIGITAL AUDIO PC5720 FEED BACK FROM FEED BACK POWER CONT JW2* CN2004 CIRCUIT MAIN(SYSTEM CONTROL) IC5801 C0DABFC00002 SHUNT REGULATOR Q5863 COLD SA-BT222EB/EG POWER SUPPLY(MAIN SECTION) (1/2) BLOCK DIAGRAM...
  • Page 98 D7016 Q1104 IC1001 C0DBZHE00026 CN1101 CN1002 CN1001 HIGH SIDE iPod CTRL SW SWITCH SWITCH D7017 D7036 CN1101 CN1002 CN1001 1 IN OUT 5 BATTPCONT 3 EN OC 4 FROM/TO MAIN(SYSTEM CONTROL) iPod OC SA-BT222EB/EG POWER SUPPLY(MAIN SECTION) (2/2) BLOCK DIAGRAM...

  • Page 99: Wiring Diagram

    (SIDE B) DOCK FOR iPod/iPhone DIGITAL AUDIO IN CN5402 CN5400 CN5401 POWER BUTTON P.C.B. CN1001 OPTICAL 1 OPTICAL 2 (SOLDER SIDE) H6803 CN1002 CN4002 TO FAN UNIT JK3100 JK3101 NOTE: " * " REF IS FOR INDICATION ONLY. SA-BT222EB/EG WIRING CONNECTION...

  • Page 101: Schematic Diagram Notes

    16 Schematic Diagram Notes • Voltage and signal line :+B signal line • This schematic diagram may be modified at any time :-B signal line :Audio output signal line with the development of new technology. :iPod/iPhone Video input signal line Notes: :iPod/iPhone/AUX/Optical/HDMI Audio S6002:...

  • Page 103: Schematic Diagram

    FE: MAIN(BP1 FE): SCHEMATIC DIAGRAM - 11 ~ 14 PE: MAIN(BP1 PERI): SCHEMATIC DIAGRAM - 15 ~ 16 TO MAIN(MICON) VO: MAIN(VIDEO OUT): SCHEMATIC DIAGRAM - 17 SECTION (4/6) MA: MAIN(MICON): SCHEMATIC DIAGRAM - 18 ~ 23 SA-BT222EB/EG MAIN(MICON) CIRCUIT TN: MAIN(TUNER): SCHEMATIC DIAGRAM - 24...
  • Page 104 FE: MAIN(BP1 FE): SCHEMATIC DIAGRAM - 11 ~ 14 PW_DC5V_D PW_DC5V_D PE: MAIN(BP1 PERI): SCHEMATIC DIAGRAM - 15 ~ 16 TO MAIN(MICON) VO: MAIN(VIDEO OUT): SCHEMATIC DIAGRAM - 17 SECTION (5/6) MA: MAIN(MICON): SCHEMATIC DIAGRAM - 18 ~ 23 SA-BT222EB/EG MAIN(MICON) CIRCUIT TN: MAIN(TUNER): SCHEMATIC DIAGRAM - 24...
  • Page 105 DC DETECT APD_R B0BC7R5A0266 C2202 R2204 PW_A+7V 100K PW_DC5V_DR TO MAIN(MICON) PW_A-7V QR7019 SECTION (2/6) LB7012 B1GBCFJJ0051 J0JHC0000107 D7020 B0ACCK000005 DC DETECT D7021 B0ACCK000005 C7019 C7058 6.3V1000 D7038 B0BC013A0269 LB7013 J0JHC0000107 PW_DC12V_DR C7020 16V470 TO MAIN(MICON) SECTION (6/6) SA-BT222EB/EG MAIN(MICON) CIRCUIT...
  • Page 106 SWITCH 100K LB1108 R1101 330K R1103 220K iPod/iPhone iPod_ACC LB1101 J0JYC0000070 CIRCUIT (CN1002) iPod_5V DOCK_L LB1109 IN SCHEMATIC DOCK_L J0JCC0000316 DIAGRAM - 32 DOCK_AGND DOCK_R DOCK_R iPod_DET LB1103 iPod_DET VGND VIDEO LB1102 VGND C1134 C1131 1000P 1000P SA-BT222EB/EG MAIN(MICON) CIRCUIT...
  • Page 107 FE: MAIN(BP1 FE): SCHEMATIC DIAGRAM - 11 ~ 14 PE: MAIN(BP1 PERI): SCHEMATIC DIAGRAM - 15 ~ 16 VO: MAIN(VIDEO OUT): SCHEMATIC DIAGRAM - 17 MA: MAIN(MICON): SCHEMATIC DIAGRAM - 18 ~ 23 TN: MAIN(TUNER): SCHEMATIC DIAGRAM - 24 SA-BT222EB/EG MAIN(MICON) CIRCUIT...
  • Page 108 FE: MAIN(BP1 FE): SCHEMATIC DIAGRAM - 11 ~ 14 PE: MAIN(BP1 PERI): SCHEMATIC DIAGRAM - 15 ~ 16 VO: MAIN(VIDEO OUT): SCHEMATIC DIAGRAM - 17 MA: MAIN(MICON): SCHEMATIC DIAGRAM - 18 ~ 23 TN: MAIN(TUNER): SCHEMATIC DIAGRAM - 24 SA-BT222EB/EG MAIN(MICON) CIRCUIT...
  • Page 109 FE: MAIN(BP1 FE): SCHEMATIC DIAGRAM - 11 ~ 14 PE: MAIN(BP1 PERI): SCHEMATIC DIAGRAM - 15 ~ 16 VO: MAIN(VIDEO OUT): SCHEMATIC DIAGRAM - 17 MA: MAIN(MICON): SCHEMATIC DIAGRAM - 18 ~ 23 TN: MAIN(TUNER): SCHEMATIC DIAGRAM - 24 SA-BT222EB/EG MAIN(TUNER) CIRCUIT...

  • Page 110: Panel Circuit

    VOL - DGND_ASS R6801 R6021 R6022 R6023 R6024 1.2K 1.5K 2.2K 3.3K 4.7K S6807 S6007 R6025 SELECTOR OPEN/CLOSE CN6001 L6007 J0JBC0000014 DGND POWER BUTTON KEY1 L6006 J0JBC0000014 KEY1_BTN CIRCUIT (H6803) L6005 IN SCHEMATIC LED_VREF LED_VREF DIAGRAM - 31 SA-BT222EB/EG PANEL CIRCUIT...

  • Page 111: D-Amp Circuit

    SDIN4 DAP_SDA_2 P5501 SDOUT DAP_SCL_2 RESERVED FRONT L - DAP_LRCLK DAP_SCLK FRONT L + LRCLK SCLK FRONT R - TO SPEAKERS FRONT R + SUBWOOFER - SUBWOOFER + IC5403 C0JBAA000501 AND GATE VALID1 TO D-AMP SECTION (3/3) SA-BT222EB/EG D-AMP CIRCUIT...
  • Page 112 C5154 R5108 G0C100M00006 GVDD_C GVDD_D 1000P R5107 C5138 C5135 R5121 C5104 C5105 1000P 0.47 C5155 D5620 1000P SPK_GND B0HCSP000001 D5619 B0HCSP000001 C5414 R5131 1000P 100K C5139 C5141 R5119 R5122 R5123 1000P 0.01 R5120 C5140 R5124 R5125 0.01 SA-BT222EB/EG D-AMP CIRCUIT...
  • Page 113 FAN MOTOR CONTROL SWITCH C5420 B0BC7R5A0268 R5438 C5437 C5418 16V22 6.3V100 220K R5428 D5404 R5424 R5435 Q5405 B0ACCK000005 Q5412 B1ABCF000011 B1ABCF000011 SWITCH R5437 R5427 D5403 C5423 R5423 C5417 D5402 B0ACCK000005 16V10 B0BC012A0269 4.7K DC DETECT 100K C5424 5600P SA-BT222EB/EG D-AMP CIRCUIT...

  • Page 114: Smps Circuit

    PCONT PCONT DC_18V R5805 DC18V 6.8K DC12V MAIN(MICON) PGND Q5863 CIRCUIT (CN2004) B1ABGC000001 R5819 IN SCHEMATIC R5728 DC5V SWITCH R5817 DIAGRAM - 20 DCDET 2.2K DCDET SYS5V SYS6V SYNC R5861 C5869 C5828 R5818 SYNC 100K 0.01 6.3V2200 SA-BT222EB/EG SMPS CIRCUIT...
  • Page 115 TO SMPS C5720 C5725 OLP/SS 100P R5733 SECTION (1/2) D5705 B0BC020A0267 D5710 ZJ5702 B0EAMM000057 C5722 C5724 C5730 C5700 1000P R5732 D5713 F1BAF1020020 1000P B0BC030A0264 1000P HEATSINK* C5721 C5726 C5747 D5708 220P 50V10 820P B0ACCK000005 R5726 R5727 0.27 0.27 SA-BT222EB/EG SMPS CIRCUIT...

  • Page 116: Power, Power Button & Ac Inlet Circuit

    L6806 DGND PANEL CIRCUIT L6804 SMPS CIRCUIT KEY1_BTN AC IN (CN6001) IN SCHEMATIC L6805 220V~240V 50Hz IN SCHEMATIC L6803 DIAGRAM - 30 LED VREF DIAGRAM - 25 TL20* D6800 (BLK) B3ABA0000187 SA-BT222EB/EG POWER / POWER BUTTON / AC INLET CIRCUIT...

  • Page 117: Ipod/Iphone & Optical In Circuit

    R1011 IN - L DOCK_R OUT J0JFC0000006 L1030 IN - R iPod DET R1001 R1003 R1004 L1032 OUT_L VGND J0JBC0000015 100K 100K R1002 OUT_R VIDEO AUDIO_RETURN VGND L1009 iPod_DET L1031 R1012 J0JFC0000006 L1008 J0JFC0000006 SA-BT222EB/EG iPod/iPhone / OPTICAL IN CIRCUIT...

  • Page 118: Printed Circuit Board

    R2821 R2822 R54909 R2963 C54903 R2823 R2824 C54907 C54910 C2811 Q2800 LB2801 R2806 C2817 C54901 C54900 R54901 R2959 IC2800 R54902 R2810 LB2802 Q2805 C2818 C2813 LB2807 LB2806 C2807 LB2804 C2812 C2816 0660AA-3 0660AA-3 LB2808 C2814 C2815 (SIDE A) SA-BT222EB/EG MAIN P.C.B.
  • Page 119 (TO BD DRIVE) R55164 IC2202 2.5A R2208 R2962 IC2201 TL55005 IC55002 R2209 TL55007 R2952 C2960 C2206 R2951 R2213 LB55001 JK2951 R2207 D2201 C2204 C2959 R2961 C54906 C2202 C2072 FM ANT R2204 R2202 L2072 0660AA-3 0660AA-3 (SIDE B) SA-BT222EB/EG MAIN P.C.B.

  • Page 120: Panel, Power, Power Button & Ac Inlet P.c.b

    AC INLET P.C.B. (REPX0803P) 0653AD 0653AD P5701 L6806 D6800 H6803 S6801 (POWER) AC IN 220V-240V 50Hz TL10* TL20* 0662BC-1 0662BC-1 NOTE: " * " REF IS FOR INDICATION ONLY. SA-BT222EB/EG PANEL / POWER / POWER BUTTON / AC INLET P.C.B.

  • Page 121: D-Amp P.c.b

    C5354 R5425 R5422 C5412 CN5400 C5419 R5350 RL5000* Q5404 R5424 ZB2* C5362 CN5401 R5370 (TO FAN UNIT) CN5402 R5375 R5371 3395AA 3395AA 3395AA 3395AA (SIDE A) (SIDE B) NOTE: " * " REF IS FOR INDICATION ONLY. SA-BT222EB/EG D-AMP P.C.B.

  • Page 122: Smps P.c.b

    CN5802 D5702 C5840 C5726 C5824 PC5720 Q5863 JW2* C5869 R5804 R5861 R5730 R5806 C5818 IC5801 C5800 D5707 ZJ5702 R5819 R5805 D5712 R5817 R5720 R5818 HEATSINK ZJ5703 0662BA-1 0662BA-1 NOTE: " * " REF IS FOR INDICATION ONLY. SA-BT222EB/EG SMPS P.C.B.

  • Page 123: Ipod/Iphone & Optical In P.c.b

    0634A-1 0634A-1 0634A-1 L1025 L1024 (SIDE A) (SIDE B) OPTICAL IN P.C.B. (REPX0793JB...EB) (REPX0793GB...EG) DIGITAL AUDIO IN OPTICAL 1 OPTICAL 2 C3104 C3103 CN4002 JK3100 JK3101 0660AB-3 0660AB-3 0660AB-3 0660AB-3 (SIDE A) (SIDE B) SA-BT222EB/EG iPod/iPhone / OPTICAL IN P.C.B.

  • Page 125: Terminal Function Of Ics

    19 Terminal Function of ICs 19.1. IC6001(C0HBB0000057): IC FL Driver Terminal Name Function LED1 O No Connection LED2 No Connection LED3 No Connection LED4 No Connection Oscillator Input DOUT No Connection Data Input Clock Input Serial Interface Strobe 10 K1 No Connection 11 K2 No Connection...

  • Page 127: Exploded View And Replacement Parts List

    *TL11 CN5802 *TL21 ZJ5703 CN5803 ZJ5702 18-1 28-3 18-1 28-1 28-1 CN1002 28-1 12-1 12-1 (iPod / iPhone P.C.B.) 28-2 28-1 CN1001 12-1 SA-BT222EB/EG-K NOTE: " * " PART IS NOT SUPPLIED / REF IS FOR INDICATION ONLY. CABINET DRAWINGS...
  • Page 128 20.1.2. Mechanism BD Drive...
  • Page 129 20.1.3. Packaging ACCESSORIES BOX AC CORD UNIT (FOR EG ONLY) A1-1 AC CORD UNIT (FOR EB ONLY) FM INDOOR ANTENNA VIDEO CABLE SA-BT222EB/EG ANT PLUG ADAPTOR SB-HF222EG (FOR EB ONLY) SB-HW480P F R O N T POLYFOAM (LEFT) POLYFOAM (RIGHT) SC-BT222EB/EG-K...
  • Page 131 20.1.4. Mechanical Replacement Part List Safety Ref. Part No. Part Name & Qty Remarks Description Safety Ref. Part No. Part Name & Qty Remarks RSC0854 RADIATOR SHEET B Description RXQX1042 MAIN PCB SHIELD CABINET PLATE UNIT CHASSIS RXQX1026 CABINET L6FAYYYH0079 FAN UNIT INSULATOR SHEET REXX1030...
  • Page 132 Safety Ref. Part No. Part Name & Qty Remarks Description RFKNBT222EGA BD DRIVE / MAIN P.C.B ASS'Y REEX1114 CABLE WIRE (MAIN-SMPS) REZ2014 (OPTI- CAL IN-MAIN) RXQ1863-1 FRONT SHIELD PLATE UNIT RSQ0111 TOP GASKET RSQ0112 GASKET RMA2265 GASKET HOLDER RMN0941 AC INLET HOLDER RMNX1031 MAIN PC SHEET RMNX1026...

  • Page 133: Electrical Replacement Part List

    20.2. Electrical Replacement Part List Safety Ref. Part No. Part Name & Qty Remarks Description Safety Ref. Part No. Part Name & Qty Remarks IC5301 C1AB00002461 Description IC5400 C0DBEKG00004 PRINTED CIRCUIT IC5401 C0EBE0000456 BOARDS IC5402 C0JBAA000501 PCB1 REPX0790B iPod/iPhone (RTL) IC5403 C0JBAA000501 P.C.B...
  • Page 134 Safety Ref. Part No. Part Name & Qty Remarks Safety Ref. Part No. Part Name & Qty Remarks Description Description Q5720 B1BAAJ000003 TRANSISTOR D6103 B0BC2R4A0263 DIODE Q5863 B1ABGC000001 TRANSISTOR D6104 B0HAJM000005 DIODE Q5898 B1ABCF000176 TRANSISTOR D6800 B3ABA0000187 DIODE Q5899 B1ABCF000176 TRANSISTOR D7013 B0ACCK000005...
  • Page 135 Safety Ref. Part No. Part Name & Qty Remarks Safety Ref. Part No. Part Name & Qty Remarks Description Description L3000 G1C100K00019 INDUCTOR PC5799 B3PBA0000402 PHOTO COUPLER L3001 G1C100K00019 INDUCTOR L5100 G0C100M00006 INDUCTOR EARTH TERMINALS L5101 G0C100M00006 INDUCTOR ZJ5701 K4CZ01000027 TERMINAL L5103 G0B9R5K00005...
  • Page 136 Safety Ref. Part No. Part Name & Qty Remarks Safety Ref. Part No. Part Name & Qty Remarks Description Description LB2570 D0GBR00JA008 1/16W R1125 D0GA101JA023 1/16W LB2571 D0GBR00JA008 1/16W R1127 J0JCC0000316 INDUCTOR LB2801 ERJ2GE0R00X 1/16W R1128 J0JCC0000316 INDUCTOR LB2802 ERJ2GE0R00X 1/16W R1131 D0GD470JA017...
  • Page 137 Safety Ref. Part No. Part Name & Qty Remarks Safety Ref. Part No. Part Name & Qty Remarks Description Description R2321 D0GA331JA023 1/16W R2922 D1BDR1000003 1/10W R2322 D0GA104JA023 100K 1/16W R2923 D0GB222JA008 2.2K 1/16W R2323 D0GA104JA023 100K 1/16W R2924 ERJ3RBD5601V 1/16W R2325 D0GA472JA023...
  • Page 138 Safety Ref. Part No. Part Name & Qty Remarks Safety Ref. Part No. Part Name & Qty Remarks Description Description R5407 ERJ3RBD562V 5.6K 1/16W R5895 D0GB153JA008 1/16W R5408 ERJ3RBD103V 1/16W R5897 D0GB101JA008 1/16W R5410 D0GB333JA008 1/16W R5898 D0GD824JA017 820K 1/10W R5411 D0GB473JA008 1/16W...
  • Page 139 Safety Ref. Part No. Part Name & Qty Remarks Safety Ref. Part No. Part Name & Qty Remarks Description Description RX2308 D1H83314A024 RESISTOR NETWORK C2311 F1G1H470A444 47pF RX2309 D1H83314A024 RESISTOR NETWORK C2312 F1G1A1040006 0.1uF RX2310 D1H83314A024 RESISTOR NETWORK C2313 F1G1A1040006 0.1uF C2314 F2G0J101A083...
  • Page 140 Safety Ref. Part No. Part Name & Qty Remarks Safety Ref. Part No. Part Name & Qty Remarks Description Description C5118 F1J2A333A024 0.033uF 100V C5790 F1K2J2220002 2200pF 630V C5119 F1H1C104A042 0.1uF C5791 F1J0J106A020 10uF 6.3V C5120 ECQV1H105JL3 C5795 F1H1H102A219 1000pF C5121 F2A1V4710074 470uF...
  • Page 141 Safety Ref. Part No. Part Name & Qty Remarks Description C56024 F1G1H1010001 100pF C56025 F1G1H1010001 100pF C56026 F1G1H1010001 100pF C56027 F1G1H1010001 100pF C56028 F1G1H1010001 100pF C56040 F1G1H1010001 100pF MMH1003 1 4 1...

This manual is also suitable for:

Sa-bt222eg

Table of Contents
