Panasonic SA-BTT190P Service Manual
  1. Manuals
  2. Brands
  3. Panasonic Manuals
  4. Home Theater System
  5. SA-BTT190P
  6. Service manual
Panasonic SA-BTT190P Service Manual

Panasonic SA-BTT190P Service Manual

Blu-ray disc home theater sound system
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

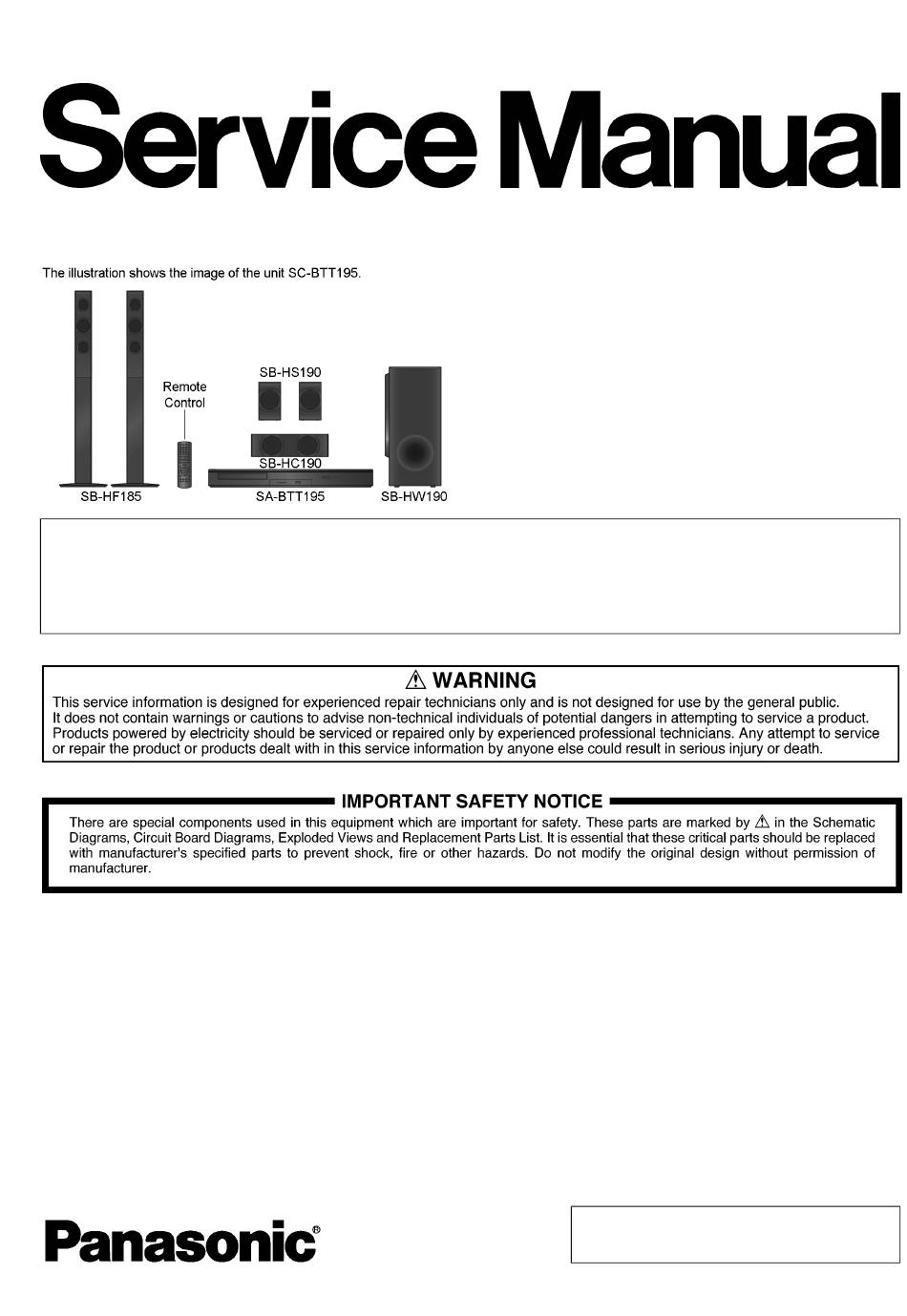

Notes: Please refer to the original service manual for:
• BD Mechanism Unit (BRS14P), Order No. PSG1201008CE
• Speaker system SB-BTT190P-K/PCK (For SA-BTT190P-K/PCK), Order No: PSG1202027CE
• Speaker system SB-BTT195P-K/PCK (For SA-BTT195P-K/PCK, SA-BTT196P-K), Order No:
PSG1202028CE

TABLE OF CONTENTS

1 Safety Precautions----------------------------------------------- 3
1.1. General Guidelines---------------------------------------- 3
1.2. Before Repair and Adjustment ------------------------- 4
1.3. Protection Circuitry ---------------------------------------- 4
1.4. Caution For Fuse Replacement------------------------ 4
1.5. Safety Part Information----------------------------------- 5
2 Warning -------------------------------------------------------------- 6
2.2. Precaution of Laser Diode------------------------------- 7
TM
Blu-ray Disc
Model No.
Vol.1
Product Color: (K)...Black Type
PAGE
3 Service Navigation --------------------------------------------- 10
4 Specifications ---------------------------------------------------- 13
5 General/Introduction------------------------------------------- 17
Home Theater Sound System
SA-BTT190P
SA-BTT190PC
SA-BTT195P
SA-BTT195PC
SA-BTT196P
prevention----------------------------------------------------9
3.1. Service Information -------------------------------------- 10
3.2. How to update the Firmware -------------------------- 11
4.1. Others (Licences) ---------------------------------------- 14
5.1. VIERA Link™ "HDAVI Control™" -------------------- 17
5.2. Enjoying BD-LIVE---------------------------------------- 18
5.3. Enjoying 3D Video and Photos ----------------------- 18
© Panasonic Corporation 2012. All rights reserved.
Unauthorized copying and distribution is a violation
of law.
PSG1202015CE
A6
PAGE

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SA-BTT190P and is the answer not in the manual?

Questions and answers

Related Manuals for Panasonic SA-BTT190P

Summary of Contents for Panasonic SA-BTT190P

  • Page 1: Table Of Contents

    Product Color: (K)...Black Type Notes: Please refer to the original service manual for: • BD Mechanism Unit (BRS14P), Order No. PSG1201008CE • Speaker system SB-BTT190P-K/PCK (For SA-BTT190P-K/PCK), Order No: PSG1202027CE • Speaker system SB-BTT195P-K/PCK (For SA-BTT195P-K/PCK, SA-BTT196P-K), Order No: PSG1202028CE...
  • Page 2 5.4. Playable Media ------------------------------------------- 19 16 Block Diagram --------------------------------------------------- 84 5.5. File Extension Type Support (MP3/JPEG/ 16.1. System Control ------------------------------------------- 84 MKV/FLAC/WAV/MPO) --------------------------------- 20 16.2. Audio-------------------------------------------------------- 85 6 Location of Controls and Components------------------ 21 16.3. Power Supply(Main Section) ------------------------- 86 6.1.

  • Page 3: Safety Precautions

    1 Safety Precautions 1.1. General Guidelines 1. When servicing, observe the original lead dress. If a short circuit is found, replace all parts which have been overheated or damaged by the short circuit. 2. After servicing, see to it that all the protective devices such as insulation barriers, insulation papers shields are properly installed.

  • Page 4: Before Repair And Adjustment

    1.2. Before Repair and Adjustment Disconnect AC power to discharge unit AC Capacitors as such (C5700, C5702, C5703, C5704, C5705, C5706, C5709) through a 10 Ω, 10 W resistor to ground. Caution: DO NOT SHORT-CIRCUIT DIRECTLY (with a screwdriver blade, for instance), as this may destroy solid state devices. After repairs are completed, restore power gradually using a variac, to avoid overcurrent.

  • Page 5: Safety Part Information

    1.5. Safety Part Information Safety Parts List: There are special components used in this equipment which are important for safety. These parts are marked by ( ) in the Schematic Diagrams & Replacement Parts List. It is essential that these critical parts should be replaced with manufacturer’s specified parts to prevent shock, fire or other hazards.

  • Page 6: Warning

    2 Warning 2.1. Prevention of Electrostatic Discharge (ESD) to Electrostatic Sensitive (ES) Devices Some semiconductor (solid state) devices can be damaged easily by static electricity. Such components commonly are called Elec- trostatically Sensitive (ES) Devices. Examples of typical ES devices are integrated circuits and some field-effect transistors and semiconductor “chip”...

  • Page 7: Precaution Of Laser Diode

    2.2. Precaution of Laser Diode Caution: This product utilizes a laser diode with the unit turned “on”, invisible laser radiation is emitted from the pickup lens. Wavelength: 790 nm (CDs)/660 nm (DVDs)/405 nm (BDs) Maximum output radiation power from pickup: 100 µW/VDE Laser radiation from the pickup unit is safety level, but be sure the followings: 1.

  • Page 8: Service Caution Based On Legal Restrictions

    2.3. Service caution based on Legal restrictions The lead free solder has been used in the mounting process of all electrical components on the printed circuit boards used for this equipment in considering the globally environmental conservation. The normal solder is the alloy of tin (Sn) and lead (Pb). On the other hand, the lead free solder is the alloy mainly consists of tin (Sn), silver (Ag) and Copper (Cu), and the melting point of the lead free solder is higher approx.30 degrees C (86°F) more than that of the normal solder.

  • Page 9: Grounding For Electrostatic Breakdown Prevention

    2.4. Grounding for electrostatic breakdown prevention As for parts that use optical pick-up (laser diode), the optical pick-up is destroyed by the static electricity of the working environ- ment. Repair in the working environment that is grounded. 2.4.1. Worktable grounding •...

  • Page 10: Service Navigation

    3 Service Navigation 3.1. Service Information This service manual contains technical information which will allow service personnel’s to understand and service this model. Please place orders using the parts list and not the drawing reference numbers. If the circuit is changed or modified, this information will be followed by supplement service manual to be filed with the original ser- vice manual.

  • Page 11: How To Update The Firmware

    3.2. How to update the Firmware The firmware of the unit may be renewed to improve the quality including operational performance and playability. Make sure to refer the following procedure when performing version-up. 3.2.1. Confirmation of the Firmware Version Perform following steps to checking the firmware version currently installed in the unit. 1.
  • Page 12 3.2.2.2. Updating firmware using the USB device When updating firmware using USB device, perform following procedures. (When using CD-R instead of USB device, perform same procedures) 1. Download the latest firmware file of the unit. The latest firmware required for version-up can be downloaded from “Support Information from NWBG/VDBG-PAVC” web-site in “TSN system”.

  • Page 13: Specifications

    4 Specifications Solder: This model uses lead free solder (PbF). Main unit GENERAL Power consumption: 83 W Power Consumption in standby mode: Approx. 0.05 W Power supply: AC 120 V, 60 Hz 430 mm × 47 mm × 263 mm Dimensions (W×H×D): ”×1 ”×10...

  • Page 14: Others (Licences)

    4.1. Others (Licences)

  • Page 17: General/Introduction

    5 General/Introduction 5.1. VIERA Link™ “HDAVI Control™”...

  • Page 18: Enjoying Bd-Live

    5.2. Enjoying BD-LIVE 5.3. Enjoying 3D Video and Photos...

  • Page 19: Playable Media

    5.4. Playable Media...

  • Page 20: File Extension Type Support (Mp3/Jpeg/Mkv/Flac/Wav/Mpo)

    5.5. File Extension Type Support (MP3/JPEG/MKV/FLAC/WAV/MPO)

  • Page 21: Location Of Controls And Components

    6 Location of Controls and Components 6.1. Remote Control Key Button Operations...

  • Page 22: Main Unit Key Button Operations

    6.2. Main Unit Key Button Operations...

  • Page 23: Installation Instructions

    7 Installation Instructions Turn off all equipment before connection and read the appropriate operating instructions. Do not connect the AC power supply cord until all other connections are completed. 7.1. Speaker Connection 7.2. Connection to a TV...

  • Page 24: Fm Antenna Connection

    7.3. FM Antenna Connection 7.4. Connection to the Network...

  • Page 25: Playing Back Contents On The Dlna Server (Dlna)

    7.5. Playing Back Contents on the DLNA Server (DLNA)

  • Page 26: Enjoying Network Service (Netflix, Etc.)

    7.6. Enjoying Network Service (NETFLIX, etc.)

  • Page 27: Operating Instructions

    8 Operating Instructions 8.1. Taking out the Disc from Drive Unit when the Disc cannot be ejected by OPEN/CLOSE button 8.1.1. Forcible Disc Eject 8.1.2. When the Disc Eject can not be done 1. Turn off the power and pull out AC cord. 2.
  • Page 28 4. Gently pull out the tray. 5. Remove disc.

  • Page 29: Using The Ipod/Iphone

    8.2. Using the iPod/iPhone 8.2.1. iPod /iPhone Connection...

  • Page 30: Ipod /Iphone Playback

    8.2.2. iPod /iPhone Playback...

  • Page 31: Easy Network Setting

    8.3. Easy Network Setting...

  • Page 33: Service Mode

    9 Service Mode 9.1. Special Mode Setting 9.1.1. Special Mode Table 1 Item Key operation FL display Mode name Description Rating password The audiovisual level setting password is While the unit is on, press and initialized to Level 8. hold [OK], [B] and [Y] on the remote control at the same time for more than 5 seconds.

  • Page 34: Special Mode Table

    9.1.2. Special Mode Table 2 Item FL display Key operation Mode name Description Front Key Perform sequence of modes as * Aging Display following the mode. Aging Turn the power on. Description shown below continually. Press the [5] [9] and [R] button with disc in simultaneously for five seconds, then [70 RET] is displayed on FL.
  • Page 35 9.1.3. Special Mode Table 3 Item FL display Key operation Mode name Description Front Key While the unit is off, press and hold The date of Menu, Mode and EEPROM Default setting [OK], [B] and [Y] on the remote setting, etc. is set to the default condition in control at the same time for more factory.
  • Page 36 9.1.4. Special Mode Table 4 Item FL display Key operation Mode name Description Front Key (10) DEST: (For PC DEST: PC) Destination Code (11) ERR: NONE Error (12) P0:FF:90 For Debug Purpose Only (13) P1:2F:CC For Debug Purpose Only P2:FF:20 (14) For Debug Purpose Only P3:ED:06...

  • Page 37: Error Codes

    9.2. Error Codes Self-Diagnostic Function provides information for error to service personnel by Self-Diagnosis Display when any error has occurred. U**, H** and F** are stored in my memory and held. • You can check latest error code by transmitting [0] [1] of Remote Control in Service Mode. Automatic Display on FL will be cancelled when the power is turned off or AC input is turned off during self-diagnosis display is 9.2.1.
  • Page 38 9.2.2. Error Code Table 2 (For BD) Error Code Diagnosis contents Description Monitor Display Automatic FL display No error information Initial setting for error code in memory (Error No display No display code Initialization is possible with error code initialization and main unit initialization). Initialization error When initialization error is detected after starting No display...

  • Page 39: Self Check

    9.2.3. Error Code Table 3 (For BD) Error Code Diagnosis contents Description Monitor Display Automatic FL display SELF Restoration operation Since the power cord fell out during a No display SELF CHECK CHECK powerfailure or operation, it is under restoration operation. *It will OK, if a display disappears automatically.

  • Page 40: To Enter Into Service Mode

    9.3. To enter into Service Mode The following are the procedures to enter into service mode: 1. Turn the power off. 2. Press the [5] [9] and [R] button simultaneously for five seconds, then [70 RET] is displayed on FL. 3.

  • Page 41: Service Mode Table

    9.3.1. Service Mode Table 1 9.2. Error Code. 6. BOOT2 version 7. BOOT3 version Checking whether the drive is applicable When the drive is applicable drive. drive or not When the drive is not applicable drive.
  • Page 42 9.3.2. Service Mode Table 2 Item FL display Key operation Mode name Description (Remote controller key) Mechanism. When BD Mechanism is OK When BD Mechanism is NG Laser Used Time Check laser used time (hours) of BD Press [4] [1] in service mode. Indication Mechanism.
  • Page 43 9.3.3. Service Mode Table 3 Item FL display Key operation Mode name Description (Remote controller key) BD Mechanism last error BD Mechanism error code display. 1. Error Number is displayed for 5 Press [4] [2] in service mode. seconds. **** 2.
  • Page 44 9.3.4. Service Mode Table 4 Item FL display Key operation Mode name Description (Remote controller key) BD-ROM (Multiple layer) BD X ROM BD-RE (Multiple layer) BD X RE BD-R (Multiple layer) BD X R 6. Disc maker ID is displayed for 5 In case that the maker cannot be seconds.
  • Page 45 9.3.5. Service Mode Table 5 Item FL display Key operation Mode name Description (Remote controller key) 7. Factor of drive error (hexadeci- mal) occurring is left displayed. && 8. When the last error doesn’t exist NO DATA CEC (H) output Check of the CEC terminal high output Press [5] [5] in service mode.
  • Page 46 9.3.6. Service Mode Table 6 Item FL display Key operation Mode name Description (Remote controller key) Drive adjustment Initialize the drive going to factory production Press[7][1]in service mode. value initialization adjustment values. * * * * **** : password digits Write remote control number key ((4) (5) (3) (6)) perform the initialization.
  • Page 47 9.3.7. Service Mode Table 7 Sales Demonstration lock/unlock *When press [OPEN/CLOSE] key while the tray being locked.

  • Page 48: Troubleshooting Guide

    10 Troubleshooting Guide 10.1. Troubleshooting Guide for F61 and/or F76 Symptom(s) Checking items Possible Fault(s) Remarks Set cannot Power ON: 1 Photocoupler PC5702, 1 PC5702/PC5799 solder crack, 1) Refer to Fig. 1. SMPS P.C.B. Condition 1: PC5799 dry joint , short circuit, open 2) Refer to Schematic Diagram of With Standby LED on circuit, etc...
  • Page 49 10.1.1. SMPS P.C.B. Photocoupler: PC5702, D5799 Switching IC: IC5799 Diode: D5802 Switching IC: IC5701 Transformer: T5701 Photocoupler: PC5720 Fig 1. SMPS P.C.B.
  • Page 50 10.1.2. Digital P.C.B. (Side A of Digital P.C.B.) IC2901 Transistor : Q2902 D2306, LB2300, LB2302, LB2303 Transistor : Q2903 IC2302, LB2301 (Side B of Digital P.C.B.) Inductor : L2902 Inductor : L2908 Fig 2. Digital P.C.B.

  • Page 51: Service Fixture & Tools

    11 Service Fixture & Tools Prepare service tools before process service position. Ref. No Service Tools Remarks SFT1 Digital P.C.B. (P59301) - Panel P.C.B. (P6801), RFKZ0216 (23P) [SPG] Digital P.C.B. (CN2303) - D-Amp P.C.B. (CN5402) SFT2 Digital P.C.B. (CN2309) - SMPS P.C.B. (JW2) RFKZ0323 (9P) [SPG] SFT3...

  • Page 52: Disassembly And Assembly Instructions

    12 Disassembly and Assembly Instructions Caution Note: • This section describes the disassembly and/or assembly procedures for all major printed circuit boards & main compo- nents for the unit. (You may refer to the section of “Main components and P.C.B Locations” as described in the service manual) •...

  • Page 53: Disassembly Flow Chart

    12.2. Disassembly Flow Chart Main Unit 12.5. Tray Ornament 12.4. Top Cabinet 12.6. Front Panel Block 12.21. BD Mechanism 12.10. Rear Panel Assembly Unit (BRS14P) 12.7. Operation Button 12.11. Fan Unit P.C.B. 12.8. Power Button 12.12. Digital P.C.B. P.C.B. 12.13. D-Amp P.C.B. 12.9.

  • Page 54: Main Components And P.c.b. Locations

    12.3. Main Components and P.C.B. Locations...

  • Page 55: Disassembly Of Top Cabinet

    12.4. Disassembly of Top Cabinet Step 4 Slightly lift both sides of the Top Cabinet in an outward direction about 30°. Step 1 Remove 2 screws. Caution: Ensure that the angle from the Top Cabinet to bot- tom chassis is not greater than 30°. Step 2 Remove 3 screws.

  • Page 56: Replacement Of Tray Ornament

    Step 5 Press the catches and remove the Top Cabinet as arrow 12.5. Replacement of Tray Ornament shown in sequence. Step 1 Use a Paper Clip and insert into the hole on the bottom Caution: Avoid touching electrical components when the of the unit.
  • Page 57 Step 4 Release 2 catches. Caution: During assembling, ensure that the Tray Orna- ment's guide rib is fully catched onto the Tray. Caution: During assembling, ensure that Tray Ornament is inserted & fully catched onto the Tray. Step 5 Remove the Tray Ornament in the direction of arrow. Step 6 Slide the Tray in fully.

  • Page 58: Disassembly Of Front Panel Block Assembly

    12.6. Disassembly of Front Panel Step 3 Release the 3 tabs at the Bottom Chassis. Caution: Do not exert strong force when releasing the tabs. Block Assembly • Refer to “Disassembly of Top Cabinet”. • Refer to "Replacement of Tray Ornament". Step 1 Detach 3P Cable at the connector (CN2305) on Digital P.C.B..

  • Page 59: Disassembly Of Operation Button P.c.b

    Step 4 Remove the Front Panel Block Assembly. Step 2 Release 3P Wire from the ribs of the Front Panel Block Assembly. Caution: During assembling, dressed the 3P Wire into the ribs of Front Panel Block Assembly. 12.7. Disassembly of Operation But- ton P.C.B.

  • Page 60: Disassembly Of Power Button P.c.b

    Step 4 Desolder 3P Wire at the cable holder (H6001) on Oper- Step 2 Release 3P Wire from the ribs of the Front Panel Block ation Button P.C.B.. Assembly. Step 5 Remove Operation Button P.C.B.. Caution: During assembling, dressed the 3P Wire into the ribs of Front Panel Block Assembly.

  • Page 61: Disassembly Of Panel P.c.b

    Step 4 Desolder 3P Wire at the cable holder (H6500) on Power Step 5 Remove 4 screws. Button P.C.B.. Step 6 Remove the Panel P.C.B.. Step 5 Remove the Power Button P.C.B.. Caution: During assembling, ensure that the Panel P.C.B. is properly located &...

  • Page 62: Disassembly Of Fan Unit

    Step 2 Release 2 tabs at each side of the Rear Panel in the 12.11. Disassembly of Fan Unit direction of arrow. • Refer to “Disassembly of Top Cabinet” Step 1 Detach the 3P Fan Wire at connector (CN5401) on Dig- ital P.C.B..

  • Page 63: Disassembly Of Digital P.c.b

    12.12. Disassembly of Digital P.C.B. Step 3 Detach 4P FFC at the connector (P55006) on Digital P.C.B.. • Refer to “Disassembly of Top Cabinet”. Step 4 Detach 45P FFC at the connector (P55001) on Digital P.C.B.. Caution: If the Digital P.C.B. and/or Mechanism Unit is Step 5 Detach 3P Cable at the connector (CN2305) on Digital exchanged, the drive adjustment is required because of P.C.B..

  • Page 64: Disassembly Of D-Amp P.c.b

    Step 11 Remove 4 screws. Step 2 Release 2 tabs at each side of the Rear Panel in the Step 12 Remove the Digital P.C.B.. direction of arrow. Step 3 Detach 23P Bridge connector at the connector (CN2303) on Digital P.C.B.. Caution: During assembling, ensure that the Digital P.C.B.

  • Page 65: Replacement Of Digital Amplifier Ic (Ic5100/ Ic5200/Ic5300)

    Step 5 Remove 2 screws. 12.14. Replacement of Digital Ampli- Step 6 Remove the D-Amp P.C.B.. fier IC (IC5100/IC5200/IC5300) • Refer to “Disassembly of Top Cabinet”. • Refer to “Disassembly of D-Amp P.C.B.”. 12.14.1. Disassembly of Digital Amplifier IC (IC5100/IC5200/IC5300) Caution: Handle the D-Amp P.C.B.
  • Page 66 Step 3 Lift up D-Amp P.C.B. as arrow shown. 12.14.2. Assembly of Digital Amplifier IC Caution: Keep the Heatsink Spacers in safe place. Avoid (IC5100/IC5200/IC5300) denting it, place it back during assembling. Step 1 Fix the Digital Amplifier IC (IC5100) onto the D-Amp P.C.B..

  • Page 67: Disassembly Of Ac Inlet P.c.b

    Step 5 Upset the D-Amp P.C.B.. Step 2 Remove 2 screws. Step 6 Fix 4 screws. Step 3 Release the Red Wire (TL10) and Black Wire (TL20) Note: For assembling of Digital Amplifier IC (IC5200) and from Wire Holder. (IC5300), repeat the (Step 1) to (Step 6) of 12.14.2. Caution: During assembling, ensure that Red Wire (TL10) and Black Wire (TL20) are dressed into Wire Holder prop- erly.

  • Page 68: Disassembly Of Smps P.c.b

    Step 5 Upset the AC Inlet P.C.B.. Step 4 Remove 4 screws. Step 6 Desolder Red Wire (TL10) and Black Wire (TL20) on AC Step 5 Lift up the SMPS P.C.B.. Inlet P.C.B.. Step 7 Remove the AC Inlet P.C.B.. Caution: During assembling, ensure that SMPS P.C.B.

  • Page 69: Replacement Of Switching Regulator Ic (Ic5701)

    Step 6 Upset the SMPS P.C.B.. 12.17. Replacement of Switching Reg- Step 7 Desolder Red Wire (TL11) and Black Wire (TL21) on ulator IC (IC5701) SMPS P.C.B.. Step 8 Remove the SMPS P.C.B.. • Refer to “Disassembly of Top Cabinet”. •...
  • Page 70 Step 5 Remove the Switching Regulator Unit in the direction of 12.17.2. Assembly of Switching Regulator arrow. IC (IC5701) Caution: Avoid touching the Switching Regulator Unit due Step 1 Apply Grease to the back of Switching Regulator IC to its high temperature after prolonged use. Touching it (IC5701).

  • Page 71: Replacement Of Diode (D5702)

    Step 4 Solder pins of the Switching Regulator IC (IC5701) on 12.18. Replacement of Diode (D5702) the solder side of SMPS P.C.B.. • Refer to “Disassembly of Top Cabinet”. Step 5 Solder pins of the Diode (D5702) on the solder side of •...
  • Page 72 Step 5 Remove the Switching Regulator Unit in the direction of 12.18.2. Assembly of Diode (D5702) arrow. Step 1 Apply Grease to the back of Diode (D5702). Caution: Avoid touching the Switching Regulator Unit due Step 2 Fix and screw the Diode (D5702) to the Heatsink A. to its high temperature after prolonged use.

  • Page 73: Replacement Of Diode (D5802)

    Step 4 Solder pins of the Switching Regulator IC (IC5701) on 12.19. Replacement of Diode (D5802) the solder side of SMPS P.C.B.. • Refer to “Disassembly of Top Cabinet.”. Step 5 Solder pins of the Diode (D5702) on the solder side of •...

  • Page 74: Replacement Of Diode (D5803)

    12.19.2. Assembly of Diode (D5802) 12.20. Replacement of Diode (D5803) Step 1 Apply Grease to the back of Diode (D5802). • Refer to “Disassembly of Top Cabinet.”. Step 2 Fix and screw the Diode (D5802) to the Heatsink B. • Refer to “Disassembly of SMPS P.C.B.” Caution: Ensure that Diode (D5802) is properly fixed and fully screwed to the Heatsink B.

  • Page 75: Disassembly Of Bd Mechanism Unit (Brs14P)

    12.20.2. Assembly of Diode (D5803) 12.21. Disassembly of BD Mecha- Step 1 Apply Grease to the back of Diode (D5803). nism Unit (BRS14P) Step 2 Fix and screw the Diode (D5803) to the Heatsink B. • Refer to “Disassembly of Top Cabinet”. Caution: Ensure that Diode (D5803) is properly fixed and •...
  • Page 76 Step 5 Remove 4 screws. Step 7 Attach a short pin to the 45P FFC of the BD Mechanism Unit (BRS14P). Step 6 Slightly lift up and remove the BD Mechanism Unit (BRS14P) in the direction of arrow. Caution: During assembling, ensure that BD Mechanism Unit (BRS14P) is properly located and fully inserted on Bottom Chassis before screwing.

  • Page 77: Service Position

    13 Service Position Step 9 Position the Front Panel Block assembly as diagram shown. Note: For description of the disassembly procedures, see Step 10 Connect 3P Cable at the connector (CN2305) on Digi- the Section 12. tal P.C.B. 13.1. Checking and Repairing Panel P.C.B.

  • Page 78: Checking & Repairing Digital P.c.b

    13.2. Checking & Repairing Digital 13.2.2. Checking and Repairing Digital P.C.B. (Side A) P.C.B. Step 1 Remove Top Cabinet. 13.2.1. Checking and Repairing Digital Step 2 Remove Digital P.C.B.. Step 3 Connect 23P Extension Bridge Connector (RFKZ0216) P.C.B. (Side B) from P6801 to P59301.

  • Page 79: Checking And Repairing D-Amp P.c.b

    Step 7 Connect 4P FFC at the connector (P55006) on Digital 13.3. Checking and Repairing D- P.C.B.. Amp P.C.B. Step 8 Connect 45P FFC at the connector (P55001) on Digital P.C.B.. 13.3.1. Checking and Repairing D-Amp Step 9 Connect 3P Cable at the connector (CN2305) on Digital P.C.B.

  • Page 80: Checking & Repairing Of Smps P.c.b

    Step 5 Place the D-Amp P.C.B. back to original position. Step 5 Upset the D-Amp P.C.B. and position it onto the insu- Step 6 Connect 23P Bridge Connector at the connector lated material. (CN2303) on Digital P.C.B.. Step 6 Proceed to check and repair Side A of D-Amp P.C.B.. Step 7 Connect 4P Cable at the connector (CN5400) on D- Amp P.C.B..
  • Page 81 Step 4 Connect 9P Extension Bridge Connector (RFKZ0323) from CN2309 to JW2. Step 5 Upset the SMPS P.C.B. and position it onto the insu- lated material. Step 6 Proceed to check and repair SMPS P.C.B..

  • Page 82: Measurements And Adjustments

    Perform playback for one minute using the RAM disc. No abnormality should be seen in the picture, sound or operation. *Panasonic DVD-RAM disc should be used when recording and play- back. Perform playback for one minute using the BD-Video disc.

  • Page 83: Overall Simplified Block Diagram

    15 Overall Simplified Block Diagram EXbus Support Card DDR3+ DDR3 Conn I/F NFROM SDIF2 Exbus Driver IC Front USB USB1 iPhone Driver IC USB0 Rear USB Ether Ether Ethernet SDIF1 SD Card 27MHz HDMI-Tx HDMI FM Tuner FM Tuner AIN(Multi ch support) Optical (IEC)_IN IECIN Speaker Connection...

  • Page 84: Block Diagram

    KEY INT 16 KEY1 CN2305 H6000 KEY1 KEY1 BTN H6001* H6500* KEY1 BTN KEY1 90 S6004 S6005 VOLUME - VOLUME + KEY2 CN2305 H6000 KEY2 KEY2 89 NOTE: “ * ” REF IS FOR INDICATION ONLY SA-BTT190P/PC,SA-BTT195P/PC,SA-BTT196P SYSTEM CONTROL BLOCK DIAGRAM...

  • Page 85: Audio

    D5401 Q5412,Q5413 CN2303 CN5402 DC DETECT DC DET2 DC DET2 DC DET2 DC DET2 CIRCUIT SYSTEM CONTROL D5405 CN2303 CN5402 FAN AD FAN AD FAN AD FAN AD FROM D5403 DCDET POWER SUPPLY DCDET (MAIN SECTION) SA-BTT190P/PC,SA-BTT195P/PC,SA-BTT196P AUDIO BLOCK DIAGRAM...

  • Page 86: Power Supply(Main Section)

    DC DETECT DCDET AUDIO & VIDEO FB 6 D5407 +35V CN5400 +35V +35V PC5720 FEEDBACK D5703 D5707 FEEDBACK CIRCUIT IC5801 C0DABYY00011 SHUNT REGULATOR PRIMARY SECONDARY NOTE: “ * ” REF IS FOR INDICATION ONLY SA-BTT190P/PC,SA-BTT195P/PC,SA-BTT196P POWER SUPPLY(MAIN SECTION) (1/2) BLOCK DIAGRAM...
  • Page 87 FROM/TO DC DET1 SYSTEM CONTROL QUICK PCONT QUICK PCONT DC DETECT DC DETECT D2303 PW D3R3V DSP Q2301 PW DC12V PW DC12V A PW DC12V A SWITCH QR2300 PCONT SWITCH PW DC12V A SA-BTT190P/PC,SA-BTT195P/PC,SA-BTT196P POWER SUPPLY(MAIN SECTION) (2/2) BLOCK DIAGRAM...

  • Page 88: Wiring Connection Diagram

    (SOLDER SIDE) T6100 (SWITCHING (SOLDER SIDE) FRONT TRANSFORMER) SPEAKERS H6500* 8 7 6 P6803 CENTER IR6001 SUBWOOFER SENSOR SD CARD USB PORT/ FOR iPod/iPhone SLOT DOCK CONNECTOR NOTE: " * " REF IS FOR INDICATION ONLY. SA-BTT190P/PC,SA-BTT195P/PC,SA-BTT196P WIRING CONNECTION DIAGRAM...

  • Page 89: Schematic Diagram

    18 Schematic Diagram • Voltage and signal line : +B signal line 18.1. Schematic Diagram Notes : -B signal line : Tuner/AUX/HDMI/OpticaI Audio input • This schematic diagram may be modified at any time with the development of new technology. signal line : iPod/iPhone Video input signal line Notes:...

  • Page 91: Digital(Micon/Power) Circuit

    DD: DIGITAL(DDR3): SCHEMATIC DIAGRAM - 4 R2361 FE: DIGITAL(FRONT END): SCHEMATIC DIAGRAM - 5 ~ 8 DN: DIGITAL(DIGITAL NET): SCHEMATIC DIAGRAM - 9 TO DIGITAL(MICON) ET: DIGITAL(ETHER): SCHEMATIC DIAGRAM - 10 ~ 11 CIRCUIT (4/5) HO: DIGITAL(HDMI OUT): SCHEMATIC DIAGRAM - 12 SA-BTT190P/PC,SA-BTT195P/PC,SA-BTT196P DIGITAL(MICON) CIRCUIT...
  • Page 92 DD: DIGITAL(DDR3): SCHEMATIC DIAGRAM - 4 FE: DIGITAL(FRONT END): SCHEMATIC DIAGRAM - 5 ~ 8 DN: DIGITAL(DIGITAL NET): SCHEMATIC DIAGRAM - 9 ET: DIGITAL(ETHER): SCHEMATIC DIAGRAM - 10 ~ 11 HO: DIGITAL(HDMI OUT): SCHEMATIC DIAGRAM - 12 TO DIGITAL(MICON) CIRCUIT (5/5) SA-BTT190P/PC,SA-BTT195P/PC,SA-BTT196P DIGITAL(MICON) CIRCUIT...
  • Page 93 DD: DIGITAL(DDR3): SCHEMATIC DIAGRAM - 4 FE: DIGITAL(FRONT END): SCHEMATIC DIAGRAM - 5 ~ 8 DN: DIGITAL(DIGITAL NET): SCHEMATIC DIAGRAM - 9 ET: DIGITAL(ETHER): SCHEMATIC DIAGRAM - 10 ~ 11 HO: DIGITAL(HDMI OUT): SCHEMATIC DIAGRAM - 12 SA-BTT190P/PC,SA-BTT195P/PC,SA-BTT196P DIGITAL(MICON) CIRCUIT...
  • Page 94 DD: DIGITAL(DDR3): SCHEMATIC DIAGRAM - 4 FE: DIGITAL(FRONT END): SCHEMATIC DIAGRAM - 5 ~ 8 DN: DIGITAL(DIGITAL NET): SCHEMATIC DIAGRAM - 9 ET: DIGITAL(ETHER): SCHEMATIC DIAGRAM - 10 ~ 11 HO: DIGITAL(HDMI OUT): SCHEMATIC DIAGRAM - 12 SA-BTT190P/PC,SA-BTT195P/PC,SA-BTT196P DIGITAL(MICON) CIRCUIT...
  • Page 95 DD: DIGITAL(DDR3): SCHEMATIC DIAGRAM - 4 FE: DIGITAL(FRONT END): SCHEMATIC DIAGRAM - 5 ~ 8 DN: DIGITAL(DIGITAL NET): SCHEMATIC DIAGRAM - 9 ET: DIGITAL(ETHER): SCHEMATIC DIAGRAM - 10 ~ 11 HO: DIGITAL(HDMI OUT): SCHEMATIC DIAGRAM - 12 SA-BTT190P/PC,SA-BTT195P/PC,SA-BTT196P DIGITAL(MICON) CIRCUIT...
  • Page 96 DD: DIGITAL(DDR3): SCHEMATIC DIAGRAM - 4 FE: DIGITAL(FRONT END): SCHEMATIC DIAGRAM - 5 ~ 8 DN: DIGITAL(DIGITAL NET): SCHEMATIC DIAGRAM - 9 ET: DIGITAL(ETHER): SCHEMATIC DIAGRAM - 10 ~ 11 HO: DIGITAL(HDMI OUT): SCHEMATIC DIAGRAM - 12 SA-BTT190P/PC,SA-BTT195P/PC,SA-BTT196P DIGITAL(POWER) CIRCUIT...

  • Page 97: Panel Circuit

    C0HBB0000057 PGND FL_DATA R6010 BUZZER B1ABDF000026 FL DISPLAY DRIVER FL_CLK R6011 BUZZER DRIVE C6100 R6204 L6100 FL_STB 16V47 R6012 J0JBC0000041 C6020 [11] K2 [22] P10 C6021 ZJ6001 C6022 16 17 C6018 C6019 6.3V10 TO PANEL CIRCUIT (2/2) SA-BTT190P/PC,SA-BTT195P/PC,SA-BTT196P PANEL CIRCUIT...
  • Page 98 C6802 C6804 3R3V CLOSESW R6801 1000P R6802 SD CARD SLOT TO SPINDLE MOTOR (BD MECHANISM UNIT BRS14P) R6806 DAT0 R6807 DAT0 P6804 DAT1 R6808 DAT1 C6805 1000P R6809 C6803 1000P ZJ6802 K6804 K6806 TO PANEL CIRCUIT (1/2) SA-BTT190P/PC,SA-BTT195P/PC,SA-BTT196P PANEL CIRCUIT...

  • Page 99: Power Button, Operation Button And Ac Inlet Circuit

    CIRCUIT (CN2305) DGND S6004 S6005 IN SCHEMATIC KEY1 VOLUME- VOLUME + DIAGRAM - 2 S6002 OPEN/CLOSE H6001* R6020 DGND 1.2K KEY1_BTN NOTE: “ * ” REF IS FOR INDICATION ONLY SA-BTT190P/PC,SA-BTT195P/PC,SA-BTT196P POWER BUTTON / OPERATION BUTTON / AC INLET CIRCUIT...

  • Page 100: D-Amp Circuit

    23 24 25 26 27 28 29 30 SURROUND R + C5355 1000P FRONT L - FRONT L + TO SPEAKERS FRONT R - C5346 FRONT R + CENTER - CENTER + SUBWOOFER - SUBWOOFER + R5475 1000P SA-BTT190P/PC,SA-BTT195P/PC,SA-BTT196P D-AMP CIRCUIT...
  • Page 101 0.47 C5307 C5329 PVDD_D 0.033 C5335 0.01 R5310 1000P BST_D GVDD_CD R5307 IC5300 C5394 C1AB00003582 C5336 0.47 C5330 1000P DIGITAL AMPLIFIER 0.01 C5306 L5403 R5305 HEATSINK* G1C4R7MA0172 PW_DC12V_A NOTE: “ * ” REF IS FOR INDICATION ONLY SA-BTT190P/PC,SA-BTT195P/PC,SA-BTT196P D-AMP CIRCUIT...
  • Page 102 L5202 GND_D R5208 G0C100M00007 G0B9R5K00007 SD(L) OUT_D C5243 C5214 0.47 OTW(L) OUT_D C5230 0.01 C5234 READY PVDD_D R5212 1000P PVDD_D R5209 C5207 0.033 BST_D C5244 C5235 0.47 GVDD_CD C5231 1000P IC5200 0.01 C1AB00003582 DIGITAL AMPLIFIER C5206 R5207 SA-BTT190P/PC,SA-BTT195P/PC,SA-BTT196P D-AMP CIRCUIT...

  • Page 103: Smps Circuit

    R5807 R5730 DZ2J062M0L R5808 C2903 2.2K 1000P R5803 D5707 DZ2J062M0L C5817 6800P R5806 C2904 R5814 R5804 IC5801 1000P 100K C0DABYY00011 R5729 C5818 C2905 SHUNT REGULATOR R5805 5.6K R5818 NOTE: “ * ” REF IS FOR INDICATION ONLY SA-BTT190P/PC,SA-BTT195P/PC,SA-BTT196P SMPS CIRCUIT...
  • Page 104 HEATSINK* R5733 C5731 D5713 C5724 B0BC035A0007 1000P C5730 C5712 K5720 C5700 200V560 F1BAF1020020 D5903 1000P B0ACCK000005 C5747 ZJ5702 3300P Q5902 C5901 B1ABCF000176 1000P R5727 R5726 SWITCH 0.15 0.15 NOTE: “ * ” REF IS FOR INDICATION ONLY SA-BTT190P/PC,SA-BTT195P/PC,SA-BTT196P SMPS CIRCUIT...

  • Page 105: Printed Circuit Board

    C55071 C55116 LB55002 C55122 C55120 C2389 C55117 IC55006 C55121 C2662 R2671 R2654 R2653 IC2952 R2672 C55114 R2660 1110 C2663 C55113 C2653 R2663 C2654 C2651 CK60409 R2664 LB2952 L2951 R60409 C2656 C2664 R60407...BTT195P/PC,BTT196P CK60407 3536A 3536A (SIDE A) SA-BTT190P/PC,SA-BTT195P/PC,SA-BTT196P DIGITAL P.C.B.
  • Page 106 (TO OPTICAL PICKUP UNIT (BD MECHANISM UNIT C55050 BRS14P)) L55003 C55047 JK2951 RX55018 C2661 IP55002 2.5A C55048 C2423 P55006 C55024 FM ANT (TO STEPPING MOTOR 3536A 3536A L2300 (BD MECHANISM UNIT BRS14P)) R60404 CK60404 CK60402 R60402...BTT195P/PC,BTT196P (SIDE B) SA-BTT190P/PC,SA-BTT195P/PC,SA-BTT196P DIGITAL P.C.B.

  • Page 107: Panel, Power Button And Operation Button P.c.b

    SD CARD FOR iPod/iPhone SLOT DOCK CONNECTOR OPERATION BUTTON P.C.B. (REP4754AB) H6000 S6005 H6001* (VOLUME+) S6004 (VOLUME-) S6002 (OPEN/CLOSE) R6018 3549AC 3549AC NOTE: " * " REF IS FOR INDICATION ONLY. SA-BTT190P/PC,SA-BTT195P/PC,SA-BTT196P PANEL / POWER BUTTON / OPERATION BUTTON P.C.B.

  • Page 108: D-Amp P.c.b

    R5306 L5301 FRONT R5217 R5118 7-FL+ C5141 R5219 L5203 SPEAKERS L5202 6-FR- C5330 R5308 5-FR+ R5310 R5315 R5309 4-C- CENTER R5218 R5319 L5303 L5304 R5311 3-C+ 2-SW- SUBWOOFER 1-SW+ 3537A-1 3537A-1 3537A-1 3537A-1 (SIDE A) (SIDE B) SA-BTT190P/PC,SA-BTT195P/PC,SA-BTT196P D-AMP P.C.B.

  • Page 109: Smps And Ac Inlet P.c.b

    D5802 D5803 R5894 R5821 T5751 C5897 Q5898 R5890 W104 (SUB TRANSFORMER) R5897 D5896 C5813 R5893 R5895 IC5900 QR5862 R5864 ZJ1* R5891 C5791 C5814 3529AA 3529AA SA-BTT190P/PC,SA-BTT195P/PC,SA-BTT196P NOTE: " * " REF IS FOR INDICATION ONLY. SMPS / AC INLET P.C.B.

  • Page 111: Appendix Information Of Schematic Diagram

    CD PLAY STANDBY IC2305 REF NO. MODE POWER ON STANDBY IC2310 REF NO. MODE CD PLAY STANDBY IC2901 REF NO. MODE CD PLAY 20.1 20.1 18.1 18.0 20.1 20.1 18.3 STANDBY 20.1 20.1 18.1 18.0 20.1 20.1 18.3 SA-BTT190P/PC,SA-BTT195P/PC,SA-BTT196P DIGITAL P.C.B.
  • Page 112 Q5400 Q5403 QR2300 QR2301 QR2302 REF NO. MODE POWER ON 11.7 STANDBY 11.7 SA-BTT190P/PC,SA-BTT195P/PC,SA-BTT196P DIGITAL P.C.B. 20.1.3. Panel P.C.B. IC6001 REF NO. MODE POWER ON -17.3 -17.3 -11.6 -.9.7 -.9.7 STANDBY -17.3 -17.3 -11.6 -.9.7 -.9.7 IC6001 REF NO. MODE POWER ON -19.1 -19.1 -19.1 -15.3 -15.3 -19.1 -19.1 -11.2 -15.4 -19.1 -.9.8 -19.1 17.1 17.4 17.1 17.1 17.1 17.4 17.1 17.4...
  • Page 113 11.2 24.0 27.6 27.6 27.6 24.1 24.1 27.6 STANDBY 11.4 10.7 27.6 27.6 27.6 10.7 10.7 27.6 REF NO. IC5300 MODE CD PLAY 27.6 27.6 24.1 11.4 STANDBY 27.6 27.6 10.7 11.4 IC5301 REF NO. MODE CD PLAY STANDBY SA-BTT190P/PC,SA-BTT195P/PC,SA-BTT196P D-AMP P.C.B.
  • Page 114 CD PLAY 35.0 27.5 11.5 STANDBY 35.0 27.5 REF NO. QR5402 MODE CD PLAY 11.4 11.0 11.5 STANDBY SA-BTT190P/PC,SA-BTT195P/PC,SA-BTT196P D-AMP P.C.B. 20.1.6. SMPS P.C.B. IC5701 REF NO. MODE POWER ON 164.8 19.1 STANDBY 164.8 19.1 IC5799 REF NO. MODE POWER ON 11.0 160.2...

  • Page 115: Waveform Table

    20.1.7. Waveform Table 1.25Vp-p(10usec/div) 2.5Vp-p(10usec/div) 4Vp-p(100nsec/div) 2.5Vp-p(50nsec/div) 0.4Vp-p(200usec/div) 4.8Vp-p(1usec/div) 68Vp-p(1usec/div) 4.8Vp-p(1usec/div) 68Vp-p(1usec/div) 4.8Vp-p(1usec/div) 76Vp-p(1usec/div) 2Vp-p(20nsec/div) 1Vp-p(20nsec/div) 3.2Vp-p(5usec/div) 6Vp-p(1usec/div)

  • Page 116: Illustration Of Ics, Transistor And Diode

    20.2. Illustration of ICs, Transistor and Diode C0ABBA000168 (8p) C0DBAYY00729 (20p) C0DABYY00011 C0DBEYY00070 C0DBGYY01985 C0HBB0000057 (44p) C0DBZYY00018 (8p) C1AB00003582 (44p) No.1 No.1 C0JBAR000434 C1AB00003568 (20P) C1AB00003852 (64P) RFKWMBTT190P C5HACYY00007 MIP2F20MSSCF MFI337S3959 (8P) (100p) No.1 No.1 No.1 B1ABCF000011 B1ABDF000026 B1ABMG000008 B1ABCF000176 B1ABMF000020 B1DGDC000002 B1ABDF000033...

  • Page 117: Terminal Function Of Ics

    20.3. Terminal Function of ICs 20.3.1. IC6001(C0HBB0000057): IC FL Driver Terminal Name Function LED1 No Connection LED2 No Connection LED3 No Connection LED4 No Connection Oscillator Input DOUT No Connection Data Input Clock Input Serial Interface Strobe 10 K1 No Connection 11 K2 No Connection 12 GND...

  • Page 119: Exploded View And Replacement Parts List

    (AC INLET *TL20 (PANEL P.C.B.) *TL10 P.C.B.) (POWER BUTTON P.C.B.) ZJ5703 *TL11 *TL21 *H6001 (OPERATION BUTTON P.C.B.) (SMPS P.C.B.) *H6500 H6000 SA-BTT190P/PCK SA-BTT195P/PCK SA-BTT196P-K NOTE: " * " PART IS NOT SUPPLIED / REF IS FOR INDICATION ONLY. CABINET DRAWINGS...
  • Page 120 21.1.2. Packaging A1-1 ACCESSORIES BAG AC CORD SA-BTT190P/PC OI BOOK FM INDOOR ANTENNA SB-BTT190P/PC F R O N T POLYFOAM (LEFT) SC-BTT190P-K POLYFOAM (RIGHT) SC-BTT190PCK PACKAGING DRAWINGS...
  • Page 121 **PAD SA-BTT195P/PC ACCESSORIES BAG SA-BTT196P REMOTE CONTROL A1-1 R/C BATTERY COVER SB-BTT195P/PC AC CORD **SPACER PAD OI BOOK FM INDOOR ANTENNA F R O N T POLYFOAM (LEFT) POLYFOAM (RIGHT) SC-BTT195P-K SC-BTT195PCK SC-BTT196P-K NOTE: "**" PARTS ARE NOT SUPPLIED. PACKAGING DRAWINGS...

  • Page 123: Mechanical Replacement Part List

    21.1.3. Mechanical Replacement Part List Safety Ref. Part No. Part Name & Qty Remarks Description Safety Ref. Part No. Part Name & Qty Remarks RHD30119-S SCREW Description RHDX261002 SCREW CABINET RHD30172 SCREW CHASSIS RKA0253-H LEG CUSHION RKM0668-K1 TOP CABINET L6FAYYYG0005 FAN UNIT RKWX1003-R FL FILTER...
  • Page 124 Safety Ref. Part No. Part Name & Qty Remarks Description N2QAYB000727 REMOTE CONTROL A1-1 RKK-BTT270PK BATTERY COVER K2CB2CB00021 AC CORD VQT3X51 O/I BOOK (En) BTT190P /PC, BTT195P VQT3X51-1 O/I BOOK (En) BTT196P VQT3X52 O/I BOOK (Cf) BTT190P BTT195P RSAX0002 INDOOR ANTENNA...

  • Page 125: Electrical Replacement Part List

    21.2. Electrical Replacement Part List Safety Ref. Part No. Part Name & Qty Remarks Description Safety Ref. Part No. Part Name & Qty Remarks IC5301 C1AB00003852 Description IC5401 C0ABBA000168 PRINTED CIR- IC5701 C5HACYY00007 CUITS BOARDS IC5799 MIP2F20MSSCF IC5801 C0DABYY00011 PCB1 RFKB4753E DIGITAL P.C.B E.S.D.
  • Page 126 Safety Ref. Part No. Part Name & Qty Remarks Safety Ref. Part No. Part Name & Qty Remarks Description Description DIODES K1KY09AA0606 9P CONNECTOR D2300 B0ACCK000005 DIODE COILS AND INDUC- TORS D2301 B0BC3R0A0262 DIODE D2302 B0ACCK000005 DIODE L2300 G1C100M00049 INDUCTOR D2303 B0BC6R8A0266 DIODE...
  • Page 127 Safety Ref. Part No. Part Name & Qty Remarks Safety Ref. Part No. Part Name & Qty Remarks Description Description W104 D0GBR00JA008 1/10W PC5702 B3PBA0000503 PHOTO COUPLER W104 D0GDR00JA017 1/8W W105 D0GBR00JA008 1/10W PC5720 B3PBA0000503 PHOTO COUPLER W106 D0GBR00JA008 1/10W PC5799 B3PBA0000503 PHOTO COUPLER...
  • Page 128 Safety Ref. Part No. Part Name & Qty Remarks Safety Ref. Part No. Part Name & Qty Remarks Description Description R2919 ERJ6RSJR10V 1/10W R5375 D0GB470JA008 1/10W R2920 D0GB822JA008 8.2K 1/10W R5376 D0GB470JA008 1/10W R2921 ERJ3RBD3902V 1/16W R5377 D0GB470JA008 1/10W R2922 ERJ6RSJR10V 1/10W R5378...
  • Page 129 Safety Ref. Part No. Part Name & Qty Remarks Safety Ref. Part No. Part Name & Qty Remarks Description Description R6006 D0GB101JA008 1/10W C2325 F1H1E1050001 R6010 D0GB680JA008 1/10W C2327 F1H1E1050001 R6011 D0GB680JA008 1/10W C2328 F1H1E1050001 R6012 D0GB102JA008 1/10W C2331 F1J1A106A043 10uF R6015 D0GB393JA008...
  • Page 130 Safety Ref. Part No. Part Name & Qty Remarks Safety Ref. Part No. Part Name & Qty Remarks Description Description C5136 F1H2A102A009 1000pF 100V C5371 F1H1H102A219 1000pF C5137 F1H2A102A009 1000pF 100V C5372 F1J1A106A043 10uF C5140 F2A1H8210026 820uF C5375 F1H1H1200004 12pF C5141 ECQV1H474JL3 0.47uF...
  • Page 131 Safety Ref. Part No. Part Name & Qty Remarks Description C6101 F1H1H562A219 5600pF C6102 F2A1C470A913 47uF C6103 F2A0J221A024 220uF 6.3V C6104 F2A1V470A939 47uF C6105 F1J1C106A059 10uF C6802 F1H1H102A013 1000pF C6803 F1H1H102A013 1000pF C6804 F1J0J226A014 22uF 6.3V C6805 F1H1H102A013 1000pF SERVICE FIXTURE &...

This manual is also suitable for:

Sa-btt190pcSa-btt195pSa-btt195pcSa-btt196p

Table of Contents
