USER MANUAL
EN
SEDEO PRO+
9010304A

Advertisement

Table of Contents
loading

Related Manuals for Handicare SEDEO PRO+

Summary of Contents for Handicare SEDEO PRO+

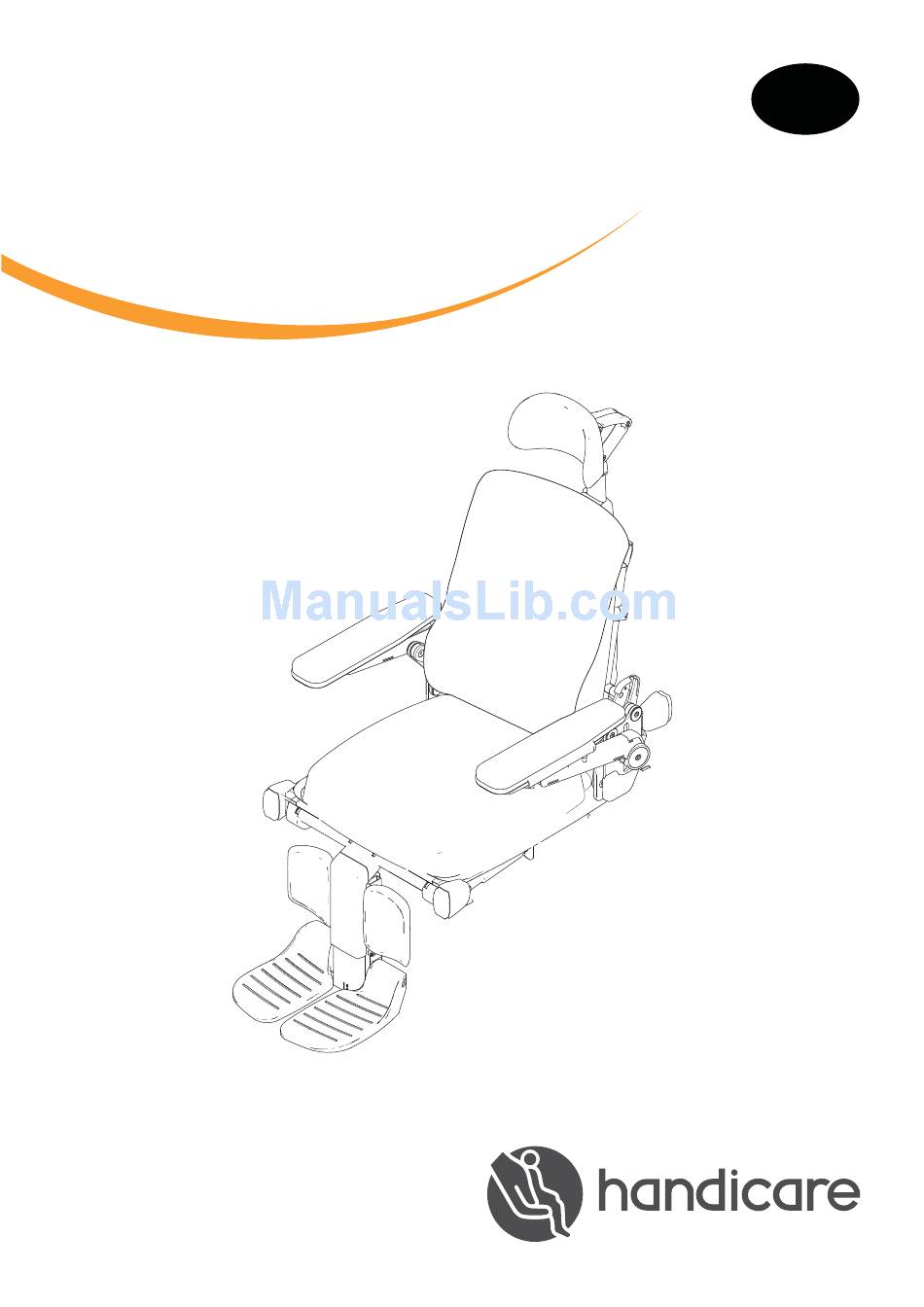

  • Page 1 USER MANUAL SEDEO PRO+ 9010304A...
  • Page 2 The information provided is valid for the product in its standard version. Handicare can therefore not be held liable for any damage resulting from specifi cations of the product deviating from the standard confi...

  • Page 3: Table Of Contents

    Sedeo Pro+ Table of content Table of content Introduction............................4 This user manual Symbols used in this manual Safety ............................5 Temperature Indications on the seating system Moving parts General description ........................6 Sedeo Pro+ product description Use ..............................7 Adjustments (by the user/attendant) Getting in and out of the wheelchair (transfer) Options / accessories Reducing the seating system in size for transportation purposes...

  • Page 4: Introduction

    Pointing out possible problems to the user. This user manual will help you to use and maintain your seating system safely This user manual is a supplement to Handicare’s general Caution! wheelchair user manual. Advice for the user to prevent damage to the Where necessary this user manual refers to product.

  • Page 5: Safety

    Sedeo Pro+ Safety Safety 5 6 7 Warning! Always follow the instructions given next to the warning symbols! Failure to follow these instructions may result in physical injury, damage to the wheelchair or damage to the environment. Where possible the warning symbols have been placed in the applicable paragraphs.

  • Page 6: General Description

    General description Sedeo Pro+ General description 3.1 Sedeo Pro+ product description The wheelchair is fi tted with a Sedeo Pro+ seating system. The Sedeo Pro+ seating system provides excellent support for the head, torso, arms and legs. Optimal body support ensures maximum independence for the wheelchair user.

  • Page 7: Use

    Sedeo Pro+ 4.1 Adjustments (by the user/ attendant) Manually elevating legrest knee angle The angle of the manually elevating legrests can be adjusted independently of each other. 1. Push handle (A) forwards. 2. Lift your leg. 3. Release the handle when in the desired position.

  • Page 8: Getting In And Out Of The Wheelchair (Transfer)

    Sedeo Pro+ Hemiplegia armrest 1. Pull (A) out of the locked position and twist (B) into the desired position. Note! Ensure that (B) is properly secured! 4.2 Getting in and out of the wheelchair (transfer) Forwards transfer Warning! Do not stand on the footplates. Putting your full weight on the footplates may lead to wheelchair damage and to hazardous situations, including the wheelchair tipping...

  • Page 9: Options / Accessories

    Sedeo Pro+ Sideways transfer Folding back the armrest assembly 1. Fold (A) to the rear. Caution! Remove the tray before folding back the armrest assembly. 4.3 Options / accessories Removing/positioning the headrest 1. Loosen (A) by one turn. 2. Slide (B) out of or into the receiver. 3.

  • Page 10: Reducing The Seating System In Size For Transportation Purposes

    Sedeo Pro+ Flip down the abduction support 1. Pull (A) out of the locked position and fl ip down (B) 2. Release (A). Flip up the abduction support 3. Pull (A) out of the locked position and fl ip up (B). 4.
  • Page 11 Sedeo Pro+ Removing the seat cushion 1. Pull (A) upwards and forwards. Flip up the armrest 1. Flip up the armrest (A) 2. Lock the armrest (B) Folding the backrest fully forward 1. Loosen the knobs (A) at the lower back. 2.

  • Page 12: Setting Up The Seating System Following Transportation

    Sedeo Pro+ Removing the standard legrest 1. Push (A) to the rear. 2. Swing (B) to the side. 3. Remove (B). 4.5 Setting up the seating system following transportation Positioning the standard legrest 1. Place the legrest (A) in the bracket. 2.
  • Page 13 Sedeo Pro+ Positioning the armrest 1. Unlock the armrest (A) 2. Flip down the armrest (B) Positioning the seat cushion 1. Slide (A) and (B) over (C) and (D) 2. Push (E) downwards. Caution! Ensure that (C) and (D) at the back of the seat hook under the bolt heads.

  • Page 14: Adjustments (To Be Carried Out By A Professional)

    Adjustments (to be carried out by a professional) Sedeo Pro+ Adjustments (to be carried out by a professional) Note! There are calibration marks on various parts of the seating system. The ex-factory settings are indicated. 5.1 Seat width 1. Unscrew (A) (with use of a ring spanner) and (B).

  • Page 15: Backrest Height

    Sedeo Pro+ Adjustments (to be carried out by a professional) 5.3 Backrest height Note! First loosen the velcro backrest fl ap from the seat frame. Height (1) 1. Loosen the 8 screws (A) by one turn. 2. Adjust the backrest to the desired position. 3.
  • Page 16 Adjustments (to be carried out by a professional) Sedeo Pro+ Lower leg length 1. Loosen the setscrew (A) a few turns with a 4 mm Allen key. 2. Slide the footplate (B) in the desired position. 3. Tighten the setscrew (A) securely. Caution! Ensure that there is suffi...

  • Page 17: Central Legrest

    Sedeo Pro+ Adjustments (to be carried out by a professional) 5.5 Central legrest A L+R Lower leg length 1. Loosen (A) by one turn. 2. Slide (B) into the desired position. 3. Tighten (A). Caution! Ensure that there is suffi cient free space under (B) for the wheelchair to drive over obstacles.

  • Page 18: Electrical Central Legrest

    Adjustments (to be carried out by a professional) Sedeo Pro+ Calf pad height 1. Loosen (A) by one turn. 2. Slide (B) into the desired position. 3. Tighten (A). A L+R 5.6 Electrical central legrest Lower leg length 1. Loosen (A) by one turn. 2.
  • Page 19 Sedeo Pro+ Adjustments (to be carried out by a professional) Calf pad height(1) 1. Lower the leg length 2. Unscrew (A) (2x) 3. Adjust (B) to desired height and move (A) to higher/lower holes (C) 4. Tighten (A) (2x) Calf pad height(2) 1.

  • Page 20: Armrest Assembly

    Adjustments (to be carried out by a professional) Sedeo Pro+ Calf pad depth 1. Unscrew (A) 2. Adjust (B) to desired depth and move (A) to new hole. 3. Tighten (A) 5.7 Armrest assembly Note! Ensure that the arms are supported well, without the shoulders being pushed upwards.
  • Page 21 Sedeo Pro+ Adjustments (to be carried out by a professional) Armrest depth (1) Note! In case you cannot access the bolts (A) fi rst adjust the armrest angle. 1. Loosen (A) by one turn. 2. Slide (B) into the desired position. 3.
  • Page 22 Adjustments (to be carried out by a professional) Sedeo Pro+ Armrest width (2) To remove: 1. Remove (A) and (B). 2. Remove (C) and (D). To position: 3. Slide (D) onto (E). Note! Ensure that the ridge on the terminal block falls into the opening 4.

  • Page 23: Adjusting The Centre Of Gravity

    Sedeo Pro+ Adjustments (to be carried out by a professional) Armrest horizontal angle 1. Loosen (A). 2. Adjust (B) to desired position By positioning (A) into different sliders of (C) an additional horizontal angle can be achieved Side cushion Adjust the side cushion as follows: 1.

  • Page 24: Headrest

    Adjustments (to be carried out by a professional) Sedeo Pro+ 5.9 Headrest Adjusting the memory setting / headrest height 1. Loosen (A). 2. Loosen (C) by one turn. 3. Slide (B) into the desired position. 4. Slide (D) as far down as possible. 5.

  • Page 25: Fixed / Swing-Away Controller Bracket

    Sedeo Pro+ Adjustments (to be carried out by a professional) 5.10 Fixed / swing-away controller bracket Depth 1. Loosen (A) by one turn. 2. Slide (B) into the desired position. 3. Tighten (A). Height (1) 1. Loosen (A) by one turn. 2.

  • Page 26: Backrest With Adjustable Straps - Fl Exible

    Adjustments (to be carried out by a professional) Sedeo Pro+ 5.11 Backrest with adjustable straps - fl exible The sides of the backrest with adjustable straps can be adjusted as follows: 1. Loosen the 8 Torx screws. 2. Adjust the sides to the desired position. 3.

  • Page 27: Abduction Support

    Sedeo Pro+ Adjustments (to be carried out by a professional) 5.13 Abduction support Adjust the abduction support as follows: 1. Loosen the Torx screw. 2. Adjust the part to the desired position. 3. Tighten the Torx screw. A/a. Height adjustment. B/b.

  • Page 28: Attaching The Lap Strap

    Adjustments (to be carried out by a professional) Sedeo Pro+ A/a. Adjustment of cushion angle B/b. Fine adjustment of width 5.15 Attaching the lap strap Attaching to the seating frame 1. Tighten (A) through (B) into (C).
  • Page 29 Sedeo Pro+ Adjustments (to be carried out by a professional) Warning! Ensure that the lap strap is adjusted to the wheelchair user. The strap must fi t snugly across the hips at an angle of approximately 45°. Ensure that the strap is clean at all times and that the locking mechanism is working 45°...

  • Page 30: Maintenance

    Maintenance Sedeo Pro+ Maintenance Stretch Rubber It is recommended that you have your 58% Knitted Polyester wheelchair serviced by your dealer once a year 42 % FR Polyurethane or, in the case of intensive use, once every six months. Fabric Backing 100% Polyester 6.1 Cleaning the upholstery Coating 100% PVC...

  • Page 31: Troubleshooting

    Sedeo Pro+ Troubleshooting Troubleshooting If there is a problem with your seating system, contact you dealer.

  • Page 32: Technical Specifi Cations

    Technical specifi cations Sedeo Pro+ Technical specifi cations 8.1 CE declaration and requirements The product is in conformity with the provisions of the Medical Devices Directive and carries the CE mark. The product also meets the following requirements and standards. This has been verifi ed by independent test organizations.
  • Page 33 Sedeo Pro+ Technical specifi cations Electrically elevating central legrest Lower leg length (with compressed seat cushion) mm (inch) 365 - 530 (14.4 - 20.9) Knee angle ° 94 - 170 Maximum length compensation mm (inch) 180 (7.1) Ankle angle ° +20 till -20 Calf support height mm (inch)

  • Page 34: Warranty

    Warranty Sedeo Pro+ Warranty The provisions of warranty and liability applicable to the seating system are identical to those incorporated in the wheelchair manual.  Wheelchair)
  • Page 35 Sedeo Pro+...
  • Page 36 Dealer: Serial number:...
