2 Installation instructions.
2.1 Mounting the Control Assembly

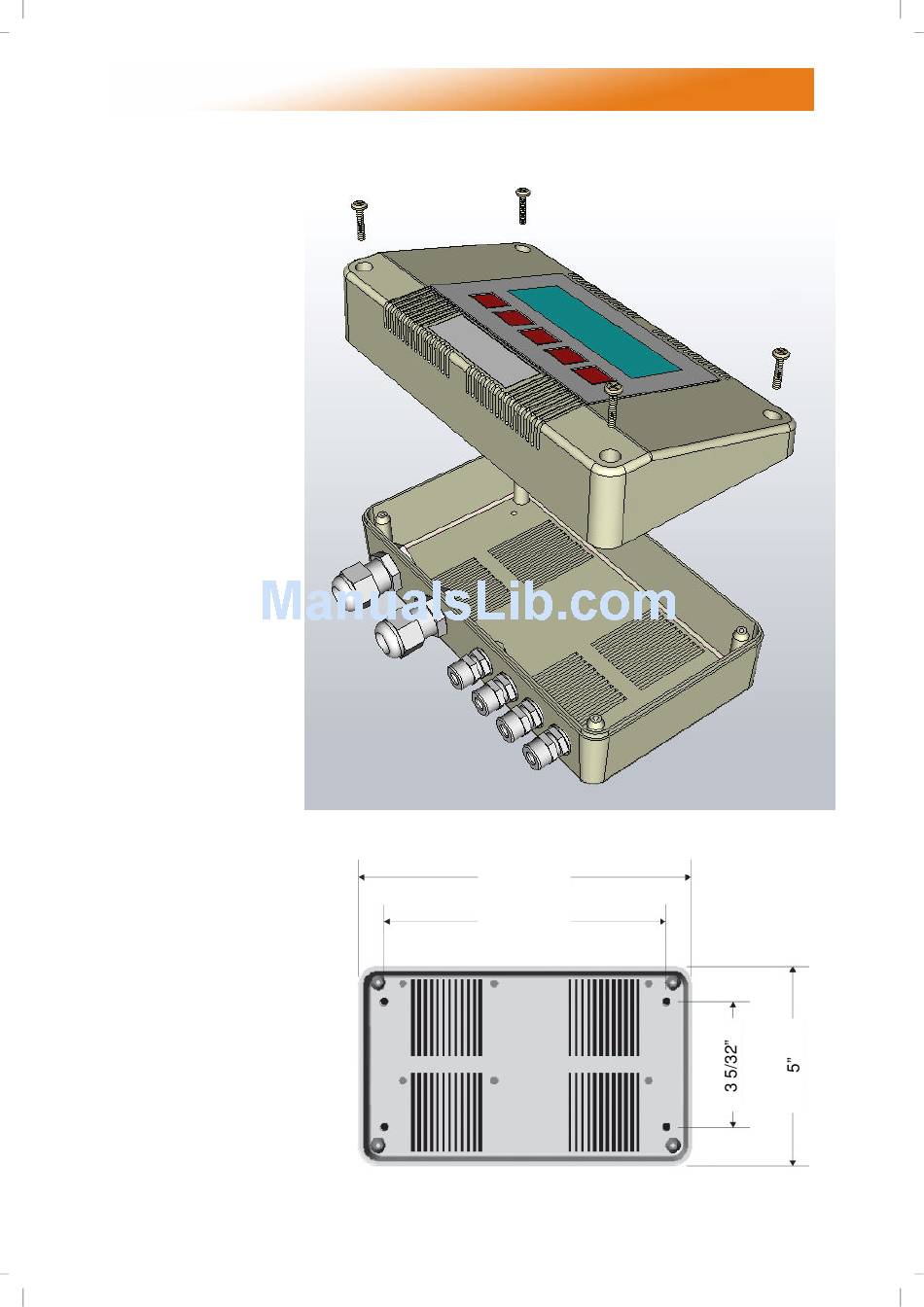

The housing consists of a
two part plastic moulding
held
together
by
four
screws.
• Remove the screws.
•
Carefully lift the lid and
unplug the ribbon cable
from the power PCB
assembly situated in the
bottom of the case.
• A drilling template is provided to
enable the controller assembly to
be securely fixed to a solid
surface.
• It is recommended that the
controller is installed no
less than 5ft above the
floor level.
• The lid with display and
connecting ribbon cable
can be rotated through
180° therefore allowing the
controller to be positioned with
the wire entry to the bottom or the top
depending on the cable routing.
• Do
not
mount
the
excessively warm or cold surface or where it
could be affected by direct sunlight or other
heat/cool sources.
• The
mounting
surface
should be non-conducting or
grounded
and
should
prevent access to the rear of
the control.
Note: The recommended minimum
mounting height only applies when
the internal sensor is used.
controller
on
an
4
8 13/16"
7 7/8"
