3.
Connect ground wire
Connect ground wire (F) (green or bare) of power supply
cord under green external ground conductor screw (A).
Tighten screw.
4.
Connect remaining wires
Connect remaining wires under outer terminal block screws.
Tighten screws, tighten strain relief screws, and fold insulator
over terminal block. Finally, reinsert tab of terminal block cover
into slot at bottom edge of terminal block housing. Secure
cover with the 2 hold-down screws. Now, go to "Level Dryer."

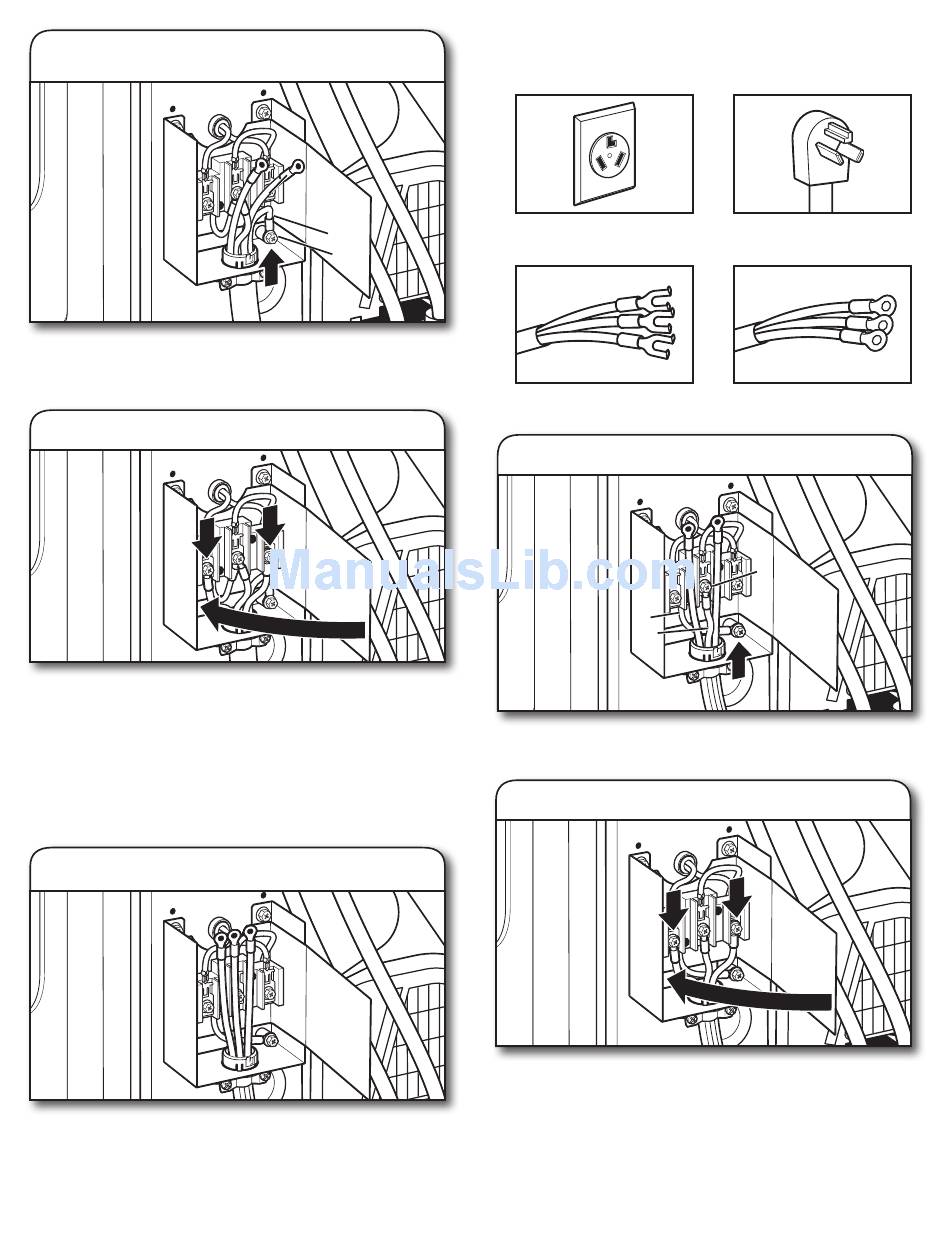

3-Wire Power Supply Cord Strain Relief:
IMPORTANT: Use the strain relief supplied with the dryer.
Attach power supply cord to strain relief
Put power supply cord through the strain relief. Be sure that
the wire insulation on the power supply cord is inside the
strain relief. Do not further tighten strain relief screws at
this point.
20
F
F
A
3-Wire Power Supply Cord Connection
Use where local codes permit connecting cabinet-ground
conductor to neutral wire.
3-wire receptacle
(NEMA-type 10-30R)
Spade terminals with
upturned ends
1.
Connect neutral (center) wire
D
C
Connect neutral (center) wire (C) of power supply cord under
center terminal block screw (B). Tighten screw.
2.
Connect remaining wires
Connect remaining wires under outer terminal block
screws. Tighten screws, tighten strain relief screws,
and fold insulator over terminal block. Finally, reinsert
tab of terminal block cover into slot at bottom edge
of terminal block housing. Secure cover with the
2 hold-down screws. Now, go to "Level Dryer."
3 prong plug
Ring terminals
B
