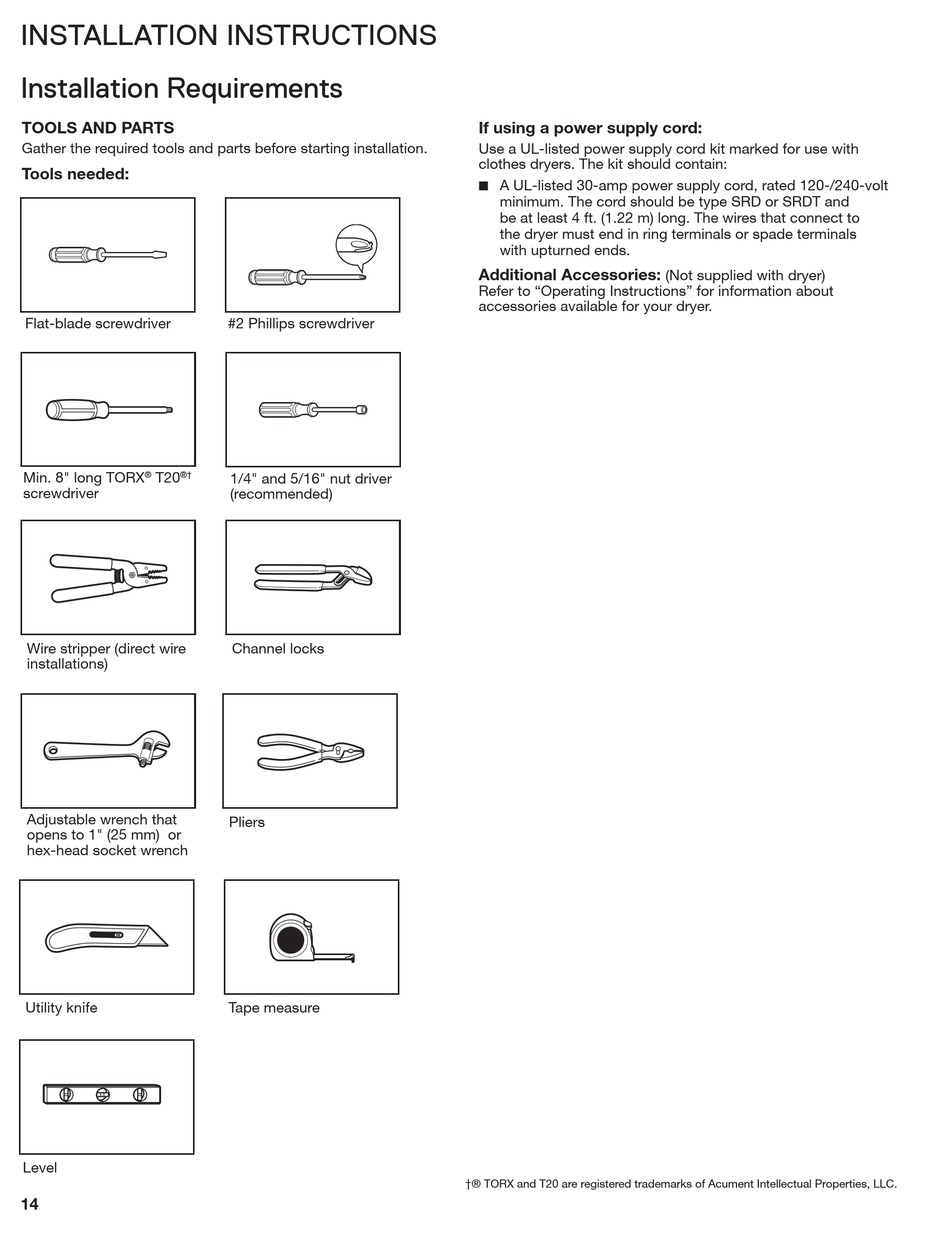

INSTALLATION INSTRUCTIONS

Installation Requirements

TOOLS AND PARTS
Gather the required tools and parts before starting installation.
Tools needed:
Flat-blade screwdriver
Min. 8" long TORX
T20
®
®†
screwdriver
Wire stripper (direct wire
installations)
Adjustable wrench that
opens to 1" (25 mm) or
hex-head socket wrench
Utility knife
Level
14
#2 Phillips screwdriver
1/4" and 5/16" nut driver
(recommended)
Channel locks
Pliers
Tape measure
If using a power supply cord:
Use a UL-listed power supply cord kit marked for use with
clothes dryers. The kit should contain:
A UL-listed 30-amp power supply cord, rated 120-/240-volt
n
minimum. The cord should be type SRD or SRDT and
be at least 4 ft. (1.22 m) long. The wires that connect to
the dryer must end in ring terminals or spade terminals
with upturned ends.
Additional Accessories:
Refer to "Operating Instructions" for information about
accessories available for your dryer.
†® TORX and T20 are registered trademarks of Acument Intellectual Properties, LLC.
(Not supplied with dryer)
