Pearl-2 User Guide
Item Description
horizontal axis. (I.e. the item is displaced 10%, or 100px, from the bottom up).
If using percents, this is the items percentage of total height on the layout's vertical axis.
(I.e. the item takes up 80% of the layout's height – represented by a thin red bar to the left of the
percent box).
6
If using pixels, this value is the item's height, in pixels, with a maximum pixel width (i.e. frame
size) identified in your channel's encoding settings
The percentage of blank space (or number of pixels) from the top downward on the layout's
7
vertical axis. (I.e. the item is displaced 10%, or 200px, from the top down).

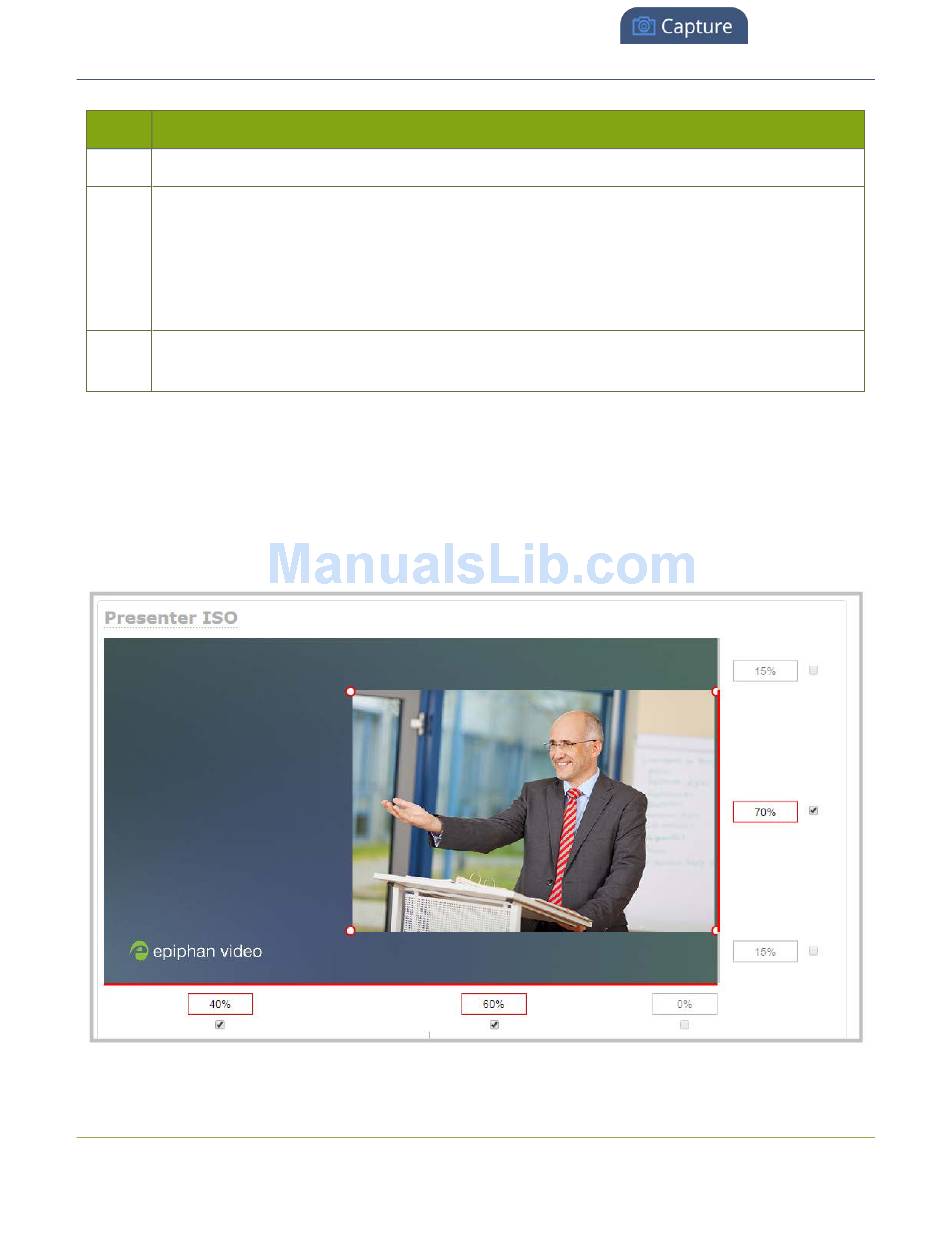

Resize layout items
The easiest way to resize a layout item is to use the center adjustment boxes (annotated as #3 and #6 in
the image above) on each of the horizontal and vertical axes to set your item's width and height respectively.
You can also use your mouse cursor to select the corners and manipulate them into the size you want. Hold
the shift key while doing so to keep the frame size constant. If you need to crop your image, see
a source.
Resize and position layout items using percents or
Configure encoding
pixels (custom channel)
.
Custom crop
