Pearl-2 User Guide
Preview the video output port
l
Disable the video output port
l
Disable or enable the audio on the video output port
l
Configure the audio meter
l
Rename a video output port
l

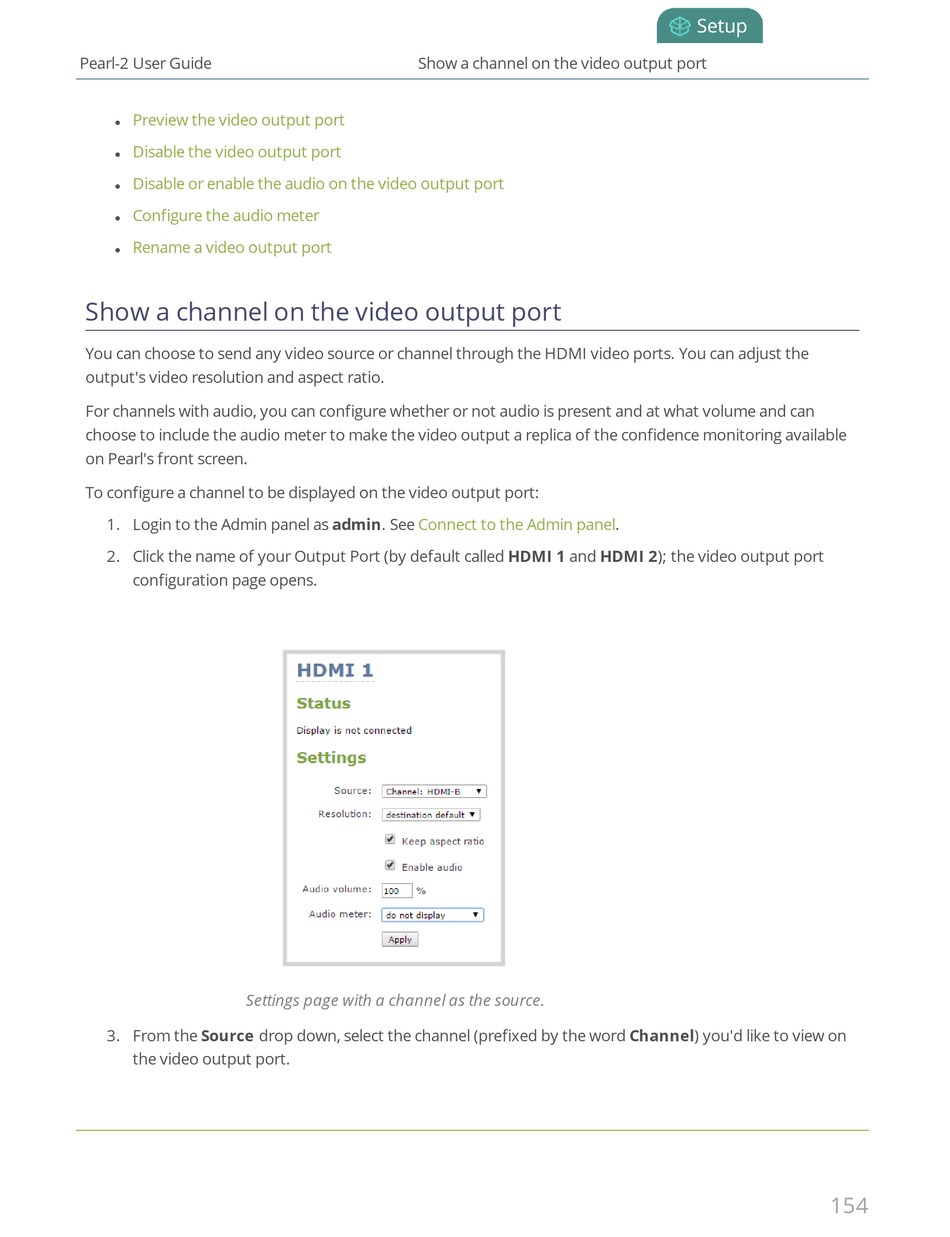

Show a channel on the video output port

You can choose to send any video source or channel through the HDMI video ports. You can adjust the
output's video resolution and aspect ratio.
For channels with audio, you can configure whether or not audio is present and at what volume and can
choose to include the audio meter to make the video output a replica of the confidence monitoring available
on Pearl's front screen.
To configure a channel to be displayed on the video output port:
1. Login to the Admin panel as admin. See
2. Click the name of your Output Port (by default called HDMI 1 and HDMI 2); the video output port
configuration page opens.
Settings page with a channel as the source.
3. From the Source drop down, select the channel (prefixed by the word Channel) you'd like to view on
the video output port.
Show a channel on the video output port
Connect to the Admin panel.
154
