Page 1: Instruction Manual

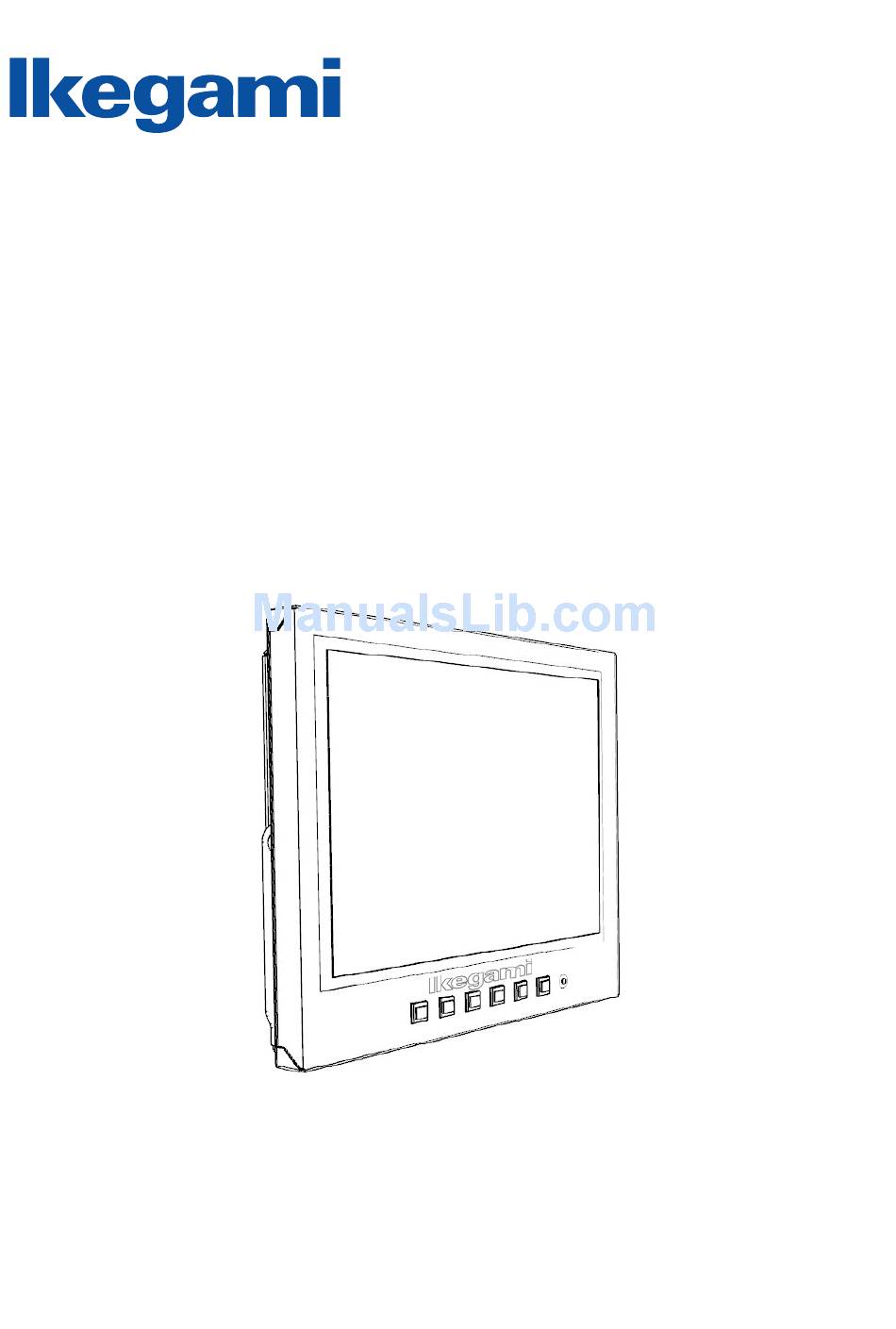

INSTRUCTION MANUAL 10.4” LCD VIDEO MONITOR LCM-1001 Model rev.A Please read this manual thoroughly before use and keep for future reference. - Page 2 1. Read all of these instructions. 2. Save these instructions for later use. 3. Follow all warnings and instructions marked on the product. 4. Unplug this product from the wall outlet before cleaning. Do not use liquid cleaners or aerosol cleaners. Use a damp cloth for cleaning.
- Page 3 those controls that are covered by the operating instructions since improper adjustment of other controls may result in damage and will often require extensive work by a qualified technician to restore normal operation. E. If the product has been dropped or the cabinet has been damaged. If the product exhibits a distinct change in performance, indicating a need for service.
- Page 4 ▶ NEVER REMOVE THE BACK COVER Removal of the back cover should be carried out only by qualified personnel. ▶ DO NOT USE IN HOSTILE ENVIRONMENTS To prevent shock or fire hazard, do not expose the unit to rain or moisture. This unit is designed to be used in the office or home.
-
Page 5: Doc Compliance Notice
NOTE This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. - Page 6 CONTENTS SAFETY INSTRUCTION …………………………………………………… 2 - 3 CAUTION …………………………………..………………………………… 4 FCC RF INTERFERENCE STATEMENT ………………………………… 5 UNPACKING ………………………………………………………………… 7 CONNECTING WITH EXTERNAL DEVICE ……………………………... 8 REMOTE CONTROLLER FUNCTIONS ………………………………..9 CONTROLS and FUNCTIONS ……………………………………………. 10 - 13 APPENDIX ………………………………………………………………..14 - 15 TROUBLESHOOTING GUIDE …………………………………………….
- Page 7 Remove the package cover and place the product on a flat and secure surface or in the installation location. Check whether all the flowing device and accessories are included with the main system. TFT-LCD MONITOR USER MANUAL AC POWER ADAPTOR POWER CORD VGA CABLE TRIGGER CABLE...
-
Page 8: Rear Panel Control
REAR PANEL CONTROL 1. TRIGGER IN 2. VIDEO 1(AV1) IN Composite signal input for AV1 3. VIDEO 1(AV1) OUT Video looping output for AV1 4. VIDEO 2(AV2) IN Composite signal input for AV2 5. VIDEO 2(AV2) OUT Video looping output for AV2 6, AUDIO IN Stereo audio signal input. -
Page 9: Key Functions
KEY FUNCTIONS 1. MENU/EXIT Activates and exits the OSD. 2. SOURCE/▼ Select input source, and move the OSD menu. 3. AUTO/▲ Move the OSD menu and auto adjustment of PC source. 4. ◀ (VOL-) Decreases the level of volume and move the previous menu. 5. -
Page 10: Osd Menu Description
OSD MENU DESCRIPTION MENU SELECTION 1. Press the MENU button to access the Main menu. 2. Use the arrow buttons to highlight a selection. 3. Press the OK or button to select an item. 4. Use the arrow buttons to highlight a selection. 5. -
Page 11: Sound Menu
1. Press the MENU/EXIT button and then ▲/▼ button to select the PICTURE menu. 2. Press the OK or ▶ button and then ▲/▼ button to select the adjustment item you need. 3. Press the OK or ▶ button to active the item. ex) If you select the BRIGHTNESS, then the below picture appears on the bottom of screen. -
Page 12: Function Menu
■ D. RGB SETUP MENU 1. Press the MENU button and then ▲/▼ button to select the RGB SETUP menu. 2. Press the ▶ button and then ▲/▼ button to select the adjustment item you need. 3. Press the ▶ button to active the item. 4. -
Page 13: Cycle Menu
1. Press the MENU button and then ▲/▼ button to select the FUNCTION menu. 2. Press the ▶ button and then ▲/▼ button to select the adjustment item you need. 3. Press the ▶ button to active the item. 4. Press the MENU button to move to the previous menu. LANGUAGE: Select the language: English, French, German, Italian, Spanish. -
Page 14: Specifications
SPECIFICATIONS MONITOR VIDEO SPEC Screen Size 10.4” Pixel Type Active Matrix TFT Max. Resolution 800 x 600 @ 60Hz Pixel Pitch 0.264mm x 0.264mm Brightness 250 cd/㎡ Contrast Ratio 400 : 1 Aspect Ratio 4 : 3 Viewing Angle (H/V) 130˚/ 105˚... -
Page 15: D-Sub Connector Pin Assigments
D-SUB CONNECTOR PIN ASSIGMENTS PIN ASSIGNMEN Pin No. Pin Name Pin No. Pin Name RED VIDEO GREEN VIDEO SIGNAL CABLE DETECT BLUE VIDEO GROUND GROUND SDA (for DDC) GROUND H-SYNC RED GROUND V-SYNC GREEN GROUND SCL (for DDC) BLUE GROUND TROUBLESHOOTING GUIDE Troubleshooting Troubleshooting Tip... - Page 16 Ikegami Electronics (U.S.A.), Inc. 2631 Manhattan Beach Blvd., Redondo Beach, CA 90278 Phone: (310) 297-1900, Fax:: (310) 536-9550...
