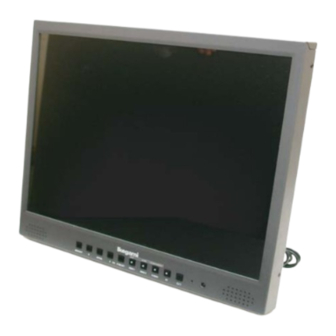

- Page 1 Installation and User's Guide LCD VIDEO MONITOR LCM-151 Rev.D All contents of this document may change without prior notice, and actual product appearance may differ from that depicted herein...
-
Page 2: Table Of Contents
Installation and User's Guide <TABLE OF CONTENTS> SAFETY INSTRUCTION FCC RF INTERFERENCE STATEMENT INSTALLATION OSD MENU SETTING FEATURE TROUBLESHOOTING... -
Page 3: Safety Instruction
Installation and User's Guide 1. SAFETY INSTRUCTION • Follow this safety instruction to use the monitor properly and prevent the damage. * This safety instruction has “Warning” & “Caution” as below Warning - If the user does not follow this instruction, it may cause the serious damage to the user. - Page 4 Installation and User's Guide Warning For cleaning do not use liquid cleaners. Do not install this monitor on the outside Never touch the power plug with wet- and near water. It may cause damage to hands. the product, electric shock and fire. When lightning and thundering, unplug Unplug this product from the wall outlet, the monitor from the wall outlet and...
- Page 5 Installation and User's Guide Cautions Place this product on a stable place. Install this monitor some distance If not, it may fall, causing serious from the wall and do not install unless damages to the monitor and people. proper ventilation is provided. The openings must not be blocked by When carrying this monitor, be careful curtain, rug or other similar surface.
- Page 6 Installation and User's Guide Cautions Install this monitor about 50cm far from Do not press the LCD panel with hands or the eyes and an angle of 0~15 degrees the sharpened material hardly. below eyes. Too close installation may cause having weak sight. For cleaning, unplug the monitor from the Do not use the chemical liquid for cleaning.
-
Page 7: Fcc Rf Interference Statement
Installation and User's Guide 2. FCC RF INTERFERENCE STATEMENT NOTE This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. -
Page 8: Installation
Installation and User's Guide 3. INSTALLATION 3-1 Parts LCD Monitor Adapter (*Adapter is attached to the back of product) Battery VGA Cable Power Cable Remote Controller User Manual... - Page 9 Installation and User's Guide 3-2 How to Install 1) KEY BUTTON OSD Key Function MENU/EXIT Activate and exit the OSD menu ▼ Move the OSD menu down AUTO/▲ Move the OSD menu up and auto adjustment of PC source ◀ VOL Decrease the level of volume and move the previous menu VOL ▶/SELECT Increase the level of volume and select the OSD menu...
- Page 10 Installation and User's Guide 2) CONNECTION ① ② ③ ④ ⑤ ⑥ ⑦ ⑧ ① HDMI HDMI signal input ② PC RGB signal input ③ AUDIO(PC) Stereo audio input for RGB ④ For FW Update ⑤ DC 12V DC adapter input ⑥...
- Page 11 Installation and User's Guide 3) REMOTE CONTROLLER MODE SELECT MENU VIDEO1 Select VIDEO1 mode VIDEO2 Select VIDEO2 mode HDMI Select HDMI mode VGA (RGB) Select VGA mode S.SET Select Input source OSD CONTROL MENU POWER Turn ON / OFF the monitor MUTE Turn ON / OFF the sound AUTO...
-
Page 12: Osd Menu Setting
Installation and User's Guide 4. OSD MENU SETTING MENU STRUCTURE When user presses the menu key, the first “PICTURE” menu is displayed. Select by "◀" key then two types of menu functions are shown as below. PICTURE : Menu related to PICTURE Function OPTION : Other OSD Menu Status Control and Firmware Update If press "▲, ▼"... - Page 13 Installation and User's Guide 1) Picture Mode Picture Mode can select 4 modes as Mild, Dynamic, Standard and User as shown in the figure below. Press the "◀, ▶" key to change the mode. Three of the four modes except for User mode are shipped with fixed values at the time of shipment from the factory.
- Page 14 Installation and User's Guide 3) Aspect Ratio Aspect Ratio allows user to select the each aspect ratio as shown in the figure below. (However, activated list is according to the input port and the input resolution.) 4) Noise Reduction Noise Reduction can select 5 modes as Off, Low, Middle, High, Default as shown in the figure below. 5) Screen Screen enables to set the active area of the display when using PC-RGB input port.
- Page 15 Installation and User's Guide 6) Trigger Select Trigger input (Off, VIDEO 1, VIDEO 2) 7) Pixel shift Select auto pixel shift (On, Off) OPTION MENU The Option Menu can be selected from the following 8 modes by pressing the ▲ or ▼ key. OSD Language Selectable OSD Menu Language Blending...
- Page 16 Installation and User's Guide 1) OSD Language As shown in the figure below, OSD Language can be selected by "▲, ▼ " key. 2) Blending OSD Menu Blending can select 4 modes as Off, Low, Middle, High by pressing the “▶ SELECT” key. 3) OsdDuration OSD menu Duration can select 4 modes as 5, 10, 15Sec and Off by pressing the “▶...
- Page 17 Installation and User's Guide 6) Key Lock Key lock default can be selected by pressing the "▶ SELECT" key. 7) DPMS The function can be activated(ON) or deactivated(OFF) with the button ▶. 8) Cycle setup Select auto pixel shift with the button ▶. INPUT SOURCE Input Source can be selected from the following four input modes by using the ▲...
-
Page 18: Feature
Installation and User's Guide 5. FEATURE General Features LCM-151 REV.D Screen Size 15.0 inches Resolution 1024*768 pixels Pixel Pitch 0.297*0.297 mm Brightness 350 cd/m² Contrast Ratio 700:1 Display Aspect Ratio Viewing Angle (H/V) 160/160 degrees Display Color 16.7 million Response Time... -
Page 19: Troubleshooting
Installation and User's Guide 6. TROUBLESHOOTING * When the following troubles are occurred, follow the trouble shooting. Before contacting service center. Troubleshooting Troubleshooting Tip 1. Make sure if the power supply is connected property The screen doesn’t 2. Turn on the power. show up 3. - Page 20 Ikegami Electronics (USA) Inc. 300E State Route 17S, Mahwah, NJ 07430 CCTV@Ikegami.com Tel. +1-201-368-9171 Fax. +1-201-569-1626...
