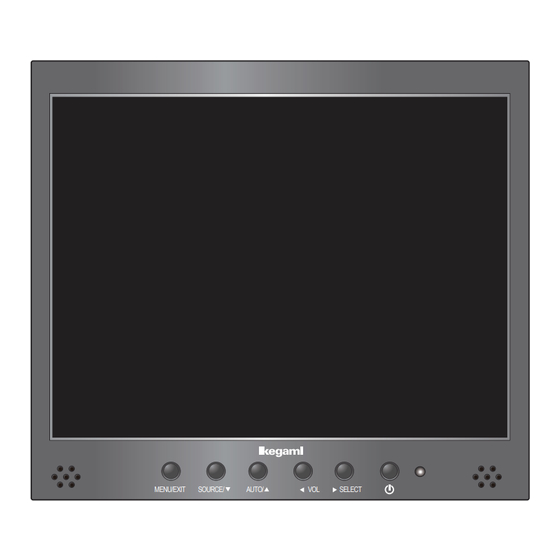

- Page 1 INSTRUCTION MANUAL 9.7” LED VIDEO MONITOR LCM-971 Model Rev. R04 MENU/EXIT SOURCE/ AUTO/ SELECT Please read this manual thoroughly before use and keep for future reference.
-
Page 2: Safety Instruction
SAFETY INSTRUCTION Follow this safety instruction to use the monitor properly and prevent the damages. This safety instruction has “Warning” & “Caution” as below Warning - If the user does not follow this instruction, it may cause the serious damage to the user. Caution - If the user does not follow this instruction, it may cause the slight damage to the user or cause some damages to the monitor. -
Page 3: Warning
Warning Do not install this monitor on the outside For cleaning do not use liquid cleaners. and near water. If may cause damage to Never touch the power plug with wet-hands. the product, electric shock and fire. When lightning and thundering, unplug the Unplug this product from the wall outlet, when monitor from the wall outlet and never touch It does not operate for a long time. -
Page 4: Caution
Cautions Install this monitor some distance Place this product on a stable place. From the wall and do not install unless If not, it may fall, causing serious Proper ventilation is provided. Damages to the monitor and people. The openings must not be blocked by When carrying this monitor, be careful curtain, rug or other similar surface. - Page 5 Cautions Install this monitor about 50cm far from Do not press the LCD panel with hands or the eyes and an angle of 0~15 degrees the sharpened material hardly. below eyes. Too close installation may cause having weak sight. For cleaning, unplug the monitor from the Do not use the chemical liquid for cleaning.
-
Page 6: Fcc Statement
INTERFERENCE STATEMENT FCC RF INTERFERENCE STATEMENT NOTE This equipment has been tested and found to comply with the limits for a Class A digital device, pursu- ant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. -
Page 7: Table Of Contents
TABLE OF CONTENTS SAFETY INSTRUCTION 1-1 Warning 1-2 Caution FCC STATEMENT TABLE OF CONTENTS INSTALLATION 4-1 Unpacking 4-2 Part List 4-3 Main Button 4-4 Input Interface OSD MENU SETTING 5-1 OSD Menu 11-15 SPECIFICATIONS APPENDIX TROUBLESHOOTING LIMITED WARRANTY... -
Page 8: Installation
INSTALLATION 4.1 UNPACKING Remove the package cover and place the product on a flat and secure surface or in the installation location. This equipment should be unpacked and handled with care. If an item appears to have been damaged in shipment, notify the shipper immediately. -
Page 9: Main Button
4.3 MAIN BUTTON MENU/EXIT SOURCE/ AUTO/ SELECT SHORT KEY FUNCTION OSD Key Function Activates and exits the OSD. MENU / EXIT Select input source, and move the OSD menu. SOURCE / ▼ Move the OSD menu and auto adjustment of RGB source. AUTO / ▲... -
Page 10: Input Interface
4.4 INPUT INTERFACE M4 Thread Depth 5mm (x4) 75mm 1. HDMI Input 6,7. AUDIO1 IN Stereo audio signal input. This input for AV1 and S-VIDEO 2. AV1 Input Composite signal input for AV 1 3. AV1 Output 8. S-Video Input Video Looping output for AV 1 Y/C separated signal input 4. -
Page 11: Osd Menu Setting
OSD MENU SETTING 5.1 INPUT Select Switching over the sources 1. Press the button SOURCE. A list of sourcesis inserted, A V 1 the source presently selected is marked. 2. Select the source with the button ▼or ▲. A V 2 3. - Page 12 5.3 VOLUME MENU on OSD Adjusting the speaker volume Vo l u m e Press one of the buttons VOL, ◄ or ►, to insert the adjusting scale for the volume. Then reduce the value for the volume with the button ◄ or increase it with the button ►. 5.4 PICTURE MENU on OSD 5.4.1 INPUT SOURCE AV1, AV2, S-VIDEO, HDMI P ICTURE...
- Page 13 Scale (Picture format) Select Full (format 4:3) or 16:9, Under or Over with the button ◄ or ►. Picture Mode Select Standard, Dynamic, Mild or User with the button ◄ or ►. For User, individual values for the picture parameters can be adjusted. The values are fixed for the other modes. 5.4.2 INPUT SOURCE PC If the source is digitally connected via the HDMI input, the menu items Auto and Color Auto can-not be selected.
- Page 14 5.5 SYSTEM MENU on OSD S YST EM S l ee p Time r O FF L an guage En gl i s h H-P os i ti o n V-P o s iti o n Du rati o n Hal fto ne 1 0 0 D P M S...
- Page 15 5.6 FUNCTION MENU on OSD For the source PC only. If the automatic picture adjustment should not provide the desired result, the picture can manually be adjusted via the menu items ofthis page. FU NCT IO N H-Po sitio n V-Po sitio n Cloc k 1 0 0...
-
Page 16: Specifications
SPECIFICATION Display 9.7 Inch Screen Size Panel Type LED BLU Max. Resolution 1024 x 768 pixels Pixel Pitch 0.192 x 0.192 mm Brightness 300 cd/m Contrast Ratio 800 : 1 Aspect Ratio 4 : 3 Viewing Angle (H/V) 170º(L/R), 170º(U/D) Display Color 262,144 Colors (6 bit) Response Time... -
Page 17: Appendix
APPENDIX 7.1 D-SUB Connector PIN Assignment 12 13 14 15 RED VIDEO GREEN VIDEO SIGNAL CABLE DETECT BLUE VIDEO GROUND GROUND SDA (for DDC) GROUND H-SYNC RED GROUND V-SYNC GREEN GROUND SCL (for DDC) BLUE GROUND 7.2 HDMI Type A PIN Assignment PIN No. -
Page 18: Troubleshooting
TROUBLESHOOTING When the following troubles are occurred, follow the trouble shooting. Before contacting a service center. Troubleshooting Troubleshooting Tip 1. Make sure if the power supply is connected property The screen doesn’t 2. Turn on the power. show up 3. Select the input signal right for the connected port. The screen is too light Control the BRIGHTNESS or to dark... -
Page 19: Limited Warranty
Contact Ikegami Electronics (U.S.A.), Inc. In the event of missing and/or damage equipment, or technical questions, the following information can help in the completion of the installation. - Page 20 Ikegami Electronics (U.S.A), Inc. 300E State Route 17S, Mahwah, NJ 07430 CCTV@Ikegami.com Tel. +1-201-368-9171 Fax. +1-201-569-1626...
