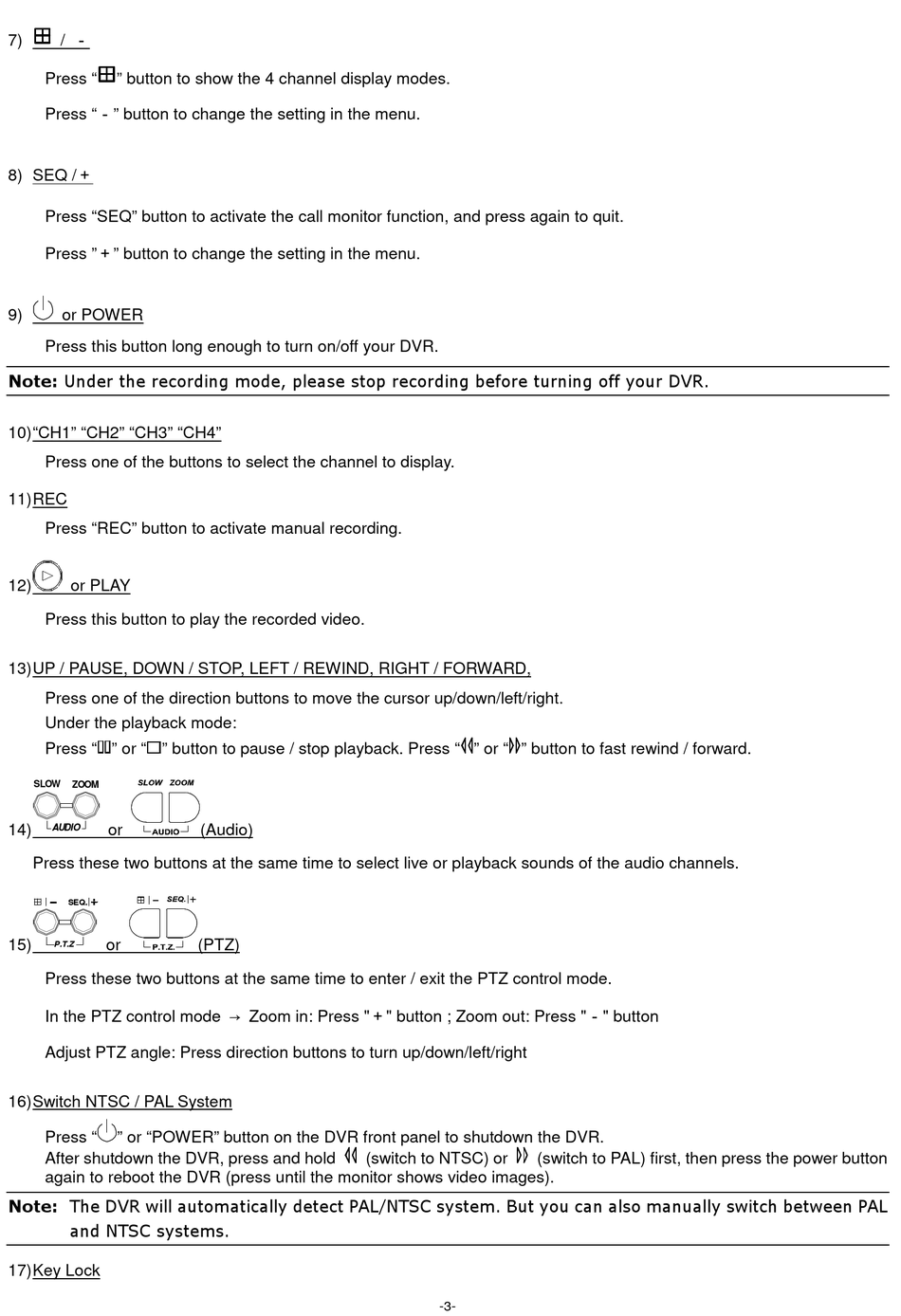

7) /
Press " " button to show the 4 channel display modes.
Press " " button to change the setting in the menu.
8) SEQ /
Press "SEQ" button to activate the call monitor function, and press again to quit.
Press " " button to change the setting in the menu.
9) or POWER
Press this button long enough to turn on/off your DVR.
10) "CH1" "CH2" "CH3" "CH4"
Press one of the buttons to select the channel to display.
11) REC
Press "REC" button to activate manual recording.
12) or PLAY
Press this button to play the recorded video.
13) UP / PAUSE, DOWN / STOP, LEFT / REWIND, RIGHT / FORWARD,
Press one of the direction buttons to move the cursor up/down/left/right.
Under the playback mode:
Press " " or " " button to pause / stop playback. Press " " or " " button to fast rewind / forward.
SLOW ZOOM
14) or
AUDIO
Press these two buttons at the same time to select live or playback sounds of the audio channels.
SEQ.
15) or
P.T.Z
Press these two buttons at the same time to enter / exit the PTZ control mode.
In the PTZ control mode
Adjust PTZ angle: Press direction buttons to turn up/down/left/right
16) Switch NTSC / PAL System
Press " " or "POWER" button on the DVR front panel to shutdown the DVR.
After shutdown the DVR, press and hold
again to reboot the DVR (press until the monitor shows video images).
! " #
17) Key Lock
(Audio)
(PTZ)
Zoom in: Press " " button ; Zoom out: Press " " button
(switch to NTSC) or (switch to PAL) first, then press the power button
! " # $
-3-
