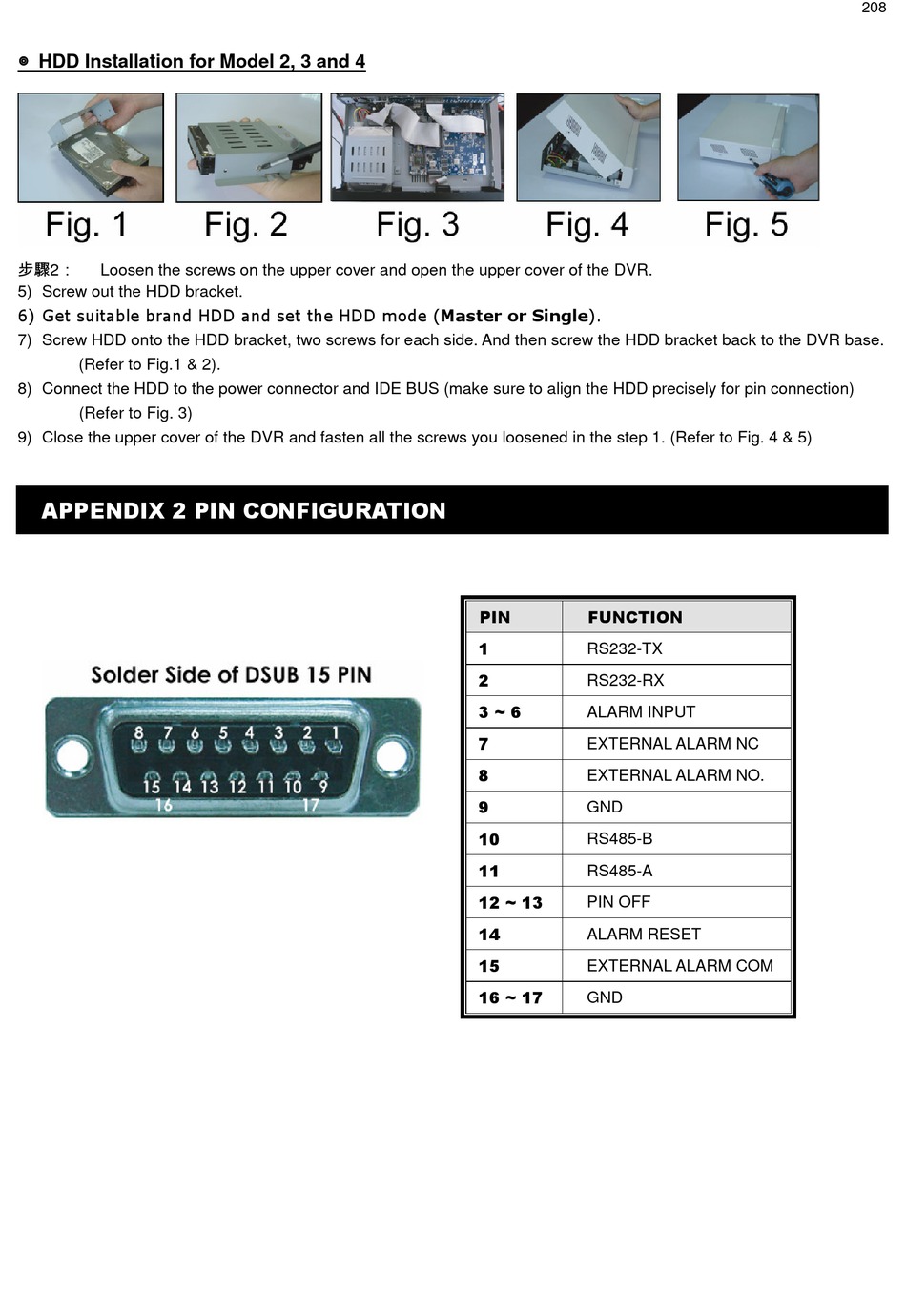

Avtech CPD560 Quick Start Manual page 11

HDD Installation for Model 2, 3 and 4
2 Loosen the screws on the upper cover and open the upper cover of the DVR.
5) Screw out the HDD bracket.
= ; <
7) Screw HDD onto the HDD bracket, two screws for each side. And then screw the HDD bracket back to the DVR base.
(Refer to Fig.1 & 2).
8) Connect the HDD to the power connector and IDE BUS (make sure to align the HDD precisely for pin connection)
(Refer to Fig. 3)
9) Close the upper cover of the DVR and fasten all the screws you loosened in the step 1. (Refer to Fig. 4 & 5)
3 3 : ;
RS232-TX
RS232-RX
ALARM INPUT
EXTERNAL ALARM NC
EXTERNAL ALARM NO.
GND
RS485-B
RS485-A
PIN OFF
ALARM RESET
EXTERNAL ALARM COM
GND
