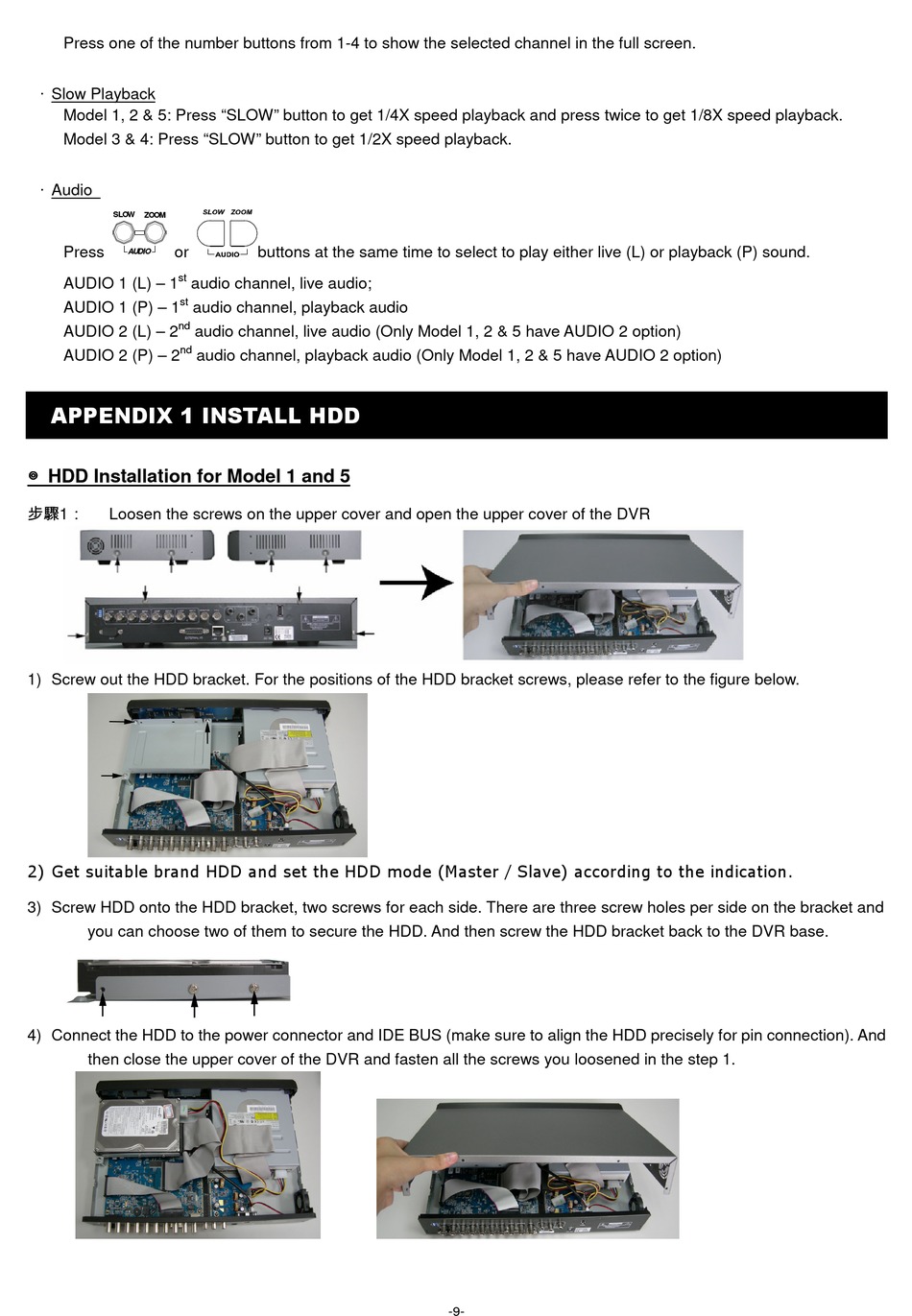

Press one of the number buttons from 1-4 to show the selected channel in the full screen.
Slow Playback
Model 1, 2 & 5: Press "SLOW" button to get 1/4X speed playback and press twice to get 1/8X speed playback.
Model 3 & 4: Press "SLOW" button to get 1/2X speed playback.
Audio
SLOW ZOOM
Press or
AUDIO
st
AUDIO 1 (L) – 1 audio channel, live audio;
st
AUDIO 1 (P) – 1 audio channel, playback audio
nd
AUDIO 2 (L) – 2 audio channel, live audio (Only Model 1, 2 & 5 have AUDIO 2 option)
nd
AUDIO 2 (P) – 2 audio channel, playback audio (Only Model 1, 2 & 5 have AUDIO 2 option)
HDD Installation for Model 1 and 5
1 Loosen the screws on the upper cover and open the upper cover of the DVR
1) Screw out the HDD bracket. For the positions of the HDD bracket screws, please refer to the figure below.
* ; <
3) Screw HDD onto the HDD bracket, two screws for each side. There are three screw holes per side on the bracket and
you can choose two of them to secure the HDD. And then screw the HDD bracket back to the DVR base.
4) Connect the HDD to the power connector and IDE BUS (make sure to align the HDD precisely for pin connection). And
then close the upper cover of the DVR and fasten all the screws you loosened in the step 1.
buttons at the same time to select to play either live (L) or playback (P) sound.
3 3 :( " ' ;
-9-
