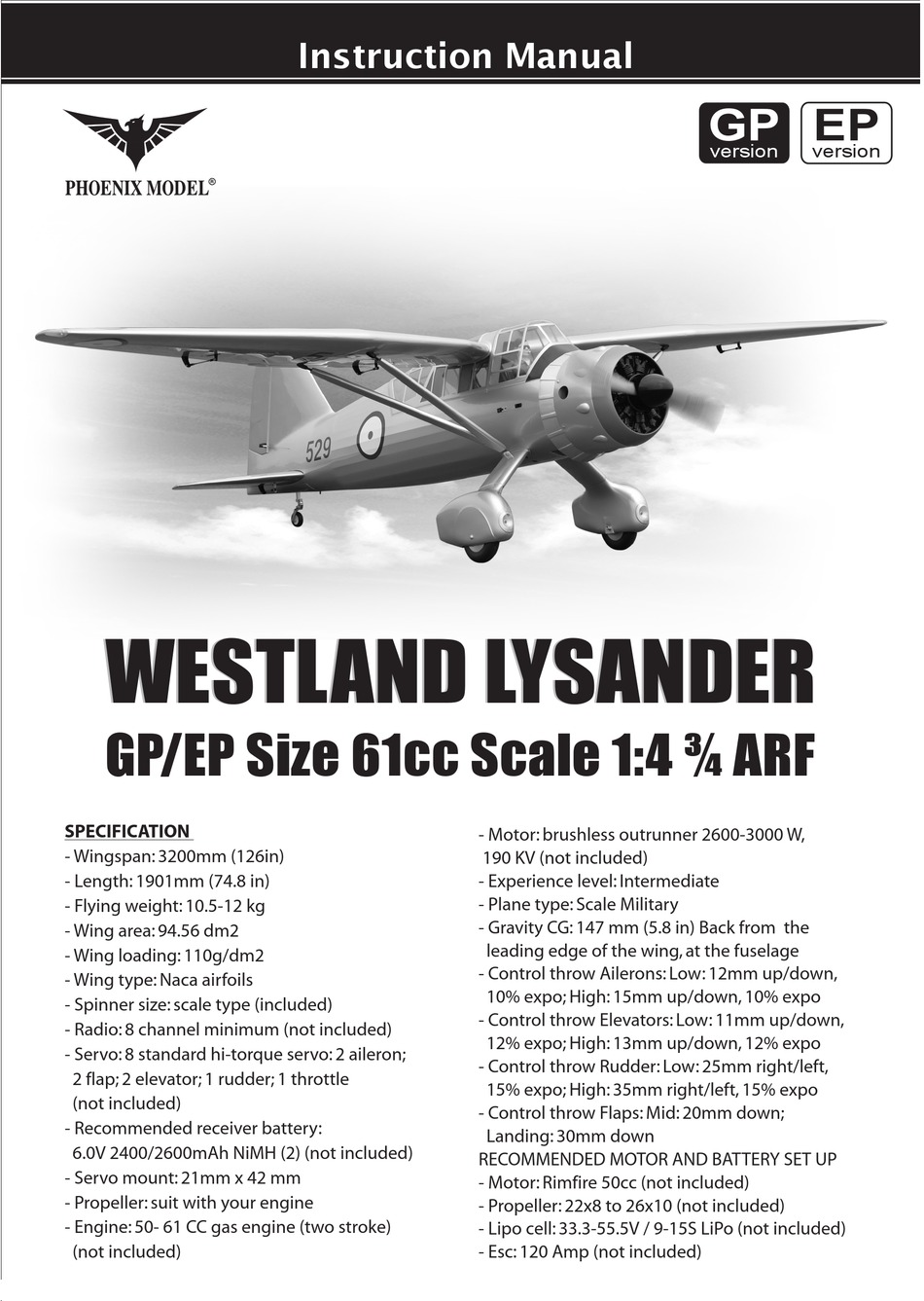

Phoenix Model WESTLAND LYSANDER Instruction Manual

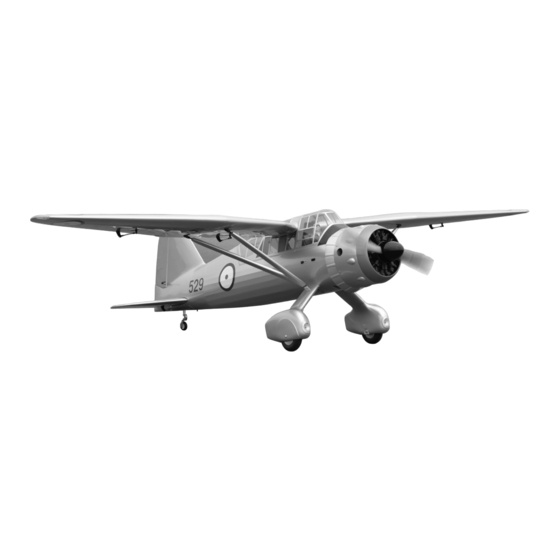

WESTLAND LYSANDER WESTLAND LYSANDER
GP/EP Size 61cc Scale 1:4 ¾ ARF
SPECIFICATION
- Wingspan: 3200mm (126in)
- Length: 1901mm (74.8 in)
- Flying weight: 10.5-12 kg
- Wing area: 94.56 dm2
- Wing loading: 110g/dm2
- Wing type: Naca airfoils
- Spinner size: scale type (included)
- Radio: 8 channel minimum (not included)
- Servo: 8 standard hi-torque servo: 2 aileron;
2 flap; 2 elevator; 1 rudder; 1 throttle
(not included)
- Recommended receiver battery:
6.0V 2400/2600mAh NiMH (2) (not included)
- Servo mount: 21mm x 42 mm
- Propeller: suit with your engine
- Engine: 50- 61 CC gas engine (two stroke)
(not included)
Instruction Manual
- Motor: brushless outrunner 2600-3000 W,
190 KV (not included)
- Experience level: Intermediate
- Plane type: Scale Military
- Gravity CG: 147 mm (5.8 in) Back from the
leading edge of the wing, at the fuselage
- Control throw Ailerons: Low: 12mm up/down,
10% expo; High: 15mm up/down, 10% expo
- Control throw Elevators: Low: 11mm up/down,
12% expo; High: 13mm up/down, 12% expo
- Control throw Rudder: Low: 25mm right/left,
15% expo; High: 35mm right/left, 15% expo
- Control throw Flaps: Mid: 20mm down;
Landing: 30mm down
RECOMMENDED MOTOR AND BATTERY SET UP
- Motor: Rimfire 50cc (not included)
- Propeller: 22x8 to 26x10 (not included)
- Lipo cell: 33.3-55.5V / 9-15S LiPo (not included)
- Esc: 120 Amp (not included)
GP EP
version version
