OPERATION

Battery Charging

• The battery is located on the back of
the vacuum. It can be charged while installed on
the vacuum, or the battery can be removed from
the vacuum and charged independently (see
Removing and Reinstalling the Battery (page 10).
• Plug the AC cable into the charger and into a
wall socket (Fig. 1).
• Plug the charger DC cable into the Charge Point
on the battery. (Fig. 2).
• The Charger LED light will be red during
charging and will turn green when the battery
pack is fully charged.

Battery Life Display

• Press the white button on the battery to illuminate
the LED lights.
• When the battery is fully charged there will be
four (4) green lights and one (1) red light showing
(Fig. 3).
• As the battery is discharged during use, the
number of green lights showing will reduce from
four (4) to none (0).
• When all of the green lights are off and only the
red light is showing, there is a small amount of
time remaining before the battery will be fully
discharged and will require recharging.

Reclining the Handle

• Press the Handle Release Pedal located on the
back of the vacuum with your foot to recline the
handle (Fig. 4).
6

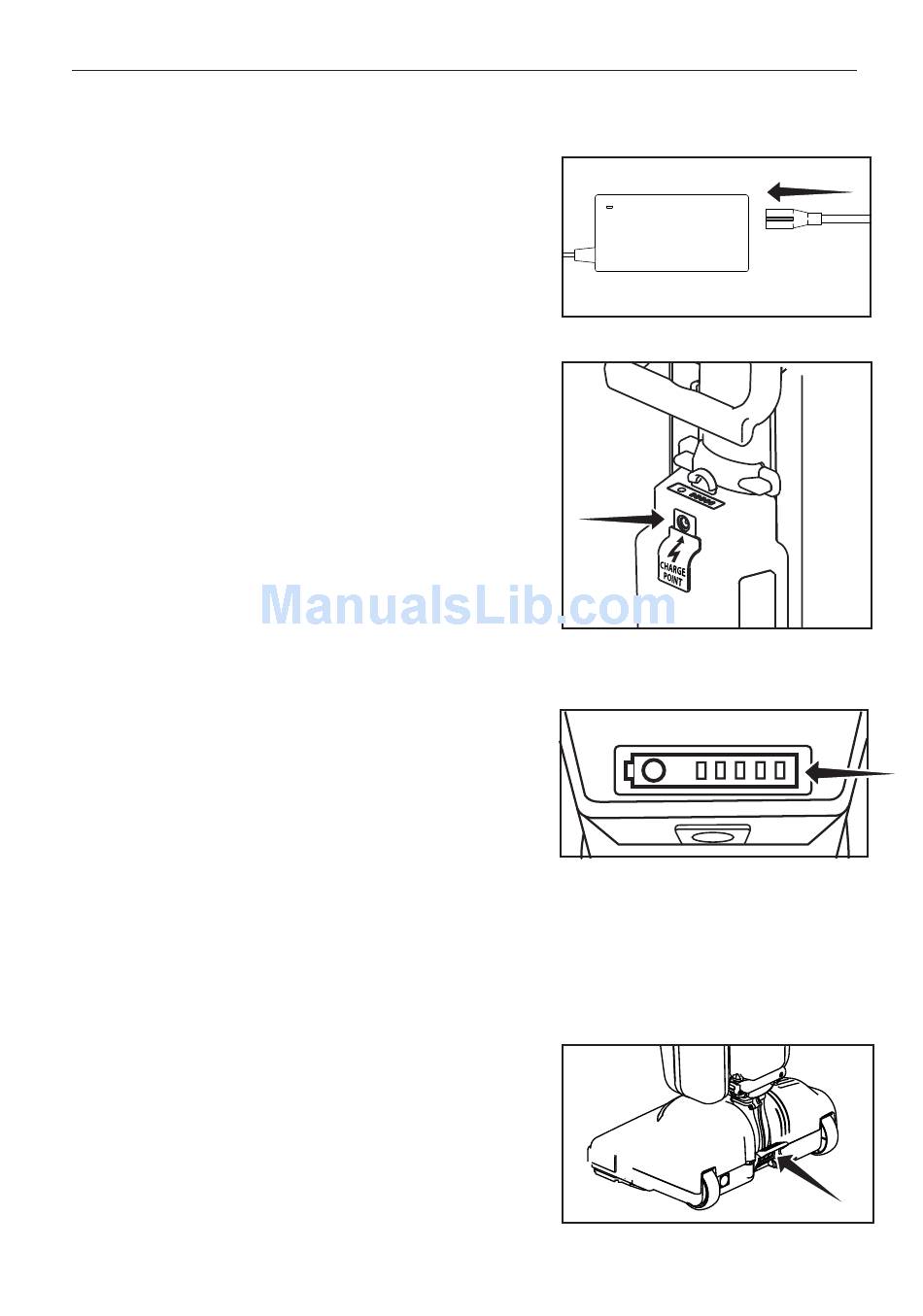

Fig. 1
Fig. 2
Fig. 3
Fig. 4
