MAINTENANCE AND CARE

Replacing the Vacuum Belt

WARNING! To Reduce the Risk of Electrical Shock
or Injury from Moving Parts, Turn the Vacuum
Off and Remove the Battery Before Servicing or
Cleaning the Vacuum.
NOTE: To ensure maximum cleaning efficiency,
the belt should be checked regularly to be sure
it is in good condition. Check to see if the belt
is stretched, cracked, or if excessive slipping is
occurring. Replace if needed.
• Turn the vacuum off and unplug the charger from
the Charge Point.
• Remove the battery (see Removing and Reinstalling
the Battery, page 10).
• Remove the bottom plate (see Removing and
Reinstalling the Bottom Plate, page 11).
• Remove the brushroll and the worn or broken
belt from the brushroll pulley and the motor drive
shaft.

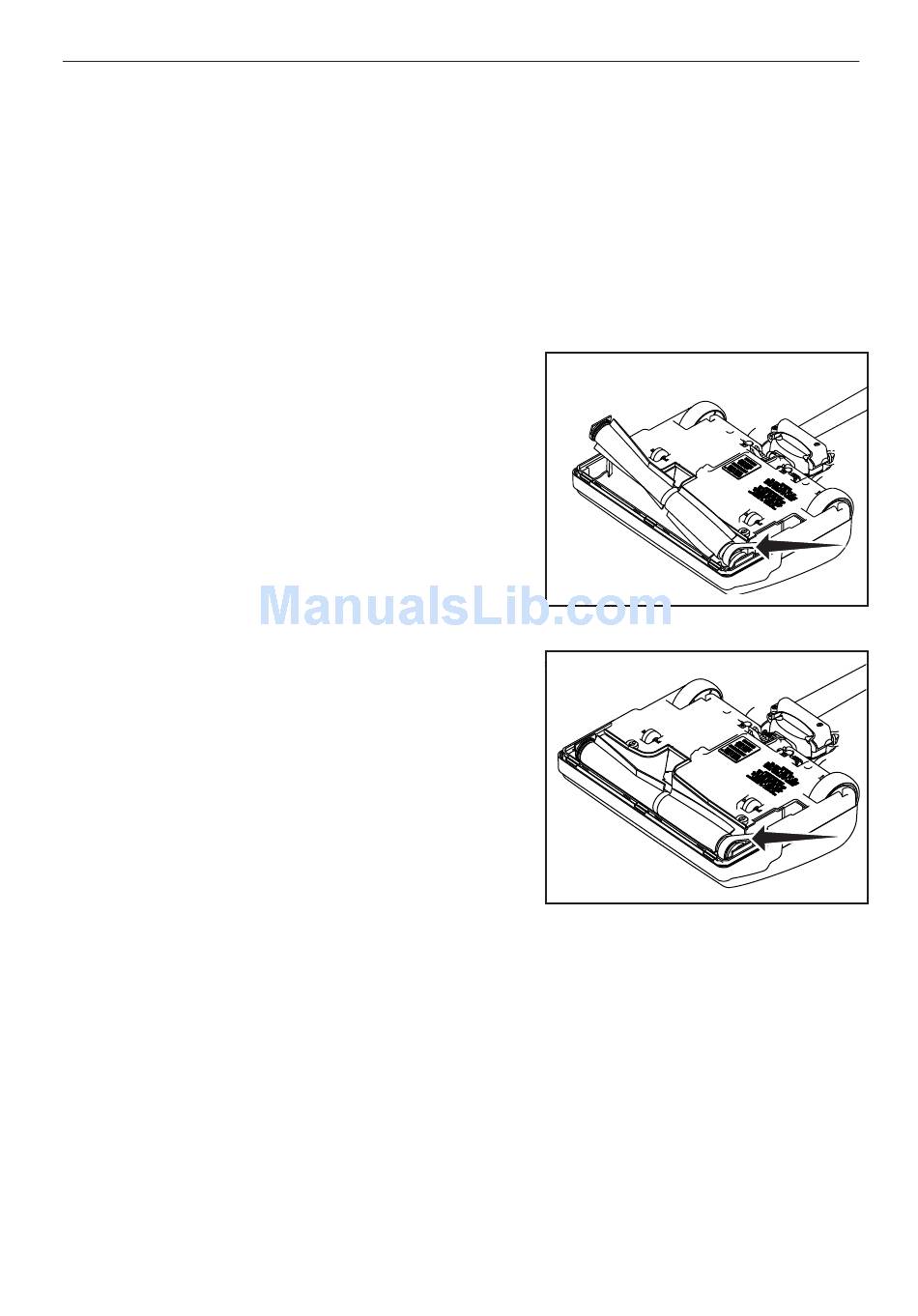

• Loop the new belt around the motor drive shaft
and the brushroll (Fig. 1).
• Reinstall the brushroll into the nozzle. Turn
the brushroll by hand, making sure the belt is
not twisted and all rotating parts move smoothly
(Fig. 2).
• Reinstall the bottom plate (see Removing and
Reinstalling the Bottom Plate, page 11).
• Replace the battery (see Removing and Reinstalling
the Battery, page 10).
