MAINTENANCE AND CARE
Removing and Reinstalling the Battery
NOTE: Turn the vacuum off. If the battery charger
is plugged into the charge point on the vacuum,
remove the charger from the charge point before
removing the battery.
The battery can be removed and charged
independently from the vacuum.

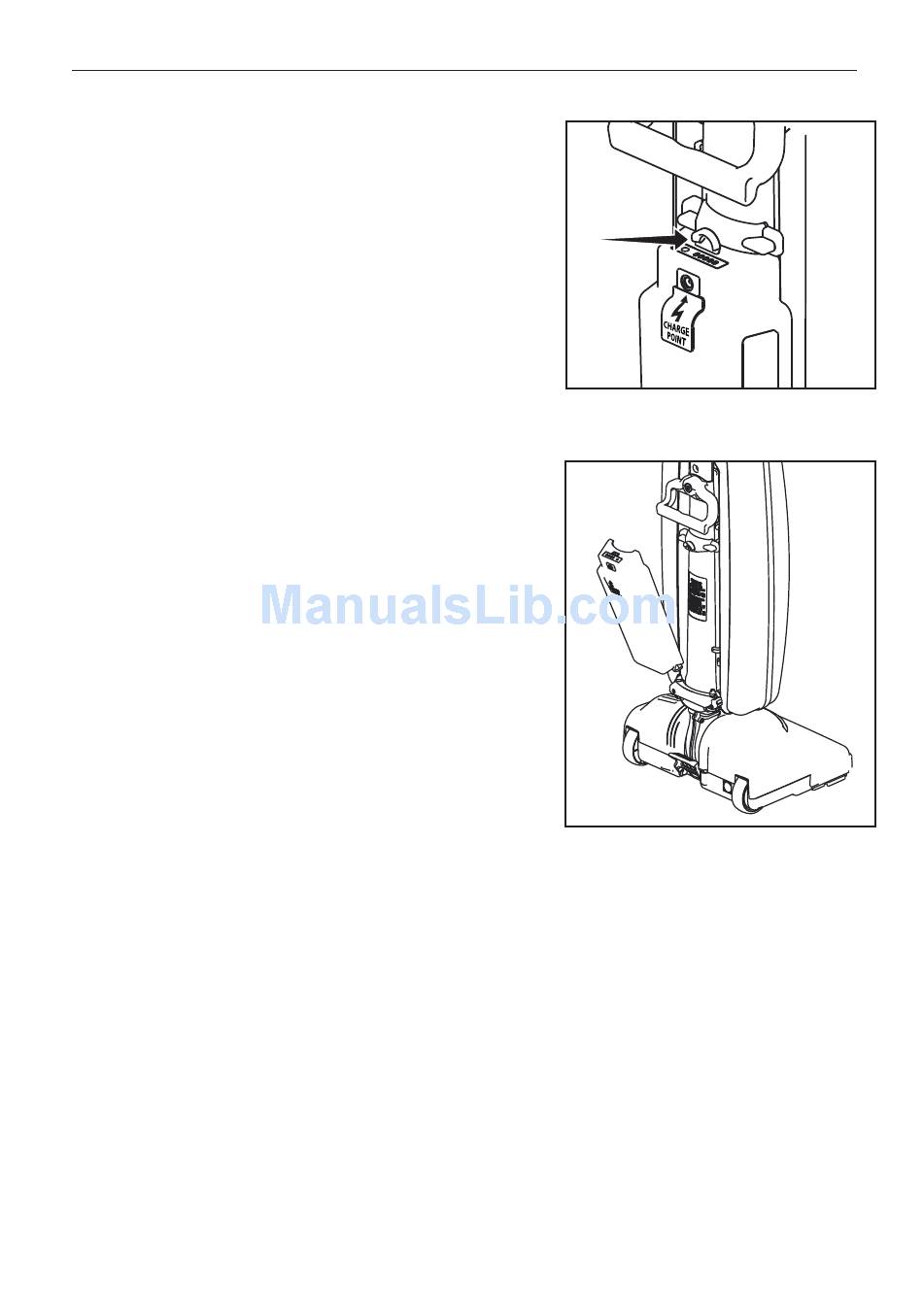

• To remove the battery push up on the release
button and lift the battery off (Fig. 1).
• To replace the battery, line up the bottom of the
battery with the posts at the base of the battery
mount. Push the battery in until it clicks (Fig. 2).
