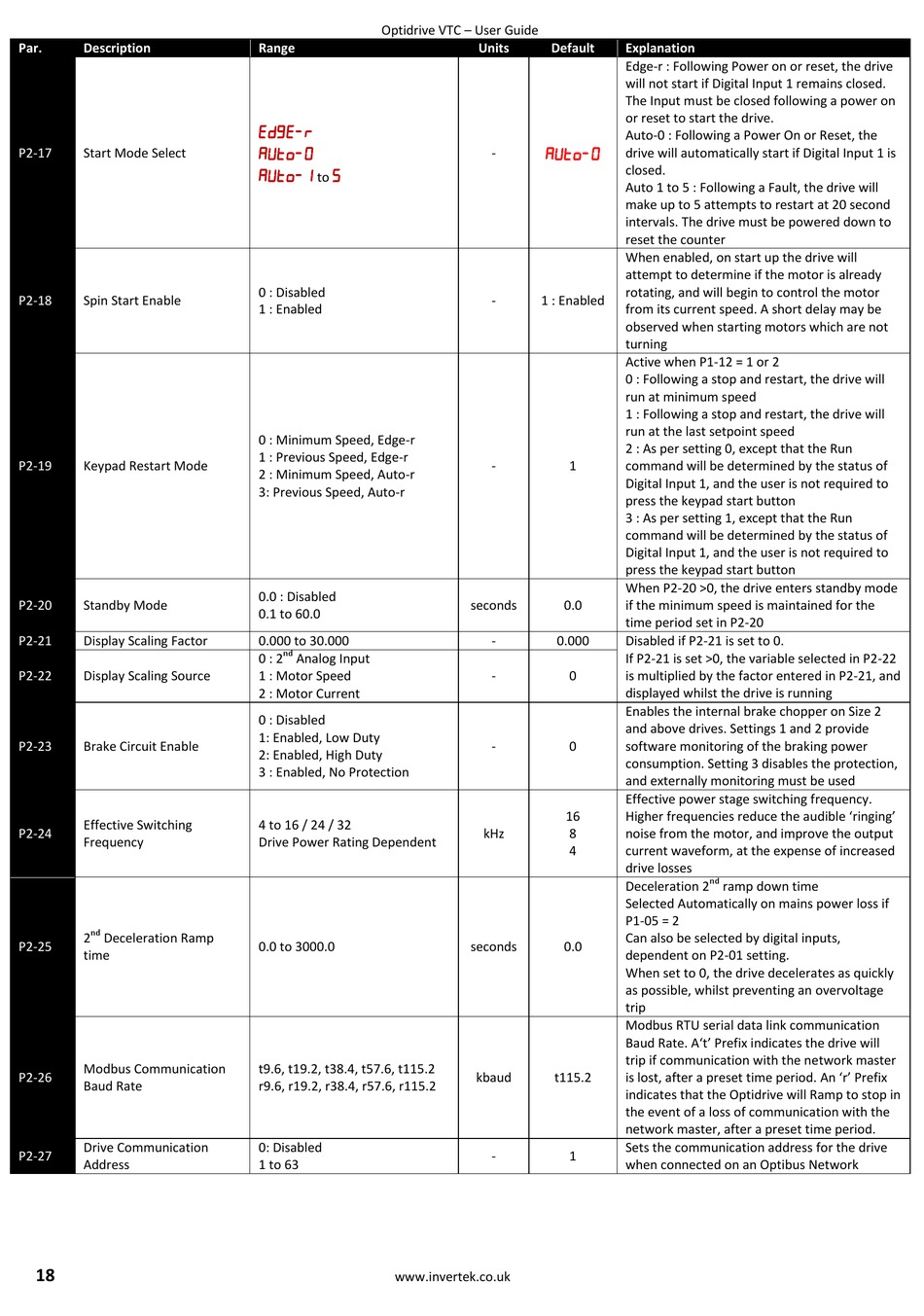

Invertek Optidrive VTC User Manual page 18

Par. Description
P2-17 Start Mode Select
P2-18 Spin Start Enable
P2-19 Keypad Restart Mode
P2-20 Standby Mode
P2-21 Display Scaling Factor
P2-22 Display Scaling Source
P2-23 Brake Circuit Enable
Effective Switching
P2-24
Frequency
nd
2 Deceleration Ramp
P2-25
time
Modbus Communication
P2-26
Baud Rate
Drive Communication
P2-27
Address
18
Optidrive VTC – User Guide
Range


 
to
0 : Disabled
1 : Enabled
0 : Minimum Speed, Edge-r
1 : Previous Speed, Edge-r
2 : Minimum Speed, Auto-r
3: Previous Speed, Auto-r
0.0 : Disabled
0.1 to 60.0
0.000 to 30.000
nd
0 : 2 Analog Input
1 : Motor Speed
2 : Motor Current
0 : Disabled
1: Enabled, Low Duty
2: Enabled, High Duty
3 : Enabled, No Protection
4 to 16 / 24 / 32
Drive Power Rating Dependent
0.0 to 3000.0
t9.6, t19.2, t38.4, t57.6, t115.2
r9.6, r19.2, r38.4, r57.6, r115.2
0: Disabled
1 to 63
www.invertek.co.uk
Units Default Explanation
Edge-r : Following Power on or reset, the drive
will not start if Digital Input 1 remains closed.
The Input must be closed following a power on
or reset to start the drive.
Auto-0 : Following a Power On or Reset, the

- drive will automatically start if Digital Input 1 is
closed.
Auto 1 to 5 : Following a Fault, the drive will
make up to 5 attempts to restart at 20 second
intervals. The drive must be powered down to
reset the counter
When enabled, on start up the drive will
attempt to determine if the motor is already
rotating, and will begin to control the motor
- 1 : Enabled
from its current speed. A short delay may be
observed when starting motors which are not
turning
Active when P1-12 = 1 or 2
0 : Following a stop and restart, the drive will
run at minimum speed
1 : Following a stop and restart, the drive will
run at the last setpoint speed
2 : As per setting 0, except that the Run
- 1 command will be determined by the status of
Digital Input 1, and the user is not required to
press the keypad start button
3 : As per setting 1, except that the Run
command will be determined by the status of
Digital Input 1, and the user is not required to
press the keypad start button
When P2-20 >0, the drive enters standby mode
seconds 0.0 if the minimum speed is maintained for the
time period set in P2-20
- 0.000 Disabled if P2-21 is set to 0.
If P2-21 is set >0, the variable selected in P2-22
- 0 is multiplied by the factor entered in P2-21, and
displayed whilst the drive is running
Enables the internal brake chopper on Size 2
and above drives. Settings 1 and 2 provide
- 0 software monitoring of the braking power
consumption. Setting 3 disables the protection,
and externally monitoring must be used
Effective power stage switching frequency.
16 Higher frequencies reduce the audible 'ringing'
kHz 8 noise from the motor, and improve the output
4 current waveform, at the expense of increased
drive losses
Deceleration 2
Selected Automatically on mains power loss if
P1-05 = 2
Can also be selected by digital inputs,
seconds 0.0
dependent on P2-01 setting.
When set to 0, the drive decelerates as quickly
as possible, whilst preventing an overvoltage
trip
Modbus RTU serial data link communication
Baud Rate. A't' Prefix indicates the drive will
trip if communication with the network master
kbaud t115.2 is lost, after a preset time period. An 'r' Prefix
indicates that the Optidrive will Ramp to stop in
the event of a loss of communication with the
network master, after a preset time period.
Sets the communication address for the drive
- 1
when connected on an Optibus Network
nd
ramp down time
