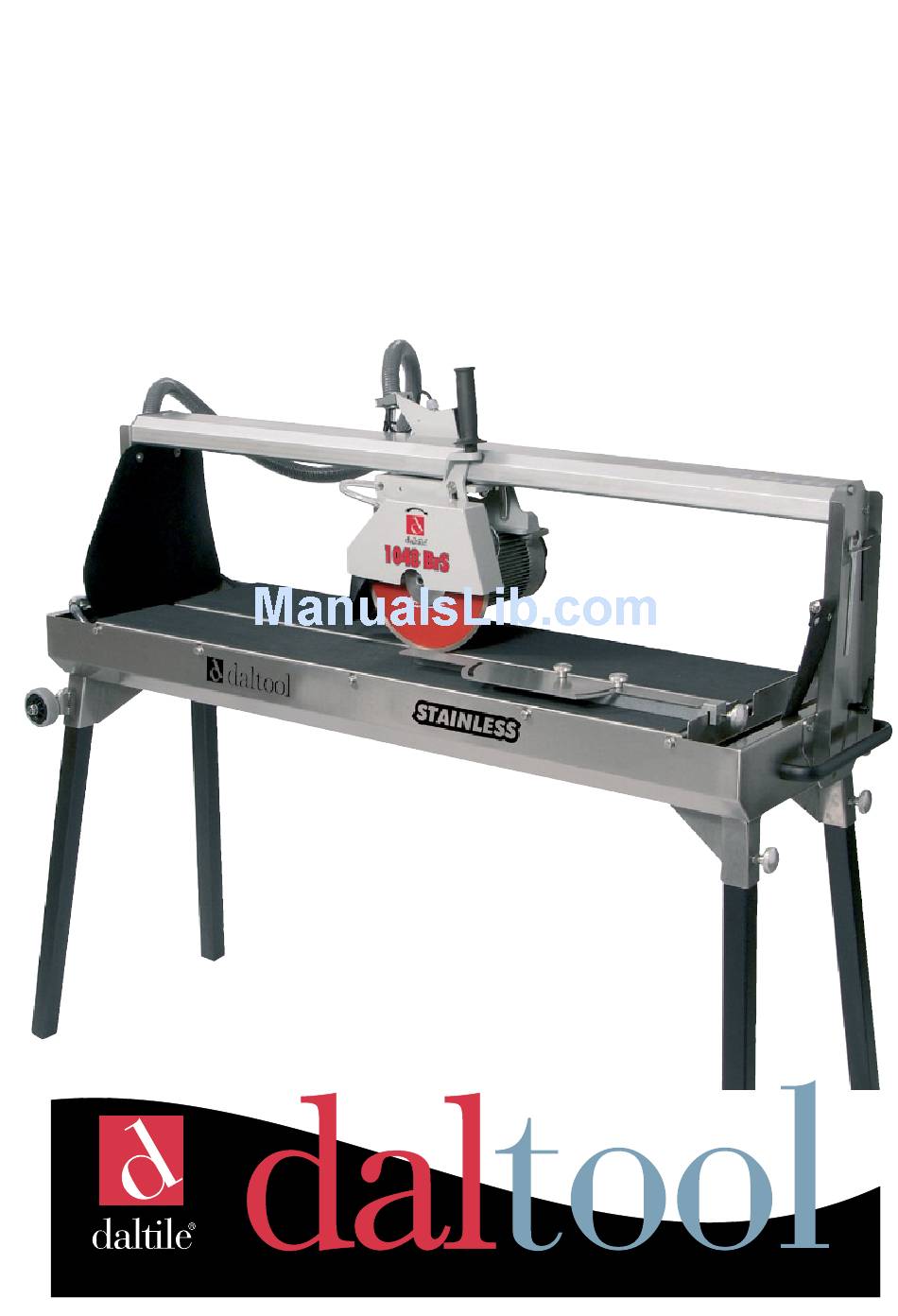

- Page 1 PROFESSIONAL TILE SAW 1048BrS OPERATING MANUAL...
- Page 2 Keep this Manual in a safe place for future reference. Enter the Serial Number of your new DALTOOL ® 1048BrS Tile Saw in the box below. The Serial Number is located on the switch box. PAGE 2 DALTOOL 1048BrS OPERATING MANUAL V02/2008R1...
-
Page 3: Table Of Contents
3. OPERATING INSTRUCTIONS Cutting Procedure ......................... 14 45˚ Miter Cutting ........................14 4. MAINTENANCE AND TROUBLESHOOTING General Maintenance ......................15 Diamond Blade Dressing ...................... 16 Troubleshooting ........................17 5. SPARE PARTS Spare Parts ..........................18 6. OPTIONAL ACCESSORIES Optional Accessories ......................19 DALTOOL 1048BrS OPERATING MANUAL V02/2008R1 PAGE 3... -
Page 4: Daltool Safety
If the instructions are proper storage area before the machine is not followed it is possible that serious injuries turned on. could occur as well as death. PAGE 4 DALTOOL 1048BrS OPERATING MANUAL V02/2008R1... - Page 5 FORCING THE TOOL. ● reaching, serious injury may occur. The equipment was designed to do a certain job. Do not force the equipment to do something that it wasn’t designed to do. DALTOOL 1048BrS OPERATING MANUAL V02/2008R1 PAGE 5...
- Page 6 Any part of the machinery that is damaged should be checked carefully to determine whether or not it should be used and whether or not it can function properly for its intended use. PAGE 6 DALTOOL 1048BrS OPERATING MANUAL V02/2008R1...
- Page 7 OFF position death or damage to the before plugging the machine equipment. into an electrical outlet to prevent accidental starting of the machine. DALTOOL 1048BrS OPERATING MANUAL V02/2008R1 PAGE 7...
-
Page 8: California Proposition 65 Message
Your risk from these exposures varies depending on how often you do this type of work. To reduce your exposure to these chemicals, work in a well-ventilated area, and work with appro- ved safety equipment, such as dust masks that are specially designed to filter out microscopic particles. PAGE 8 DALTOOL 1048BrS OPERATING MANUAL V02/2008R1... -
Page 9: Electrical Requirements And Grounding Instructions
3-prong grounding plugs and outlet, or the connector, if an extension cord 3-pole receptacles that accept the tool’s is used. plug. Repair or replace a damaged or worn ● Continued on page 10 cord immediately. DALTOOL 1048BrS OPERATING MANUAL V02/2008R1 PAGE 9... -
Page 10: Tile Saw Specific Warnings
It is important not to use an extension cord that is undersized. Using an undersized extension cord can result in low voltage to the motor thus resulting in a motor burnout or premature failure. PAGE 10 DALTOOL 1048BrS OPERATING MANUAL V02/2008R1... -
Page 11: Machine Specifications
The 4 detachable legs are to be installed in Noise level ........80 dB (A) the leg sockets at the underside of the water Noise level during sawing .... 90 dB (A) container and fastened with the knobs. DALTOOL 1048BrS OPERATING MANUAL V02/2008R1 PAGE 11... -
Page 12: Unpacking And Setting Up
When the motor gets overheated, the switch and may accidentally jump up when the falls back into its initial position and can only knob is loosened. be switched on again after the motor has cooled down. PAGE 12 DALTOOL 1048BrS OPERATING MANUAL V02/2008R1... -
Page 13: Installing The Saw Blade
Fit the new cutting blade on the center ● ring of the motor flange. (Check the direction of rotation and make sure the blade is well centered) Mount saw flange and tighten with the ● hexagon nut. DALTOOL 1048BrS OPERATING MANUAL V02/2008R1 PAGE 13... -
Page 14: Operating Instructions
Turn the motor OFF when work is ● Loosen the Adjustable Cutting Guide ● complete. retaining knob. 45˚ Miter Cutting: The DALTOOL® 1048BrS Tile Saw is desig- ned to perform 45˚ Miter Cuts without addi- Retaining Knob tional tools. Cutting Guide Position the Adjustable Cutting Guide to ●... -
Page 15: Maintenance And Troubleshooting
Cleaning the pump as described above and leaving it outside the water container is recommended. Regularly check the saw flanges for wea- ● ring out and replace if necessary. DALTOOL 1048BrS OPERATING MANUAL V02/2008R1 PAGE 15... -
Page 16: Diamond Blade Dressing
(Optional Accessory, see page 19) Dressing procedure(s): Place a Dressing Stick on the Saw table ● Make approx. 10 cuts through the ● Dressing Stick The Diamond Blade should be sharp again and ready for efficient cutting. PAGE 16 DALTOOL 1048BrS OPERATING MANUAL V02/2008R1... - Page 17 Do the same procedure for the other end. Machine should now be level Unlevel working surface. Make sure the machine is pla- ced on a level surface. Improper or glazed Diamond Replace or dress the Diamond Blade. Blade. DALTOOL 1048BrS OPERATING MANUAL V02/2008R1 PAGE 17...
-
Page 18: Spare Parts
ITEM NR. DESCRIPTION 6.516.005 MOTOR 6.513.022 SWITCH 4.259.026 MOTOR FLANGE 4.259.007 SAW FLANGE 6.516.006 FLANGE NUT 6.513.021 CAPACITOR 6.513.298 PUMP 6.509.011 KNOB 6.509.065 ADJUSTABLE HANDLE 4.259.024 GUIDING ROLLER 4.251.225 GUIDING BEAM 6.509.003 HANDLE PAGE 18 DALTOOL 1048BrS OPERATING MANUAL V02/2008R1... -
Page 19: Optional Accessories
Qty. 2 Dimensions: 16" x 16". Part Nr. 9999 546432 Qty. 1 Part Nr. 9999 543468 GFCI Switch Qty. 1 Dressing Stone Part Nr. 9999 546433 Qty. 1 Part Nr. 9999 546429 DALTOOL 1048BrS OPERATING MANUAL V02/2008R1 PAGE 19... - Page 20 www.daltool.com...
