Introduction

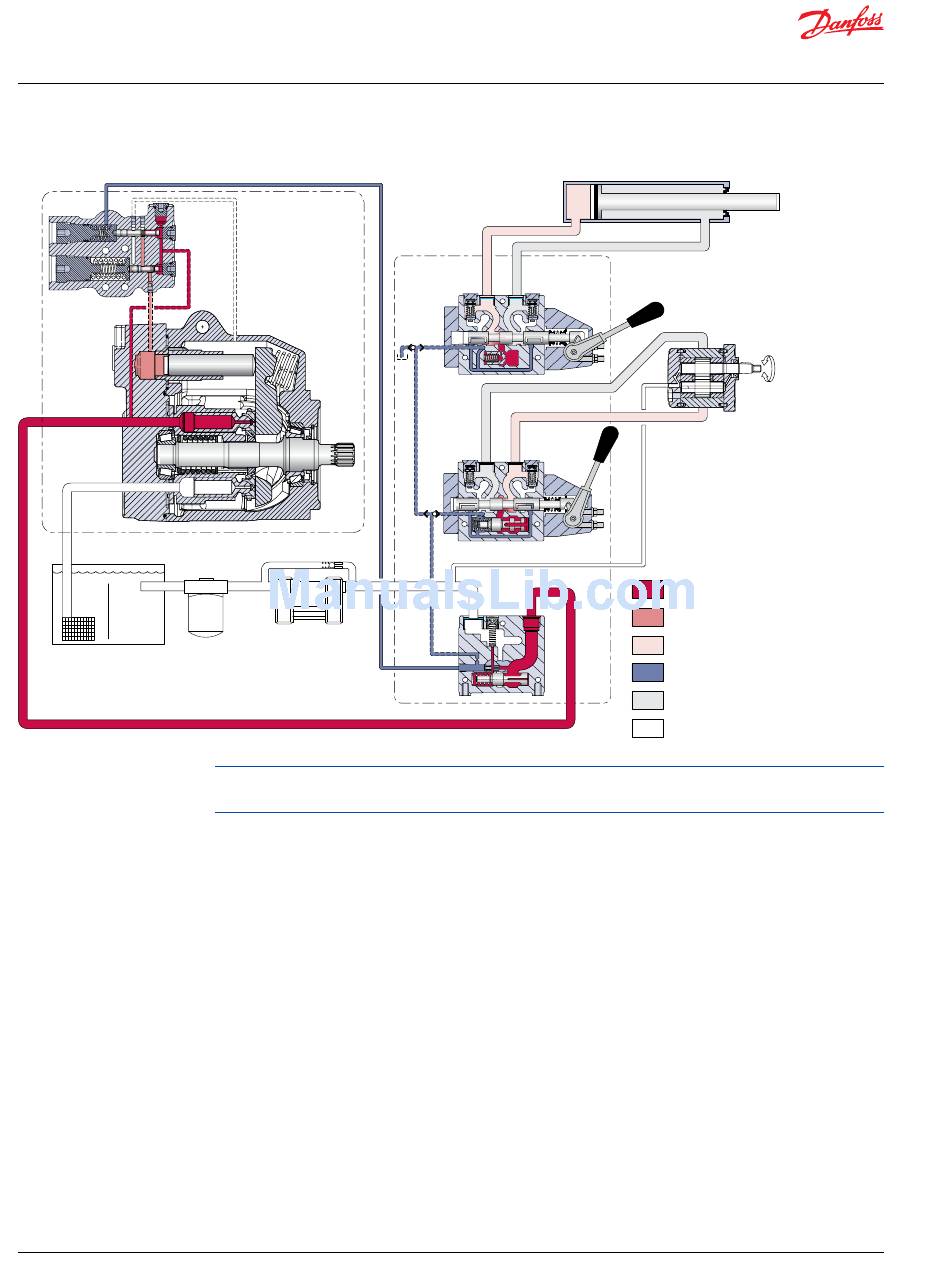

Pictorial circuit diagram

Filter

Reservoir

P101 658E

8 |

Danfoss | August 2016

K/L Frame Series 45

open circuit axial

piston pump with

load sensing control

Heat exchanger

Full available flow is a function of pump displacement, operating speed, and efficiency. Refer to Series 45

Axial Piston Open Circuit Pumps Technical Information, BLN-10128 for details.

Double-acting cylinder

PVG 32

mulit-section

load

sensing

control

valve

Bi-directional

gear motor

System pressure

Servo pressure

Actuator pressure

Load sense pressure

Actuator return

Suction / case drain /

system return

520L0532 | AX00000040en-US0401
