Summary of Contents for Chauvet FXarray Q5

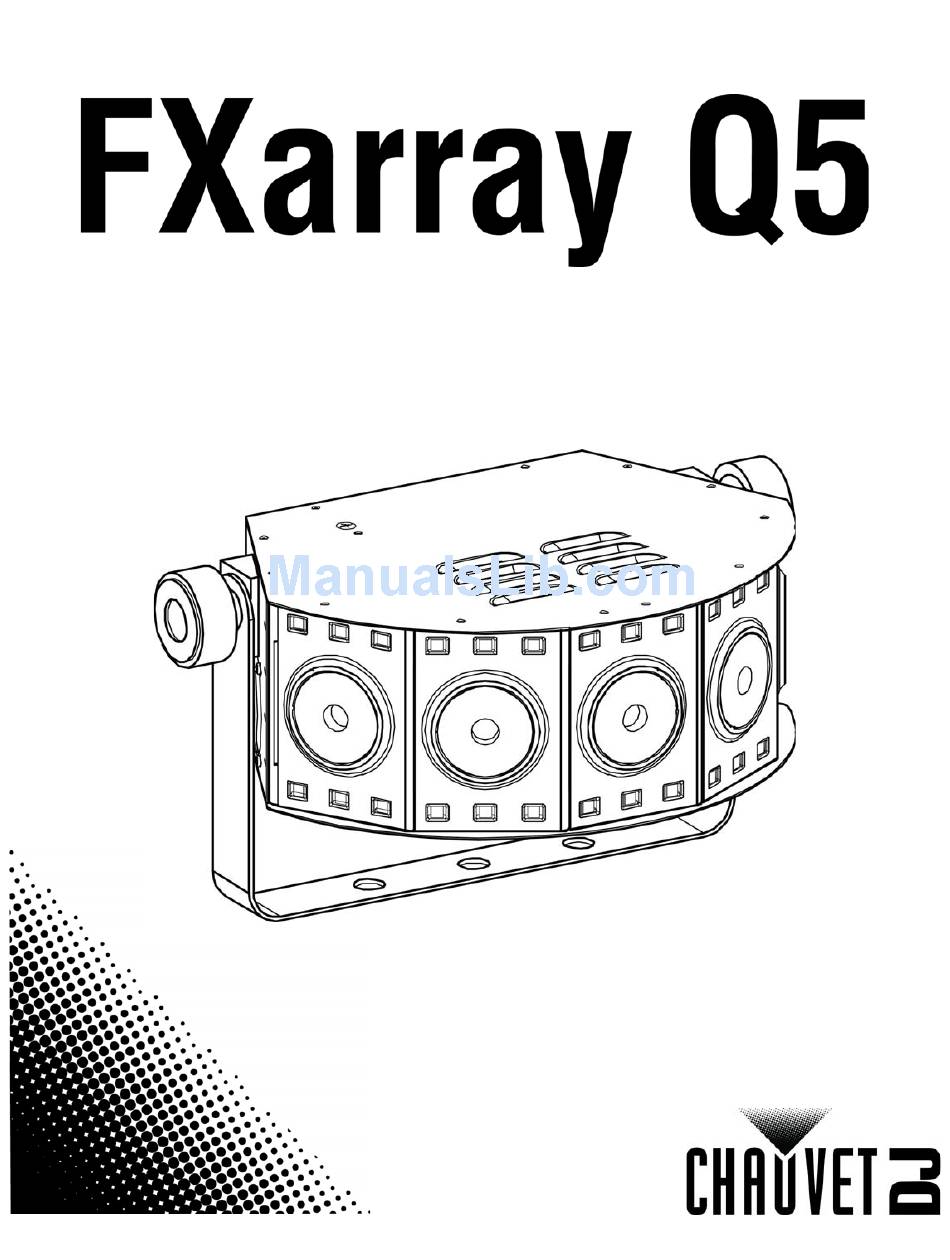

- Page 1 User Manual...
-
Page 2: Table Of Contents
Sound-Active Mode.................... Preset Color Mode ..................... Custom Color Mixing ..................IRC-6 Infrared Remote Control ..............IRC-6 Operation ....................Master/Slave Mode ..................5. Maintenance................Product Maintenance ..................6. Technical Specifications ............Returns.................... Contact Us ..................FXarray Q5 User Manual Rev. 1... -
Page 3: Before You Begin
Chauvet reserves the right to revise the content of this document without any obligation to notify any person or company of such revision, however, Chauvet has no obligation to make, and does not commit to make, any such revisions. Download the latest version from www.chauvetdj.com. -
Page 4: Product At A Glance
Keep this User Manual for future use. If you sell the product to someone else, be sure that they also receive this document. Page 2 of 16 FXarray Q5 User Manual Rev. 1... -
Page 5: Introduction
Power Microphone Display Buttons Knob Safety Fuse Power Loop In/Out Holder Quad LEDs Tri SMD LEDs Product Dimensions 6 in 155 mm 8 in 207 mm 11 in 285 mm FXarray Q5 User Manual Rev. 1 Page 3 of 16... -
Page 6: Setup
ETUP AC Power The FXarray Q5 has an auto-ranging power supply and it can work with an input voltage range of 100 to 240 VAC, 50/60 Hz. To determine the product’s power requirements (circuit breaker, power outlet, and wiring), use the current value listed on the label affixed to the product’s back panel, or refer to the product’s specifications chart. -
Page 7: Mounting
Before mounting the product, read and follow the safety recommendations indicated in the Safety Notes. Orientation The FXarray Q5 may be mounted in any position; however, make sure adequate ventilation is provided around the product. Rigging • Before deciding on a location, always make sure there is easy access to the product for maintenance and programming purposes. -
Page 8: Operation
SMD strobe speed Infrared Turns infrared on or off Mode Configuration (DMX) The FXarray Q5 works with a DMX controller. Information about DMX is in the CHAUVET DMX Primer, which is available from the Chauvet website http://www.chauvetlighting.com/downloads/ DMX_Primer_rev05_WO.pdf. Starting Address When selecting a starting DMX address, always consider the number of DMX channels the selected DMX mode uses. -
Page 9: Dmx Channel Assignments And Values
Quad LED 4 UV 255 0–100% (note: only 3 colors at once) No function Quad LED 4 Strobe 250 Strobe, slow to fast 255 Sound-active strobe FXarray Q5 User Manual Rev. 1 Page 7 of 16... -
Page 10: 10Ch
255 Auto Program 7/Sound-active program 5 250 Speed, slow to fast Program Speed 255 Sound-active program No function Quad LED Dimmer for Programs 1–5 255 0–100% Page 8 of 16 FXarray Q5 User Manual Rev. 1... -
Page 11: 3Ch
215 Auto/Sound-active program 6 255 Auto/Sound-active program 7 250 Speed, slow to fast Program Speed 255 Sound-active program No function Quad LED Dimmer 255 0–100% FXarray Q5 User Manual Rev. 1 Page 9 of 16... -
Page 12: Configuration (Standalone)
The product will only respond to low frequencies of music (bass and drums). Preset Color Mode To run the FXarray Q5 on a static color, follow the instructions below: Press <MENU> repeatedly until C-- shows on the display. Press <ENTER>. -
Page 13: Irc-6 Infrared Remote Control
PERATION IRC-6 Infrared Remote Control The FXarray Q5 is compatible with the IRC-6 infrared remote control from Chauvet. To activate IR mode, follow the instructions below: Press <MENU> repeatedly until SEt shows on the display. Press <ENTER> to accept. Press <UP> or <DOWN> to select on or oFF. -
Page 14: Master/Slave Mode
PERATION Master/Slave Mode The Master/Slave mode allows a single FXarray Q5 product (the “master”) to control the actions of one or more FXarray Q5 products (the “slaves”) without the need of a DMX controller. The master product will be set to operate in either Stand-Alone mode or with the IRC-6, while the slave products will be set to operate in Slave mode. -
Page 15: Maintenance
Gently polish the transparent surfaces until they are free of haze and lint. Always dry the transparent surfaces carefully after cleaning them. Do not spin the cooling fans using compressed air because it may damage them. FXarray Q5 User Manual Rev. 1 Page 13 of 16... -
Page 16: Technical Specifications
XTERNAL EMPERATURE OOLING YSTEM 104 °F (40 °C) Fan-assisted convection I/O C ONNECTOR HANNEL ANGE 3-pin XLR 3, 10 or 30 Ordering UPC N RODUCT UMBER FXarray Q5 10051288 781462216368 Page 14 of 16 FXarray Q5 User Manual Rev. 1... -
Page 17: Returns
Send the merchandise prepaid, in its original box, and with its original packing and accessories. Chauvet will not issue call tags. Clearly label the package with the RMA number. Chauvet will refuse any product returned without an RMA number. Write the RMA number on a properly affixed label. DO NOT write the RMA number directly on the box. -
Page 18: Contact Us
Outside the U.S., United Kingdom, Ireland, Mexico or Benelux, contact the dealer of record. Follow the instructions to request support or to return a product. Visit our website for contact details. Page 16 of 16 FXarray Q5 User Manual Rev. 1...
