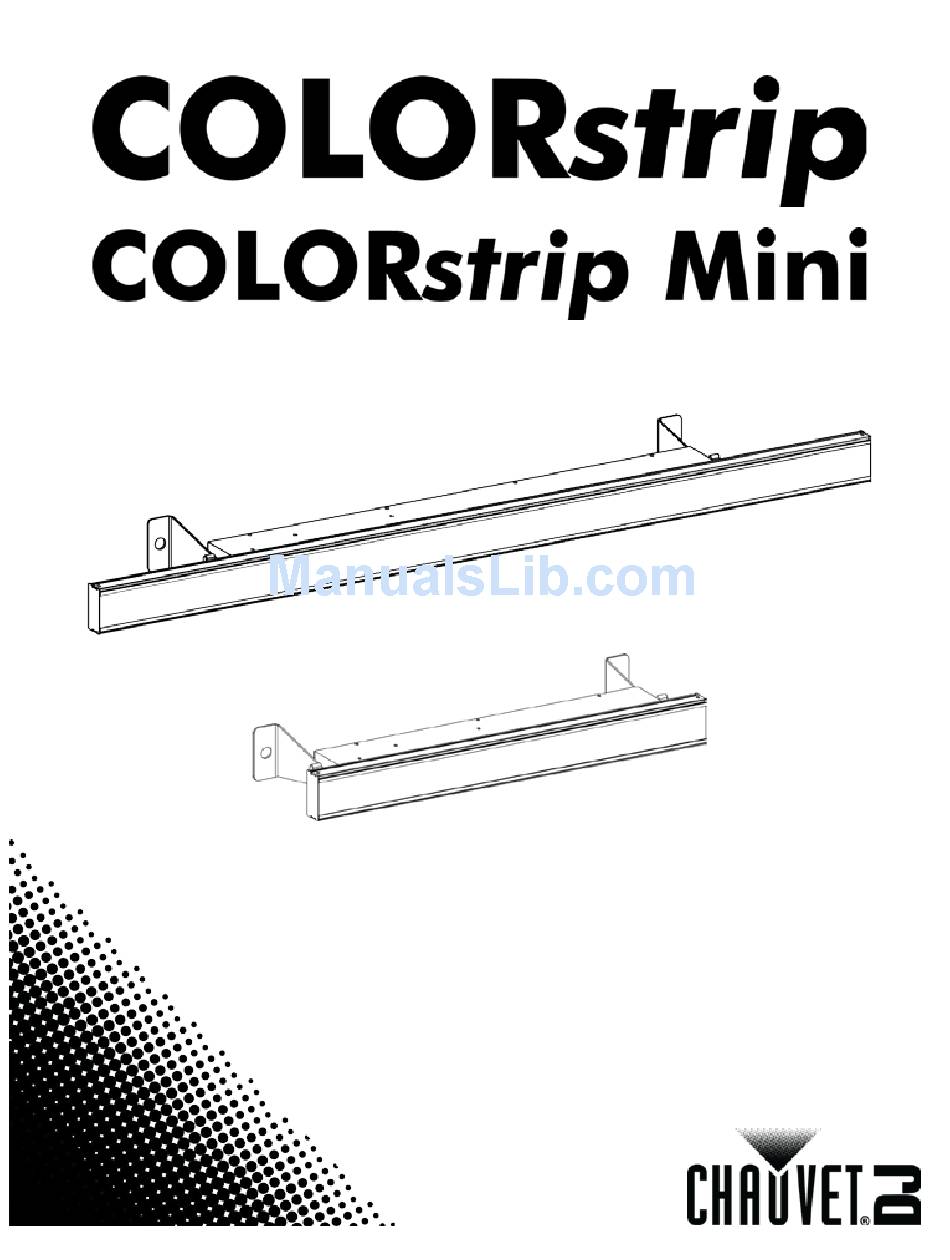

- Page 1 User Manual...
-
Page 2: Table Of Contents
IRC-6 Infrared Remote Control ..................... 13 IRC-6 Operation............................ 13 Master/Slave Mode ........................14 Master/Slave Runway Effect ......................14 5. Maintenance .........................15 Product Maintenance ........................15 6. Technical Specifications ....................16 Returns ..........................17 Contact Us .........................18 Page 2 of 18 COLORstrip/COLORstrip Mini User Manual Rev. 1... -
Page 3: Before You Begin
Chauvet reserves the right to revise the content of this document without any obligation to notify any person or company of such revision, however, Chauvet has no obligation to make, and does not commit to make, any such revisions. -
Page 4: Product At A Glance
Keep this User Manual for future use. If you sell the product to someone else, be sure that they also receive this document. Page 4 of 18 COLORstrip/COLORstrip Mini User Manual Rev. 1... -
Page 5: Introduction
Safety Loop Menu Buttons Sensitivity Knob In/Out COLORstrip Mini Overview Fuse Holder Power Out Display Microphone Master/Slave Out In/Out Menu Buttons Sensitivity Power In EXT Controller Safety Loop Indicators Knob Port COLORstrip/COLORstrip Mini User Manual Rev. 1 Page 5 of 18... -
Page 6: Product Dimensions
Product Dimensions COLORstrip Dimensions 38 in 965 mm 6 in 155 mm 2.5 in 64 mm COLORstrip Mini Dimensions 19 in 482 mm 6.1 in 155 mm 2.1 in 52 mm Page 6 of 18 COLORstrip/COLORstrip Mini User Manual Rev. 1... -
Page 7: Setup
Additional Products · You can power link up to 15 COLORstrip products on 120 VAC or up to 28 COLORstrip products on 230 VAC. · You can power link up to 20 COLORstrip Mini products on 120 VAC or up to 38 COLORstrip Mini products on 230 VAC. -
Page 8: Mounting
Before mounting the product, read and follow the safety recommendations indicated in Mounting Safety Notes. The COLORstrip/COLORstrip Mini may be mounted in any position; however, make Orientation sure adequate ventilation is provided around the product. · Rigging Before deciding on a location for the product, always make sure there is easy access to the product for maintenance and programming purposes. -
Page 9: Operation
SdAd 001– 512 Reset SAAd The COLORstrip/COLORstrip Mini works with a DMX controller. Information about DMX is DMX Linking in the CHAUVET DMX Primer, which is available from the Chauvet website http://www.chauvetlighting.com/downloads/DMX_Primer_rev05_WO.pdf. Set the product in DMX mode to control with a DMX controller. -
Page 10: Dmx Channel Assignments And Values
Strobe (when Ch. 1 is 010–119) 250 ó 255 Sound-Active Green (when Ch. 1 is 000 ó 255 0~100% 210–219) Blue (when Ch. 1 is 000 ó 255 0~100% 210–119) Page 10 of 18 COLORstrip/COLORstrip Mini User Manual Rev. 1... -
Page 11: Configuration (Standalone)
DMX controller. Products in standalone mode may transmit DMX signals that could interfere with the DMX signals from the controller. To run the COLORstrip/COLORstrip Mini on a static color, follow the instructions below: Static Color Press <MODE> repeatedly until SYS or ACt shows on the display. -
Page 12: Custom Color
· Set F001–F099 for auto strobe, from slow to fast. 13. Press <ENTER>. Repeat steps 3–12 as necessary. To black out the COLORstrip/COLORstrip Mini, do the following: Blackout Press <MODE> repeatedly until SYS or ACt shows on the display. Use <UP> or <DOWN> to select ACt. -
Page 13: Irc-6 Infrared Remote Control
IRC-6 Infrared The COLORstrip/COLORstrip Mini is compatible with the IRC-6 infrared remote control from Chauvet. Make sure to point the IRC-6 directly at the receiver on the front of the Remote product. Control IRC-6 Operation Static Color Mode Static Color mode will enable the product to output a preset color. -
Page 14: Master/Slave Mode
The Master/Slave mode allows a single COLORstrip/COLORstrip Mini product (the Master/Slave “master”) to control the actions of one or more COLORstrip/COLORstrip Mini products Mode (the “slaves”) without the need of a DMX controller. The master product will be set to operate in either Stand-Alone mode or with the IRC-6, while the slave products will be set to operate in Slave mode. -
Page 15: Maintenance
Softly drag any dirt or grime to the outside of the transparent surface. Gently polish the transparent surfaces until they are free of haze and lint. Always dry the transparent surfaces carefully after cleaning them. COLORstrip/COLORstrip Mini User Manual Rev. 1 Page 15 of 18... -
Page 16: Technical Specifications
Maximum External Temp. Cooling System 104 °F (40 °C) Convection I/O Connectors Channel Range 3-pin XLR Ordering Product Name Item Code UPC Number COLORstrip 10051063 781462214111 COLORstrip Mini 10051064 781462214128 Page 16 of 18 COLORstrip/COLORstrip Mini User Manual Rev. 1... -
Page 17: Returns
If you are located in Mexico, contact Chauvet Mexico. · If you are located in Benelux, contact Chauvet Europe BVBA. · If you are located in any other country, DO NOT contact Chauvet. Instead, contact your local distributor. See www.chauvetlighting.com for distributors outside the U.S., UK, Ireland, Mexico, or Benelux. -
Page 18: Contact Us
Outside the U.S., United Kingdom, Ireland, Mexico, or Benelux contact the dealer of record. Follow their instructions to request support or to return a product. Visit our website for contact details. Page 18 of 18 COLORstrip/COLORstrip Mini User Manual Rev. 1...
