Summary of Contents for Chauvet SLIMPAR Q12 USB

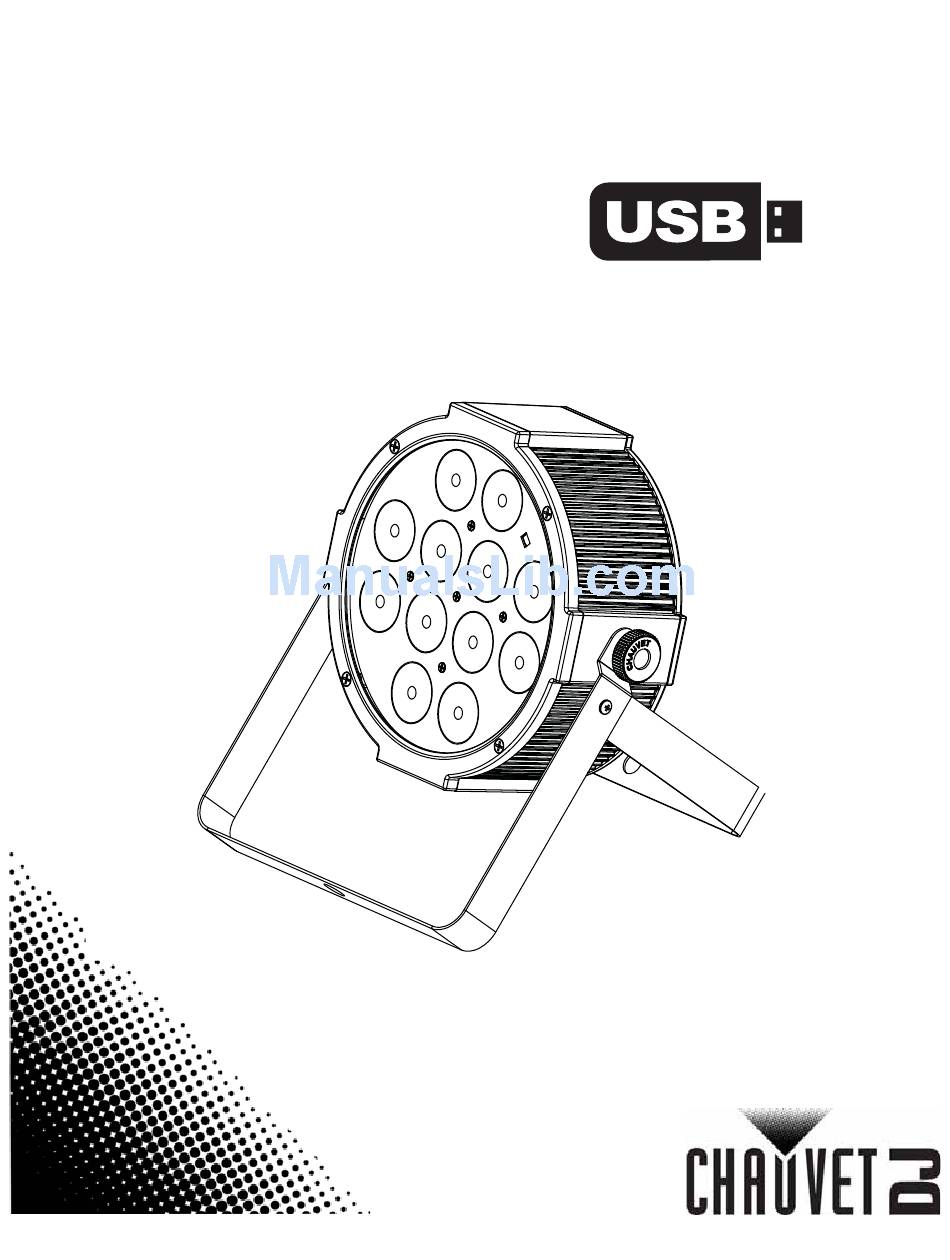

- Page 1 SlimPAR Q User Manual...
-
Page 2: Table Of Contents
Master/Slave Mode (D-Fi USB)..............5. Mainte nanc e ................Product Maintenance ..................6. Te c hnic al S pe c ific atio ns ............7. Re turns ..................7. Co ntac t Us .................. SlimPAR Q12 USB User Manual Rev. 3... -
Page 3: Before You Begin
Chauvet reserves the right to revise the content of this document without any obligation to notify any person or company of such revision, however, Chauvet has no obligation to make, and does not commit to make, any such revisions. Download the latest version from www.chauvetdj.com. -
Page 4: Product At A Glance
Keep this User Manual for future use. If you sell the product to someone else, be sure that they also receive this document. Page 2 of 17 SlimPAR Q12 USB User Manual Rev. 3... -
Page 5: Introduction
Safety Loop Power Out Back Panel View IR Sensor Lenses Front View Electrical warning. Not following these instructions may cause electrical damage to the product, accessories, or the user. SlimPAR Q12 USB User Manual Rev. 3 Page 3 of 17... -
Page 6: Product Dimensions
NTRODUCTION Product Dimensions 11.5 in 293 mm 3.6 in 9.7 in 92 mm 247 mm Page 4 of 17 SlimPAR Q12 USB User Manual Rev. 3... -
Page 7: Setup
ETUP AC Power The SlimPAR Q12 USB has an auto-ranging power supply and it can work with an input voltage range of 100 to 240 VAC, 50/60 Hz. To determine the product’s power requirements (circuit breaker, power outlet, and wiring), use the current value listed on the label affixed to the product’s back panel, or refer to the product’s specifications chart. -
Page 8: Mounting
Before mounting the product, read and follow the safety recommendations indicated in the Safety Notes. Orientation The SlimPAR Q12 USB may be mounted in any position; however, make sure adequate ventilation is provided around the product. Rigging • Before deciding on a location, always make sure there is easy access to the product for maintenance and programming purposes. -
Page 9: Operation
Custom static colors Combines red, green, and blue (custom colors) b000-255 A000-255 dIM1 Dimmer speed mode, fast to slow, or off dIM2 dIM3 IR function on or off SlimPAR Q12 USB User Manual Rev. 3 Page 7 of 17... -
Page 10: Dmx Linking
D-Fi USB Connectivity The SlimPAR Q12 USB is able to become a D-Fi wireless receiver/transmitter with the use of the D-Fi USB from Chauvet DJ. Simply set the product's DMX Personality and DMX Address, set the DIP switch D- Fi receiving/transmitting channel, then plug it into the D-Fi USB port.Press <MENU>... -
Page 11: Dmx Personality And Starting Address
If you choose a starting address that is too high, you could restrict the access to some of the product’s channels. The SlimPAR Q12 USB uses up to 9 DMX channels in an 9-CH DMX mode, which defines the highest configurable address to 504. -
Page 12: 4-Ch
Press <ENTER>. Auto-Program Speed To change the auto-program speed on the SlimPAR Q12 USB , do the following: Press <MENU> repeatedly until S-- shows on the display. Use <UP> or <DOWN> to increase or decrease the program speed, from (S 1–100). -
Page 13: Sound-Active Mode
Repeat steps 3 and 4 until the product outputs as desired. Dimmer Speed Mode To set the dimmer speed mode of the SlimPAR Q12 USB , follow the instructions below: Press <MENU> repeatedly until dIM shows on the display. Press <ENTER>. -
Page 14: Irc-6 Infrared Remote Control
PERATION IRC-6 Infrared Remote Control The SlimPAR Q12 USB is compatible with the IRC-6 infrared remote control from Chauvet. To activate IR mode, follow the instructions below: Press <MENU> repeatedly until SEr shows on the display. Press <ENTER> to accept. -
Page 15: Master/Slave Mode (Wired)
Master/Slave Mode (D-Fi USB) The D-Fi USB allows a single SlimPAR Q12 USB product (the “master”) to control the actions of one or more SlimPAR Q12 USB products (the “slaves”) without the need of a DMX controller or DMX cables. The master (transmitter) product will be set to operate in Stand-Alone mode, while the slave (receiver) products will be set to operate in Slave mode. -
Page 16: Maintenance
AINTENANCE 5. M AINTENANCE Product Maintenance Dust build-up reduces light output performance and can cause overheating. This can lead to reduction of the light source’s life and/or mechanical wear. To maintain optimum performance and minimize wear, clean your lighting products at least twice a month. However, be aware that usage and environmental conditions could be contributing factors to increase the cleaning frequency. -
Page 17: Te C Hnic Al S Pe C Ific Atio Ns
104 °F (40 °C) Convection I/O C ONNECTOR HANNEL ANGE 3-pin XLR 5, 6, 8, 10, 17, 32 or 36 Ordering UPC N RODUCT UMBER SlimPAR Q12 USB 03031241 781462215897 SlimPAR Q12 USB User Manual Rev. 3 Page 15 of 17... -
Page 18: Returns
Send the merchandise prepaid, in its original box, and with its original packing and accessories. Chauvet will not issue call tags. Clearly label the package with the RMA number. Chauvet will refuse any product returned without an RMA number. Write the RMA number on a properly affixed label. DO NOT write the RMA number directly on the box. -
Page 19: Contact Us
Visit the applicable website above to verify our contact information and instructions to request support. Outside the U.S., United Kingdom, Ireland, Mexico or Benelux, contact the dealer of record. SlimPAR Q12 USB User Manual Rev. 3 Page 17 of 17...
