Intelligent Signature Capture - IMGBOX

Note: Intelligent Signature Capture (IMGBOX) is not supported by the Orbit 7120plus
scanner.
IMGBOX allows you to configure the size and location of a signature capture area
relative to its proximity to a bar code. This allows you to tailor a signature capture
area to a specific form. In order to use IMGBOX, you need a set form where the sig-
nature box location is in a known location relative to a bar code. You can input the
overall size of the signature area, as well as specify how far the signature area is
from the bar code, vertically and horizontally. You can also set the resolution and
file format for the final output of the signature capture image.
Note: IMGBOX commands can only be triggered by one of the following types of bar codes:
PDF417, Code 39, Code 128, Aztec, Codabar, and Interleaved 2 of 5. Once one of
these symbologies has been read, the image is retained for a possible IMGBOX
command.

Signature Capture Optimize

If you will be using your scanner to capture signatures frequently, you should opti-
mize it for this purpose. However, the speed of scanning bar codes may be slowed
when this mode is enabled. Default = Off.
Below is an example of a signature capture application. In this example, the scan-
ner is centered over the signature capture area and the signature is scanned. A sin-
gle beep is emitted, indicating that the scanner has read a Code 128 bar code and
the data has been transferred to the host. An IMGBOX command may now be sent
from the host to specify the coordinates of the signature capture area below that
code, and indicating that only that area containing the signature should be trans-
ferred as an image to the host.
Orbit 7120plus/7190g User Guide

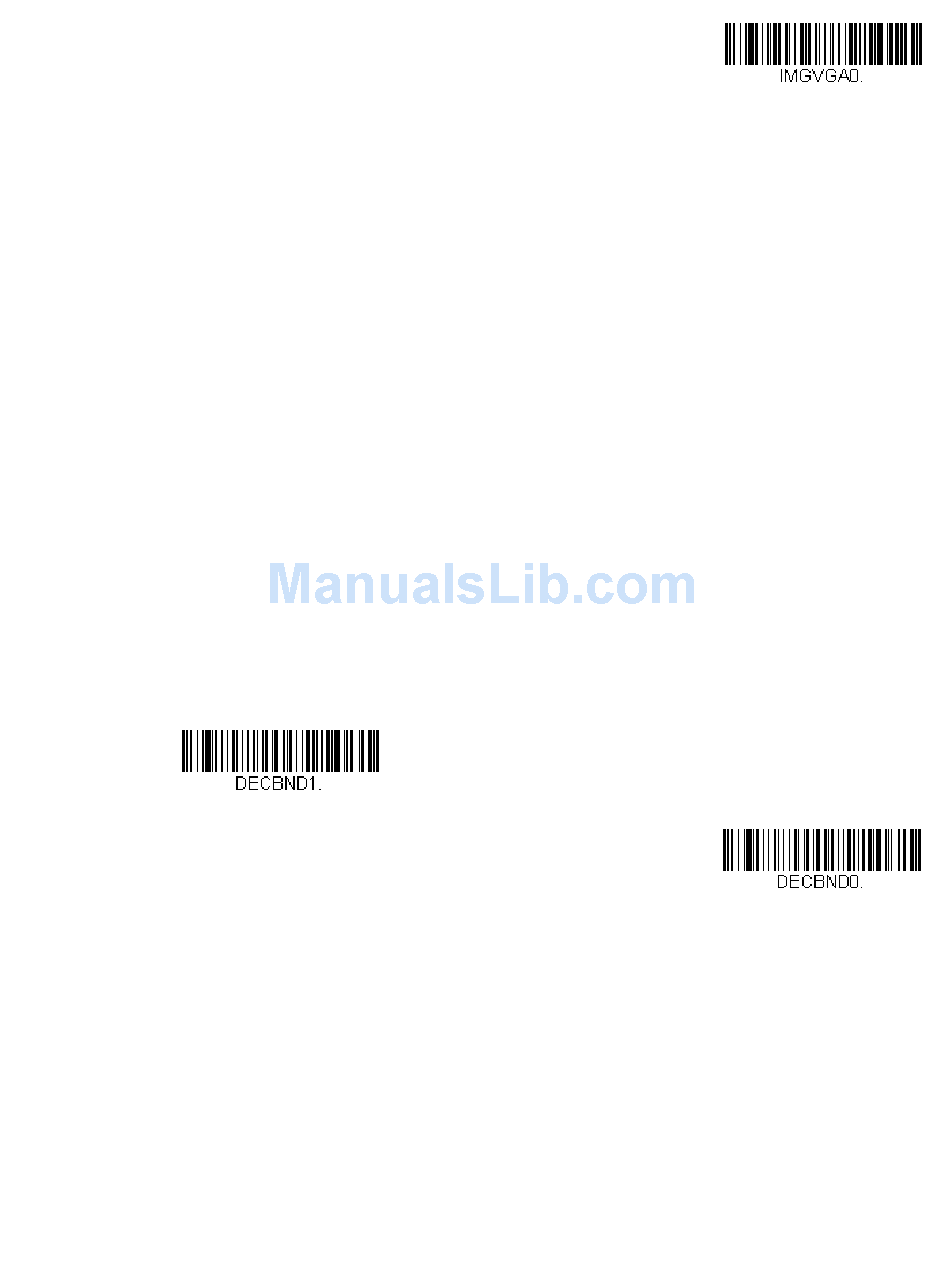

Optimize On
* Native Resolution
* Optimize Off
163
