Tally Dascom DM-210/220

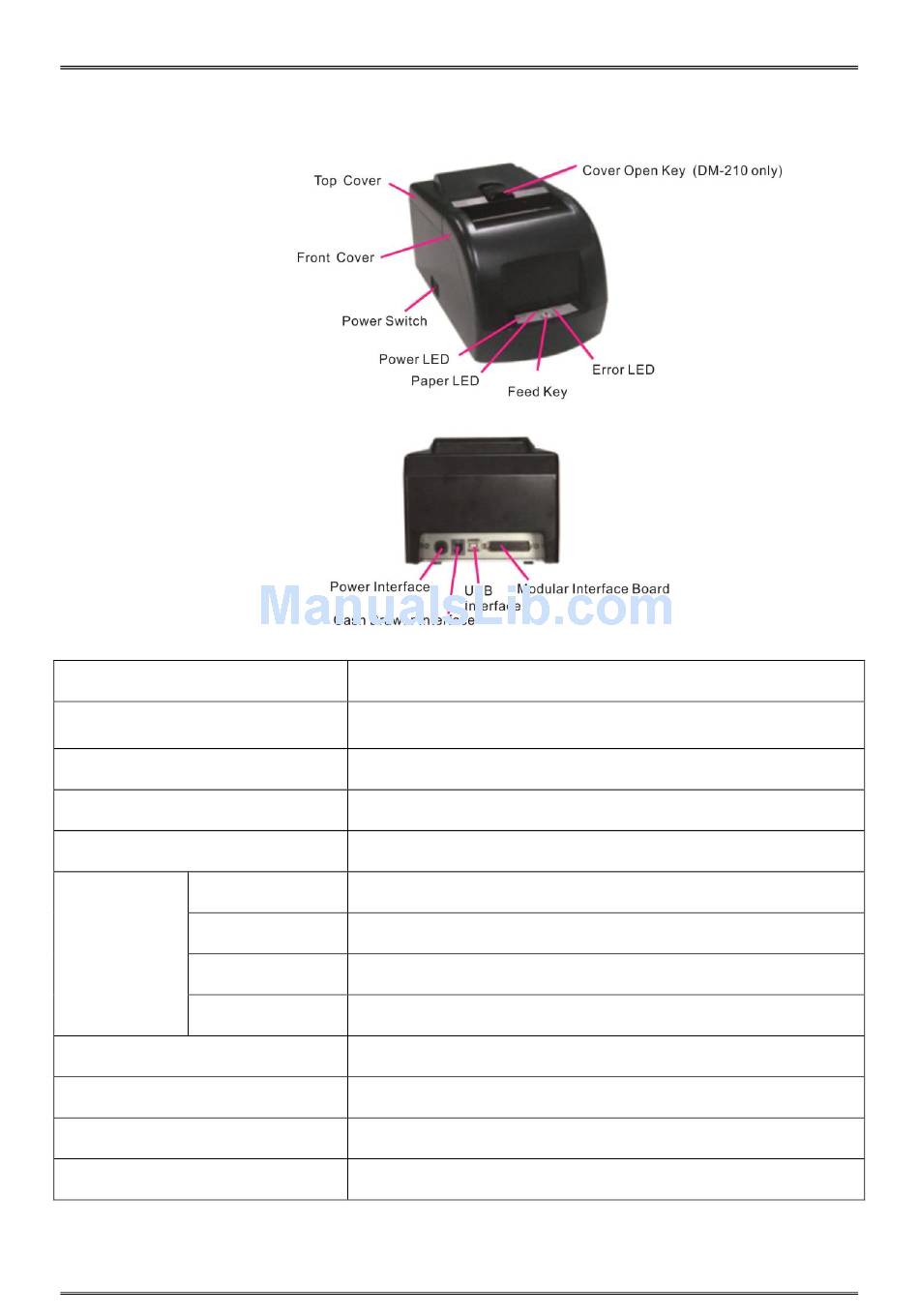

1.3 Printer Components
Components
Cover Open Key
Top Cover
Front Cover
Power Switch
Power LED
Paper End LED
Control Panel
Error LED
Feed Key
Power Supply Socket
Cash Drawer Interface
USB Interface
Modular Interface Board
Function
Open the Printer Cover (DM-210 only).
Open the cover for loading or replacing roll paper.
Open the cover for loading or replacing ribbon cartridge.
Powers printer ON or OFF.
Shows the power status.
Shows roll paper out or not.
Indicates internal error occurs.
Press the key to feed paper.
Connects power cord to the printer.
Connects Cashbox interface cable from the cashbox.
Connects USB interface cable from the host.
Connects serial interface or parallel interface from the host.
