3 Function Setting

3.1 Black Mark Setting

This section describes how to set up printers with black mark sensor. You can execute self-test to check whether
your printer configure with black mark function or not. The self-test page will display black mark is enabled or
disabled. If your printer configure with black mark, you can follow the operation guide as below.

3.1.1 Black Mark Specification

Dimensions
Reflectivity
Black mark detection position
Black mark to printing home
position
Black mark to cutting/tear position

3.1.2 Run Setting Tool

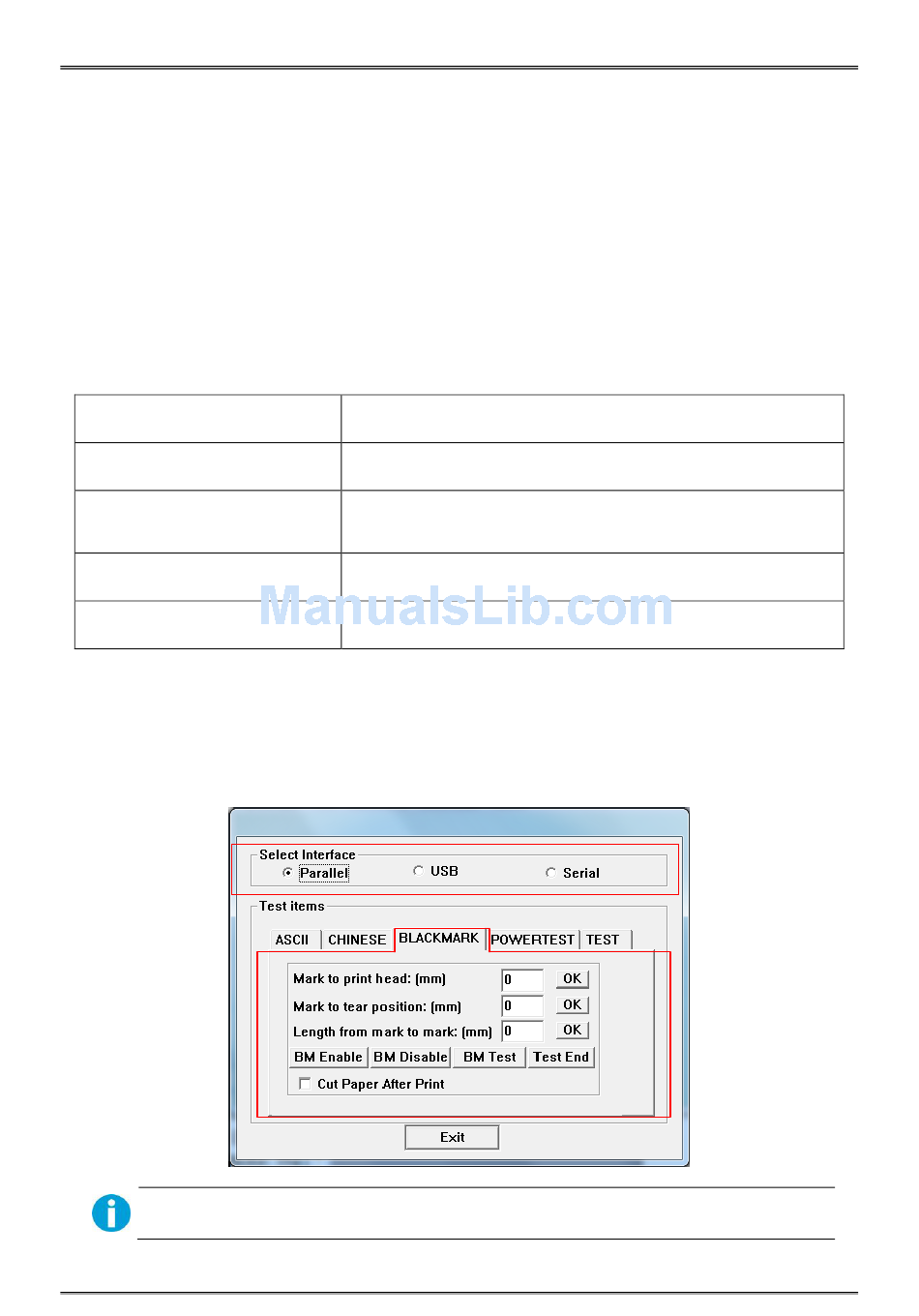

First of all, run "dmpro.exe" which is in the CD disk, you will see the following window for setting. Select your
current interface and select "BLACK MARK" option under "Test items".
See www.dascom.com for newest version of DMPro Utility.
Hight: 5mm; Width: 12mm
Black mark: <10%; Others: >75%
Default: at the front right side of receipt.
(It can be set at the front left side of receipt according to order
requirement.)
-27mm ～ (the distance between two adjacent black marks - 27) mm
-43mm ～ (the distance between two adjacent black marks - 43)mm.
