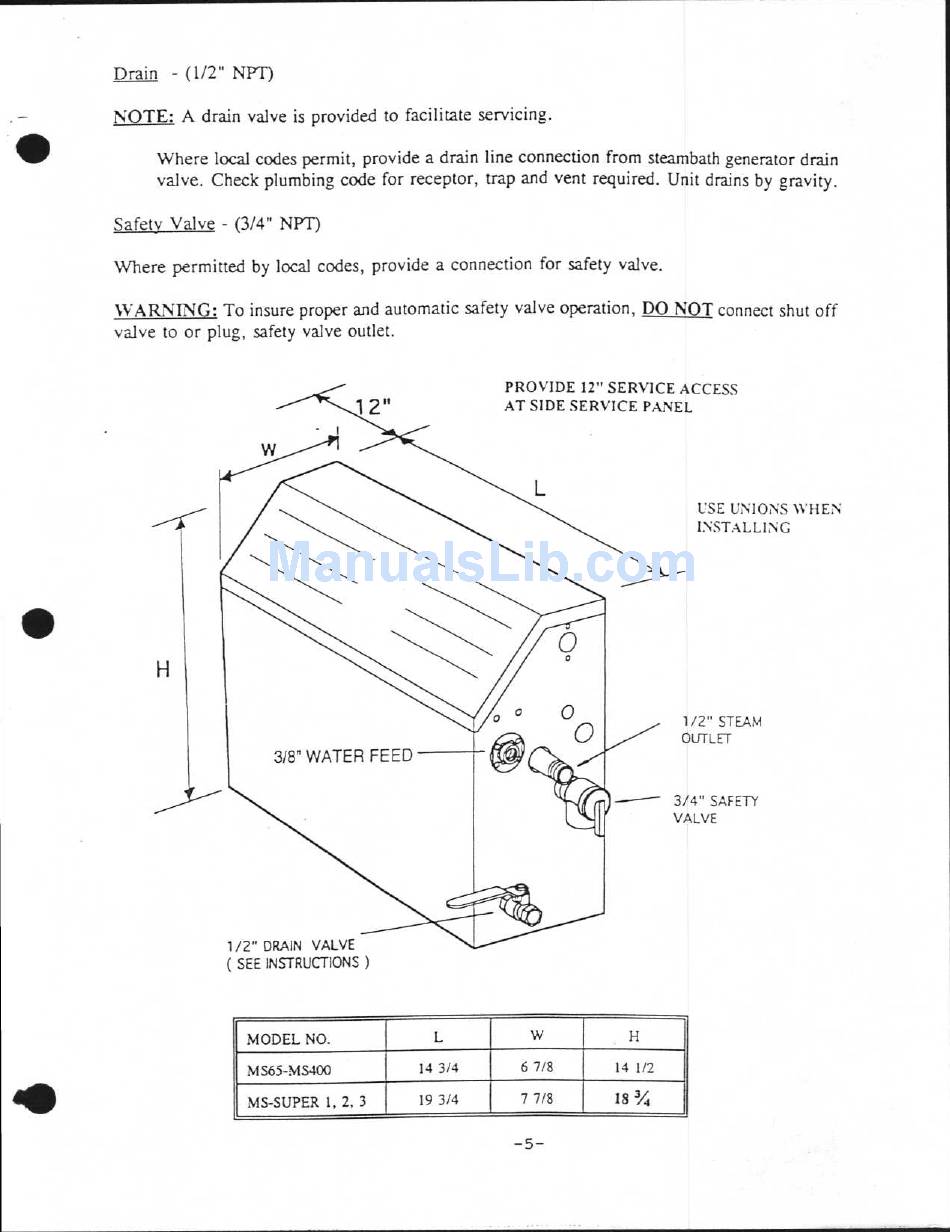

USE UNIONS WHEN
INSTALLING
1/2" STEAM
OUTLET
3/4" SAFETY
VALVE
1/2" DRAIN VALVE
( SEE INSTRUCTIONS )
Drain - (1/2" NPT)
NOTE: A drain valve is provided to facilitate servicing.
Where local codes permit, provide a drain line connection from steambath generator drain
valve. Check plumbing code for receptor, trap and vent required. Unit drains by gravity.
Safety Valve
- (3/4" NPT)
Where permitted by local codes, provide a connection for safety valve.
WARNING: To insure proper and automatic safety valve operation,
DO NOT
connect shut off
valve to or plug, safety valve outlet.
PROVIDE 12" SERVICE ACCESS
1 2"
AT SIDE SERVICE PANEL
•
•
MODEL NO.
L
W
MS65-MS400
14 3/4
6 7/8
14 1/2
MS-SUPER 1, 2, 3
19 3/4
7 7/8 18 3/4
-5-
