Extech Instruments MA150 User Manual page 6

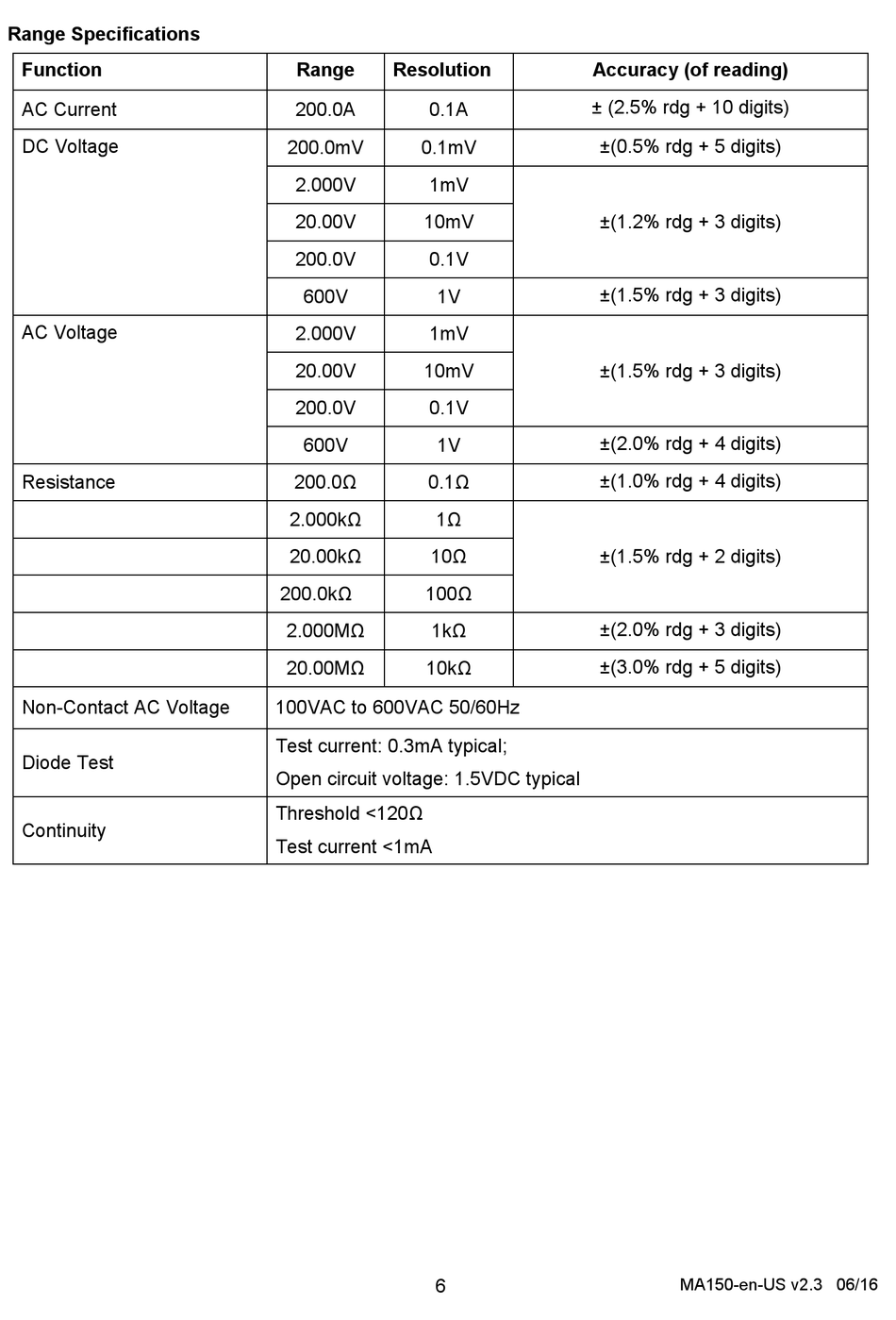

Range Specifications
Function
AC Current
DC Voltage
AC Voltage
Resistance
Non-Contact AC Voltage
Diode Test
Continuity
Range Resolution
200.0A 0.1A
200.0mV 0.1mV
2.000V 1mV
20.00V 10mV
200.0V 0.1V
600V 1V
2.000V 1mV
20.00V 10mV
200.0V 0.1V
600V 1V
200.0Ω 0.1Ω
2.000kΩ 1Ω
20.00kΩ 10Ω
200.0kΩ 100Ω
2.000MΩ 1kΩ
20.00MΩ 10kΩ
100VAC to 600VAC 50/60Hz
Test current: 0.3mA typical;
Open circuit voltage: 1.5VDC typical
Threshold <120Ω
Test current <1mA
6
Accuracy (of reading)
± (2.5% rdg + 10 digits)
±(0.5% rdg + 5 digits)
±(1.2% rdg + 3 digits)
±(1.5% rdg + 3 digits)
±(1.5% rdg + 3 digits)
±(2.0% rdg + 4 digits)
±(1.0% rdg + 4 digits)
±(1.5% rdg + 2 digits)
±(2.0% rdg + 3 digits)
±(3.0% rdg + 5 digits)
MA150-en-US v2.3 06/16
