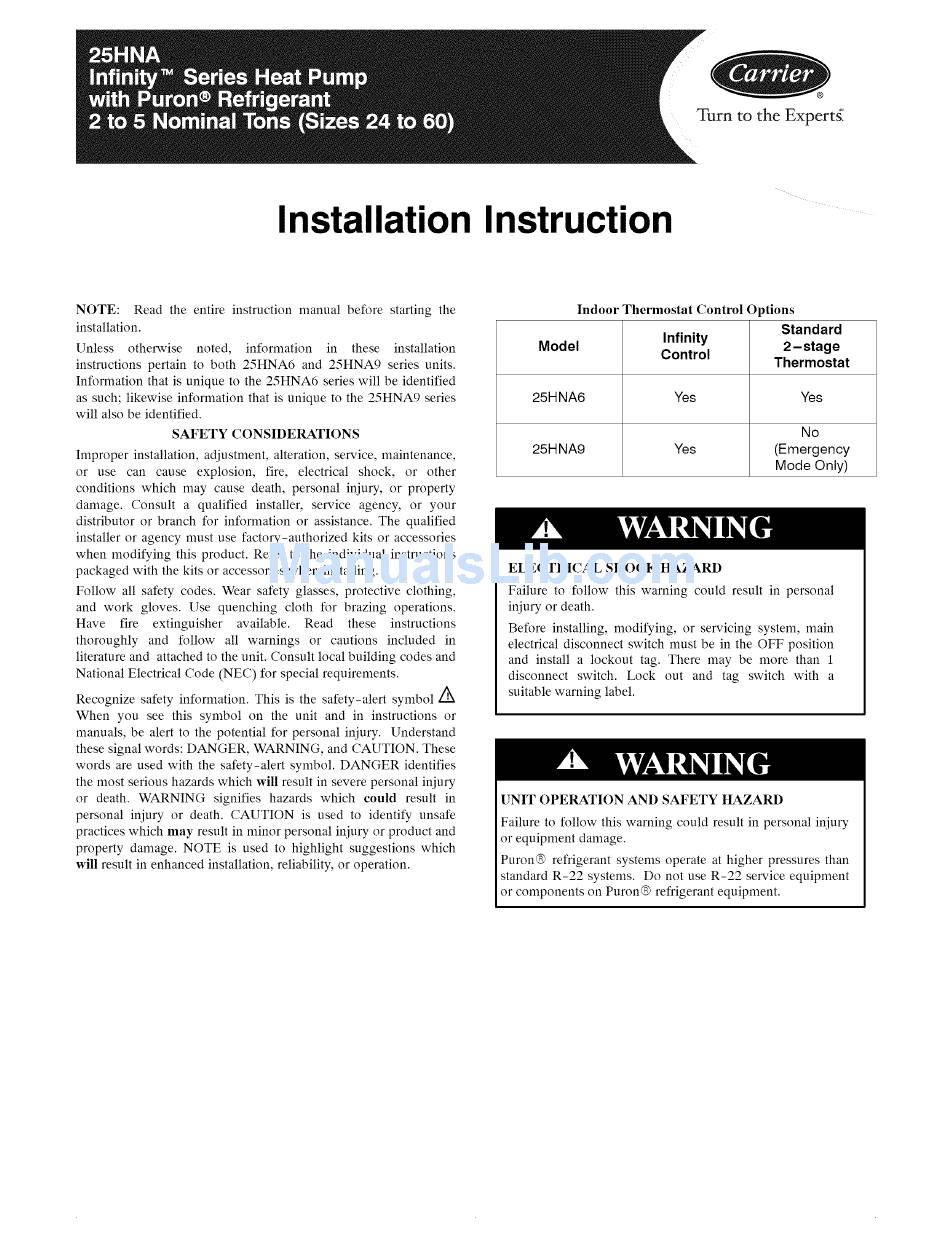

Infinity series heat pump with puron refrigerant 2 to 5 nominal tons (sizes 24 to 60)
Hide thumbs Also See for 25HNA6:

Advertisement

®
to the Expert£
Installation Instruction
NOTE:
Read
the entire
instruction
manual
before
starting
the
installation.
Unless
otherwise
noted,
information
in
these
installation
instructions
pertain
to both
25HNA6
and 25HNA9
series
units.
Information
that is unique
to the 25HNA6
series will be identified
as such; likewise
information
that is unique
to the 25HNA9
series
will also be identified.
SAFETY
CONSIDERATIONS
Improper
installation,
adjustment,
alteration,
service,
maintenance,
or use
can
cause
explosion,
fire,
electrical
shock,
or
other
conditions
which
may
cause
death,
personal
iniury,
or property
damage.
Consult
a qualified
installer,
service
agency,
or your
distributor
or branch
for information
or assistance.
The qualified
installer
or agency
must use factory-authorized
kits or accessories
when modifying
this product.
Refer to the individual
instructions
packaged
with the kits or accessories
when
installing.
Follow
all safety
codes.
Wear safety glasses,
protective
clothing,
and work
gloves.
Use quenching
cloth
for brazing
operations.
Have
fire
extinguisher
available.
Read
these
instructions
thoroughly
and
follow
all warnings
or cautions
included
in
literature
and attached
to the unit. Consult local building
codes and
National
Electrical
Code (NEC) for special requirements.
Recognize
safety information.
This
is the safety-alert
symbol/_
When
you
see this
symbol
on the unit
and in instructions
or
manuals,
be alert to the potential
for personal
iniury.
Understand
these signal words:
DANGER,
WARNING,
and CAUTION.
These
words
are used with the safety-alert
symbol.
DANGER
identifies
the most serious hazards
which
will result in severe personal
iniury
or death.
WARNING
signifies
hazards
which
could
result
in
personal
injury
or death.
CAUTION
is used
to identify
unsafe
practices
which may result in minor personal
iniury or product
and
property
damage.
NOTE
is used to highlight
suggestions
which
will result in enhanced
installation,
reliability,
or operation.
Indoor Thermostat
Control Options
Standard
Model
Infinity
Control
2-stage
Thermostat
25HNA6
Yes
Yes
No
25HNA9
Yes
(Emergency
Mode Only)
ELECTRICALSHOCK
HAZARD
Failure
to follow
this warning
could
result
in personal
injury or death.
Before
installing,
modifying,
or servicing
system,
main
electrical
disconnect
switch
nmst be in the OFF position
and
install
a lockout
tag.
There
may
be more
than
1
disconnect
switch.
Lock
out
and
tag
switch
with
a
suitable warning
label.
UNIT
OPERATION
AND SAFETY
HAZARD
Failure
to follow
this warning
could
result in personal
iniury
or equipment
damage.
Puron®
refrigerant
systems
operate
at higher
pressures
than
standard
R-22
systems.
Do not use R-22
service
equipment
or components
on Puron®
refrigerant
equipment.
