Carrier 24ABC6 Product Data

Base 16 air conditioner with puron refrigerant
Hide thumbs Also See for 24ABC6:
Table of Contents

Advertisement

Quick Links

See also: Instruction and Installation Manual , Wiring Diagram

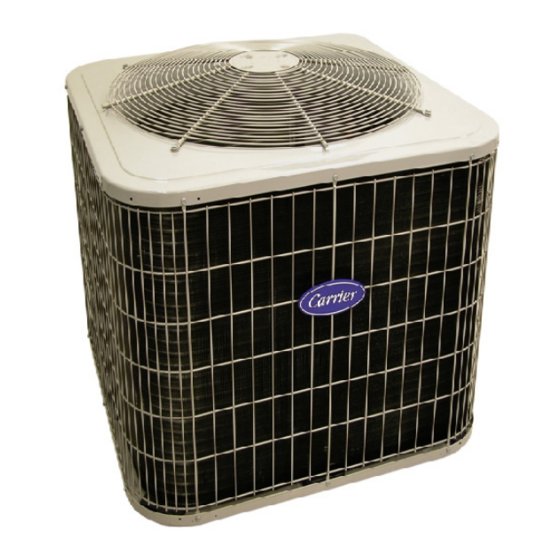

24ABC6
Baset16 Air Conditioner
with Puronr Refrigerant
the environmentally sound refrigerant
Carrier's Air Conditioners with Puronr refrigerant provide a
collection of features unmatched by any other family of
equipment. The 24ABC has been designed utilizing Carrier's
Puron refrigerant. The environmentally sound refrigerant allows
you to make a responsible decision in the protection of the earth's
ozone layer.
As an Energy Starr Partner, Carrier Corporation has determined
that this product meets the Energy Starr guidelines for energy
efficiency. Refer to the combination ratings in the Product Data
for system combinations that meet Energy Starr guidelines.
NOTE: Ratings contained in this document are subject to
change at any time. Always refer to the AHRI directory
(www.ahridirectory.org) for the most up- -to- -date ratings
information.

Product Data

INDUSTRY LEADING
FEATURES / BENEFITS
Efficiency
Sound
Comfort
Reliability
Durability
WeatherArmort protection package:
Applications
S
14 - - 16.5 SEER/11.0- - 13.5 EER
S
Microtube Technologyt refrigeration system
S
Indoor air quality accessories available
S
Sound level as low as 76 dBA
S
Sound level as low as 74 dBA with accessory sound
blanket
S
System supports Edger Thermidistatt or standard
thermostat controls
S
Puronr refrigerant - - environmentally sound, won't
deplete the ozone layer and low lifetime servce cost.
S
Scroll compressor
S
Internal pressure relief valve
S
Internal thermal overload
S
Filter drier
S
Balanced refrigeration system for maximum reliability
S
Solid, durable sheet metal construction
S
Dense wire coil guard available
S
Baked- -on, complete outer coverage, powder paint
S
Long- -line - - up to 250 feet (76.20 m) total equivalent
length, up to 200 feet (60.96 m) condenser above
evaporator, or up to 80 ft. (24.38 m) evaporator above
condenser (See Longline Guide for more information.)
S
Low ambient (down to
accessory kit
- -20_F/- -28.9_C)) with
