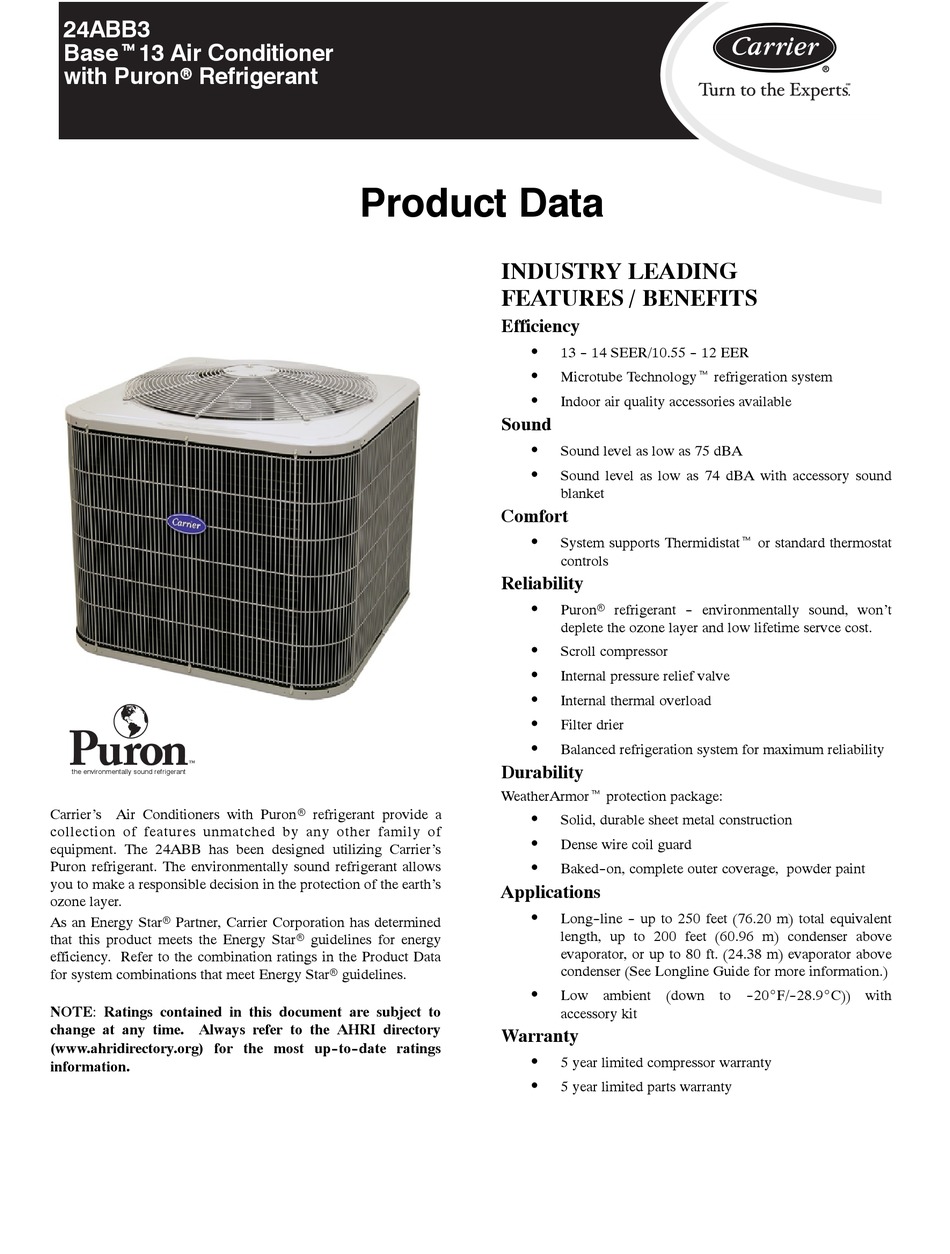

24ABB3
Baset13 Air Conditioner
with Puronr Refrigerant
the environmentally sound refrigerant
Carrier's Air Conditioners with Puronr refrigerant provide a
collection of features unmatched by any other family of
equipment. The 24ABB has been designed utilizing Carrier's
Puron refrigerant. The environmentally sound refrigerant allows
you to make a responsible decision in the protection of the earth's
ozone layer.
As an Energy Starr Partner, Carrier Corporation has determined
that this product meets the Energy Starr guidelines for energy
efficiency. Refer to the combination ratings in the Product Data
for system combinations that meet Energy Starr guidelines.
NOTE: Ratings contained in this document are subject to
change at any time. Always refer to the AHRI directory
(www.ahridirectory.org) for the most up- -to- -date ratings
information.
Product Data
INDUSTRY LEADING
FEATURES / BENEFITS
Efficiency
S
S
S
Sound
S
S
Comfort
S
Reliability
S
S
S
S
S
S
Durability
WeatherArmort protection package:
S
S
S
Applications
S
S
Warranty
S
S
13 - - 14 SEER/10.55 - - 12 EER
Microtube Technologyt refrigeration system
Indoor air quality accessories available
Sound level as low as 75 dBA
Sound level as low as 74 dBA with accessory sound
blanket
System supports Thermidistatt or standard thermostat
controls
Puronr refrigerant - - environmentally sound, won't
deplete the ozone layer and low lifetime servce cost.
Scroll compressor
Internal pressure relief valve
Internal thermal overload
Filter drier
Balanced refrigeration system for maximum reliability
Solid, durable sheet metal construction
Dense wire coil guard
Baked- -on, complete outer coverage, powder paint
Long- -line - - up to 250 feet (76.20 m) total equivalent
length, up to 200 feet (60.96 m) condenser above
evaporator, or up to 80 ft. (24.38 m) evaporator above
condenser (See Longline Guide for more information.)
Low ambient (down to
accessory kit
5 year limited compressor warranty
5 year limited parts warranty
- -20_F/- -28.9_C)) with
Advertisement
Table of Contents
Related Manuals for Carrier 24ABB3
Summary of Contents for Carrier 24ABB3
-
Page 1: Product Data
Long- -line - - up to 250 feet (76.20 m) total equivalent As an Energy Starr Partner, Carrier Corporation has determined length, up to 200 feet (60.96 m) condenser above that this product meets the Energy Starr guidelines for energy evaporator, or up to 80 ft. -
Page 2: Model Number Nomenclature
MODEL NUMBER NOMENCLATURE Product Product Major Cooling Tier SEER Variations Open Open Voltage Series Series Family Series Capacity 0=Not 0=Not 3=208/230 ---1 24=AC A=RES AC B=Base B=Puron 3=13 SEER A=Standard Original Defined Defined Series ISO 9001:2000 the environmentally sound refrigerant REGISTERED This product has been designed and manufactured to meet Energy Star®... -
Page 3: Physical Data
PHYSICAL DATA UNIT SIZE ---VOLTAGE, SERIES 18---31 24---31 30---31 36---31 42---30 48---31 60---31 Operating Weight lb (kg) (48.5) (49.9) (50.3) (64.0) (86.2) (84.4) (86.2) Shipping Weight lb (kg) (59.0) (60.8) (61.7) (77.1) (98.9) (101.6) (102.5) Compressor Type Scroll REFRIGERANT Puron® (R--- 410A) Control TXV (Puron®... - Page 4 ACCESSORY THERMOSTATS THERMOSTAT / SUBBASE PKG. DESCRIPTION TP---PRH ---01 Programmable Thermidistat TP---NRH ---01 Non--- programmable Thermidistat TB---PAC ---01 Base Series Programmable AC Stat TB---NAC ---01 Base Series Non--- programmable AC Stat TSTATCCPRH01---B Thermidistat Control --- Programmable / Non--- Programmable Thermostat with Humidity control TSTATCCPAC01---B Thermostat --- Auto Changeover, 7--- Day Programmable, _F/_C, 1--- Stage Heat, 1--- Stage Cool TSTATCCNAC01---C...
- Page 5 Required in long line applications. 9. Outdoor Air Temperature Sensor Suggested in all commercial applications. Designed for use with Carrier Thermostats listed in this publication. This device enables the thermostat to display the outdoor temperature. This device also is required to enable special thermostat features such as auxiliary heat lock out.
- Page 6 Accessory Description and Usage (Listed Alphabetically) (Continued) 10. Sound Hood 13. Time- -Delay Relay Wraparound sound reducing cover for the compressor. Reduces An SPST delay relay which briefly continues operation of indoor the sound level by about 2 dBA. blower motor to provide additional cooling after the compressor cycles off.
-
Page 7: Electrical Data
ELECTRICAL DATA UNIT OPER MIN WIRE MIN WIRE FUSE** COMPR LENGTH LENGTH SIZE --- VOLTS* SIZE{ SIZE{ or CKT V/PH ft. (m)} ft. (m)} VOLTAGE, SERIES 60° C 75° C 60° C 75° C AMPS 18---31 48.0 11.8 66 (20.1) 63 (21.0) 24---31 58.3... - Page 12 Wall...
- Page 13 COMBINATION RATINGS ARI Ref. No. Model Number Indoor Model Furnace Model Capacity SEER 3162804 24ABB318A31 †CAP**1814A**+TDR 17600 10.90 13.00 3162805 24ABB318A31 CAP**1814A** 58CV(A,X)070---12 17500 12.00 14.50 3162806 24ABB318A31 CAP**1814A** 58PH*045---08 17800 12.00 14.50 3162808 24ABB318A31 CAP**2414A** 58CV(A,X)070---12 17800 12.20 14.50 3162809 24ABB318A31 CAP**2414A**...
-
Page 14: Combination Ratings Continued
COMBINATION RATINGS CONTINUED ARI Ref. No. Model Number Indoor Model Furnace Model Capacity SEER 3162893 24ABB324A31 CNPH*2417A** 58MV(B,C)080---20 22600 12.00 14.00 3162894 24ABB324A31 CNPH*2417A** 58MV(B,C)100---20 22800 12.00 14.00 3162895 24ABB324A31 CNPH*2417A** 58MV(B,C)120---20 23000 12.00 14.00 3162890 24ABB324A31 CNPH*2417A** 58MVB040---14 22800 11.70 14.00 3162901... - Page 15 COMBINATION RATINGS CONTINUED ARI Ref. No. Model Number Indoor Model Furnace Model Capacity SEER 3162957 24ABB324A31 FX4CNF030 23400 12.00 14.50 3162954 24ABB324A31 FY4ANF024 23000 11.00 13.00 3162955 24ABB324A31 FY4ANF030 23200 11.00 13.00 3162964 24ABB330A31 †CAP**3014A**+TDR 27400 10.80 13.00 3162975 24ABB330A31 CAP**3014A** 58CV(A,X)070---12 27200...
- Page 16 COMBINATION RATINGS CONTINUED ARI Ref. No. Model Number Indoor Model Furnace Model Capacity SEER 3163015 24ABB330A31 CNPV*3617A** 58MEB060---12 27200 12.00 14.50 3163016 24ABB330A31 CNPV*3617A** 58MEB080---12 27000 12.00 14.50 3163017 24ABB330A31 CNPV*3617A** 58MEB080---16 27800 11.70 14.00 3163011 24ABB330A31 CNPV*3617A** 58MV(B,C)060---14 27600 11.70 14.00 3163013...
- Page 17 COMBINATION RATINGS CONTINUED ARI Ref. No. Model Number Indoor Model Furnace Model Capacity SEER 3012455 24ABB336A31 CAP**4221A** 58MV(B,C)080---14 33600 11.50 13.50 3012456 24ABB336A31 CAP**4221A** 58MV(B,C)080---20 33600 11.70 14.00 3012457 24ABB336A31 CAP**4221A** 58MV(B,C)100---20 33800 11.70 14.00 3012426 24ABB336A31 CAP**4221A** 58PH*090---16 34000 12.00 14.00 3012427...
- Page 18 COMBINATION RATINGS CONTINUED ARI Ref. No. Model Number Indoor Model Furnace Model Capacity SEER 3012476 24ABB336A31 CNPV*4221A** 58CV(A,X)110---20 33800 11.70 14.00 3099427 24ABB336A31 CNPV*4221A** 58MEB100---20 33800 11.70 14.00 3012473 24ABB336A31 CNPV*4221A** 58MV(B,C)080---14 33600 11.50 13.50 3012474 24ABB336A31 CNPV*4221A** 58MV(B,C)080---20 33600 11.70 14.00 3012475...
- Page 19 COMBINATION RATINGS CONTINUED ARI Ref. No. Model Number Indoor Model Furnace Model Capacity SEER 3099343 24ABB342A30 CAP**4817A** 58MEB080---12 41000 11.70 14.00 3099344 24ABB342A30 CAP**4817A** 58MEB080---16 41000 11.70 14.00 3038510 24ABB342A30 CAP**4817A** 58MV(B,C)060---14 40000 11.50 14.00 3038479 24ABB342A30 CAP**4817A** 58PH*070---16 39500 11.20 13.50 3038509...
- Page 20 COMBINATION RATINGS CONTINUED ARI Ref. No. Model Number Indoor Model Furnace Model Capacity SEER 3038534 24ABB342A30 CSPH*4212A**+TDR 41000 11.00 13.20 3038539 24ABB342A30 CSPH*4812A** 58CV(A,X)070---12 41000 11.20 13.50 3099375 24ABB342A30 CSPH*4812A** 58MEB040---12 41000 11.70 14.00 3099376 24ABB342A30 CSPH*4812A** 58MEB060---12 41000 11.70 14.00 3099377 24ABB342A30...
- Page 21 COMBINATION RATINGS CONTINUED ARI Ref. No. Model Number Indoor Model Furnace Model Capacity SEER 3022760 24ABB348A31 CNPH*6024A**+TDR 46500 11.20 13.20 3022736 24ABB348A31 CNPV*4821A** 58CV(A,X)110---20 45000 11.70 13.50 3099393 24ABB348A31 CNPV*4821A** 58MEB100---20 45000 11.70 14.00 3022734 24ABB348A31 CNPV*4821A** 58MV(B,C)080---20 44500 11.50 13.50 3022735 24ABB348A31...
- Page 22 1. In most cases, only 1 method should be used to achieve TDR function. Using more than 1 method in a system may cause degradation in performance. Use either the accessory Time---Delay Relay KAATD0101TDR or a furnace equipped with TDR. Most Carrier furnaces are equipped with TDR.
- Page 35 CONDENSER ONLY RATINGS* CONDENSER ENTERING AIR TEMPERATURES ° F (° C) ° F (° C) 55 (12.78) 65 (18.33) 75 (23.89) 85 (29.44) 95 (35.0) 105 (40.56) 115 (46.11) 125 (51.67) 24ABB318A31 16.10 15.20 14.20 13.30 12.30 11.30 10.20 9.10 70.80 80.40 89.90...
- Page 36 CONDENSER ONLY RATINGS* CONTINUED CONDENSER ENTERING AIR TEMPERATURES ° F (° C) ° F (° C) 55 (12.78) 65 (18.33) 75 (23.89) 85 (29.44) 95 (35.0) 105 (40.56) 115 (46.11) 125 (51.67) 24ABB342A30 38.00 36.00 33.90 31.90 29.70 27.60 25.30 22.90 73.20 82.30...
- Page 37 GUIDE SPECIFICATIONS AIR- -COOLED, SPLIT- -SYSTEM AIR CONDITIONER 24ABB3 GENERAL 1- -1/2 TO 5 NOMINAL TONS Fans System Description — Condenser fan will be direct- -drive propeller type, Outdoor- -mounted, air- -cooled, split- -system air conditioner unit discharging air upward.
- Page 38 Catalog No: 24ABB3---2PD Copyright 2008 Carrier Corp. S 7310 W. Morris St. S Indianapolis, IN 46231 Printed in U.S.A. Edition Date: 09/08 Replaces: 24ABB3--- 1PD Manufacturer reserves the right to change, at any time, specifications and designs without notice and without obligations.
