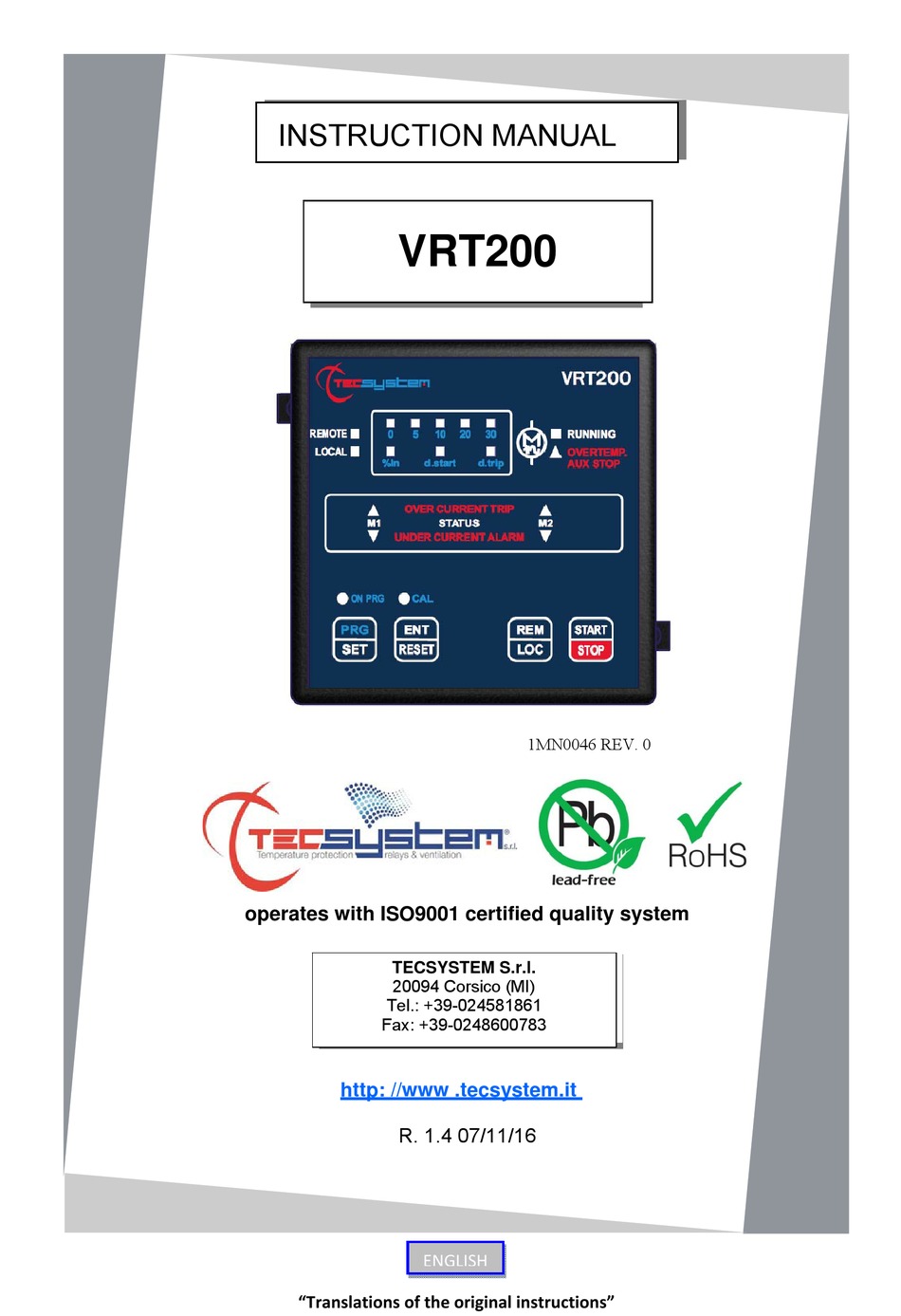

- Page 1 INSTRUCTION MANUAL VRT200 1MN0046 REV. 0 operates with ISO9001 certified quality system TECSYSTEM S.r.l. 20094 Corsico (MI) Tel.: +39-024581861 Fax: +39-0248600783 http: //www .tecsystem.it R. 1.4 07/11/16 ENGLISH “Translations of the original instructions” ...
-
Page 2: Table Of Contents
INTRODUCTION First of all we wish to thank you for choosing to use a TECSYSTEM product and recommend you read this instruction manual carefully: You will understand the use of the equipment and therefore be able to take advantage of all its functions. -
Page 3: Safety Requirements
Failure to comply with these instructions can cause damages, fires or electric shock, and possible serious injuries! POWER SUPPLY The VRT200 series can be supplied by 230Vac 50/60Hz . Before using it, make sure the power cable is not damaged, kinked or pinched. Do not tamper with the power cable. Never disconnect the unit by pulling the cable, avoid touching the pins. -
Page 4: Accessories
Code: 2PL0369 - Screws tightening torque 0.5Nm 1MN0030 REV. 2 ATTENTION: always install the device using the terminals included in the pack. The use of terminals other than those included with the control unit might cause malfunctions. 4 VRT200 ... -
Page 5: Technical Specifications
VRT200 TECHNICAL SPECIFICATIONS POWER SUPPLY Supply rated values 230 Vac ±10% (10 A max) 50/60 Hz INPUTS 1 contact enabling remote control (ENABLE) ● 2 inputs for temperature control with PTC or AUX contact ●... - Page 6 Front polycarbonate IP65 ● DISPLAY AND DATA MANAGEMENT LED’s alarm: undercurrent, overcurrent, (overtemp-aux stop only on VRT200). ● LED’s running: remote, local ● LED’s prg setting, cal. ● ...
-

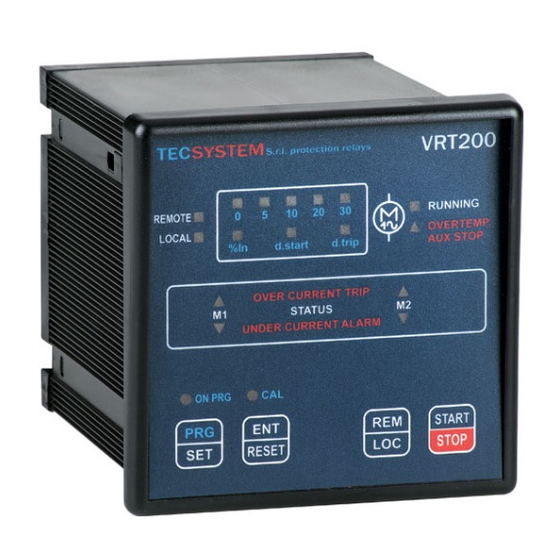

Page 7: Front Panel
Active (running) ventilation LED (green) Programming phase ON PRG LED (yellow) Overtemperature stop LED (red) (only M1 motor in under-current LED (yellow) VRT200) M2 motor in over-current LED (red) M1 motor in over-current LED (red) M2 motor in under-current LED (yellow) - Page 8 Drill a 92 x 92 mm hole in the panel sheet. 1MN0063 REV. 0 Control unit Panel hole dimensions (+0.8mm tolerance) Identification label Fix the unit securely with the blocks supplied. 1MN0008 REV. 0 Control unit Fixing screw Fixing block Crosshead screwdriver #1X100mm 8 VRT200 ...
-
Page 9: Electrical Connections
ELECTRICAL CONNECTIONS VRT200 1MN0046 REV. 0 AUX 1 - AUX 2 (COM) inputs fan Control unit and fan line supply 230V±10% temperature control PTC sensor connection 50-60 Hz 10 Amp.max Remote enabling contact ENABLE FAULT relay (fault signal) ... -
Page 10: Power Supply
POWER SUPPLY The VRT200 control unit must be supplied with 230Vac ±10% 50/60Hz, check the connection diagrams on pages 9 and 10. A variation in the network voltage of over 10% might cause alarms because of the current variation in the load. -
Page 12: Programming
ATTENTION: We recommend you check the control unit before starting the device. The default parameters set by TECSYSTEM might not suit your requirements. Programming the device is the end user’s responsibility: the set alarm thresholds and the enabled functions described in this manual must be checked (by a specialized technician) referring them to the application and system characteristics on which the control unit is installed. -
Page 13: Warranty Conditions
Returning used electrical devices: contact TECSYSTEM or the TECSYSTEM agent for information on the correct disposal of the devices. TECSYSTEM is aware of the impact its products have on the environment and asks its customers active support in the correct and environmentally-friendly disposal of its devices. -
Page 14: Useful Contacts
USEFUL CONTACTS TECHNICAL INFORMATION : ufficiotecnico@tecsystem.it SALES INFORMATION : info@tecsystem.it 13 VRT200...
