- Page 1 TECSYSTEM S.r.l ® INSTRUCTION MANUAL MULTIMODULE TECSYSTEM S.r.l. 20094 Corsico (MI) Tel.: +39-024581861 Fax: +39-0248600783 http://www.tecsystem.it R. 1.2 07/09/12 MULTIMODULE 133...

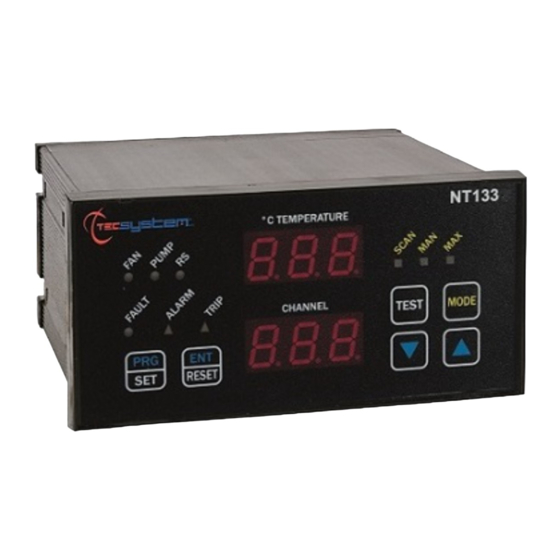

- Page 2 TECSYSTEM S.r.l ® INTRODUCTION TO MULTIMODULE 133 MODULE The MULTIMODULE expansion module interacts with NT133 monitoring unit via serial trans- mission by 4 wires and allows to: ● transfer the data on a RS485 network with ModBus RTU protocol •...
- Page 3 1 yellow led Rx NT-x: to show possible • Dielectric strength 2500 Vca for 1 minute communication problems between between relay contacts and supply, relay MULTIMODULE 133 and NT133 contacts and RS485, relay contacts and • 1 red led Tx NT-x: to show programming 4.20mA outputs.
- Page 4 4) CONNECTION WITH NT133 MONITORING UNIT To connect MULTIMODULE 133 module with NT133 monitoring units it is necessary to use a 4-lead cable with section 0.5mm The serial cable must be placed as far as possible from power lines and the shielding must be grounded on just one side.
-
Page 5: Data Frame
In case NT133 is not properly connected with MULTIMODULE 133, led RX NT-x stays fixed on. If a bad data transfer between NT133 and MULTIMODULE 133 should occur, the same led blinks. -
Page 6: Function Code
MULTIMODULE 133 module supports the following function codes: - holding register reading (10) - register multiple writing (10) If MULTIMODULE 133 receives a message and a CRC error is detected, no answer is given. 12) CODE 3 (10) Request: Slave address, code 3... - Page 7 TECSYSTEM S.r.l ® 14) NOTES FOR REMOTE PROGRAMMING Also in the remote programming phase via ModBus you must take into consideration that the Alarm thresholds must be lower than the Trip thresholds, and that Fan-ON-thresholds must be higher than the Fan-OFF-thresholds as well as the Pump-ON thresholds must be higher than Pump-OFF thresholds.
- Page 8 TECSYSTEM S.r.l ® Address Address Primary Data HI Data LO Note tables (10) (10) Holding Oil Status NOTE 1 register Winding Holding NOTE 2 Status register Not used Not used Not used Not used Not used Not used Oil Alarm...
- Page 9 TECSYSTEM S.r.l ® Address Address Primary Data HI Data LO Note tables (10) (10) Fan 1 On Holding set point register Fan 1 Off Holding set point register Offset —> 50 Fan 2 On Holding Set point register Fan 2 Off...
- Page 10 TECSYSTEM S.r.l ® Address Address Primary Data HI Data LO Note tables (10) (10) Not used Not used Not used Not used Not used Not used Not used Not used Holding T.max oil Offset —> 50 register T.max Holding Offset —> 50...
- Page 11 TECSYSTEM S.r.l ® Address Address Primary Data HI Data LO Note tables (10) (10) Holding Oil story NOTE 3 register Holding Winding story NOTE 4 register Not used Not used Not used Not used Not used Not used Holding Flag gen...
- Page 12 TECSYSTEM S.r.l ® Address Address Primary Data HI Data LO Note tables (10) (10) Not used Not used Not used Not used Not used Not used Not used Not used Not used Not used Not used MULTIMODULE 133...
-
Page 13: Crc Calculation
TECSYSTEM S.r.l ® 18) CRC CALCULATION This protocol includes 2 CRC-16 bytes for each transmission. The characteristic polyno- mial (11000000000000101B) is used for the calculation and the result is “hung” at the end of the package. The polynomial is used in the reverse order with the most significant bit suppressed because useless for the calculation. -
Page 14: Ma Output Connection
TECSYSTEM S.r.l ® 22) 4.20 mA OUTPUT CONNECTION MULTIMODULE 133 module is equipped with two 4.20 mA outputs With each 4.20 mA output it is possible to connect a read-out or acquisition device. The admitted load impedance for each output goes from 0 to 500 ohms. - Page 15 TECSYSTEM S.r.l ® RELAYS OUTPUT OUTPUTS 4.20 mA OUTPUT RS485 COMM. LED’S POWER SUPPLY MULTIMODULE 133...
- Page 16 TECSYSTEM S.r.l ® NT133 MODBUS PARAMETERS MODBUS ADDRESS RELAYS OUTPUT MULTIMODULE 133...
-
Page 17: Electrical Connections
TECSYSTEM S.r.l ® ELECTRICAL CONNECTIONS SERIAL LINE GND TX GND RX GND TX GND RX NT133 MULTIMODULE 133 MODBUS SETTING DIP SWITCH Baud Rate Parity Dip-3 Dip-4 Term. 120Ω Dip-6 Dip-1 Dip-2 (bit/sec) None 0 / 1 Disable 2400 Even... - Page 18 TECSYSTEM S.r.l ® ADDRESS SETTING DIP SWITCH SW1: ADDRESS BIT 1: Bit 7 5: Bit 3 2: Bit 6 6: Bit 2 3: Bit 5 7: Bit 1 1 2 3 4 5 6 7 8 4: Bit 4 8: Bit 0...
- Page 19 TECSYSTEM S.r.l ® Address N.B.: Loading 00000000 the module is excluded from the line. MULTIMODULE 133...
- Page 20 23) RULES FOR WARRANTY The Product purchased is covered by manufacturer's warranty or the seller's terms and conditions set forth in the "General Conditions of Sale Tecsystem srl", available at www.tecsystem.it and / or purchase agreement. The warranty is considered valid only when the product will be damaged by causes attributable to TECSYSTEM srl, such as manufacturing or components defects.
