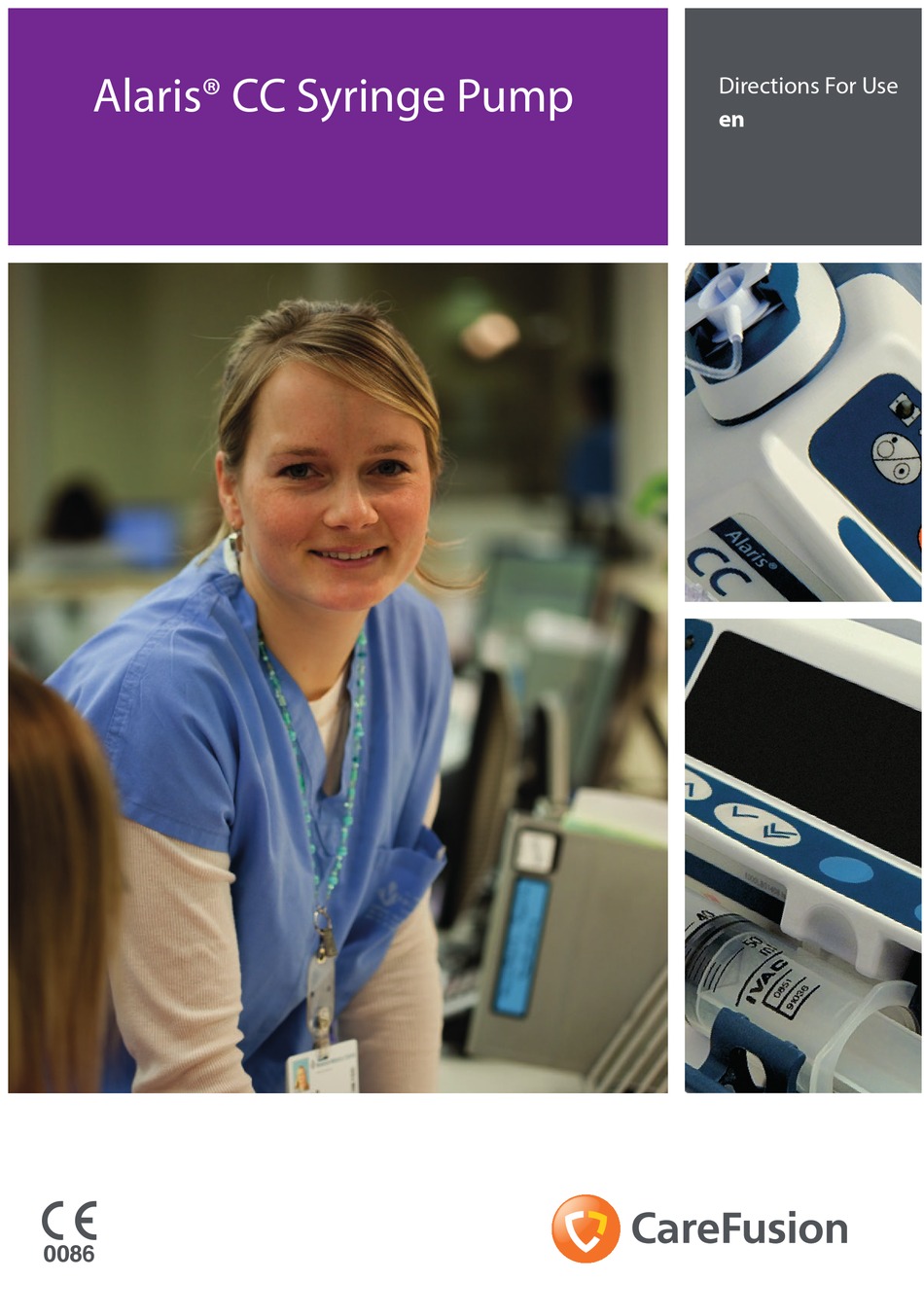

Alaris® CC Syringe Pump
Directions For Use
en
s

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Alaris CC and is the answer not in the manual?

Questions and answers

Amelia Klueter NNP-BC
March 13, 2025

Hi do you know what the margin of error is for the Alaris 1880 syringe pump when rate is less than 1ml/hr?

0
1 comments:
Mr. Anderson
May 14, 2025

The infusion volume accuracy may be compromised at rates below 1.0 ml/h, so the margin of error is not specified for rates less than 1 ml/h.

This answer is automatically generated

0

Subscribe to Our Youtube Channel

Related Manuals for CareFusion Alaris CC

Summary of Contents for CareFusion Alaris CC

  • Page 1 Alaris® CC Syringe Pump Directions For Use...

  • Page 2: Table Of Contents

    Contents Page Introduction ....................2 About This Manual .

  • Page 3: Introduction

    The Alaris® CC Syringe Pump should only be operated by a clinician competent in use of automated syringe pumps and post-placement management of intravenous catheters. CareFusion cannot guarantee the continued system accuracy with other manufacturer’s syringes as identified in the ‘Compatible Syringes’ table. Manufacturers may change syringe specification significant to system accuracy without prior notification.

  • Page 4: Features Of The Alaris® Cc Syringe Pump

    Features of the Alaris® CC Syringe Pump ON/OFF Pressure Release lever for High visibility Display transducer Rotating Cam Alarm Indicator PURGE/BOLUS MUTE PRESSURE OPTION Finger Grips HOLD Shelf for chevron Syringe Clamp Positive Plunger Extension hook keys and softkeys Grippers Rating Plate (see Symbol Definitions for Pressure an explanation of the symbols used)

  • Page 5: Controls And Indicators

    Controls and Indicators Controls: Symbol Description ON/OFF button - Press once to switch the pump ON. Press and hold down for approximately 3 seconds to switch the pump OFF. RUN button - Press to start the infusion. The green LED will flash during infusion. HOLD button - Press to put the infusion on hold.

  • Page 6: Symbol Definitions

    Symbol Definitions Labelling Symbols: Symbol Description Attention (Consult accompanying documents) Potential Equalisation (PE) Connector RS232/Nurse call Connector (Optional) Defibrillation-proof type CF applied part (Degree of protection against electrical shock) Protected against vertically falling drops of water Alternating Current Device complies with the requirements of Council Directive 93/42/EEC as amended by 2007/47/EC.

  • Page 7: Main Display Features

    Main Display Features Syringe type fitted / Pressure Pump Drug name Information Status Volume Infused Infusion Volume VTBI Option Rate Infused Option Screen Icons: Symbol Description TIME REMAINING DISPLAY icon - Indicates time before syringe will require replacing. BATTERY icon - Indicates battery charge level to highlight when the battery will require recharging. 1000DF00329 Issue 4 6/36...

  • Page 8: Operating Precautions

    However, it may be used in domestic establishments under the supervision of Medical professionals with additional necessary appropriate measures. (Consult Technical Service Manual, appropriately trained technical personnel or CareFusion for further information). • This pump is not intended to be used in the presence of a flammable anaesthetic mixture with air or oxygen or nitrous oxide.
  • Page 9 MRI compatible pump as such. If use of the pump within an MRI environment is unavoidable, then CareFusion highly recommends securing the pump at a safe distance from the magnetic field outside the identified ‘Controlled Access Area’ in order to evade any magnetic interference to the pump; or MRI image distortion.

  • Page 10: Getting Started

    Getting Started Initial Set-up Before operating the pump read this Directions For Use manual carefully. 1. Check that the pump is complete, undamaged and that the voltage rating specified on the label is compatible with your AC power supply. 2. Items supplied are: Alaris®...
  • Page 11 Getting Started (continued) Do not mount the pump with the AC power inlet or the syringe pointing upwards. This could affect the electrical safety in the event of a fluid spill or lead to the infusion of air which may be in the syringe. Pole Clamp Installation The pole clamp is fitted to the rear of the pump and will provide secure fixing to vertical I.V.
  • Page 12 Getting Started (continued) Loading and Confirming a Syringe Warning: To securely load and confirm a syringe carefully follow the steps below. An incorrect loading of a syringe may result in misidentification of the syringe type and size. If then confirmed, this may lead to significant inaccuracy of the infusion rate and may also affect pump performance.
  • Page 13 Note: If the PURGE SYRINGE option has been enabled then the prompt to purge screen is displayed and the extension set can be purged as required, however ensure that the extension set is not connected to the patient during this process. CareFusion recommends to limit the number of configured syringe types and sizes available for selection on the pump.
  • Page 14 Getting Started (Continued) Starting the Pump 1. Connect the pump to an AC power supply using the AC power cable. Press the button. The pump will run a short self-test. Ensure that two beeps are activated during this test. Check the display test pattern and ensure that no rows are missing. Check that the displayed time and date are correct.

  • Page 15: Basic Features

    Basic Features Purge button allows the delivery of a limited volume of fluid in order to purge the extension set prior to being connected to a patient or after changing a syringe. 1. Press the button when the pump is not infusing. Ensure that the extension set is not connected to the patient. 2.
  • Page 16 Basic Features (Continued) Auto Set Pressure (If enabled) If the Auto Set Pressure Option is enabled then the pump AUTOMATICALLY adjusts the pressure occlusion limit. After 15 minutes of infusion the pump AUTOMATICALLY adjusts the occlusion pressure limit to X mmHg (the AUTO OFFSET value, 15- 100mmHg), above the average infusion pressure since the start of the infusion.
  • Page 17 Basic Features (Continued) Drugs and Dosing The following options enable the pump to be set-up for use with a specific drug and/or dosing protocol. Drugs are pre-configured in a drug library (see Configured Options) to enable rapid selection of the drug name, dosing units and default rate. For increased security using a configured drug, maximum and minimum safety limits are programmable for concentration and dose rates.
  • Page 18 Basic Features (Continued) Rate Titration If Rate Titration is enabled the rate can be adjusted while infusing: 1. Select the new rate using the keys. The message < START TO CONFIRM > will flash on screen and pump continues to infuse at the original rate. 2.

  • Page 19: Alarms And Warnings

    Alarms and Warnings Alarms are indicated by a combination of an audible alarm, flashing alarm indicator and a descriptive message in the display. 1. First press the button to silence the alarm for a maximum of 2 minutes*, then check the display for an alarm message. Press CANCEL to cancel the alarm message.

  • Page 20: Configured Options

    Configured Options This menu comprises a list of options which are configurable by the user. 1. Turn the pump OFF. button turn the pump ON. 2. Whilst holding down the 3. The main display will show 000. Enter the access code for Configured Options using the keys, pressing NEXT to move through the digits.
  • Page 21 Alaris® CC Syringe Pump Configured Options Record General Options Enter the pump-specific information for your records on a copy of this page. Option Default Range Setting 1.9.x and Software Version 1.5.10 and 2.0.0 2.3.x and above NURSE CALL FITTED Disabled Disabled Enabled/Disabled NURSE CALL INVERT...
  • Page 22 Configured Options (Continued) Drug library 1. Select the DRUG LIBRARY option from the Configured Options menu and press the OK softkey. 2. To enter a new drug in the library press the NEW softkey. 3. To enter the name of the new drug use the keys to scroll through the alphabet.
  • Page 23 Configured Options (Continued) Clock Set 1. Select CLOCK SET from the Configured Options menu using the keys and press the OK softkey. keys to adjust the date displayed, pressing the NEXT softkey to access the next field. 2. Use the 3.
  • Page 24 Drug Protocol Record 1000DF00329 Issue 4 23/36...

  • Page 25: Specifications

    Specifications Infusion Specifications - Electrical Classification - Class I product. Continuous Mode Operation, Transportable Maximum infusion rate can be set as part of the configuration. 0.1ml/h - 150ml/h 5ml syringes System Accuracy - 0.1ml/h - 300ml/h 10ml syringes Volumetric Mean +/- 2% (nominal). 0.1ml/h - 600ml/h 20ml syringes Derating -...

  • Page 26: Compatible Syringes

    Compatible Syringes The pump is calibrated and labelled for use with single-use disposable Luer lock syringes. Only use the size and type of syringe specified on the pump display. The full list of permitted syringe models is dependent on the software version of the pump. 10ml 20ml 30ml...

  • Page 27: Compatible Extension Sets

    Extension set, with pressure sensing disc, Luer lock connectors. Kink resistant DEHP free PVC yellow striped tubing. Bore 0.9mm. Length 200cm. Priming volume 1.5ml For availability please contact your local CareFusion representative because new sets are continuously being developed for our customers.
  • Page 28 The pump uses standard, single-use, disposable extension sets and syringes with Luer lock connectors. The user is responsible for verifying the suitability of a product used, if it is not recommended by CareFusion. For availability please contact your local CareFusion representative because new sets are continuously being developed for our customers.
  • Page 29 The pump uses standard, single-use, disposable extension sets and syringes with Luer lock connectors. The user is responsible for verifying the suitability of a product used, if it is not recommended by CareFusion. For availability please contact your local CareFusion representative because new sets are continuously being developed for our customers.

  • Page 30: Maintenance

    Alaris® Syringe Pump, and in conjunction with Alaris® Syringe Pump software, controls battery use, charge and temperature. Any use of battery packs that are not manufactured by CareFusion in the Alaris® Syringe Pump is at your sole risk, and CareFusion does not provide any warranty for or endorsement on any battery packs that are not manufactured by CareFusion.
  • Page 31 If you wish to discard electrical and electronic equipment, please contact your CareFusion affiliate office or distributor for further information.

  • Page 32: Occlusion Pressure Limits

    Occlusion Pressure Limits Time to alarm following occlusion is achieved in less than 30 minutes at rates of 1 ml/h and higher by the appropriate selection of occlusion levels. Use of the dedicated pressure set is recommended. Its use permits the occlusion alarm pressure (mmHg) to be set accurately, with a small operating margin between the alarm and normal infusion pressures.

  • Page 33: Irda, Rs232 And Nurse Call Specification

    IrDA, RS232 and Nurse call Specification IrDA / RS232 / Nurse call Feature RS232 / Nurse call Connection Data The RS232 / Nurse call feature is an optional feature on Alaris® Nurse call Specification - Syringe Pumps. It allows the pump to be monitored remotely Connector D Type - 9 Pin and/or controlled via a suitable central monitoring or computer...

  • Page 34: Trumpet Curves And Start-Up Curves

    Trumpet Curves and Start-up Curves In this pump, as with all infusion systems, the action of the pumping mechanism and variations in individual syringes cause short-term fluctuations in rate accuracy. The following curves show typical performance of the system in two ways: 1) the delay in onset of fluid flow when infusion commences (start-up curves), and 2) the accuracy of fluid delivery over various time periods is measured (trumpet curves).

  • Page 35: Spare Parts

    A comprehensive list of spare parts for this pump is included within the Technical Service Manual. The Technical Service Manual (1000SM00001) is now available in electronic format on the World Wide Web at :- www.carefusion.co.uk/alaris-technical/ A username and password are required to access our manuals. Please contact local customer services representative to obtain login details.

  • Page 36: Service Contacts

    Service Contacts For service contact your local Affiliate Office or Distributor. CareFusion, CareFusion, CareFusion, CareFusion, PO Box 5527, Pascalstr. 2, Döbrentei tér 1, Avda. São Miguel, 296 Atelier 14 Dubai, United Arab Emirates. 52499 Baesweiler, H-1013 Budapest, 2775-751 Carcavelos, Lisboa Deutschland.
  • Page 37 Page Intentionally Left Blank 1000DF00329 Issue 4 36/36...
  • Page 38 Alaris, Guardrails, IVAC and Asena are registered trademarks of CareFusion Corporation or one of its affiliates. All rights reserved. All other trademarks are property of their respective owners. © 2000-2015 CareFusion Corporation or one of its affiliates. All rights reserved.
