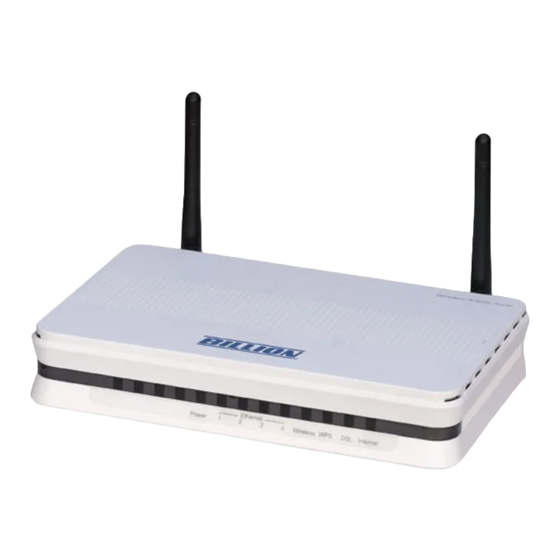

BiPAC 5200N RC
Wireless-N
ADSL2+ Firewall Router

User Manual

Version Released:
2.12.17.0(QRE2.D3)3.12.17.0
Last Revised Date: 12-24-2010

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BiPAC 5200N RC and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Billion BiPAC 5200N RC

Summary of Contents for Billion BiPAC 5200N RC

  • Page 1: User Manual

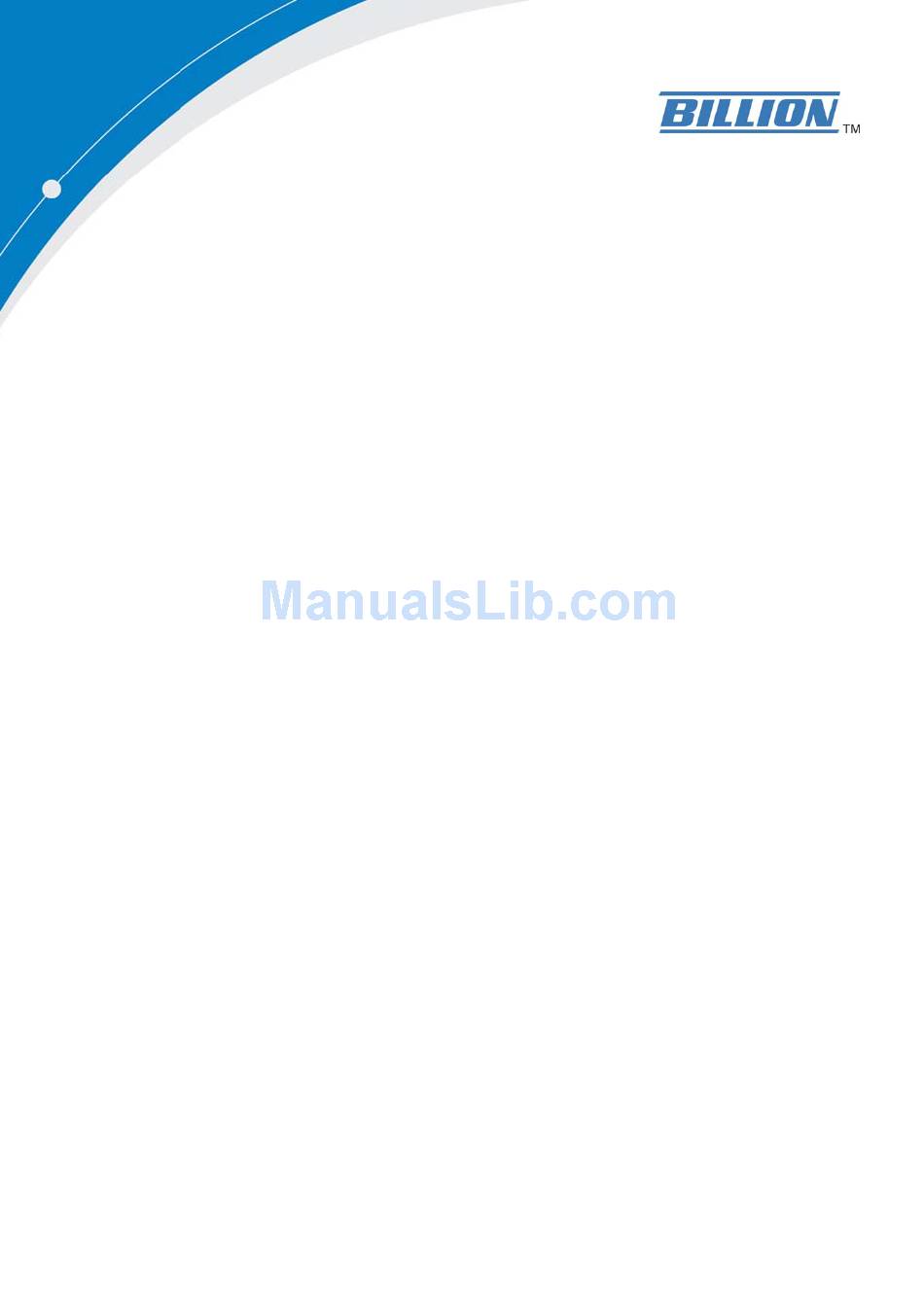

    BiPAC 5200N RC Wireless-N ADSL2+ Firewall Router User Manual Version Released: 2.12.17.0(QRE2.D3)3.12.17.0 Last Revised Date: 12-24-2010...

  • Page 2: Table Of Contents

    1.2 Features of the BiPAC 5200N RC Series ..............3 1.3 Applications for the BiPAC 5200N RC Series .............6 Chapter 2 ..........................7 2.1 Important note for using the BiPAC 5200N RC Series ..........7 2.2 Package Contents ......................8 2.3 The Front LEDs ......................9 2.4 The Rear Ports ......................10...
  • Page 3 4.3.3 NAT........................54 4.3.4 QoS ........................61 4.3.5 ADSL .........................65 4.4 Access Management ....................66 4.4.1 ACL........................66 4.4.2 Filter........................67 4.4.3 SNMP ........................71 4.4.4 UPnP .........................72 4.4.5 DDNS ........................73 4.5 Maintenance......................74 4.5.1 Administrator......................74 4.5.2 Time Zone......................75 4.5.3 Firmware......................76 4.5.4 SysRestart ......................77 4.5.5 Diagnostics ......................78 4.6 Status ........................79 4.6.1 Device Info......................79 4.6.2 System Log......................81...

  • Page 4: Chapter 1

    Introduction the BiPAC 5200N RC Series 1.1 Introducing the BiPAC 5200N RC Series Welcome to the Billion BiPAC 5200N RC Series ADSL2+ Modem/Router. Your Billion router is an “all-in-one” unit, combining an ADSL modem, ADSL router and Ethernet network switch, providing everything you need to get the machines on your network connected to the Internet over your ADSL broadband connection.
  • Page 5 the services that outside users can access. For example, to ensure that games and other Internet applications will run properly, user can open some specific ports for outside users to access internal services in network. Integrated DHCP (Dynamic Host Control Protocol) services, client and server, allow multiple users to get their IP addresses automatically on boot up from the product.

  • Page 6: Features Of The Bipac 5200N Rc Series

    1.2 Features of the BiPAC 5200N RC Series ADSL Multi-Mode Standard Support downstream rates of up to 24 Mbps and upstream rates of up to 1 Mbps. It also supports rate management that allows ADSL subscribers to select an Internet access speed suiting their needs and budgets.
  • Page 7 Network Address Translation (NAT) Allows multi-users to access outside resources such as the Internet simultaneously with one IP address/one Internet access account. Many application layer gateway (ALG) are supported such as web browser, ICQ, FTP, Telnet, E-mail, News, Net2phone, Ping, NetMeeting, IP phone and others.
  • Page 8 Dynamic Host Configuration Protocol (DHCP) client and server In the WAN site, the DHCP client can get an IP address from the Internet Service Provider (ISP) automatically. In the LAN site, the DHCP server can allocate a range of client IP addresses and distribute them including IP address, subnet mask as well as DNS IP address to local computers.

  • Page 9: Applications For The Bipac 5200N Rc Series

    1.3 Applications for the BiPAC 5200N RC Series BiPAC 5200N RC...

  • Page 10: Chapter 2

    Installing the BiPAC 5200N RC Series 2.1 Important note for using the BiPAC 5200N RC Series Do not use the BiPAC 5200N RC Series in high humidity or high temperatures. Do not use the same power source for the BiPAC 5200N RC Series as other equipment.

  • Page 11: Package Contents

    2.2 Package Contents BiPAC 5200N RC ADSL2+ Firewall Router CD containing user manual RJ-11 ADSL/telephone cable Ethernet (CAT-5 LAN) cable Power adapter Quick Start Guide Splitter/ Micro-filter (Optional)

  • Page 12: The Front Leds

    2.3 The Front LEDs BiPAC 5200N RC Series Meaning Lit red when WAN port fails to get IP address. Internet Lit green when WAN port gets IP address successfully. Lit when successfully connected to an ADSL DSLAM (“linesync”). Flash green when WPS configuration is in progress.

  • Page 13: The Rear Ports

    2.4 The Rear Ports BiPAC 5200N RC Port Meaning Power Connect the supplied power adapter to this jack. After the device is powered on, press it to reset the device or restore to factory default settings. RESET 0-3 seconds: reset the device 6 seconds above: restore to factory default settings (this is used when you can not login to the router, e.g.

  • Page 14: Antenna Position Placement

    LAN Link and ADSL line LEDs are lit. If they are not, verify that you are using the proper cables. Ensure that all other devices connected to the same telephone line as your Billion router (e.g. telephones, fax machines, analogue modems) have a line filter connected between them...

  • Page 15: Chapter 3

    If not, please refer to your Windows-related or other operating system manuals. Any TCP/IP capable workstation can be used to communicate with or through the BiPAC 5200N RC Series. To configure other types of workstations, please consult the manufacturer’s documentation.

  • Page 16: Configuring Pc In Windows 7

    3.1.1 Configuring PC in windows 7 1. Go to Start. Click on Control Panel. Then click on Network and Internet. 2. When the Network and Sharing Center window pops up, select and click on Change adapter settings on the left window panel.
  • Page 17 4. Select Internet Protocol Version 4 (TCP/IPv4) then click Properties. 5. In the TCP/IPv4 properties window, select the Obtain an IP address automatically and Obtain DNS Server address automatically radio buttons. Then click OK to exit the setting. 6. Click OK again in the Local Area Connection Properties window to apply the new configuration.

  • Page 18: Configuring Pc In Windows Xp

    3.1.2 Configuring PC in Windows XP 1. Go to Start / Control Panel (in Classic View). In the Control Panel, double-click on Network Connections 2. Double-click Local Area Connection. 3. In the Local Area Connection Status window, click Properties. 4. Select Internet Protocol (TCP/IP) and click Properties.

  • Page 19: Configuring Pc In Windows 2000

    3.1.3 Configuring PC in Windows 2000 1. Go to Start / Settings / Control Panel. In the Control Panel, double-click on Network and Dial-up Connections. 2. Double-click Local Area Connection. 3. In the Local Area Connection Status window click Properties. 4.

  • Page 20: Configuring Pc In Windows 98/Me

    3.1.4 Configuring PC in Windows 98/Me 1. Go to Start / Settings / Control Panel. In the Control Panel, double-click on Network and choose the Configuration tab. 2. Select TCP/IP ->NE2000 Compatible, or the name of your Network Interface Card (NIC) in your PC. 3.

  • Page 21: Configuring Pc In Windows Nt4.0

    3.1.5 Configuring PC in Windows NT4.0 1. Go to Start / Settings / Control Panel. In the Control Panel, double-click on Network and choose the Protocols tab. 2. Select TCP/IP Protocol and click Properties. 3. Select the Obtain an IP address from a DHCP server radio button and click OK.

  • Page 22: Step-By-Step Installation

    3.2 Step-by-Step Installation Insert the CD-ROM into CD-ROM drive Execute Windows Utility The Welcome screen will appear, click Next 4. The Hardware Installation screen will appear. Four links are shown on the screen. Click them one by one and follow the guidelines to complete hardware installation.
  • Page 23 4.3 ADSL Line connection 4.4 Filter connection 5. When finished Hardware Installation, click “Next” to proceed to next step, Network Card Selection. 6. Diagnostic screen. (If connection fails, the screen will show “FAIL”, please check your router is connected correctly.) 7.
  • Page 24 9. Please enter “Username” and “Password” as supplied by your ISP (Internet Service Provider) and click next. 10. Please configure the Wireless LAN setting and click next. (If your router does not support wireless, please ignore this screen and it will not appear.) 11.
  • Page 25 13. The IE browser will be opened automatically when you finish installing.

  • Page 26: Factory Default Settings

    3.3 Factory Default Settings Before configuring your router, you need to know the following default settings. Web Interface: Username: admin Password: admin LAN Device IP Settings: IP Address: 192.168.1.254 Subnet Mask: 255.255.255.0 ISP setting in WAN site: PPPoE DHCP server: DHCP server is enabled.

  • Page 27: Lan And Wan Port Addresses

    3.4 LAN and WAN Port Addresses The parameters of LAN and WAN ports are pre-set in the factory. The default values are shown below. LAN Port WAN Port IP address 192.168.1.254 The PPPoE function is enabled to Subnet Mask 255.255.255.0 automatically get the WAN port DHCP server function...

  • Page 28: Configuring With Your Web Browser

    Open your web browser, enter the IP address of your router, which by default is 192.168.1.254, and click “Go”, a user name and password window prompt will appear. The default username and password are “admin” and “admin”. Congratulation! You are now successfully logged in to the BiPAC 5200N RC Series ADSL2+ Router!

  • Page 29: Chapter 4

    Advanced Setup (Firewall, Routing, NAT, QoS, ADSL) Access Management (ACL, Filter, SNMP, UPnP, DDNS) Maintenance (Administration, Time Zone, Firmware, SysRestart, Diagnositics) Status (Device Info, System Log, Statistics) Help Please see the relevant sections of this manual for detailed instructions on how to configure your Billion router.

  • Page 30: Quick Start

    4.1 Quick Start For detailed instructions on configuring WAN settings, see the Interface Setup section of this manual. The Quick Start Wizard is a useful and easy utility to help setup the device to quickly connect to your ISP (Internet Service Provider) with only a few steps required. It will guide you step by step to configure the password, time zone, and WAN settings of your device.
  • Page 31 Step1. Set your new password. Step2: Choose your time zone.
  • Page 32 Step3: Set your Internet connection...
  • Page 33 Step4: Wireless Network configuration.
  • Page 34 Step5: Save settings of this ADSL Router.

  • Page 35: Interface Setup

    4.2 Interface Setup Click this item to access the following sub-items that configure the ADSL2+ router: Internet, LAN, and Wireless. These functions are described in the following sections. 4.2.1 Internet...
  • Page 36 ATM VC ATM settings are used to connect to your ISP. Your ISP provides VPI, VCI settings to you. In this Device, you can totally setup 8 VCs on different encapsulations, if you apply 8 different virtual circuits from your ISP. You need to activate the VC to take effect. For PVCs management, you can use ATM QoS to setup each PVC traffic line's priority.
  • Page 37 Multicast: IGMP (Internet Group Multicast Protocol) is a network-layer protocol used to establish membership in a Multicast group - it is not used to carry user data. The BiPAC 5200N RC Series supports both IGMP version 1 (IGMP-v1) and IGMP-v2. Select None to disable it MAC Spoofing: Select Enable and enter a MAC address that will temporarily change your router’s...

  • Page 38: Lan

    Multicast: IGMP (Internet Group Multicast Protocol) is a network-layer protocol used to establish membership in a Multicast group - it is not used to carry user data. The BiPAC 5200N RC Series supports both IGMP version 1 (IGMP-v1) and IGMP-v2. Select None to disable it.
  • Page 39 remote DHCP server in the Remote DHCP Server field in this case. When DHCP is used, the following items need to be set. Starting IP Address: This field specifies the first of the contiguous addresses in the IP address pool. IP Pool Count: This field specifies the size or count of the IP address pool.

  • Page 40: Wireless

    4.2.3 Wireless This section introduces the wireless LAN and some basic configurations. Wireless LANs can be as simple as two computers with wireless LAN cards communicating in a peer-to-peer network or as complex as a number of computers with wireless LAN cards communicating through access points which bridge network traffic to the wired LAN.
  • Page 41 802.11b and 802.11n, device in your network, select Deactivated. Channel ID: The range of radio frequencies used by IEEE 802.11b/g/n wireless devices is called a channel. Select a channel from the drop-down list box. Beacon interval: The Beacon Interval value indicates the frequency interval of the beacon. Enter a value between 20 and 1000.
  • Page 42 wireless is disabled and to allow all wireless computers to communicate with the access points without any data encryption WPS Settings WPS (WiFi Protected Setup) feature is a standard protocol created by Wi-Fi Alliance. This feature greatly simplifies the steps needed to create a Wi-Fi networks for a residential or an office setting. WPS supports 2 types of configuration methods which are commonly known among consumers: Method &...
  • Page 43 Wi-Fi Network Setup To enable WPS function as follows:...
  • Page 44 PIN Method: Configure AP as Registrar 1. Jot down the client’s Pin (eg. 04640776). 2. Enter the Enrollee PIN code and then press Start WPS.
  • Page 45 3. Launch the wireless client’s WPS utility (eg. Ralink Utility). Set the Config Mode as Enrollee, press the WPS button on the top bar, select the AP (eg. 5200NRC) from the WPS AP List column. Then press the PIN button located on the middle left of the page to run the scan.
  • Page 46 4. The client’s SSID and security setting will now be configured to match the SSID and security setting of the registrar.
  • Page 47 PIN Method: Configure AP as Enrollee 1. Jot down the WPS PIN (eg. 87343540).Press Start WPS.
  • Page 48 2. Launch the wireless client’s WPS utility (eg. Ralink Utility). Set the Config Mode as Registrar. Enter the PIN number in the PIN Code column then choose the correct AP (eg. 5200NRC) from the WPS AP List section before pressing the PIN button to run the scan.
  • Page 49 3. The router’s (AP’s) SSID and security setting will now be configured to match the SSID and security setting of the registrar. 4. Now to make sure that the setup is correctly done, cross check to see if the SSID and the security setting of the registrar setting match with the parameters found on both Wireless Configuration and Wireless Security Configuration page.
  • Page 50 PBC Method: 1. Press the PBC radio button, Then Start WPS. 2. Launch the wireless client’s WPS Utility (eg. Ralink Utility). Set the Config Mode as Enrollee. Then press the WPS button and choose the correct AP (eg. 5200NRC) from the WPS AP List section before pressing the PBC button to run the scan.
  • Page 51 3. When the PBC button is pushed, a wireless communication will be established between your router and the PC. The client’s SSID and security setting will now be configured to match the SSID and security setting of the router.
  • Page 52 Key 1 to Key 4: Enter the key to encrypt wireless data. To allow encrypted data transmission, the WEP Encryption Key values on all wireless stations must be the same as the router. There are four keys for your selection. The input format is in HEX style, 5 and 13 HEX codes are required for 64-bitWEP and 128-bitWEP respectively.
  • Page 53 WPA-PSK & WPA2-PSK Encryption: TKIP (Temporal Key Integrity Protocol) or AES (Advanced Encryption System) utilizes a stronger encryption method and incorporates Message Integrity Code (MIC) to provide protection against hackers. Pre-Shared key: The key for network authentication. The input format should be 8-63 ASKII characters or 64 hexadecimal characters Wireless MAC Address Filter The MAC filter screen allows you to configure the router to give exclusive access to up to 8...

  • Page 54: Advanced Setup

    4.3 Advanced Setup 4.3.1 Firewall Your router includes a firewall for controlling Internet access from your LAN and helping to prevent attacks from hackers. In addition to this, when using NAT (Network Address Translation) the router acts as a “natural” Internet firewall, since all PCs on your LAN use private IP addresses that cannot be directly accessed from the Internet.

  • Page 55: Routing

    4.3.2 Routing If you have another router with a LAN-to-LAN connection, you may create a static routing on the router that is the gateway to Internet. #: Item number Dest IP: IP address of the destination network Mask: The destination mask address. Gateway IP: IP address of the gateway or existing interface that this route uses.
  • Page 56 ADD Route Destination IP Address：This is the destination subnet IP address. IP Subnet Mask：A subnet mask allows IP networks to be subdivided for security and performance purposes. Gateway IP Address：This is the gateway IP address to which packets are to be forwarded.

  • Page 57: Nat

    4.3.3 NAT The NAT (Network Address Translation - NAT, RFC 1631) is the translation of the IP address of a host in a packet. The default setting is Dynamic NAT. It provides dynamic Network Address Translation capability between LAN and multiple WAN connections, and the LAN traffic is routed to appropriate WAN connections based on the destination IP addresses and Route Table.
  • Page 58 The DMZ Host is a local computer exposed to the Internet. When setting a particular internal IP address as the DMZ Host, all incoming packets will be checked by the Firewall and NAT algorithms then passed to the DMZ host, when a packet received does not use a port number used by any other Virtual Server entries.
  • Page 59 Virtual Server In TCP/IP and UDP networks a port is a 16-bit number used to identify which application program (usually a server) incoming connections should be delivered to. Some ports have numbers that are pre-assigned to them by the IANA (the Internet Assigned Numbers Authority), and these are referred to as “well-known ports”.
  • Page 60 Rule Index: Choose the rule number. Application: Choose the predefined rule from Application drop-down menu or enter a custom name. Protocol: Choose the Protocol Type, ALL, TCP or UDP. Start Port Number: Enter a port number as the beginning number of the range which you want to give to devices to access in this field.
  • Page 61 ALG Switch In the context of computer networking, an application-level gateway (also known as ALG or application layer gateway) consists of a security component that augments a firewall or NAT employed in a computer network. It allows customized NAT traversal filters to be plugged into the gateway to support address and port translation for certain application layer "control/data"...
  • Page 62 IP Address Mapping Address Mapping Rule: Shows the PVC where the rule will be applied to Rule Index: Choose the rule number. Rule Type: One-to-one: This is the mode maps one local IP address to one global IP address. Note that port numbers do not change for the One-to-one NAT mapping type. Many-to-One: This is the mode maps multiple local IP addresses to one global IP address.
  • Page 63 local IP addresses, then enter 0.0.0.0 as the Local Start IP address and 255.255.255.255 as the Local End IP address. This field is N/A for One-to-one and Server mapping types. Public Start IP: This is the start range for Inside Public IP Address. Enter 0.0.0.0 here if you have a dynamic IP address from your ISP.

  • Page 64: Qos

    4.3.4 QoS Quality of Service (QoS) helps to prioritize data as it enters your router. By attaching special identification marks or headers to incoming packets, QoS determines which queue the packets enter, based on priority. This is useful when there are certain types of data you want to give higher priority to, such as voice data packets given higher priority than Web data packets.
  • Page 65 Rule You can set 16 different QoS rules. Each QoS rule has its detail setting conditions like: 802.1p application, DSCP, IP, MAC, Protocol, TOS, VLAN etc, you can modify the default value to any new one you wish. Please notice that only when the packet fulfill every detail setting conditions here, then this packet will be remarked as the priority queue of each rule.
  • Page 66 add header for this packet even the detail setting condition has adding 802.1p priority ability. Rule Index: Select 16 different rules, each rule’s detail can be set and saved. Active: Select QoS is activated or deactivated. Application: Select 11 different applications: IGMP, SIP, H.323, MGCP, SNMP, DNS, DHCP, RIP, RSTP, RTCP, RTP.
  • Page 67 IP Precedence Range: Select the IP precedence range. Type of Service: Select 5 different type of service. DSCP Range: Set the DSCP value that you want to filter. 802.1p: Set the remarked new 802.1p priority value on the packet that fulfill every detail setting condition of each rule.

  • Page 68: Adsl

    4.3.5 ADSL ADSL Mode: The default setting is Auto Sync-Up. This mode will automatically detect your ADSL, ADSL2+, ADSL2, G.DMT, G.lite, and T1.413. But in some area, multimode cannot detect the ADSL line code well. If it is the case, please adjust the ADSL line code to G.DMT or T1.413 first.

  • Page 69: Access Management

    ACL Rule Index: This is item number Secure IP Address: The default 0.0.0.0 allows any client to use this service to remotely manage the BiPAC 5200N RC Series. Type an IP address to restrict access to a client with a matching IP address.

  • Page 70: Filter

    4.4.2 Filter You can filter the packages by IP port, MAC and Application. Filter Type Filter Type Selection: There are three types “IP/MAC Filter”, “Application Filter”, and “URL Filter” that user can select for this connection. IP/MAC Filter Set Editing IP/MAC Filter Set Index: This is item number Interface: Select which channel (PVC) to configure.
  • Page 71 IP/MAC Filter Rule Editing IP/MAC Filter Rule Index: This is item number Rule Type: Choose “IP” or “MAC” rules Active: Select Yes from the drop down list box to enable IP filter rule. Source IP Address: The source IP address or range of packets to be monitored. Subnet Mask: It is the source IP addresses based on above source subnet IP Source Port Number: This Port or Port Ranges defines the port allowed to be used by the Remote/WAN to connect to the application.
  • Page 72 Application Filter Application Filter: Select this option to Activated/Deactivated the Application filter. ICQ: Select this option to Allow/Deny ICQ. MSN: Select this option to Allow/Deny MSN. YMSG: Select this option to Allow/Deny Yahoo messenger. Real Audio/Video: Select this option to Allow/Deny Real Audio/Video.
  • Page 73 URL Filter Active: Select Yes to enable URL Filter. URL Index: This is item number. URL: llow you to prevent users on your network from accessing particular websites by their URL.

  • Page 74: Snmp

    Simple Network Management Protocol (SNMP) is a protocol used for exchanging management information between network devices. SNMP is a member of the TCP/IP protocol suite. BiPAC 5200N RC Series supports SNMP agent functionality which allows a manager station to manage and monitor the router through the network.

  • Page 75: Upnp

    RC Series' IP address Auto-configured: Select this check box to allow UPnP-enabled applications to automatically configure the BiPAC 5200N RC Series so that they can communicate through the BiPAC 5200N RC Series, for example by using NAT traversal, UPnP applications automatically reserve a NAT forwarding port in order to communicate with another UPnP enabled device;...

  • Page 76: Ddns

    IP address of the router, which is assigned to you by your ISP. Dynamic DNS: Select this check box to use Dynamic DNS. Service Provider: www.dyndns.org My Host Name: Type the domain name assigned to your BiPAC 5200N RC Series by your Dynamic DNS provider. E-mail Address: Type your e-mail address.

  • Page 77: Maintenance

    4.5 Maintenance 4.5.1 Administrator In factory setting, the default password is admin, and that for user is also password. You can change the default password to ensure that someone cannot adjust your settings without your permission. Every time you change your password, please record the password and keep it at a safe place.

  • Page 78: Time Zone

    4.5.2 Time Zone The router does not have a real time clock on board; instead, it uses the Simple Network Time Protocol (SNTP) to get the current time from an SNTP server outside your network. Choose your local time zone. After a successful connection to the Internet, the router will retrieve the correct local time from the SNTP server you have specified.

  • Page 79: Firmware

    To upgrade the firmware of BiPAC 5200N RC Series, you should download or copy the firmware to your local environment first. Press the “Browse…” button to specify the path of the firmware file.

  • Page 80: Sysrestart

    the Firmware screen. DO NOT power down the router or interrupt the firmware upgrading while it is still in process. Improper operation could damage the router. Warning 4.5.4 SysRestart Click SysRestart with option Current Settings to reboot your router (and restore your last saved configuration).

  • Page 81: Diagnostics

    4.5.5 Diagnostics The Diagnostic Test page shows the test results for the connectivity of the physical layer and protocol layer for both LAN and WAN sides.

  • Page 82: Status

    4.6 Status 4.6.1 Device Info This page displays the current information for the ADSL Router. It will display the Firmware version, LAN, WAN, and MAC address information. Device Information Firmware Version: This is the Firmware version MAC Address: This is the MAC Address IP Address: LAN port IP address.
  • Page 83 Status: “Not connected” or “Connected” Virtual Circuit: There are eight groups of PVC can be defined. VPI: The valid range for the VPI is 0 to 255 VCI: The valid range for the VCI is 1 to 65535 Connection Type: Name of the WAN connection. IP Address: WAN port IP address.

  • Page 84: System Log

    4.6.2 System Log Display system logs accumulated up to the present time. You can trace historical information with this function.

  • Page 85: Statistics

    4.6.3 Statistics Read-only information here includes port status and packet specific statistics. Also provided are "Transmit Statistics" and "Receive Statistics". Ethernet Interface: This field displays the type of port Transmit Frames: This field displays the number of frames transmitted in the last second.
  • Page 86 ADSL Transmit total PDUs: This field displays the number of total PDU transmitted in the last second. Transmit total Error Counts: This field displays the number of total error transmitted in the last second. Receive total PDUs: This field displays the number of total PDU received in the last second.
  • Page 87 second. Tx Errors Count: This field displays the number of errors frames transmitted in the last second. Tx Drops Count: This field displays the number of drops frames transmitted in the last second. Rx Frames Count: This field displays the number of frames received in the last second.

  • Page 88: Help

    4.7 Help This help page provides you some useful messages such as the introductions of some concepts and some guidance. When some problems are encountered, you can turn to this page for help. For example, if you don’t understand what is Quick Start, you can go to this page, click on Quick Start, then you’ll see some messages about it, and understand it quickly.

  • Page 89: Chapter 5

    Chapter 5 Troubleshooting If the ADSL2+ Router is not functioning properly, you can refer first to this chapter for simple troubleshooting before contacting your service provider. This could save your time and effort but if the symptoms persist, then consult your service provider. Problems starting up the router Problem Corrective Action...

  • Page 90: Problems With The Wan Interface

    Problems with the WAN Interface Problem Corrective Action Initialization of the Ensure that the telephone cable is connected properly from PVC connection the ADSL port to the wall jack. The ADSL LED on the front (“linesync”) failed. panel of the router should be on. Check that your VPI, VCI, encapsulation type and type of multiplexing settings are the same as those provided by your ISP.

  • Page 91: Appendix

    Most problems can be solved by referring to the Troubleshooting section in the User’s Manual. If you cannot resolve the problem with the Troubleshooting chapter, please contact the dealer where you purchased this product. Contact Billion WORLDWIDE http://www.billion.com MAC OS is a registered Trademark of Apple Computer, Inc.
