D. Optional Fire Screen
An optional fire screen is available for the Explorer III.
Optional Fire Screen Part SCR-7060 may be used ONLY in
U.S. residential installations. Follow all safety warnings to
prevent any hazards.
WARNING
Fire Risk.
• Do not leave the fire unattended when the door is
unlatched or when using the fire screen.
• Unstable firewood could fall out of the firebox
creating a fire hazard to your home.
E. Reversible Flue Collar and Horizontal Flue
Heat Shield
Tools Required: #2 & #3 Phillips head screwdriver; 1/2"
wrench
The flue collar is reversible for either a top or rear venting
installation. The appliance is shipped with the flue collar in
the top vent position.
Converting Collar For Rear Vent Installation
and
Installing Required Horizontal Flue Shield
1. Remove flue collar (#3 Phillips) and convection chamber
top (#2 Phillips).
2. Remove 1 bolt from each side of the flue transition and
retrieve nuts attached to bolts.
3. Turn flue transition to horizontal position. Inspect rope
gasket to ensure a leak free seal. Re-attach.
4. Remove upper flue cover from convection chamber top.
Rotate 180 degrees and reassemble. Use paint supplied
to cover unpainted areas.
5. Reattach convection chamber top to flue collar to appli-
ance.
November 29, 2016

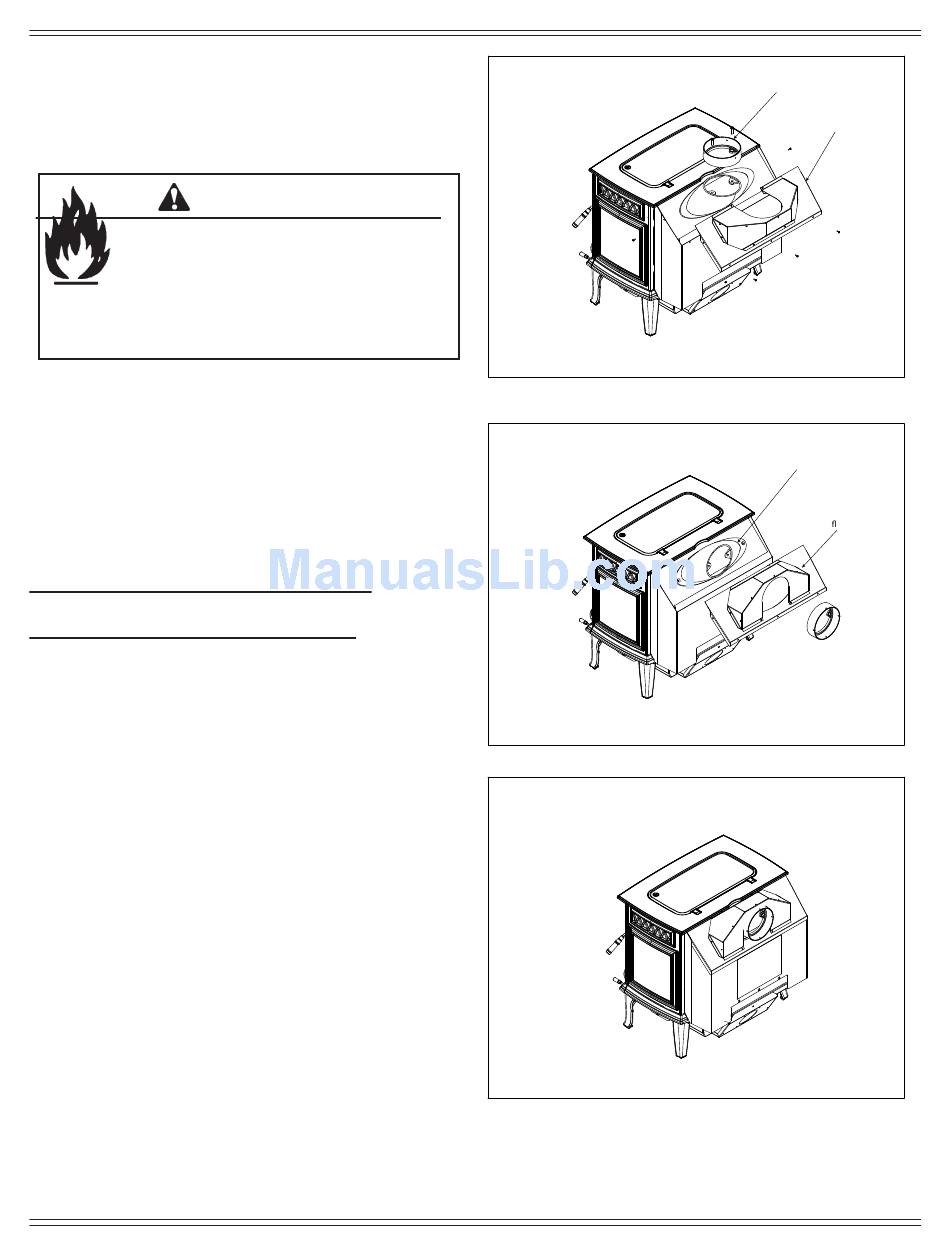

Figure 17.1
Figure 17.2
Figure 17.3 - Completed View
7060-228G
Explorer III Wood Stove
Flue collar
Convection
chamber top
Flue transition
Upper ue cover
17
