Cascaded Configurations
Please note: The master KVM Switch must have equal or more PC x
ports than that of the slave kvm unit. For example, if an 8-port switch is
the master, an 8-port or 4-port switch can be a slave, but not a 16-port
switch.
Please note: PS/2-only models can be cascaded with USB+PS/2 univer-
sal models.
Please note: To be used as slaves in a cascaded configuration, the slide
switch on SV831DUSBA must be adjusted to PS/2 mode.

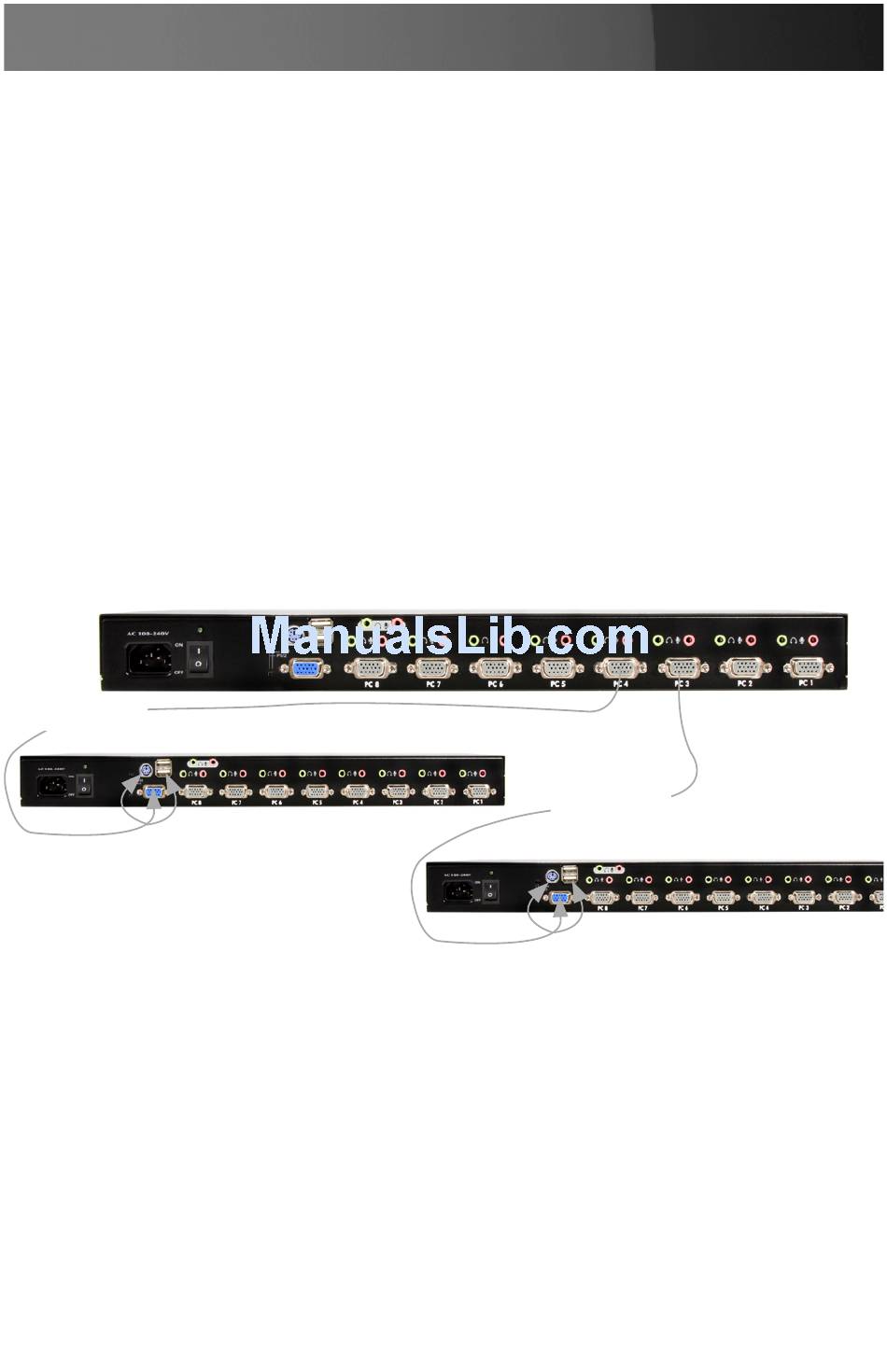

The ports labelled PC 1 - PC 8 can be connected to either a computer
or a slave unit CONSOLE port, as shown below. Use only 1-to-3 (PS/2)
cables to connect the master's PC ports and slave CONSOLE port, as
shown below.
Master
1-to-3 cable
Slave
1-to-3 cable
Slave
