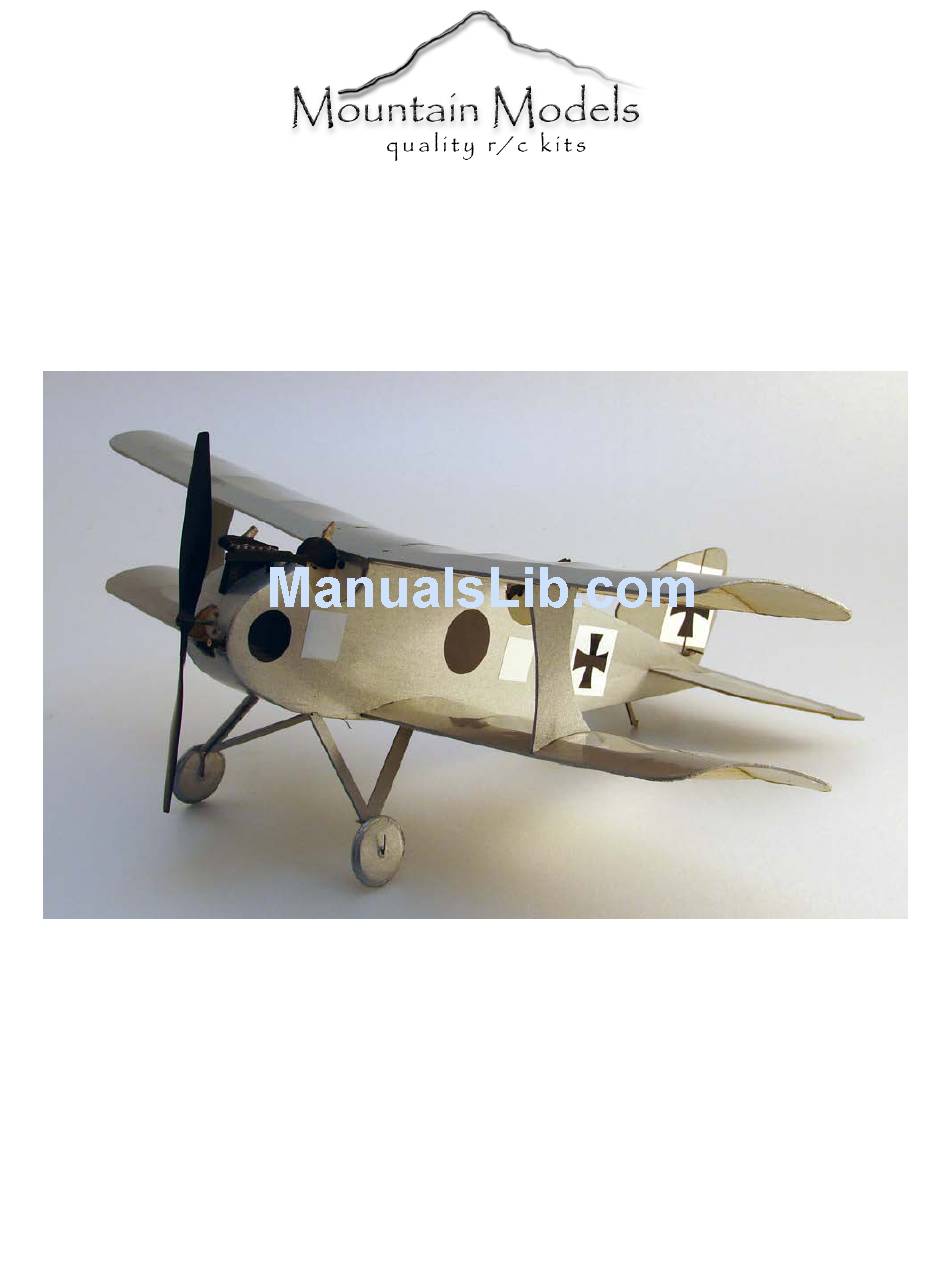

Roland c.II Walfisch
Ultra Micro Cartoon Scale WW I Electric Model
Roland c.II Walfisch
Wingspan: 13.35 in.
Length: 13.4 in.
Wing Area: 78 sq. in.
Weight (Ready to Fly): 1.4 oz.
Wing Loading: 2.6 oz. / sq. ft.
Version 1.0, August 23, 2013

Advertisement

loading
Need help?

Need help?

Do you have a question about the Roland c.II Walfisch and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Mountain Models Roland c.II Walfisch

  • Page 1 Roland c.II Walfisch Ultra Micro Cartoon Scale WW I Electric Model Roland c.II Walfisch Wingspan: 13.35 in. Length: 13.4 in. Wing Area: 78 sq. in. Weight (Ready to Fly): 1.4 oz. Wing Loading: 2.6 oz. / sq. ft. Version 1.0, August 23, 2013...
  • Page 2: Warranty

    The Mountain Models cartoon scale version of the Roland C.II Walfisch was designed using a state of the art 3D CAD package, to allow for exceptional interlocking parts design and fit. 3D design also allows us to provide clearer assembly images, without having to use photos.
  • Page 3: Before You Begin

    Before You Begin Check to make sure that all of your parts are there and in good shape. Parts List Number Description of Part in Kit Bundled Parts Laser Cut Parts (6 Sheets, See wood inventory page) Plan Sheets (11” x 17”) These instructions of course! Metal and Misc.
  • Page 4 General Building Tips • READ THE INSTRUCTIONS all the way through and study the plans BEFORE starting any work on the model. • PRE-SANDING: BEFORE removing any parts from the balsa sheets, use a sanding block with 320 grit sandpaper and lightly sand the back of the balsa sheets. Our balsa suppliers have been sending us wood that is over sized, so sanding the backs of the balsa sheets reduces the thickness just slightly and removes any charring from the laser cutting process.
