3-19) Freezer Door

Part Name
Freezer Door
How To Do
1. Pull out the Pull Out Drawer by
maximum.
2. After lifting the Pull Out Drawer up
holding both sides, remove it at the
rail system.
3. After lifting the Freezer Guard up
holding both sides, remove it at the
rail system.
The box may get scratch on its
side by getting twisted left and
CAUTION
right when disassembling the
drawer box.
4. Press the fixing hook of rail system.
5. After holding and pulling out the
top of Freezer Door, remove it at
the rail system.
Make sure there is no scratch
at the end of Sliding Rail by
CAUTION
being dented from the floor .
Disassembly and Reassembly
47

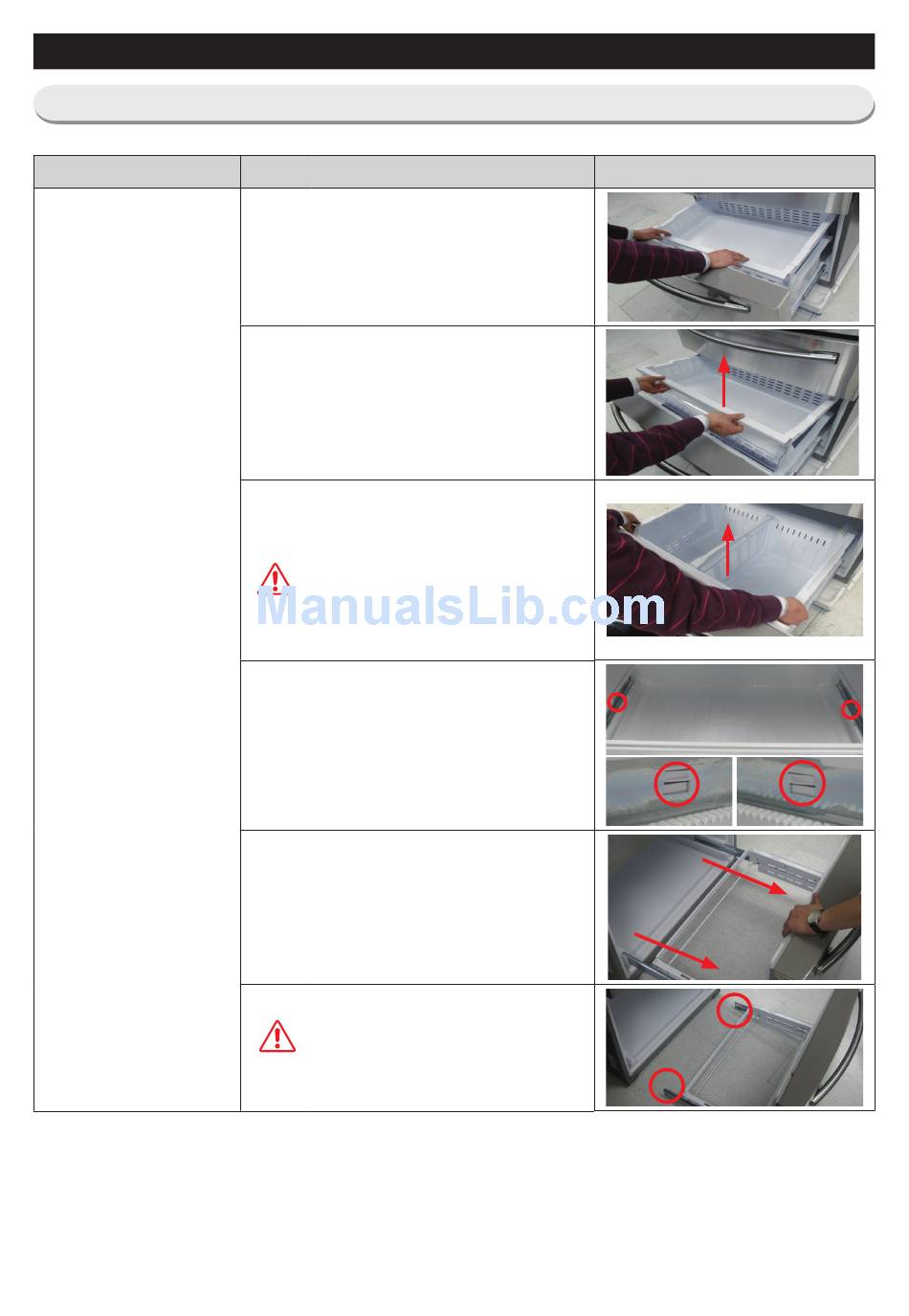

Descriptive Picture
