Disassembly and Reassembly

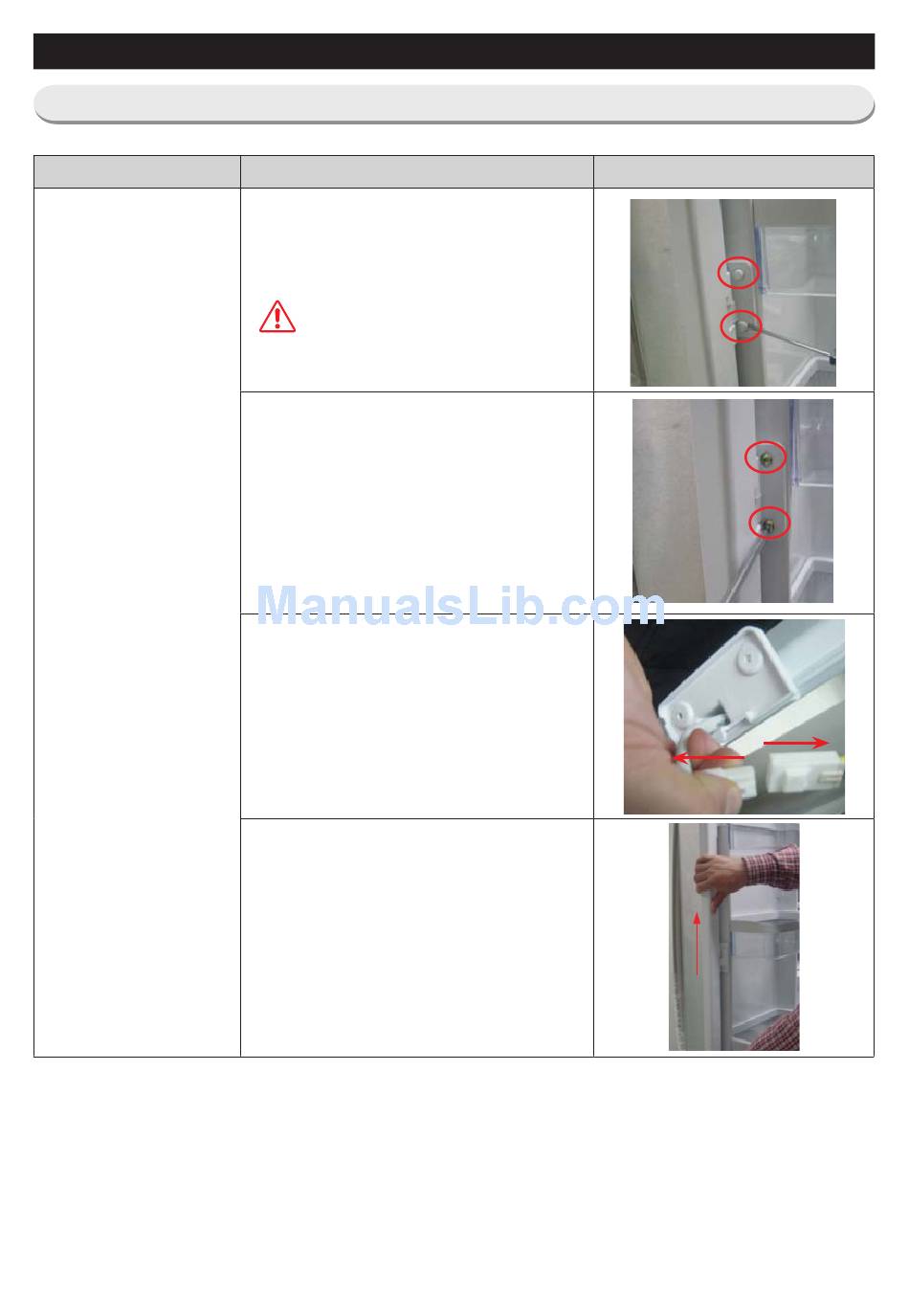

3-16) Vertical Hinged Section

Part Name
Vertical Hinged
Section
How To Do
1. Remove 2 screw cap parts with a
flat-blade(-) screwdriver.
(Refer to the picture)
Be careful not to scratch
or break the parts
CAUTION
2. Unscrew 2 screws.
3. Disengage the internal housing
connector of the vertical hinge.
4. Remove the vertical hinged section
by lifting the vertical hinge up.
(Refer to the picture)
44
Descriptive Picture
