PCB DIAGRAM

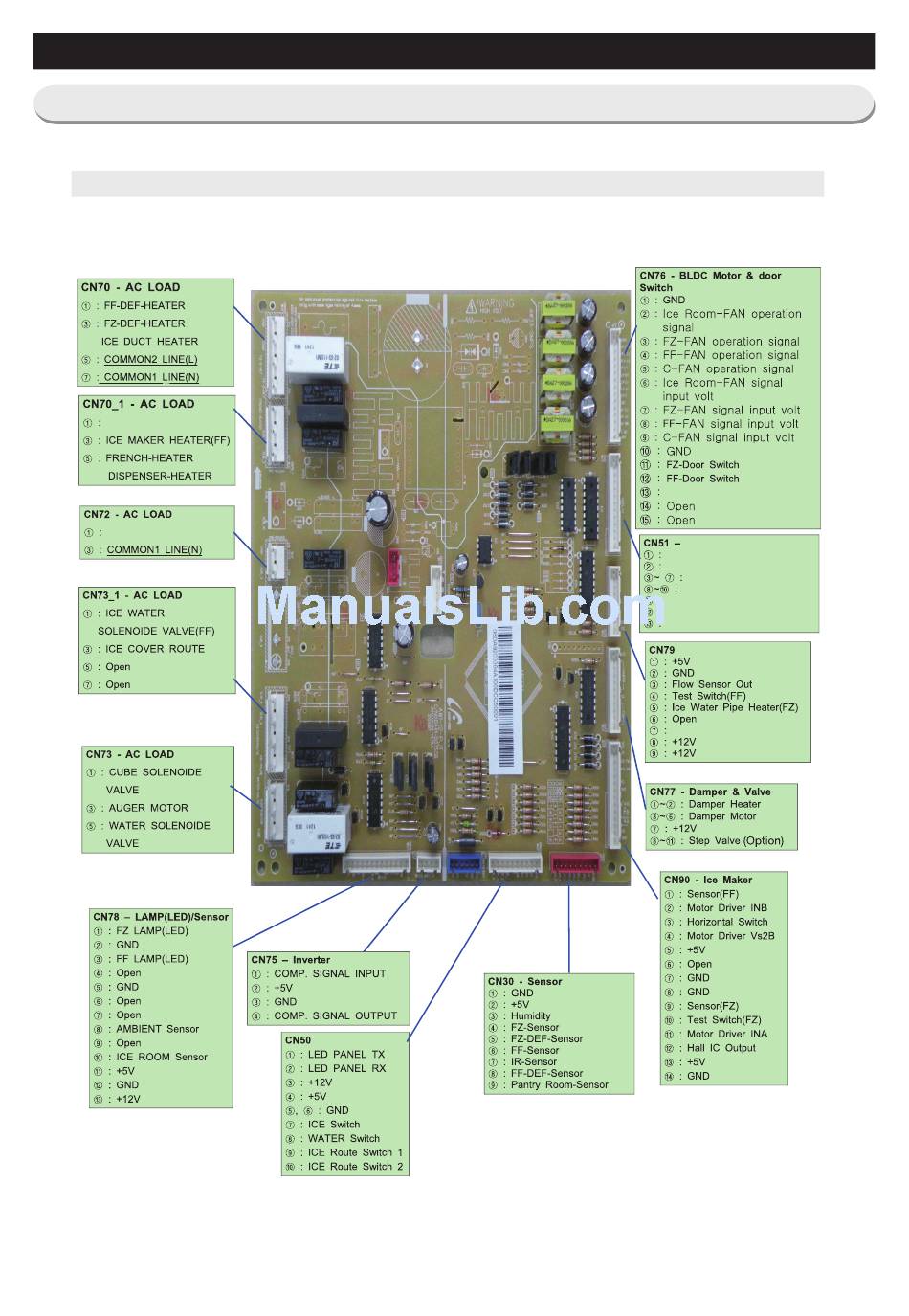

5-3) Connector Layout with part position (Main Board)

5-3-1. RF28** / RF25HM**
Main Valve
Mid DRAWER-DOOR Switch
OPEN
MID DRAWER ROOM DISPLAY
ICE Pipe Heater(FF) F/B
ICE Water Pipe Heater (FF)
Mid Drawer Room LED Driver
OPEN
Mid Drawer Room Switch
OPEN
OPEN
Ice Room Heater
