LCD panel usage

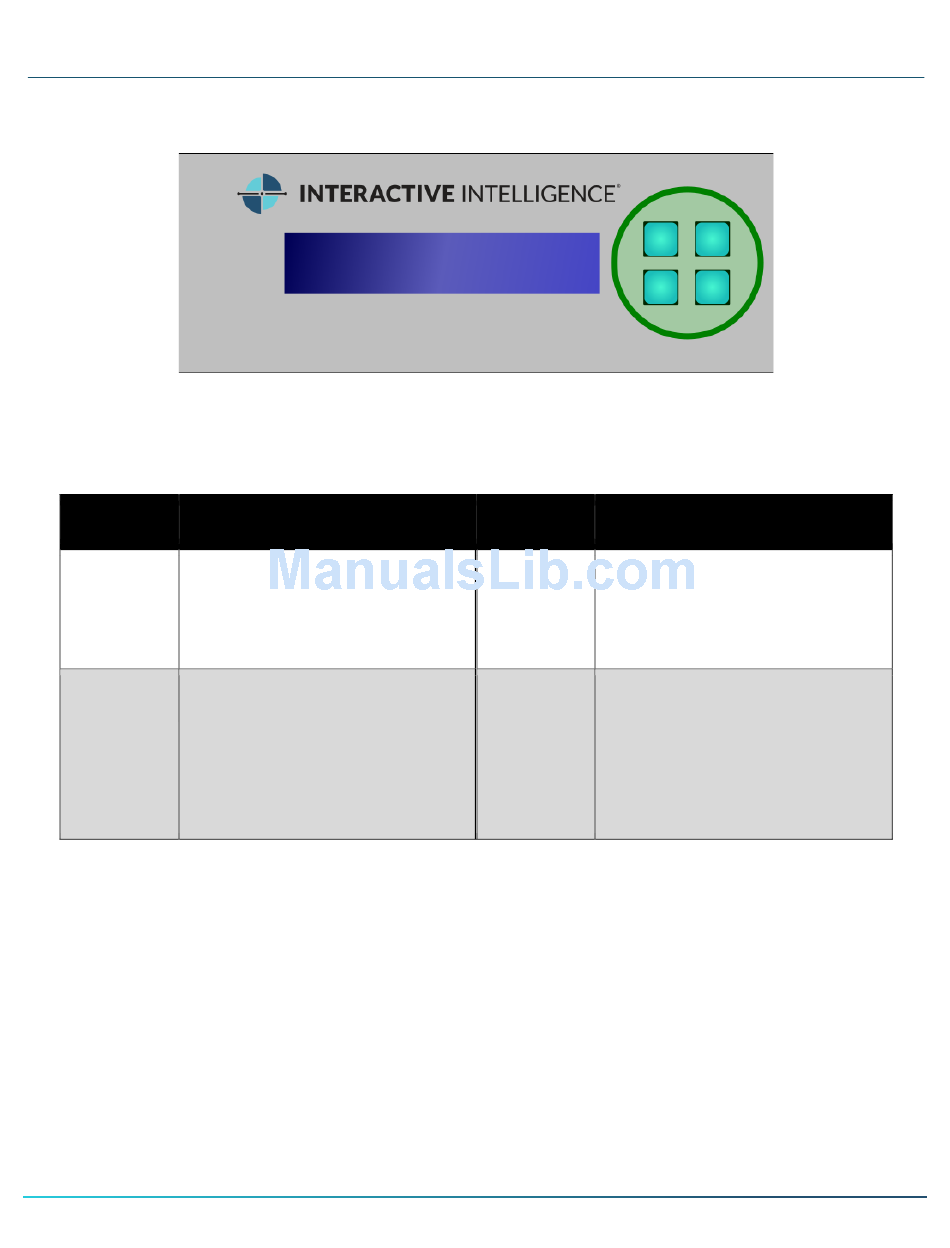

The PureCloud Edge appliance has four physical buttons to the right of the LCD panel. These buttons
enable you to configure the appliance, copy logs, restart it, view status, and restore the factory image.
Each LCD panel button has some common usages. When you configure PureCloud Edge with the LCD
panel buttons, the LCD panel displays icons that represent the functionality of each button for the current
menu item.
The following table provides some common functionality for each of the LCD panel buttons:
Button Functionality
Upper-left •
(UL)
•
•
•
Lower-left
(LL)
•
•
•
2
2
Enters currently-displayed
menu item
Confirms action
Moves the cursor to the left
Press and hold to display the
last status message
Returns to the parent menu
of the current item
Cancels action
Increases value at the cursor
Button Functionality
Upper- • Selects the previous menu
item
right (UR)
• Moves the cursor to the right
• Opens the main LCD menu
Lower-
right (LR)
• Select the next menu item
• Decreases value at the cursor
