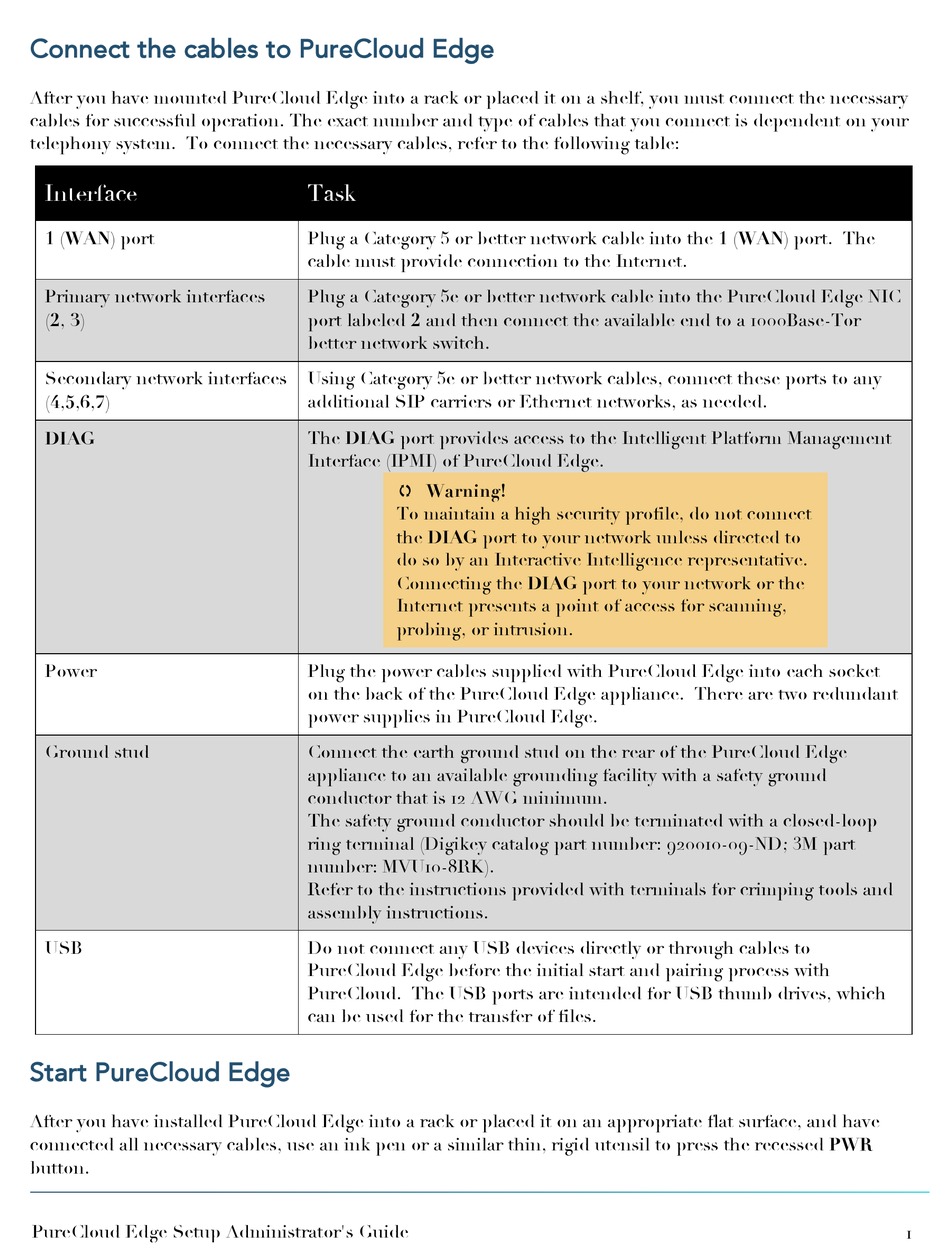

Connect the cables to PureCloud Edge

After you have mounted PureCloud Edge into a rack or placed it on a shelf, you must connect the necessary
cables for successful operation. The exact number and type of cables that you connect is dependent on your
telephony system. To connect the necessary cables, refer to the following table:
Interface
1 (WAN) port
Primary network interfaces
(2, 3)
Secondary network interfaces
(4,5,6,7)
DIAG
Power
Ground stud
USB

Start PureCloud Edge

After you have installed PureCloud Edge into a rack or placed it on an appropriate flat surface, and have
connected all necessary cables, use an ink pen or a similar thin, rigid utensil to press the recessed PWR
button.
PureCloud Edge Setup Administrator's Guide
Task
Plug a Category 5 or better network cable into the 1 (WAN) port. The
cable must provide connection to the Internet.
Plug a Category 5e or better network cable into the PureCloud Edge NIC
port labeled 2 and then connect the available end to a 1000Base-Tor
better network switch.
Using Category 5e or better network cables, connect these ports to any
additional SIP carriers or Ethernet networks, as needed.
The DIAG port provides access to the Intelligent Platform Management
Interface (IPMI) of PureCloud Edge.
q Warning!
To maintain a high security profile, do not connect
the DIAG port to your network unless directed to
do so by an Interactive Intelligence representative.
Connecting the DIAG port to your network or the
Internet presents a point of access for scanning,
probing, or intrusion.
Plug the power cables supplied with PureCloud Edge into each socket
on the back of the PureCloud Edge appliance. There are two redundant
power supplies in PureCloud Edge.
Connect the earth ground stud on the rear of the PureCloud Edge
appliance to an available grounding facility with a safety ground
conductor that is 12 AWG minimum.
The safety ground conductor should be terminated with a closed-loop
ring terminal (Digikey catalog part number: 920010-09-ND; 3M part
number: MVU10-8RK).
Refer to the instructions provided with terminals for crimping tools and
assembly instructions.
Do not connect any USB devices directly or through cables to
PureCloud Edge before the initial start and pairing process with
PureCloud. The USB ports are intended for USB thumb drives, which
can be used for the transfer of files.
