Configure The Ip Address Of The Purecloud Edge Wan Network Interface - Interactive Intelligence PureCloud Edge Administrator's Manual

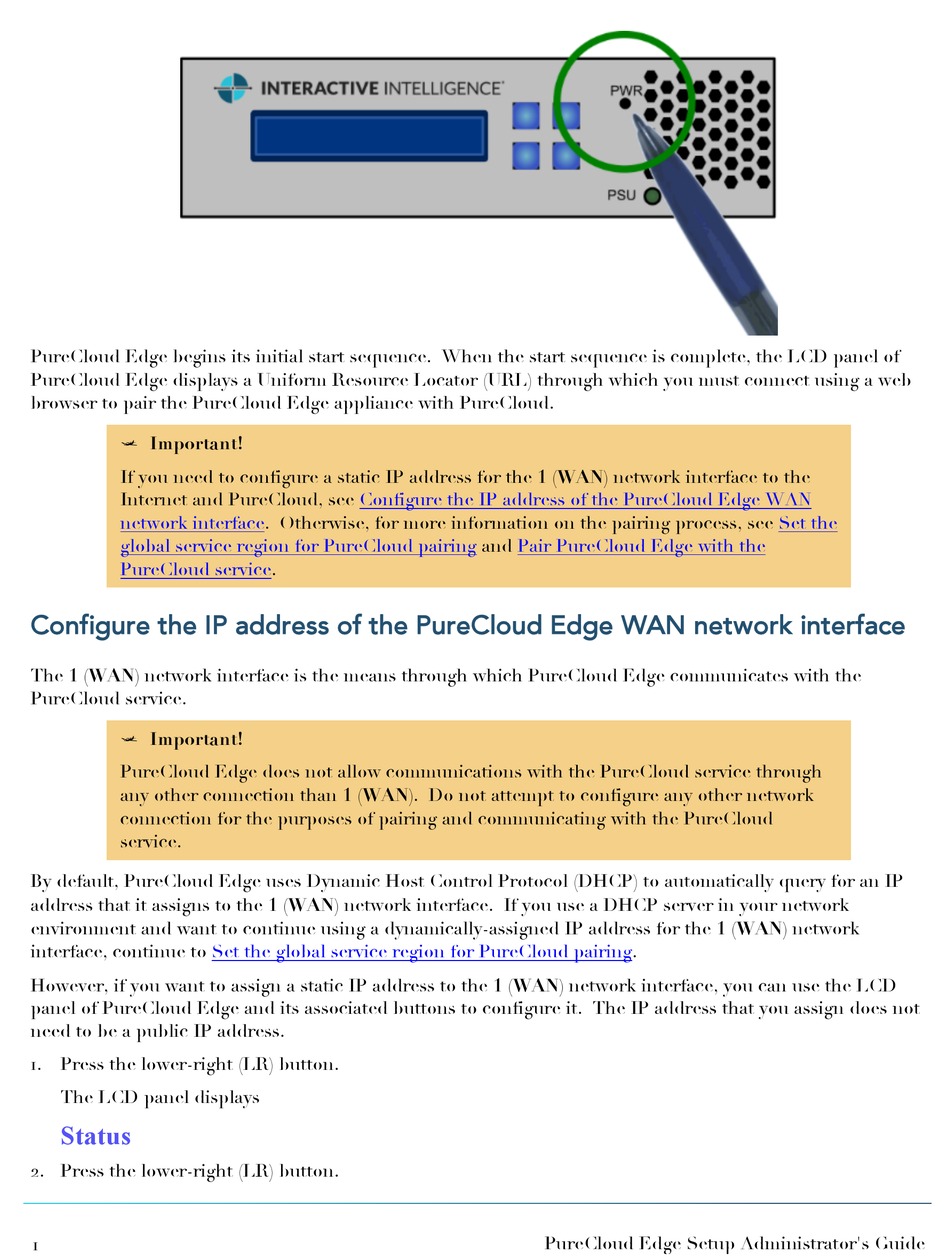

PureCloud Edge begins its initial start sequence. When the start sequence is complete, the LCD panel of
PureCloud Edge displays a Uniform Resource Locator (URL) through which you must connect using a web
browser to pair the PureCloud Edge appliance with PureCloud.
j Important!
If you need to configure a static IP address for the 1 (WAN) network interface to the
Internet and PureCloud, see
network interface. Otherwise, for more information on the pairing process, see
global service region for PureCloud pairing
PureCloud

Configure the IP address of the PureCloud Edge WAN network interface

The 1 (WAN) network interface is the means through which PureCloud Edge communicates with the
PureCloud service.
j Important!
PureCloud Edge does not allow communications with the PureCloud service through
any other connection than 1 (WAN). Do not attempt to configure any other network
connection for the purposes of pairing and communicating with the PureCloud
service.
By default, PureCloud Edge uses Dynamic Host Control Protocol (DHCP) to automatically query for an IP
address that it assigns to the 1 (WAN) network interface. If you use a DHCP server in your network
environment and want to continue using a dynamically-assigned IP address for the 1 (WAN) network
interface, continue to
However, if you want to assign a static IP address to the 1 (WAN) network interface, you can use the LCD
panel of PureCloud Edge and its associated buttons to configure it. The IP address that you assign does not
need to be a public IP address.
1. Press the lower-right (LR) button.
The LCD panel displays
Status
2. Press the lower-right (LR) button.
1
6
Configure the IP address of the PureCloud Edge WAN
service.
Set the global service region for PureCloud
and Pair PureCloud Edge with the
pairing.
PureCloud Edge Setup Administrator's Guide
Set the
