MAINTENANCE

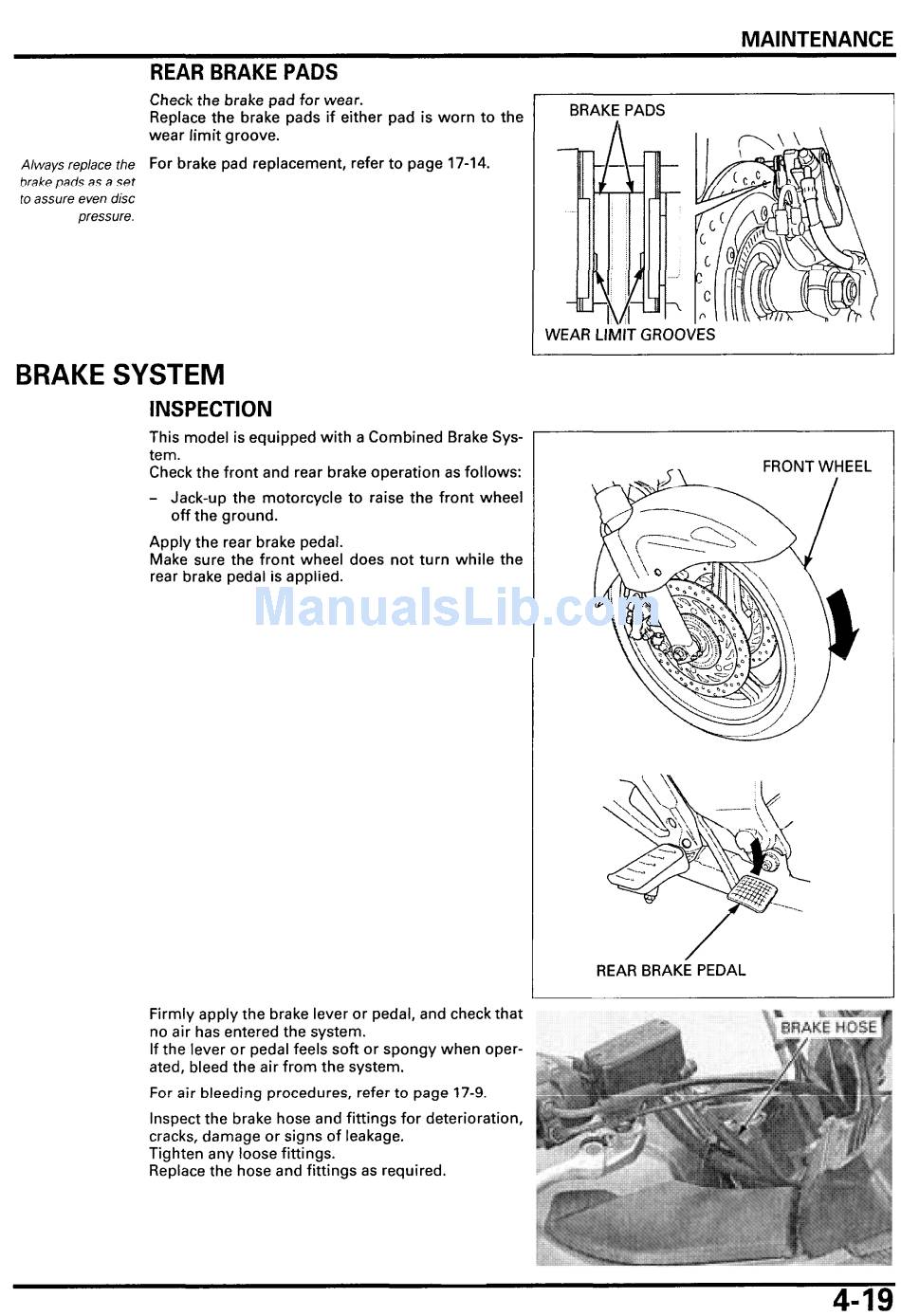

REAR BRAKE PADS
U Y
.
Replace the brake pads if either pad is worn to the
wear limit groove.
Always replace the
For brake pad replacement, refer to page 17-14.
brake pads as a set
to assure even disc
pressure.
BRAKE SYSTEM
INSPECTION
This model is equipped with a Combined Brake Sys-
tem.
Check the front and rear brake operation as follows:
-
Jack-up the motorcycle to raise the front wheel
off the ground.
Apply the rear brake pedal.
Make sure the front wheel does not turn while the
rear brake pedal is applied.
Firmly apply the brake lever or pedal, and check that
no air has entered the system.
If the lever or pedal feels soft or spongy when oper-
ated, bleed the air from the system.
Inspect the brake hose and fittings for deterioration,
cracks, damage or signs of leakage.
Tighten any loose fittings.
Replace the hose and fittings as required.
BRAKE PADS
WEAR LIMIT GROOVES
C l
FRONT WHEEL
REAR BRAKE PEDAL
