Step 11:
Assembly

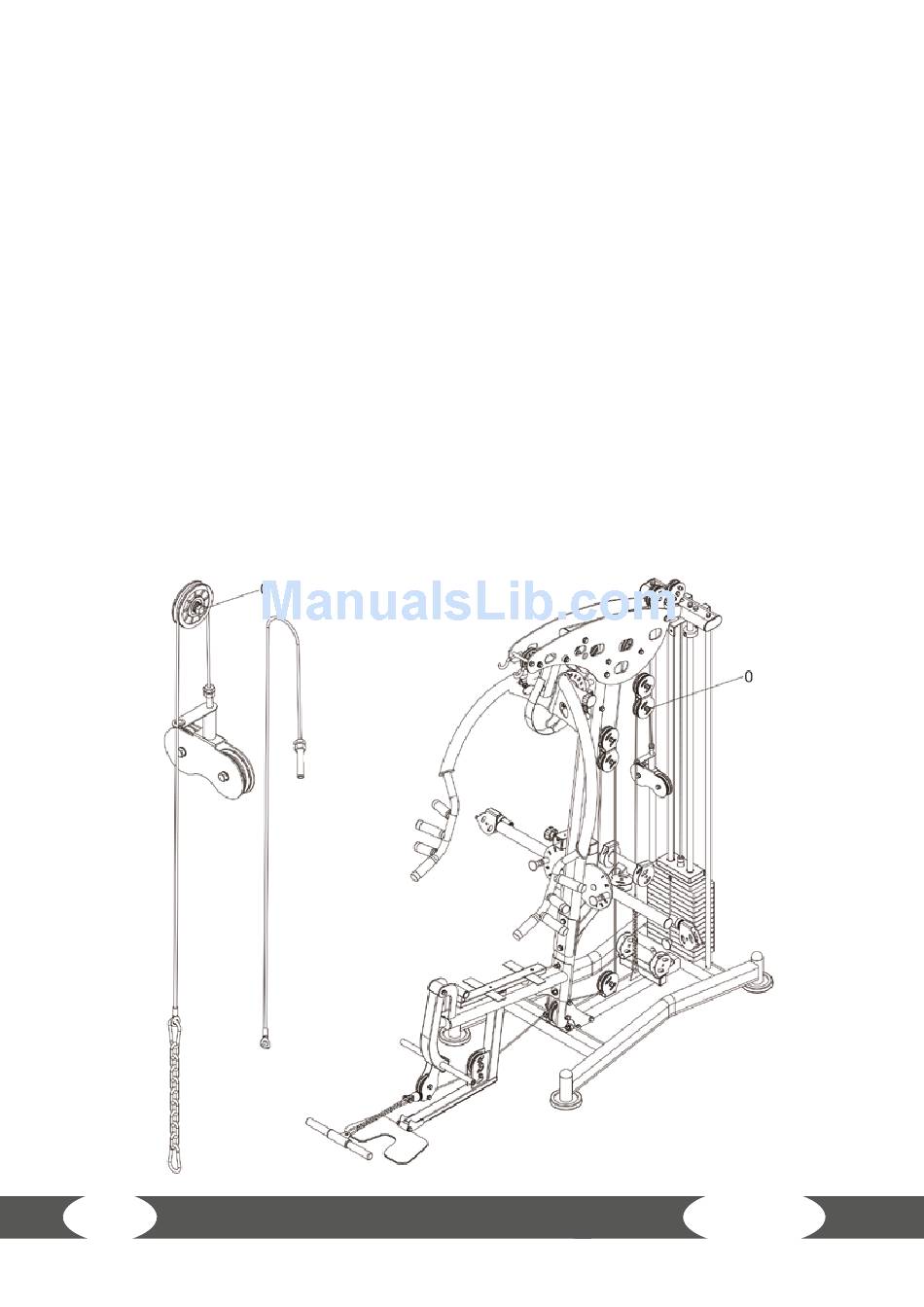

1. Mount two guide pulleys (49) to the double guide-pulley mount (66) using hexagon
bolts M10*45 (56), washers Φ10 (5) and locking nuts M10 (16).
2. Mount one end of the chain (60) to the pull cable (68) and the other end low down
on the base frame.
3. Guide the pull cable through the opening in the small plate/spacer (51) on the
double guide-pulley mount (66) and then connect the screw end of the pull cable
(66) to the double guide-pulley mount (66). Secure the spacer (51) onto the double
guide-pulley mount (66) using the pre-mounted nut.
4. Place the pull cable (68) between the spacer (51) and the screw end of the cable
via the guide pulley (49). Now secure the guide pulley (49) in 0 position in the guide-
pulley mount using hexagon bolt M10*45 (56), four washers Φ10 (5) and nut M10 (16).
WS7
36
