Step 3:

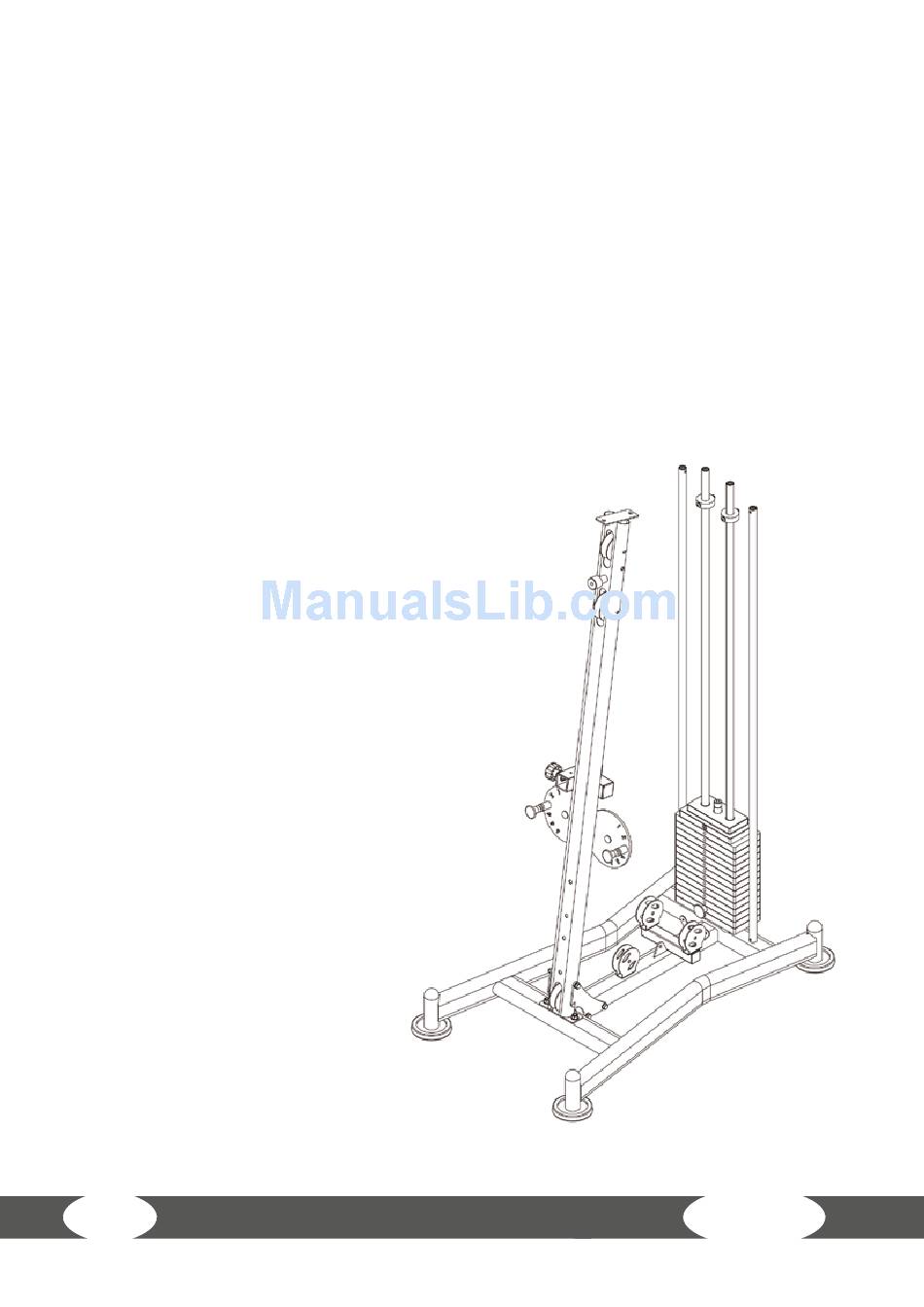

Assembly
1. Mount the diagonal, front frame section (25) to the base frame (1) using hexagon
bolts M12*70 (19), washers Φ12 (20) and locking nuts M12 (21).
2. Mount the two side mounting plates (17) to the diagonal, front frame section (25)
and to the base frame (1) using three hexagon bolts M10*130 (22), six washers Φ10 (5)
and three locking nuts M10 (16).
3. Mount the two locking pins (23) to the two circular plates on the front of the frame
section (25).
4. Mount the pull pin/retaining pin (24) to the diagonal, front frame section (25).
