Connection/installation
WARNING
Warning, danger of death through electric shock!
Must be installed by professional electrician!
Disconnect power source.
Cover or shield any adjacent live compo-
nents.
Ensure device cannot be switched on!
Check power supply is disconnected!
Earth and bypass!

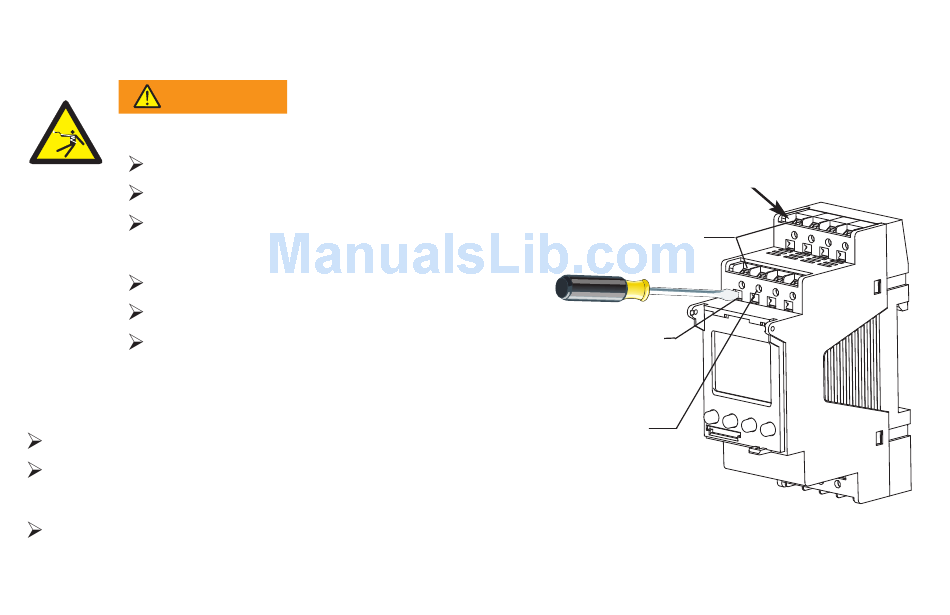

Connect cable
Strip cable by 8 mm (max. 9).
Insert cable at 45° in the open terminal
(2 cables per terminal is possible).
Only for flexible wiring: Press screwdriver downwards
to open spring screwless terminal.
6
45° cable
Spring screwless
terminal
Spring screw-
less terminal
NC contact
Test tap
