TERMINA
TR 610 top2
TR 612 top2
610 0 102
612 0 102
Assembly and
operating instructions
Time switch
Instrucciones de montaje
y de uso
Interruptor horario
Manual de instruções
e de montagem
Temporizador
Montage- und
Bedienungsanleitung
Schaltuhr

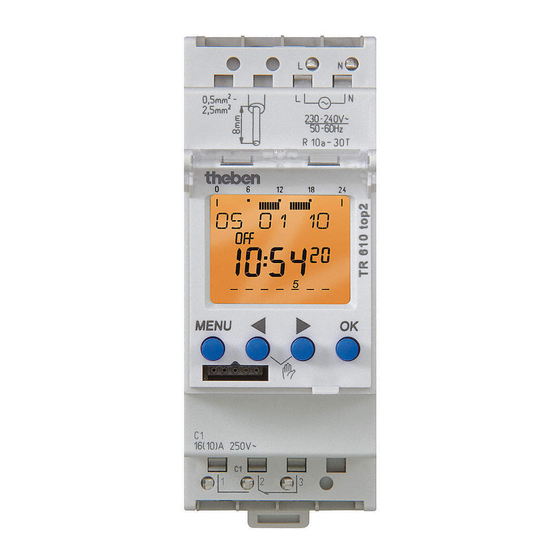

2
0,5mm -
2
2,5mm
230-240V~
50-60Hz
R 10a - 30T
0
6
12
18
24
MENU
OK
1
1
16(10)A 250V~
C1
1
2
3
13
25
TERMINA TR 610 top2
37

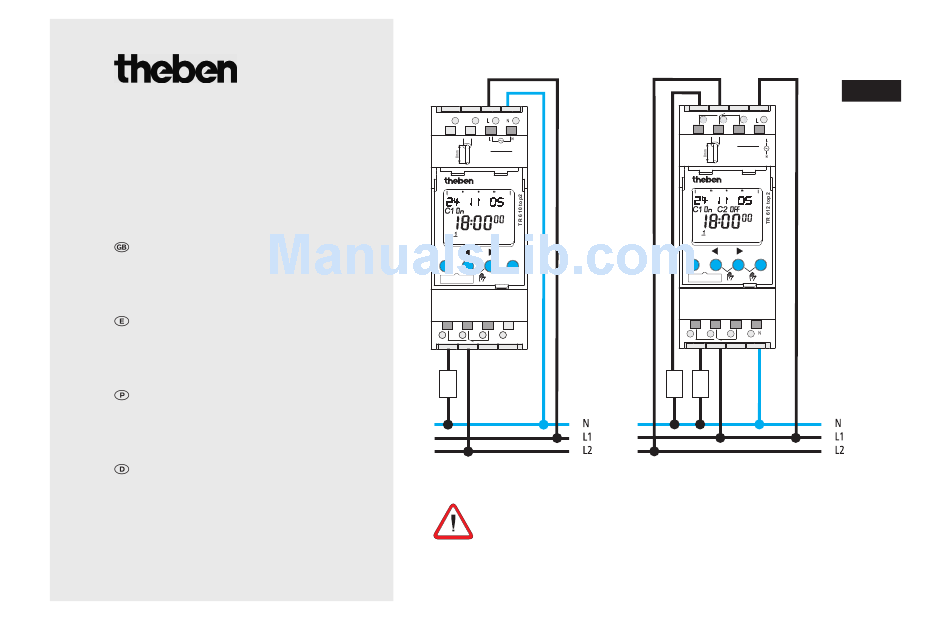

Current connection required for smooth zerocrossing switch operation
(see connection diagram)!
309 164 05
4
5
6
C2
2
0,5mm -
2
230-240V~
2,5mm
50-60Hz
R 10a - 30T
0
6
12
18
24
MENU
OK
1
2
C1/C2
16(10)A 250V~
C1
1
2
3
TERMINA TR 612 top2
GB
Advertisement
Table of Contents
Related Manuals for Theben TERMINA TR 610 top2
Summary of Contents for Theben TERMINA TR 610 top2
- Page 1 16(10)A 250V~ Instrucciones de montaje y de uso Interruptor horario Manual de instruções e de montagem Temporizador Montage- und TERMINA TR 612 top2 TERMINA TR 610 top2 Bedienungsanleitung Schaltuhr Current connection required for smooth zerocrossing switch operation (see connection diagram)!
-
Page 2: Table Of Contents
Contents Basic advice Screen display and keys/Operating principle Menu overview Connection/assembly Initial start-up Menu item PROGRAM Reprogram switching time Change switching time Menu item MANUAL Manual and permanent switching Menu item OPTIONS PIN code Memory card OBELISK top2, RESET Technical data Service address/Hotline... -
Page 3: Basic Advice
Basic advice WARNING Danger of death through electric shock or fire! Installation should only be carried out by professional electrician! • The device is designed for installation on DIN top hat rails (in accordance with EN 60715) • Corresponds to type 1 BSTU in accordance with IEC/EN 60730-2-7 •... -
Page 4: Screen Display And Keys/Operating Principle
Screen display and keys Operating principle Programmed 1. Read text line switch times Flashing text/symbol represents question Date display Time display Channel status Days of the week from C1, C2 1 – 7 2. Make decision Display of active buttons with relevant function bbbb Confirmation... -
Page 5: Menu Overview
Menu overview MENU 19 10 06 PROGRAM TIME/DATE MANUAL OPTIONS C1 OFF C2 OFF 9:40 TIME PERM ON OPERATING HOUR CHECK SET DATE PERM OFF LCD ILLUMINA- TION SU-WI OVERRIDE LANGUAGE MODIFY WEEK DAY HOLIDAY DELETE FORM DATE FACTORY SETTINGS FORM TIME INFO... -
Page 6: Connection/Assembly
Connection/installation WARNING Warning, danger of death through electric shock! Must be installed by professional electrician! 45° cable Disonnect power source. Cover or shield any adjacent live compo- Spring screwless nents. terminal Ensure device cannot be switched on! Check power supply is disconnected! Spring screw- Earth and bypass! less terminal... -
Page 7: Initial Start-Up
Initial start-up GERMAN (see fig.) YEAR MONTH Set date, time and summer-/winter time rule HOUR MINUTE Press desired button and follow on-screen SU-WI SU-WI GB/IRL/P 19 10 06 C1 OFF C2 OFF EUROPA instructions. 9:40 SU-WI FIN/GR/ SU-WI CDN SU-WI USA07 SU-W IRAN SU-WI FREE RULE... -
Page 8: Reprogram Switching Time
Reprogram swtiching time (see fig.) PROGRAM SWITCH Press MENU. FREE 56 Confirm with OK or select desired setting Reconfirm with OK . HOUR You have 56 memory locations available. MINUTE MONDAY same switching time for Switching several days = Block time for COPY SAVE... -
Page 9: Change Switching Time
Change/delete switching time (see fig.) PROGRAM Press MENU. Confirm with OK or select CHECK desired setting MODIFY SWITCH Reconfirm with OK . DELETE MONDAY You can either change or delete a block, i.e. a MODIFY HOUR switching time copied for several days MODIFY (e.g. -
Page 10: Manual And Permanent Switching
Manual and permanent switching can be selec- OPTIONS (see fig.). ted by using menu option MANUAL or (in the If you have forgotten the PIN call the automatic display) via a combination of buttons Theben Hotline. (see fig.). OPTIONS Channel Channel... -
Page 11: Memory Card Obelisk Top2, Reset
Memory card OBELISK top2 COPY OBELISK -> TSWI COPY TSWI -> Use memory card OBELISK RUN OBELISK Insert memory card in the timer. Request savedswitch timings, read to/from CHECK OBELISK the timer or start Obelisk program. Memory card OBELISK top2 (No. -
Page 12: Technical Data
Service address • Contact material: AgSnO • Switching capacity max.: 16 A, 250 V~, cos ϕ = 1; Theben AG 10 A, 250 V~, cos ϕ = 0.6 Hohenbergstr. 32 • Switching capacity min.: 10 mA/230 V AC...
